Spark Plug 90117
Spark Plug 90117

NGK Spark Plug 90117

XPart Number XP10706040
$29.45
Available by special order

Choose an available buying option.
Available by special order
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
AUTOMOTIVE PART

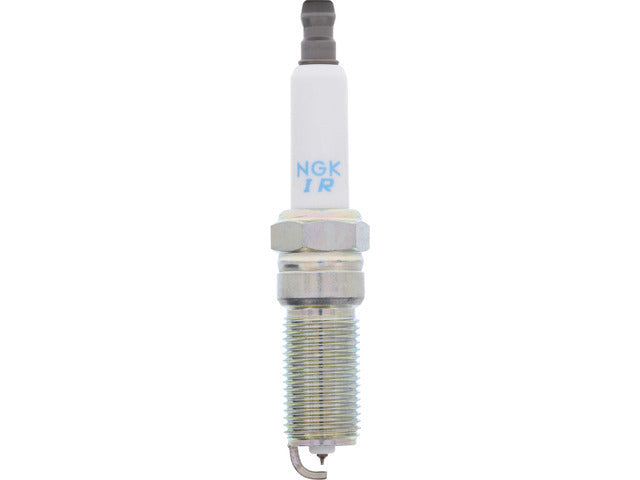

NGK Spark Plug 90117

Spark Plug, ILTR6E11, Laser Iridium

Part 90117NGKSpark Plug
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.

Is This the Right Part?

Manufacturer Part Number90117
ManufacturerNGK
Part TypeSpark Plug

Part Details

Part Specifications

Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Hex Size 5/8" (16mm)
Insulator Height 2.07 IN
Insulator Material Ceramic
Manufacturer Heat Range 6
Material Grade Iridium Platinum
Part Number ILTR6E11
Pre-Gap Size .044 IN
Prop65 NA
Reach 0.984 IN
Resistance 5000.0 82
Resistor Type Yes
Seat Type Tapered
Short Style Spark Plug No
Stock Number 90117
Thread Diameter 0.551 IN
Thread Diameter 14.0 MM

Verified Vehicle Fitment

Make: Buick, Cadillac, Chevrolet, Ford, GMC, Pontiac, Saab, Saturn
Model: 33 verified models — see exact combinations below.
Years: 2006–2024 — varies by model and configuration.

Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.

View vehicle applications (71 configuration groups)
Years Make Model Position Engine / transmission / notes
2008 Buick Allure — Engine: 3.6 V6; OE Equivalent Design, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2010 Buick Allure — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2006–2007, 2010 Buick Allure — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2021–2024 Buick Enclave — OE Equivalent Design*, 100,000 mi Factory Recommended Service Interval, Gap 0.044in
2008–2011, 2018–2020 Buick Enclave — OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2017 Buick Enclave — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2006–2008 Buick LaCrosse — Engine: 3.6 V6; Gap 0.044in
2010 Buick LaCrosse — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2010–2011 Buick LaCrosse — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2016 Buick LaCrosse — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2013–2015 Cadillac ATS — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2008 Cadillac CTS — Gap 0.044in
2006–2007, 2009–2010 Cadillac CTS — Engine: 3.6 V6; Gap 0.044in
2010–2011 Cadillac CTS — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2011 Cadillac CTS — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2014 Cadillac CTS — Aspiration: Normal; Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2015 Cadillac CTS — Aspiration: Normal; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2014 Cadillac CTS — Engine: 3.0 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2013 Cadillac CTS — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2006–2009 Cadillac SRX — Engine: 3.6 V6; Gap 0.044in
2010–2011 Cadillac SRX — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2016 Cadillac SRX — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2011 Cadillac STS — Gap 0.044in
2006–2010 Cadillac STS — Engine: 3.6 V6; Gap 0.044in
2018–2019 Cadillac XTS — Aspiration: Normal; OE Equivalent Design*, 96,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2013 Cadillac XTS — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2014–2017 Cadillac XTS — Aspiration: Normal; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2010 Chevrolet Camaro — Engine: 3.6 V6; Gap 0.044in
2011 Chevrolet Camaro — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2015 Chevrolet Camaro — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2017 Chevrolet Caprice — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012 Chevrolet Captiva Sport — Engine: 3.0 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2015–2016 Chevrolet Colorado — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2008–2009 Chevrolet Equinox — Engine: 3.6 V6; Gap 0.044in
2010–2011 Chevrolet Equinox — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012 Chevrolet Equinox — Engine: 3.0 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2013–2017 Chevrolet Equinox — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2020 Chevrolet Impala — OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2018–2019 Chevrolet Impala — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2013 Chevrolet Impala — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2016–2017 Chevrolet Impala — Engine: 3.6 V6; Fuel Type: Flex; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, New Models, Gap 0.044in
2014 Chevrolet Impala — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, New Models, Gap 0.044in
2015 Chevrolet Impala — Fuel Type: Flex; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, New Models, Gap 0.044in
2014–2016 Chevrolet Impala Limited — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Carry Over Model, Gap 0.044in
2008–2009 Chevrolet Malibu — Engine: 3.6 V6; Gap 0.044in
2010–2011 Chevrolet Malibu — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012 Chevrolet Malibu — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2021–2023 Chevrolet Traverse — OE Equivalent Design*, 100,000 mi Factory Recommended Service Interval, Gap 0.044in
2009–2011, 2020 Chevrolet Traverse — OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2018–2019 Chevrolet Traverse — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2017 Chevrolet Traverse — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2024 Chevrolet Traverse Limited — OE Equivalent Design*, 100,000 mi Factory Recommended Service Interval, Gap 0.044in
2017 Ford E-350 Super Duty — Engine: 6.2 V8; 2 Plugs Per Cylinder Required, 16 Required, Gap 0.044in
2010–2014 Ford F-150 — Engine: 6.2 V8; 2 Plugs Per Cylinder Required, 16 Required, Gap 0.044in
2011–2017 Ford F-250 Super Duty — Engine: 6.2 V8; 2 Plugs Per Cylinder Required, 16 Required, Gap 0.044in
2011–2017 Ford F-350 Super Duty — Engine: 6.2 V8; 2 Plugs Per Cylinder Required, 16 Required, Gap 0.044in
2007–2011 GMC Acadia — OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012–2016 GMC Acadia — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2017 GMC Acadia Limited — OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Carry Over Model, Gap 0.044in
2015–2016 GMC Canyon — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2010–2011 GMC Terrain — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2012 GMC Terrain — Engine: 3.0 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2013–2017 GMC Terrain — Engine: 3.6 V6; OE Equivalent Design*, 97,500 mi OE Mfr Recommended Service Interval, Gap 0.044in
2007–2009 Pontiac G6 — Engine: 3.6 V6; Gap 0.044in
2008–2009 Pontiac G8 — Engine: 3.6 V6; Gap 0.044in
2008–2009 Pontiac Torrent — Engine: 3.6 V6; Gap 0.044in
2011 Saab 9-4X — Engine: 3.0 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2007–2009 Saturn Aura — Engine: 3.6 V6; Gap 0.044in
2007–2010 Saturn Outlook — OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in
2008–2009 Saturn Vue — Engine: 3.6 V6; Gap 0.044in
2010 Saturn Vue — Engine: 3.6 V6; OE Equivalent Design*, 100,000 mi OE Mfr Recommended Service Interval, Gap 0.044in

Source: supplier-verified applications for NGK 90117. A vehicle not listed is not confirmed compatible.
