REFRIGERATOR PRODUCES LITTLE OR NO ICE
LG Automatic Ice Maker Kit / Refrigerator Ice Maker Assembly Kit AEQ73449909, Fixes Refrigerator produces little or no ice

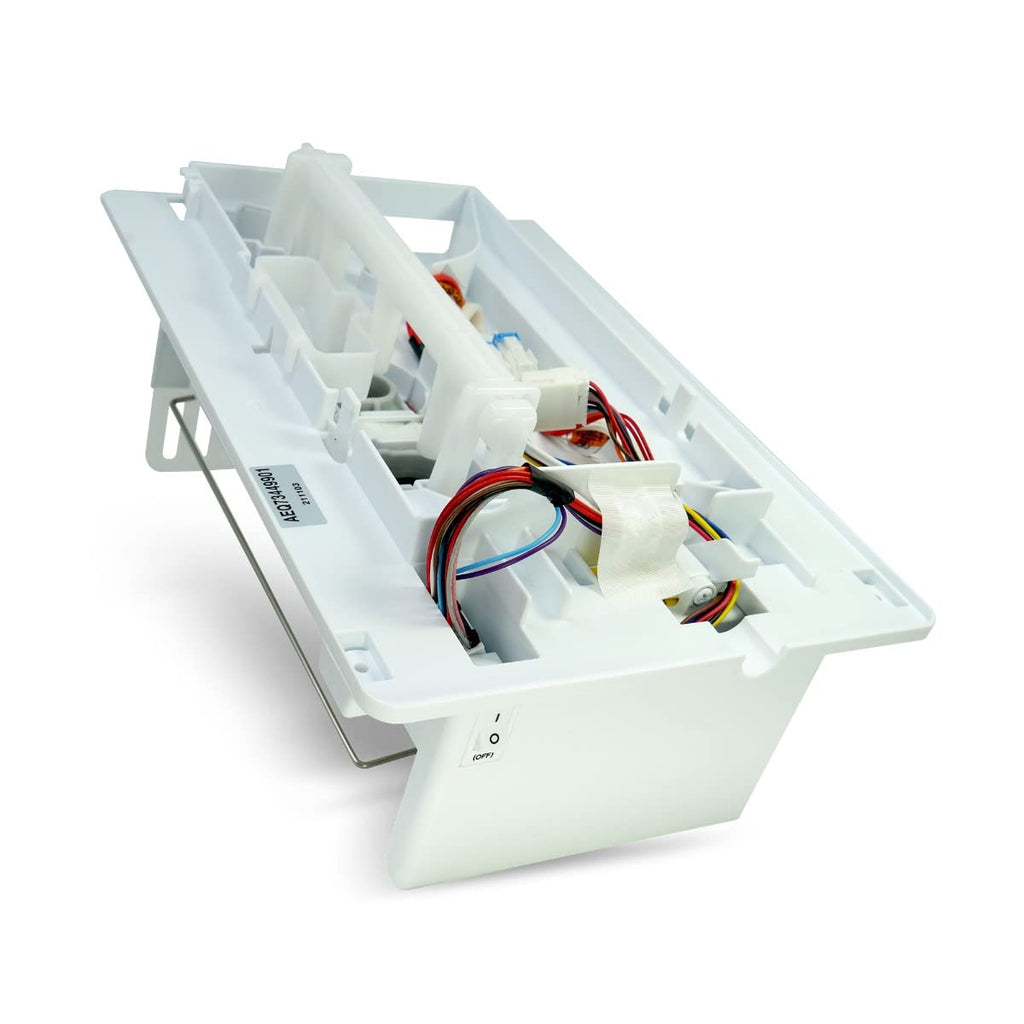

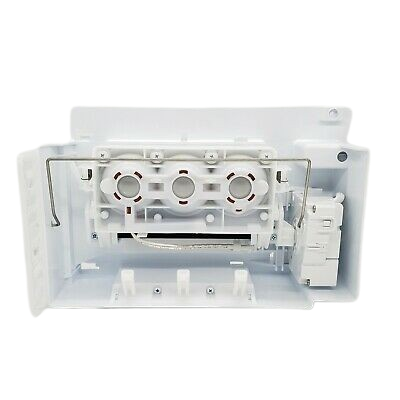

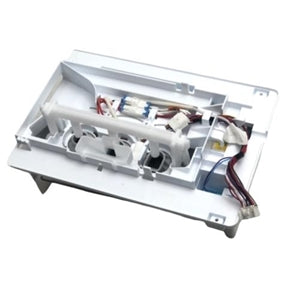

LG automatic refrigerator ice-maker assembly kit. The assembly harvests, rotates, and ejects ice cubes into the storage bin, detects the water-fill level, and freezes designated amounts of water. LG identifies it as an automatic ice maker kit for select refrigerators, including models equipped with Craft Ice.
Part AEQ73449909Replaces AEQ73449901LG
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberAEQ73449909
ReplacesAEQ73449901
ManufacturerLG
Appliance TypeRefrigerator
Part TypeAutomatic Ice Maker Kit / Refrigerator Ice Maker Assembly Kit
✅ Cross Reference Information
Current Part NumberAEQ73449909
ReplacesAEQ73449901
Common Symptoms
- Ice maker does not cycle or harvest ice.
- Ice production is slow after installation or service.
- Ice cubes are undersized, clumped, or irregular.
- Ice maker stops because the bin-level shutoff mechanism detects a full or obstructed bin.
- Water or ice remains in the tray after a failed cycle.
Check Before Replacing
- Confirm the ice maker is switched on or enabled in the refrigerator controls.
- Confirm the refrigerator has been connected to a cold water supply and check the connection for visible leaks.
- Verify that the freezer is cold enough for ice production and allow up to 24 hours after installation or temperature changes.
- Check that the ice bin is seated correctly and that ice is not obstructing the shutoff mechanism or ice-making area.
- If the refrigerator model provides an ice-maker test function, follow the model-specific LG procedure and observe whether the motor cycles and whether water is present in the tray; do not touch moving parts.
- If the test fails to cycle or fill, stop troubleshooting and refer the refrigerator for service rather than forcing the mechanism.
Pro Tip
After installation or reconnection, allow up to 24 hours for ice production to begin and discard the first batches of ice according to the refrigerator's care instructions.
Part Details
Part NumberAEQ73449909
Part TypeAutomatic Ice Maker Kit / Refrigerator Ice Maker Assembly Kit
ManufacturerLG
Appliance TypeRefrigerator
Primary FunctionAutomatically harvests, rotates, ejects, and fills ice cubes for the refrigerator ice bin; the assembly also monitors the ice-making cycle and fill level.
Installation Notes
- Disconnect refrigerator power before servicing or replacing the ice-maker assembly.
- Turn off the refrigerator's water supply before disconnecting any water connection associated with the ice maker.
- Use the installation and service instructions for the specific refrigerator model; connector, mounting, and access details can vary by model.
- After installation, restore the water supply, inspect connections for leaks, and confirm the ice maker is enabled.
- Do not place fingers or tools near the ejector mechanism or heating element while the refrigerator is energized.
- Allow the refrigerator and ice maker time to reach operating temperature before evaluating ice production.
Verified Compatible Models
GR-J308MMYM.AMTCNA0, GR-X23GMKYM.ASBCNA1, GR-X308MSYM.ASTCNA0, LMRS28626S, LRFDS3016M, LRFVC2406D, LRFVC2406S, LRFVS3006D, LRFVS3006D.ASBCNA2, LRMDS3006D, LRMDS3006S, LRMVS3006D, LRMVS3006S, SKSFD3613S, SRFVC2406S
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
