Samsung DC31-00112A Washer Rotor — Fixes No-Spin / Drum Not Turning
DC31-00112A Washer Rotor 1400RPM (replaces COM1500P)

Samsung DC31-00112A Washer Rotor — Fixes No-Spin / Drum Not Turning

Price
$99.95
Buying Options: Used

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
OEM REPLACEMENT PART

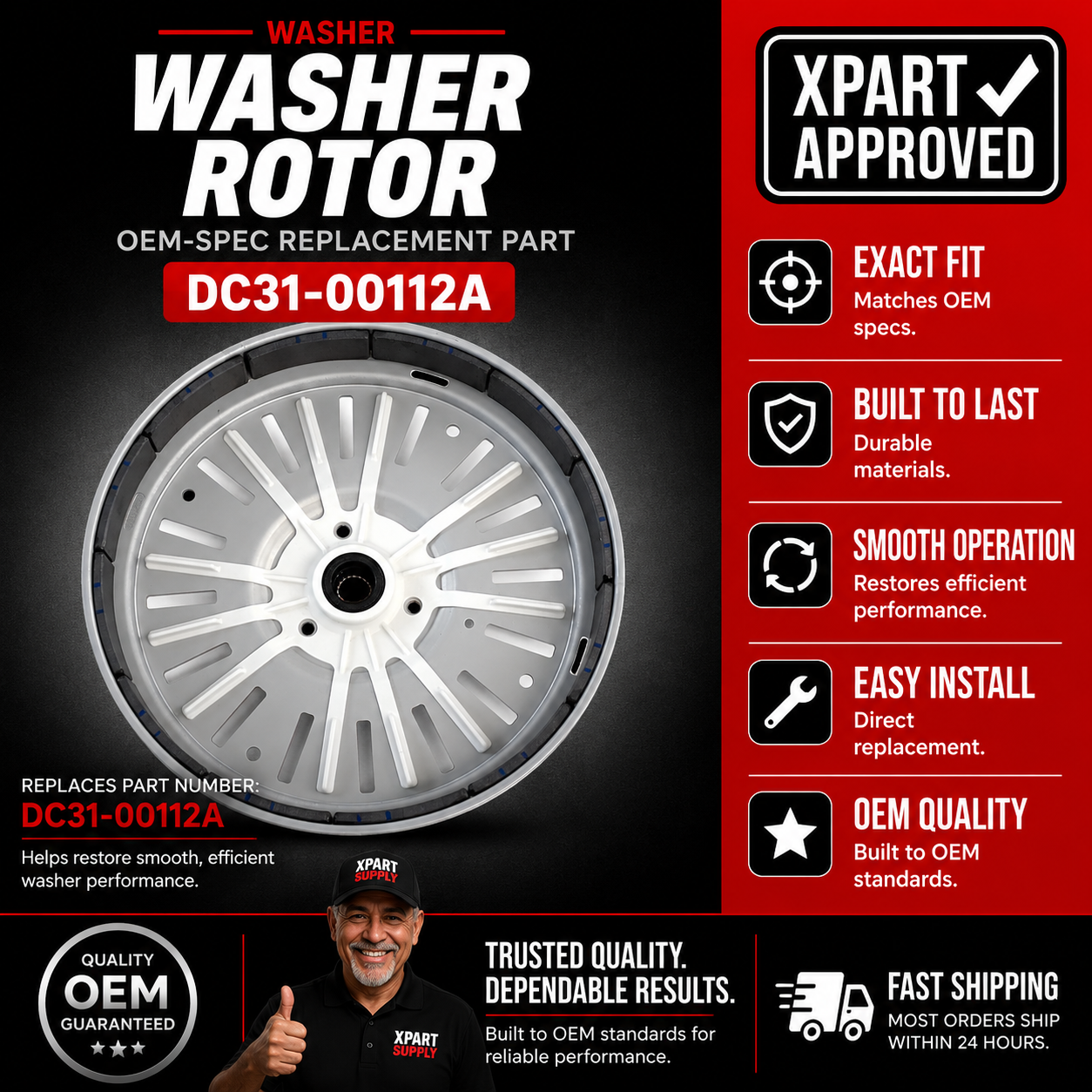

Samsung DC31-00112A Washer Rotor 1400 RPM

Part# DC31-00112A Replaces COM1500P Fits Samsung

Washer Not Spinning? Samsung DC31-00112A Rotor — Fix No-Spin / Drum Not Turning Fast

If your Samsung washer drum won't spin or turn, the rotor is the most common cause. In most Samsung direct-drive washers, the rotor works with the stator to drive the drum magnetically — no belt required. When the rotor fails, the drum stops turning entirely, the washer may display an error code, or the machine runs but produces no spin. ⚡ Common failure point in Samsung-built front-load and top-load direct-drive washers. Part DC31-00112A is the genuine OEM replacement rotor that restores full drum rotation and spin performance immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

  • ✔ QUALIFIER 1 — Washer powers on and control panel responds normally
  • ✔ QUALIFIER 2 — Water fills and drains correctly
  • ✔ QUALIFIER 3 — No belt or drive issues (direct-drive motor confirmed)
  • ✔ ONLY problem is drum not spinning, turning, or agitating

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

  • Drum does not spin or rotate during any cycle
  • Washer runs but clothes come out soaking wet (no spin)
  • Error codes related to motor or rotor (e.g., 3E, EA on Samsung)
  • Loud humming or buzzing with no drum movement

✔ If these symptoms match, this is the most likely failed component in the drive system.

✔ In most cases, replacing this rotor restores normal spin and agitation immediately.

📦 Part Details

  • Part Number: DC31-00112A
  • Type: Direct Drive Washer Rotor — 1400 RPM
  • Replaces: COM1500P
  • Brands: Samsung
⚠️ Recommended While Repairing:
While the rotor is out, inspect or replace the Stator Assembly (DC31-00113A) — the rotor and stator work as a matched pair and the stator is equally prone to failure. Replacing both at the same time saves a second labour call if the stator fails shortly after.

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Remove the rear panel to access the motor assembly, unbolt the rotor retaining bolt (typically 17mm), swap the rotor, and reassemble. No special tools required beyond a socket set.

✓ Compatible Models

Confirmed compatible with Samsung direct-drive washer models using the DC31-00112A rotor. Contact us to verify your model number before ordering.

💡 Pro Tip

Replace the Rotor Bolt Too:
The rotor centre bolt is a single-use torque-to-yield fastener on many Samsung models — reusing it risks under-torque and rotor wobble. Pick up a replacement bolt (DC97-16782A) while you have the machine open. It's a $5 part that prevents a $200 callback.

⚠️ BIDIR hub links flagged — add Samsung washer model hub page links here once live.

✓ Model-Specific Repair Pages

✅Compatibility & Cross Reference

WF405ATPAWRAA0000, WF405ATPAWRAA0001, WF331ANRXAA0004, 40249032012, WF330ANB/XAA, WF350ANW/XAA, WF461ABW/XAA, WF42H5600AW/A2-00, WF448AAP/XAA-05, WF448AAP/XAA-06, WF448AAP/XAA-07, WF448AAP/XAA-08, WF42H5200AP/A2-01, WF431ABP/XAA-01, WF431ABP/XAA-02, WF42H5000AW/A2-00, WF42H5000AW/A2-01, WF405ATPASU/A2-00, WF331ANW/XAA-04, WF42H5400AF/A2-00, WF42H5200AF/A2-00, WF42H5200AF/A2-01, WF448AAW/XAA-05, WF448AAW/XAA-07, WF330ANB/XAA-02, WF42H5200AW/A2-00, WF42H5200AW/A2-01, WF220ANW/XAA-01, WF42H5200AP/A2-00, WF350ANP/XAA-00, WF350ANP/XAA-01, WF350ANP/XAA-02, WF350ANP/XAA-03, WF350ANP/XAA-04, WF350ANR/XAA-01, WF350ANR/XAA-02, WF350ANR/XAA-03, WF350ANR/XAA-04, WF350ANR/XAA-05, WF350ANR/XAA-06, WF350ANR/XAA-07, WF350ANW/XAA-01, WF350ANW/XAA-02, WF350ANW/XAA-03, WF350ANW/XAA-04, WF350ANW/XAA-05, WF350ANW/XAA-06, WF350ANW/XAA-07, WF331ANR/XAA-04, WF361BVBEWR/A1-01, WF361BVBEWR/A2-01, WF42H5600AP/A2-00, WF330ANW/XAA-00, WF330ANW/XAA-01, WF330ANW/XAA-02, WF330ANW/XAA-03, WF330ANW/XAA-04, WF330ANW/XAA-05, WF330ANW/XAA-06, WF330ANW/XAA-07, WF220ANW/XAA-02, WF45K6500AV/A2-00, WF45H6300AW/A2-01, WF45N5300AV/US-00, WF42H5400AW/A2-00, WF45M5500AP/A5-00, WF45M5500AW/A5-00, WF45M5500AZ/A5-00, WF45N5300AW/US-00, WF363BTBEUF/A1-01, WF363BTBEUF/A2-01, WF431ABW/XAA-00, WF393BTPARA/A1-00, WF393BTPARA/A1-01, WF393BTPARA/A2-00, WF393BTPAWR/A1-00, WF393BTPAWR/A1-01, WF393BTPAWR/A2-00, WF330ANB/XAA-00, WF330ANB/XAA-01, WF330ANB/XAA-03, WF330ANB/XAA-04, WF330ANB/XAA-05, WF330ANB/XAA-06, WF330ANB/XAA-07, WF45K6200AW/A2-00, WF45K6500AW/A2-00, WF45K6200AZ/A2-00, WF45K6200AZ/A2-01, WF405ATPASU/AA-00, WF405ATPASU/AA-01, WF419AAW/XAA-04, WF210ANW/XAA-01, WF210ANW/XAA-02, WF210ANW/XAA-03, WF210ANW/XAA-04, WF231ANW/XAA-01, WF365BTBGWR/A1-01, WF365BTBGWR/A2-01, WF395BTPARA/A1-00, WF395BTPARA/A2-00, WF395BTPASU/A1-00, WF395BTPASU/A1-01, WF395BTPASU/A2-00, WF395BTPAWR/A1-01, WF395BTPAWR/A2-00, WF395BTPAWR/A2-01, WF405ATPAWR/A2-00, WF405ATPAWR/AA-00, WF405ATPAWR/AA-01, WF45H6100AP/A2-01, WF45M5100AW/A5-00, WF45M5100AW/A5-11, WF461ABP/XAA-01, WF461ABP/XAA-02, WF42H5000AW/A2-11, WF45K6500AV/A2-11, WF45K6500AV/A2-51, WF45K6500AV/A2-01, WF42H5200AP/A2-11, WF42H5400AF/A2, WF42H5200AW/A2-11, WF45M5500AP/A5-11, WF45M5500AP/A5-51, WF393BTPAWR/A2, WF405ATPASU/AA, WF45K6500AW/A2-11, WF45K6500AW/A2-51, WF361BVBEWR/A2-00, WF210ANW/XAC-0001, WF210ANW/XAC-0002, WF210ANW/XAC-0003, WF42H5200AF/A2, WF42H5600AP/A2, WF448AAP/XAC-0005, WF448AAP/XAC-0006, WF448AAP/XAC-0007, WF448AAP/XAC-0008, WF45K6200AW/A2-11, WF42H5400AW/A2, WF393BTPARA/A1, WF42H5600AW/A2, WF431ABP/XAA-04, WF431ABP/XAA-05, WF431ABP/XAA-06, WF431ABP/XAA-07, WF431ABP/XAA-08, WF431ABP/XAA-09, WF431ABP/XAA-10, WF45K6200AZ/A2-11, WF350ANW/XAA-00, WF220ANW/XAA-03, WF220ANW/XAC-0001, WF220ANW/XAC-0002, WF220ANW/XAC-0003, WF220ANW/XAC-0004, WF395BTPASU/A1, WF431ABW/XAA-01, WF431ABW/XAA-02, WF431ABW/XAA-03, WF431ABW/XAA-04, WF431ABW/XAA-05, WF431ABW/XAA-08, WF431ABW/XAA-09, WF410ANR/XAA-02, WF45M5500AW/A5-51, WF42H5200AF/A2-11, WF410ANW/XAA-02, WF45N5300AW/US-51, WF405ATPAWR/A2, WF361BVBEWR/A1, WF365BTBGWR/A1-00, WF331ANW/XAA-00, WF331ANW/XAA-01, WF331ANW/XAA-02, WF331ANW/XAA-03, WF331ANW/XAA-05

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
