Range Burner Zone Dead, Cooking Unevenly, or Element Visibly Burned? The Radiant Heater Is the Fix.

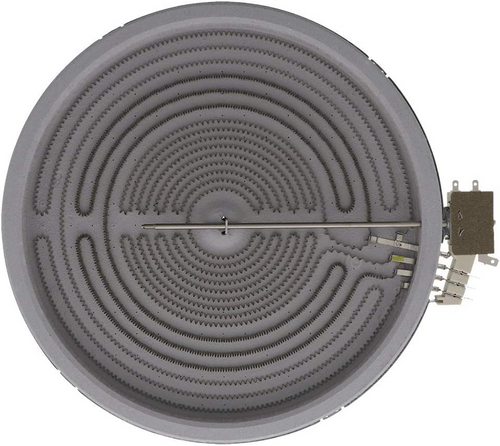

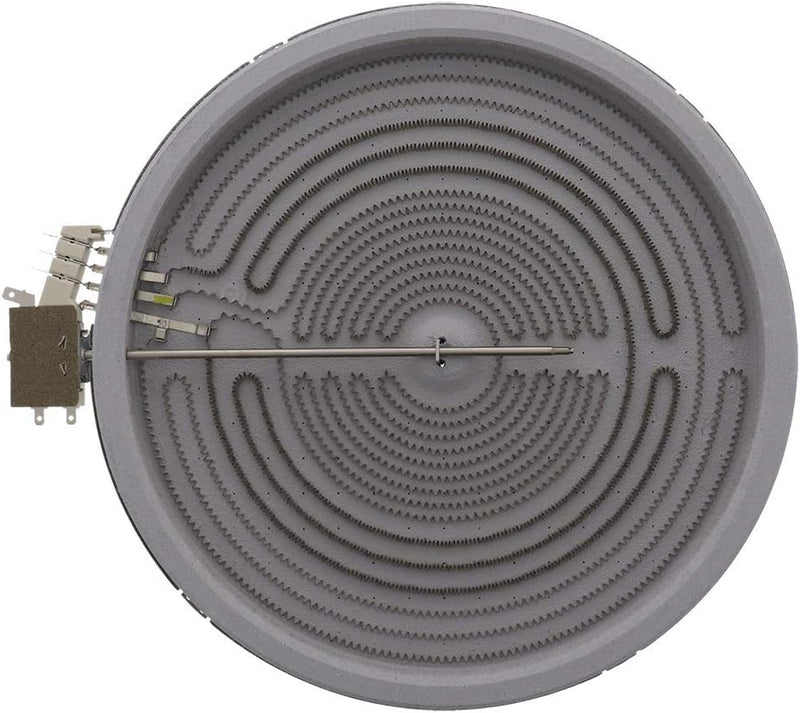

When the triple radiant heater fails, one or more cooking zones stop producing heat — food cooks unevenly, the surface takes too long to reach temperature, or the element shows visible burn damage. The DG47-00065A is the OEM triple radiant heater assembly for Samsung electric ranges, delivering even, consistent heat across the large burner zone. It directly replaces the older DG47-00021A. Choose OEM for factory-original fit, XPart (SU0065A) for a premium aftermarket alternative, or Universal (CMR1175D302012) for a budget-conscious compatible option.
⚠️ Symptoms of a Failed Radiant Heater Element
- One or more burner zones won't heat at all
- Burner heats unevenly — hot spots or cold zones across the surface
- Cooktop surface takes much longer than normal to reach temperature
- Visible burn marks, discolouration, or physical damage on the element
- Burner glows in one area but not across the full zone
- Error code on range display indicating element or heating fault
- Range trips the breaker when a specific burner zone is activated
- Burning smell from beneath the cooktop surface during operation
✓ Part Details
- OEM Part Number: DG47-00065A
- Replaces: DG47-00021A
- Related: MEE62704901
- Part Type: Range Triple Radiant Heater (Surface Heating Element / Radiant Element Assembly / Triple Burner Element)
- Variants: OEM (genuine Samsung, DG47-00065A), XPart (premium aftermarket, SU0065A), Universal (CMR1175D302012)
- Fits: Samsung NE58, NE59, NE63, and NZ36 series electric ranges
- Common Failure Causes: Element wire fatigue from repeated thermal cycling, physical impact damage, power surge to element circuit
- Typical Lifespan: 8–15 years; failures most often caused by element wire fatigue or impact damage to the cooktop surface
💡 Pro Tip — Test the Infinite Switch Before Replacing the Heater Element:
A burner zone that won't heat is more often caused by a failed infinite switch (burner control switch) than a failed element — the switch controls power delivery to the radiant heater and fails far more frequently. Before ordering this assembly, test the infinite switch for the affected zone with a multimeter for continuity through its full range of motion. If the switch tests open or intermittent, replace the switch first — it's a fraction of the cost of the heater assembly. If the switch tests good and the zone still won't heat, the radiant heater is the confirmed fault. This is the most common repeat-repair mistake on Samsung electric ranges.
A burner zone that won't heat is more often caused by a failed infinite switch (burner control switch) than a failed element — the switch controls power delivery to the radiant heater and fails far more frequently. Before ordering this assembly, test the infinite switch for the affected zone with a multimeter for continuity through its full range of motion. If the switch tests open or intermittent, replace the switch first — it's a fraction of the cost of the heater assembly. If the switch tests good and the zone still won't heat, the radiant heater is the confirmed fault. This is the most common repeat-repair mistake on Samsung electric ranges.
⚙️ Installation Notes
- Skill Level: Intermediate — cooktop glass or surface panel removal required to access the heater assembly
- Always disconnect power at the breaker before servicing — radiant heater elements carry line voltage
- Allow the range to cool completely before beginning — radiant elements retain heat long after being turned off
- Remove the cooktop glass or surface panel to access the heater assembly mounting screws
- Photograph all wire harness connector positions before disconnecting the old element
- Transfer wire connectors one at a time to the new heater assembly
- Do not overtighten mounting screws — heater brackets are fragile under torque
- Restore power and test each zone individually before reassembling the cooktop surface
✓ Compatible Models
NE58F9710WS/AA · NE58H9950WS/AA · NE58K9850WG/AA · NE58K9850WG/AC · NE58K9850WS/AA · NE58K9850WS/AC · NE59J7630SB/AA · NE59J7630SG/AA · NE59J7630SS/AA · NE59J7630SS/AC · NE59J7630SW/AA · NE59J7650WS/AA · NE59J7651WS/AC · NE59J7750WS/AA · NE59J7750WS/AC · NE59J7850WG/AA · NE59J7850WG/AC · NE59J7850WS/AA · NE59J7850WS/AC · NE59N6630SG/AA · NE59N6630SS/AA · NE59N6650SG/AA · NE59N6650SS/AA · NE59R6631SG/AA · NE59R6631SG/AC · NE59R6631SS/AA · NE59R6631SS/AC · NE59R6631ST/AA · NE63A6711SG/AA · NE63A6751SG/AA · NE63A6751SS/AA · NE63A8711QN/AA · NE63T8511SS/AA · NE63T8711SG/AA · NE63T8711SS/AA · NE63T8711ST/AA · NE63T8751SG/AA · NE63T8751SS/AA · NZ36K6430RG/AA · NZ36K6430RS/AA · NZ36K7570RG/AA · NZ36K7570RS/AA
Verify your model number before ordering. Model tag is located inside the storage drawer or on the rear panel. Contact XPart Supply for fitment confirmation.
NE63T8751SG/AA
NE63T8751SS/AA
NE59R6631ST/AA
NE59R6631SG/AC
NE59R6631SG/AA
NE59R6631SS/AC
NE59R6631SS/AA
NE58H9950WS/AA
NE58K9850WS/AC
NE58K9850WG/AC
NE59N6650SS/AA
NE59J7650WS/AA
NE59N6650SG/AA
NE59N6630SS/AA
NE59N6630SG/AA
NE58K9850WG/AA
NE59J7651WS/AC
NE58K9850WS/AA
NE59J7850WS/AC
NE59J7850WS/AA
NE59J7850WG/AC
NE59J7850WG/AA
NE59J7750WS/AC
NE59J7750WS/AA
NE59J7630SW/AA
NE59J7630SS/AC
NE59J7630SS/AA
NE59J7630SG/AA
NE59J7630SB/AA
NE58F9710WS/AA
NE63A6751SG/AA
NE63A6751SS/AA
NE63A6711SG/AA
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
