Ceramic Burner Cracked, Won't Heat, or Shows Uneven Hot Spots? This Is the Replacement.

When a ceramic surface burner fails, you lose one or more cooking zones entirely — the element cracks, stops heating, or develops hot spots that scorch food unevenly. The DG47-00021B is the triple ceramic surface burner assembly for Samsung electric ranges, replacing the full three-zone burner unit in a single swap. It directly replaces DG47-00021A, DG4700021B, DG4700021A, and DG47-00022B. Choose OEM for factory-original fit, XPart for a premium aftermarket alternative, or Universal for a budget-conscious compatible option.

⚠️ Symptoms of a Failed Ceramic Surface Burner

• One or more burner zones won't heat at all
• Burner heats unevenly — hot spots or cold zones across the surface
• Visible crack, chip, or fracture in the ceramic glass surface
• Burner glows red in one area but not others
• Error code on range display indicating element fault
• Burner takes much longer than normal to reach temperature
• Burning smell or discolouration around a specific zone
• Range trips the breaker when a specific burner zone is activated

✓ Part Details

• OEM Part Number: DG47-00021B
• Replaces: DG47-00021A, DG4700021B, DG4700021A, DG47-00022B

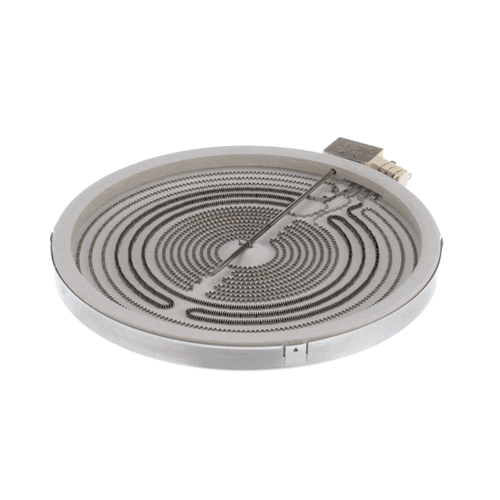

• Related: DG47-00065A
• Part Type: Range Triple Ceramic Surface Burner (Ceramic Heating Element / Surface Element Assembly / Triple Burner Unit)
• Variants: OEM (genuine Samsung), XPart (premium aftermarket, SKU SU10126), Universal (CMR1175D302012)
• Fits: Samsung electric ranges with triple ceramic surface burner configuration
• Common Failure Causes: Physical impact cracking the ceramic, element wire fatigue from repeated thermal cycling, power surge damage to element circuit
• Typical Lifespan: 8–15 years; failures most often caused by impact damage or element wire fatigue

⚙️ Installation Notes

• Skill Level: Intermediate — range top removal and element wire harness transfer required
• Always disconnect power at the breaker before servicing — ceramic burner elements carry line voltage
• Allow the range to cool completely before beginning — ceramic retains heat long after the element is off
• Lift the range top or remove the cooktop panel to access the burner assembly mounting screws
• Photograph all wire harness connector positions before disconnecting the old burner
• Transfer wire connectors one at a time to the new burner assembly
• Do not overtighten mounting screws — ceramic and bracket assemblies are fragile under torque
• Restore power and test each zone individually before reassembling the range top

✓ Compatible Models

FE710DRS/XAA-01 · FE710DRS/XAA-02 · FE710DRS/XAA-03 · FTQ386LWUX/XAA · FTQ386LWX · FTQ386LWUX/01 · NE58F9710WS/AA-00 · NE58F9710WS/AA-01 · NE58F9710WS/AC-00 · NE58F9710WS/AC-01 · NE58F9710WS/AC-02 · NE58H9950WS/AA-00 · NE58H9950WS/AA-01 · NE59J7630SB/AA-00 · NE59J7630SG/AA-00 · NE59J7630SS/AA-00 · NE59J7630SW/AA-00 · NE59J7650WS/AA-00 · NE59J7650WS/AA-02 · NE59J7750WS/AA-00 · NE59J7750WS/AA-02 · NE59J7750WS/AC-02 · NE59J7850WG/AA-00 · NE59J7850WG/AA-02 · NE59J7850WS/AA-00 · NE59J7850WS/AA-02

Verify your model number before ordering. Model tag is located inside the oven door frame or on the rear panel. Contact XPart Supply for fitment confirmation.
