✅ This part is also sold as 131763302 — same component, different OEM part number.

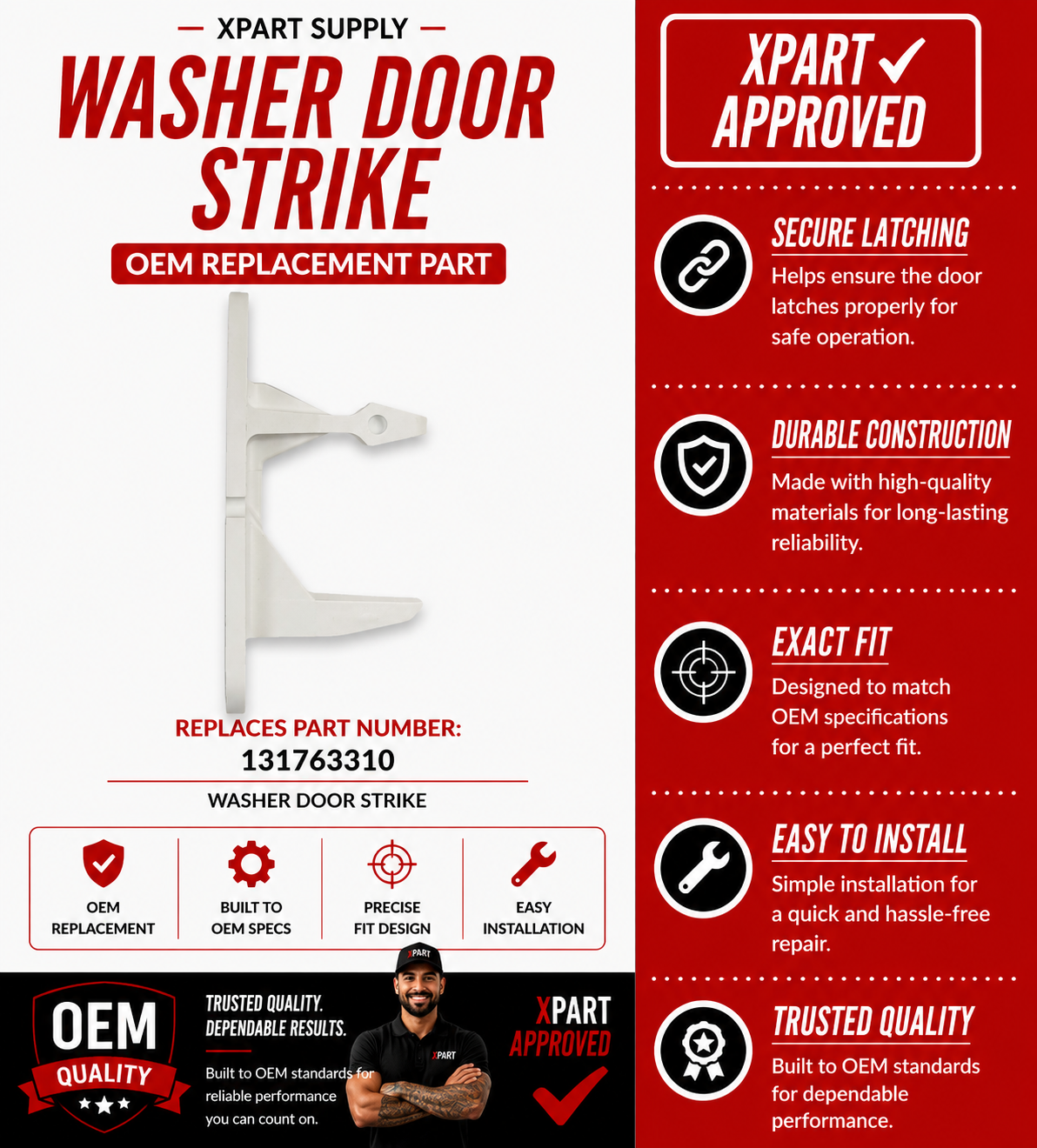

Frigidaire Washer Door Won't Lock or Latch? Door Strike 131763310 – Fix It Fast
A washer door that won't lock, latch, or stay closed is almost always caused by a broken or worn door strike — not the latch assembly itself. In most Frigidaire and Electrolux front-load washers, the door strike is the plastic catch tab on the door that the latch mechanism grabs to hold the door sealed during operation. When it cracks, wears down, or breaks off entirely, the latch has nothing to engage — the washer won't start, the door won't seal, and in some cases the door can pop open mid-cycle. ⚡ One of the most common wear failures on Frigidaire-built front-load washers. Part 131763310 is the genuine OEM Frigidaire replacement door strike that restores a solid latch engagement and full door seal — available in OEM or our XPart aftermarket option.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and all cycles run normally when door is held shut
- ✔ Door latch mechanism on the machine body is intact and not broken
- ✔ Water supply and drain confirmed OK
- ✔ ONLY problem is the door won't latch, lock, or stay closed on its own
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer door won't latch or lock shut
- Washer won't start — door sensor not detecting a closed door
- Door pops open during wash or spin cycle
- Water leaking from the door seal during operation
- Visible cracking, wear, or breakage on the door strike tab
✔ If these symptoms match, the door strike is the most likely failed component — a direct swap restores full latch function.
✔ In most cases, replacing the 131763310 door strike restores normal door locking and washer operation immediately.
📦 Part Details
- Part Number: 131763310
- Type: Front-Load Washer Door Strike — plastic latch catch tab on door panel
- Replaces: 131763300, 131763302, AP3580441, 1032664, 134456600
- Also Known As: 131763310, 131763300, AP3580441, door latch catch, washer door catch
- Brands: Frigidaire, Electrolux, Gibson, Kenmore, Crosley, White-Westinghouse, Kelvinator
- Options: Genuine OEM (Frigidaire/Electrolux) or XPart premium aftermarket
⚠️ Recommended While Repairing:
While the door panel is open, inspect the door latch assembly on the machine body (the catch mechanism the strike engages). These two components wear together — if the strike is broken, the latch may be worn as well. Replacing both in one visit prevents a callback and protects the repair.
While the door panel is open, inspect the door latch assembly on the machine body (the catch mechanism the strike engages). These two components wear together — if the strike is broken, the latch may be worn as well. Replacing both in one visit prevents a callback and protects the repair.
⚙️ Installation
Skill Level: EASY — 10 to 20 minutes. Disconnect power before servicing. Open the washer door fully, remove the screws securing the inner door panel, separate the door panels to access the strike, unclip the old strike and snap the new 131763310 into position, then reassemble the door panels and test latch engagement before running a cycle.
✓ Compatible Models
Confirmed compatible with hundreds of Frigidaire, Electrolux, Gibson, Kenmore, Crosley, and White-Westinghouse front-load washer models including ATF6000ES0, FAFW3001LW0, FTF530FS0, FWT645RHS0, GLTF2940FS0, LTF2140FS0, CFW4000FW0, CLCE900FW0 plus many more. Contact us to verify your model number before ordering.
💡 Pro Tip
Check the Door Latch Assembly Before Closing Up:
A broken door strike is frequently caused by a misaligned or worn door latch on the machine body putting uneven stress on the strike tab. Before reassembling, confirm the latch mechanism moves freely and aligns squarely with the strike. If the latch is stiff, worn, or off-centre, replace it at the same time — otherwise the new strike will wear out prematurely under the same stress.
A broken door strike is frequently caused by a misaligned or worn door latch on the machine body putting uneven stress on the strike tab. Before reassembling, confirm the latch mechanism moves freely and aligns squarely with the strike. If the latch is stiff, worn, or off-centre, replace it at the same time — otherwise the new strike will wear out prematurely under the same stress.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
