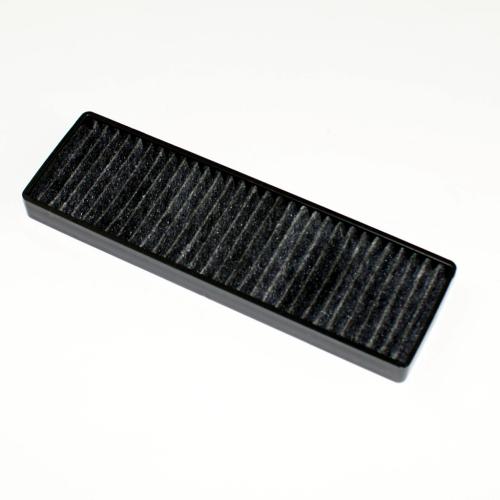

LG Microwave Charcoal Filter 5230W1A003C

Genuine OEM charcoal filter for selected LG and Kenmore over-the-range microwave hood combinations. The filter removes grease and odors from recirculated vent air.

Is This the Right Part?

Common Symptoms

• Persistent cooking odors from the microwave hood during recirculation.
• A charcoal filter that is due for replacement after extended use.

Check Before Replacing

• Confirm the microwave hood is configured for recirculating rather than externally vented operation.
• Inspect the installed charcoal filter for visible contamination and verify that its dimensions and part number match 5230W1A003C.
• Check the owner’s manual or service documentation for the recommended replacement interval.

Pro Tip

Part Details

Key Features

• Genuine OEM LG part.
• Dimensions: 9-1/4 inches long x 2-4/5 inches wide x 3/4 inch thick.
• Charcoal filtration media for grease and odor removal.
• Used behind the microwave vent grille in recirculating installations.

Installation Notes

• Disconnect power before servicing the microwave.
• Follow the owner’s manual installation instructions.
• Typical documented replacement access involves removing the vent grille, removing the old filter, installing the new filter, and reinstalling the grille.
• Do not operate the hood without the required filters in place.

Verified Compatible Models

72185062010, 72185063010, 72185064010, 72185069010, LMH2016SB/00, LMH2016ST/01, LMH2016SW/00, LMHM2017ST/00, LMHM2017ST/01, LMV1813SB/00, LMV1813ST/00, LMV1813ST/02, LMV1813SW/00, LMV1814SB, LMV2015SB/00, LMV2015ST/00, LMV2015SW/00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
