Samsung DC96-01112E Motor Assembly
Samsung DC96-01112E Motor Assembly

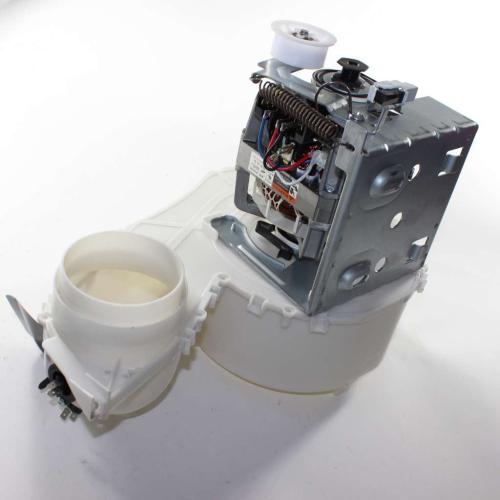

Samsung Dryer Drive Motor & Blower Assembly DC96-01112E

XPart Number XP10220959
$354.24
Available to order
Buying Options: OEM Genuine

Choose an available buying option.
Available to order
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
DRYER DRUM DOES NOT ROTATE OR THE DRYER HAS NO NORMAL A

Samsung Dryer Drive Motor & Blower Assembly DC96-01112E, Fixes Dryer drum does not rotate or the dryer has no normal airflow

Genuine Samsung dryer motor and blower assembly comprising the drive motor, blower wheel, and blower housing.

Part DC96-01112ESamsung

Genuine Samsung dryer motor and blower assembly comprising the drive motor, blower wheel, and blower housing.

Is This the Right Part?

Part NumberDC96-01112E
ManufacturerSamsung
Appliance TypeDryer
Part TypeDrive Motor & Blower Assembly

Common Symptoms

  • Drum does not turn when the dryer runs
  • Dryer motor or blower assembly is noisy or seized
  • Reduced or absent airflow caused by a failed motor/blower assembly

Check Before Replacing

  • With power disconnected, check that the drum can be turned by hand without binding before condemning the motor assembly.
  • Inspect the blower area for obstruction or damage.
  • Verify that the motor receives the appropriate electrical supply before replacing the assembly.
  • Check the blower thermostat as a possible related failure before replacing the motor assembly.

Pro Tip

Check the blower thermostat and verify the model number before ordering; this assembly is reported as discontinued.

Part Details

Part NumberDC96-01112E
Part TypeDrive Motor & Blower Assembly
ManufacturerSamsung
Appliance TypeDryer
Primary FunctionRotates the dryer drum and moves air through the dryer exhaust system.

Key Features

  • Motor, blower wheel, and blower housing are included
  • Genuine Samsung/OEM assembly
  • Used in Samsung electric and gas dryer applications documented by parts diagrams

Installation Notes

  • Disconnect electrical power before servicing the dryer.
  • Confirm the complete appliance model and revision suffix before installation.
  • Inspect the belt, blower area, and related motor bracket during service.

Verified Compatible Models

DV203AEW/XAA-00, DV203AGS/XAA-00, DV203AGW/XAA-00, DV206AES/XAA-00, DV206AGS/XAA-00, DV206LEW/XAC, DV209AEW/XAA-00, DV209AEW/XAA-01, DV209AEWXAA0000, DV209AEWXAA0001, DV209AGW/XAA-00, DV218AEB/XAA-00, DV218AEB/XAA-01, DV218AEB/XAA-02, DV218AEB/XAC, DV218AEW/XAA-00, DV218AEW/XAA-01, DV218AEW/XAA-02, DV218AEW/XAC, DV218AEWXAA0000, DV218AEWXAA0001, DV218AGB/XAA, DV218AGB/XAA-00, DV218AGB/XAA-01, DV218AGB/XAA-02, DV218AGB/XAA-03, DV218AGW/XAA-00, DV218AGW/XAA-01, DV218AGW/XAA-02, DV218AGW/XAA-03, DV219AEB/XAA-00, DV219AEB/XAA-01, DV219AEB/XAA-02, DV219AEW/XAA-00, DV219AEW/XAA-01, DV219AEW/XAA-02, DV219AEWXAA0000, DV219AEWXAA0001, DV219AGB/XAA-00, DV219AGW/XAA-01, DV219AGWXAA0001, DV229AEG/XAC, DV306LEW/XAA, DV306LGW/XAA, DV316BEC/XAA, DV316BEW/XAA, DV316BGC/XAA-01, DV316BGC/XAA-02, DV316BGC/XAA-03, DV316LES/XAA, DV316LGS/XAA, DV316LGW/XAA, DV317AEG/XAA, DV317AES/XAA, DV328AEG/XAA, DV328AER/XAA, DV328AEW/XAA-00, DV328AEW/XAA-01, DV328AEW/XAA-02, DV328AEWXAA0001, DV328AGG/XAA-00, DV328AGR/XAA-00, DV328AGW/XAA-00, DV328AGWXAA0000, DV330AEW/XAA-00, DV330AGB/XAA, DV337AEG/XAA-00, DV337AEG/XAA-01, DV337AEG/XAA-02, DV337AEGXAA0000, DV337AEL/XAA-00, DV337AER/XAA-00, DV337AEW/XAA-00, DV337AGG/XAA-00, DV337AGG/XAA-01, DV337AGG/XAA-02, DV337AGG/XAA-03, DV337AGL/XAA-00, DV337AGR/XAA-00, DV337AGW/XAA-00, DV338AEB/XAA-00, DV338AEW/XAA-00, DV338AGB/XAA-00, DV338AGW/XAA-00, DV339AEGXAC, DV339AGW/XAA-01, DV339AGW/XAA-02, DV339AGW/XAA-03, DV448AEP/XAA-01, DV337AEL/XAC

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
