DG96-00110E Range Lower Convection Motor (Replaces DG96-00110A, DG9600110A, DG9600110E)

DG96-00110E Range Lower Convection Motor (Replaces DG96-00110A, DG9600110A, DG9600110E)

Sale price: $130.63
Regular price: $156.76
You save: $26.13 (17%)

XPart Number: 9668045439265 | GTIN: 2453497691771

Condition : New

New

$130.63

Used

$62.70

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 1-877-899-7278

Shipper / Seller: Samsung

Professional Repair Time: 20–35 minutes

DIY Repair Time: 30–50 minutes

Difficulty Rating: Moderate (2.5/5) — Requires pulling the range out, removing the rear access panel, removing the interior rear oven panel, transferring the fan blade, and swapping the motor. The motor itself is secured with a few screws and one wire connector — straightforward to swap. The moderate rating is because you're working from both the rear exterior and the oven interior (removing the rear oven panel to access the fan blade), which adds steps compared to a simple component swap.

Convection fan not spinning — fan blade stationary when convection mode is selected
Grinding or rattling noise from the rear of the oven during convection
Squealing or whining noise when convection fan runs
Buzzing or humming from the rear — motor energized but fan won't rotate (seized)
Convection cooking results uneven — hot spots and cold zones
Food takes longer to cook on convection than expected
Top rack overcooks while bottom rack undercooks on convection (no air circulation)
Convection mode selected but oven behaves like standard bake (no circulating air)
Fan works intermittently — spins sometimes, stops other times
Fan spins slowly — not reaching full speed
Burning smell from the rear of the oven (motor winding burning out)
Oven error code related to convection fan or motor
Fan noise has gotten progressively louder over weeks or months (bearings wearing)
Fan blade wobbles visibly (worn motor bearings causing shaft play)

Item # in diagram.

Part number DG96-00110E replaces DG96-00110E, DG9600110E, DG96-00110A, DG9600110A

Samsung

Fits Models: (Ctrl+F and Enter Your Model Number)

NE58F9710WS/AA, NE58F9710WS/AC, NE59J7630SB/AA, NE59J7630SG/AA, NE59J7630SS/AA, NE59J7630SS/AC, NE59J7630SW/AA, NE59J3421SS/AA, NE59J3421SS/AC, NE59J7750WS/AA, NE59J7750WS/AC, NE59J7850WG/AA, NE59J7850WG/AC, NE59J7850WS/AA, NE59J7850WS/AC, NE59K3321SS/AC, NE59J3420SB/AA, NE59J3420SB/AC, NE58K9850WS/AA, NE59J7651WS/AC, NE59J3420SS/AA, NE59J3420SW/AA, NE59J3420SW/AC, NE595R0ABSR/AA, NE595R0ABSR/AC, NE58H9970WS/AA, NE58H9970WS/AC, NE59M6850SG/AA, NE58F9500SS/AA, NE58K9850WG/AA, NE59M6850SS/AA, NE58K9500SG/AA, NE59N6630SG/AA, NE59N6630SS/AA, NV51M9770SM/AA, NQ70M7770DS/AA, NV51M9770SS/AA, NQ70M6650DG/AA, NE59M4320SW/AA, NE59N6650SG/AA, NV51K6650DG/AA, NQ70M6650DS, NV51K7770SG/AA, NQ70M9770DS/AA, NQ70M9770DM/AA, NE59M4320SS/AA, NE58K9430SS/AA, NE59J7650WS/AA, NE59M4320SG/AA, NY58J9850WS/AA, NE59M4320SB/AA, NV51K7770DS/AA, NQ70M7770DG/AA, NV51K6650SG/AA, NV51K7770DG/AA, NV51M9770DM/AA, NV51M9770DS/AA, NV51K7770SS/AA, NE58K9560WS/AA, NE59N6650SS/AA, NE58F9500SS/AC, NE58K9850WG/AC, NE58K9850WS/AC, NY58J9850WS/AC, NE58K9500SG/AC, NE59M4320SW/AC, NE58K9560WS/AC, NE58H9950WS/AA, NE599N1PBSR/AC, NE58K9430/AA, NE58R9430SG/AC, NE59R4321SS/AC, NE59T4321SW/AA, NE59R4321SS/AA, NE58R9560WG, NE59T7511SG/AA, NV51K6650DS/AA, NE58R9431ST/AA, NE58R9431SG/AA, NE59R6631SS/AA, NE59R6631SS/AC, NE59R6631SG/AA, NE59R6631SG/AC, NV51K6650SS/AA, NE59R4321SG/AA, NE58R9431SS/AA, NE59R6631ST/AA, FE710DRS/XAA, DOB30M977DM/DA, DOB30M977SS/DA, DOB30M977SM/DA, DOPA30M9CNM/KD, DOPA30M9CNS/KD, DOB30M977DS/DA, NE595R0ABSR/AA-00, NE595R0ABSR/AA-01, NE595R1ABSR/AA-01, NE595R1ABSR/AA-02, NE595R1ABSR/AA-03, FE710DRS/XAA-01, FE710DRS/XAA-02, FE710DRS/XAA-03, FTQ352IWUB/XAA-03, FTQ353IWUB/XAA-00, FTQ353IWUW/XAA-00, FTQ353IWUX/XAA-00, NE59J7630SS/AA-00, NE59J7630SS/AA-01, NE59J7630SS/AA-02, NV51K7770DG/AA-00, NE58H9970WS/AA-00, NE59J7750WS/AA-00, NE59J7750WS/AA-01, NE59J7750WS/AA-02, NE59J7750WS/AA-03, NE58K9850WG/AA-00, NE595R0ABBB/AA-00, NE595R0ABBB/AA-01, NE595R0ABWW/AA-00, NE595R0ABWW/AA-01, NE594R0ABSR/AA-00, NE594R0ABSR/AA-01, NE58F9710WS/AA-00, NE58F9710WS/AA-01, NE58F9710WS/AA-02, NE58F9710WS/AA-03, NE58F9710WS/AA-04, NE59M4320SW/AA-00, NE58K9430SS/AA-00, NE59J3420SS/AA-00, NE594R0ABBB/AA-01, NE59J3420SS/AA-01, NE59J3420SS/AA-02, NE59J3420SS/AA-03, NE59J3420SS/AA-04, NE59J3420SS/AA-05, NE59J3420SS/AA-06, NE59J3420SS/AA-07, NE58F9500SS/AA-01, NE59J3420SB/AA-00, NE59J3420SB/AA-01, NE59J3420SB/AA-02, NE59J3420SB/AA-03, NE59J3420SB/AA-04, NE59J3420SB/AA-05, NE58K9500SG/AA-00, NE58H9950WS/AA-00, NE58K9500SG/AA-01, NE58H9950WS/AA-01, NE58H9950WS/AA-02, NE59J7630SB/AA-00, NE59J7630SB/AA-01, NE59J7630SB/AA-02, NE59J7630SG/AA-00, NE59J7630SG/AA-01, NE59J7630SG/AA-02, NE59J7630SW/AA-00, NE59J7630SW/AA-01, NE59J7650WS/AA-00, NE59J7650WS/AA-01, NE59J7650WS/AA-02, NE59J7650WS/AA-03, NE59J7850WG/AA-00, NE59J7850WG/AA-01, NE59J7850WG/AA-02, NE59J7850WG/AA-03, NE59J7850WG/AA-04, NE59J7850WS/AA-00, NE59J7850WS/AA-01, NE59J7850WS/AA-02, NE59J7850WS/AA-03, NY58J9850WS/AA-00, NE59N6630SS/AA-00, NV51K7770SG/AA-00, NE595N0PBSR/AA-01, NE59M4320SB/AA-00, NE59M4320SG/AA-00, NE59M4320SS/AA-00, NE59N6630SG/AA-00, FE-N500WX/XAA-00, NE59J3421SS/AA-00, NE59J3421SS/AA-01, NE59J3421SS/AA-02, NE58K9560WS/AA-00, NE58K9850WS/AA-00, NE599N1PBSR/AC-00, NE599N1PBSR/AC-01, NE599N1PBSR/AC-02, NE599N1PBSR/AC-03, NE59J3420SW/AA-00, NE59J3420SW/AA-01, NE59J3420SW/AA-02, NE59J3420SW/AA-03, NE59J3420SW/AA-04, NE59J3420SW/AA-05, NE59J3420SW/AA-06, NE59J3420SW/AA-07, NE59M6850SG/AA-00, NE59M6850SG/AA-01, NE59M6850SS/AA-00, NV51K6650DG/AA-00, NV51K6650DS/AA-00, NV51K6650SG/AA-00, NV51K6650SS/AA-00, NV51K7770DS/AA-00, NV51K7770SS/AA-00, NE59N6650SS/AA-00, NE59N6650SG/AA-00, NE58F9500SS/AA-02, NE59J7850WS/AA-04, NE59J7850WS/AA-05, NE59M4320SS/AA-01, NE59M4320SS/AA-02, NE59M4320SS/AA-03, NE59J7630SB/AA-03, NE59J7850WG/AA-05, NE58F9500SS/AA-03, NE58F9500SS/AA-04, NE58F9500SS/AA-05, NE58F9500SS/AA-06, NE58F9710WS/AA-05, NE58F9710WS/AA-06, NE58F9710WS/AA-07, NE58F9710WS/AC-00, NE58F9710WS/AC-01, NE58F9710WS/AC-02, NE58H9970WS/AA-01, NE58H9970WS/AA-02, NE58H9970WS/AC-00, NE58H9970WS/AC-01, NE58H9970WS/AC-02, NE595R0ABSR/AC, NE59N6630SG/AA, NE59N6630SS/AA, NE59J3421SS/AA-03, NE59J3421SS/AA-04, NE59J3421SS/AA-05, NE59J3421SS/AC-01, NE59J3421SS/AC-02, NE59J7650WS/AA-04, NE59J7650WS/AA-05, NE59J3421SS/AC-03, NE59J3421SS/AC-04, NE59J7630SG/AA, NE595R0ABSR/AA, NE59M4320SW/AC, NE59M4320SW/AA-01, NE59M4320SW/AA-02, NE59M4320SW/AA-03, NE58K9430SS/AA-01, NE58K9500SG/AA-02, NE58K9500SG/AA-03, NE59M4320SG/AA-01, NE59J7630SW/AA-02, NE59J7630SW/AA-03, NE59J7750WS/AC-01, NE59J7750WS/AC-02, NE59J7750WS/AC-03, NE59M4320SG/AA-02, NE59M4320SG/AA-03, NE59M6850SG/AA-02, NE59M6850SG/AA-03, NE59M6850SG/AA-04, NE59M6850SS/AA-01, NE59M6850SS/AA-02, NE59M6850SS/AA-03, NE59M6850SS/AA-04, NY58J9850WS/AA-01, NY58J9850WS/AA-02, NE59N6650SG/AA, NE59J7630SS/AA-03, NE59M4320SB/AA-01, NE59M4320SB/AA-02, NE59M4320SB/AA-03, NE59N6650SS/AA, NE58R9560WG/AA-00, NQ70M9770DS/AA, NQ70M9770DM/AA, NV51M9770DS/AA, NE58K9560WS/AC, NE58K9560WS/AA-01, NE58K9560WS/AA-02, NE58K9560WS/AA-03, NE58K9560WS/AA-04, NQ70M7770DS/AA, NE597R0ABSR/AA-01, NE597R0ABSR/AA-02, NE597R0ABSR/AA-00, NE59R4321SS/AC, NE59R4321SS/AA, NV51M9770SM/AA, NE58R9431SG/AA-00, FTQ352IWUX/XAA-02, FTQ352IWUX/XAA-03, FTQ352IWUX/XAA-00, FTQ352IWUX/XAA-01, NE58K9850WS/AA-01, NE58K9850WS/AA-02, NE58K9850WS/AA-03, NE58K9850WS/AA-04, NE58K9850WS/AA-05, NE59T4321SW/AA, NE59T7511SS/AA-00

Before replacing the motor, check the fan blade. A cracked, broken, or warped fan blade causes noise and vibration that mimics a bad motor. Also check if something fell behind the rear oven panel and is contacting the blade — a loose screw, piece of foil, or food debris can block rotation or cause rattling.

If the fan doesn't spin after installing the new motor: verify the wire connector is fully seated. Also check for an oven error code — some Samsung ranges disable the convection fan if another fault is detected (temperature sensor, control board issue). Clear any error codes and retest.Convection motors fail from heat stress. They operate in extreme temperatures (the motor is mounted directly on the oven wall, exposed to conducted heat). Self-clean cycles are particularly hard on convection motors — the oven runs at 800–900°F for hours, stressing the motor windings and bearings. If you use self-clean frequently, expect a shorter motor lifespan.

Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

DG96-00110E Samsung Range Lower Convection Motor

OEM Samsung Replacement | Lower Oven Convection Fan Motor | Ships Fast from XPart Supply

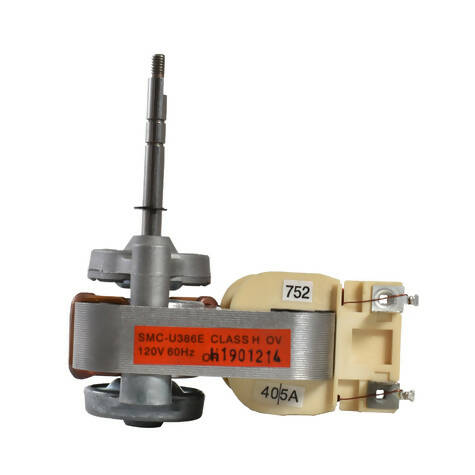

The DG96-00110E is the genuine OEM Samsung lower oven convection motor for a wide range of Samsung gas and electric ranges. This motor drives the fan blade behind the rear wall of the lower oven cavity, circulating hot air for faster, more even convection cooking. When the motor fails — whether from winding burnout, worn bearings, or a seized shaft — the fan stops spinning and convection mode loses all its advantages. This is a direct OEM replacement for DG96-00110A, DG9600110A, and DG9600110E.

DG96-00110E Samsung Range Lower Convection Motor

✓ Model-Specific Repair Pages

NE58F9710WS/AA NE58F9500SS/AA NE58H9970WS/AA NE58H9950WS/AA NE58K9850WS/AA NE58K9560WS/AA NE58K9500SG/AA NE59J7850WS/AA NE59J7750WS/AA NE59J7650WS/AA NE59J7630SS/AA NE59M6850SS/AA NE59M4320SS/AA NE59N6650SS/AA NE59R6631SS/AA NV51K7770SS/AA NV51M9770SS/AA NQ70M9770DS/AA NY58J9850WS/AA FTQ353IWUB/XAA

Don't see your model? Contact us

The DG96-00110E mounts to the rear wall of the lower oven cavity and connects to the convection fan blade via a direct shaft. It operates on AC power and uses a shaded-pole motor design. Common failure modes include winding burnout (fan completely dead), worn bearings (grinding or rattling noise that worsens over time), seized motor (hums or buzzes but blade won't turn), and intermittent failure (fan works when cold, stops when hot). Replacing the motor is a 30–50 minute DIY repair on most models.

✓ Common Symptoms Fixed

Convection fan not spinning when convection mode is selected — Grinding, rattling, or squealing noise from the lower oven — Uneven convection cooking results or longer-than-expected cook times — Fan hums or buzzes but blade does not rotate — Fan works intermittently, especially when oven is hot

✓ Key Features & Specifications

OEM Samsung part number DG96-00110E — Replaces DG96-00110A, DG9600110A, DG9600110E — Type: Lower oven convection fan motor (AC shaded-pole) — Direct OEM replacement, no modification required — Fits Samsung gas and electric ranges with lower convection — Compatible with 100+ Samsung range models

✓ Buying Options

New OEM (DG96-00110E): Genuine Samsung original equipment manufacturer part. Exact fit and full manufacturer specifications. Recommended for all standard repairs.

Used / Pulled: Serviceable used motor pulled from a working unit. Ideal for cost-sensitive repairs or when new OEM stock is unavailable. Inspected before listing. Used parts are not affiliated with, sponsored by, or endorsed by Samsung or any OEM manufacturer.

✓ Replacement Part Numbers

DG96-00110E (OEM Samsung) — DG96-00110A (superseded) — DG9600110A (superseded) — DG9600110E (alternate format)

✓ Installation Tips

Disconnect power to the range at the breaker and unplug before beginning. Remove the lower oven racks and the rear oven wall panel to access the convection motor. Take a photo of the wiring harness before disconnecting. Remove the fan blade from the motor shaft (note thread direction — may be left-hand thread), then remove the motor mounting screws. Install the new motor, reconnect the harness, reinstall the fan blade, and replace the rear panel. Restore power and run a convection cycle to verify the fan spins freely and quietly.

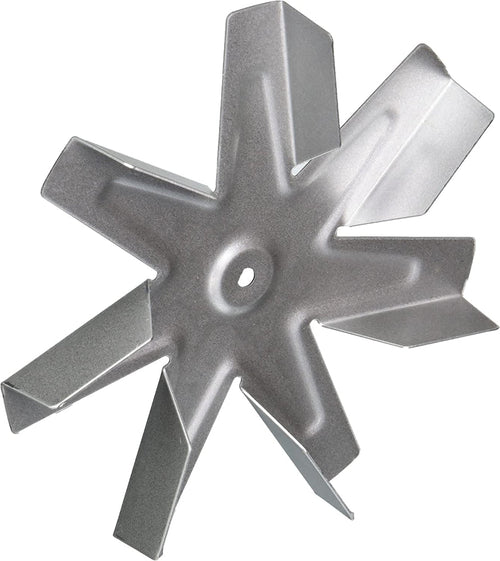

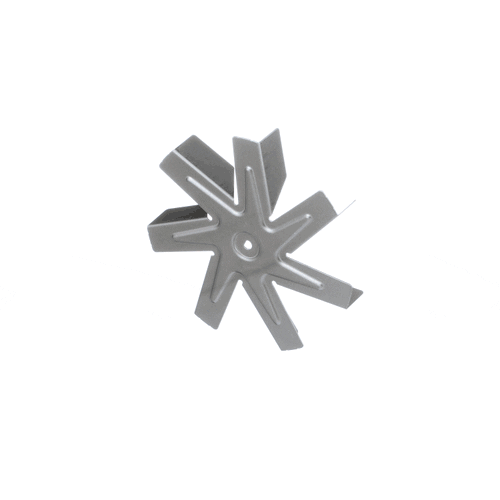

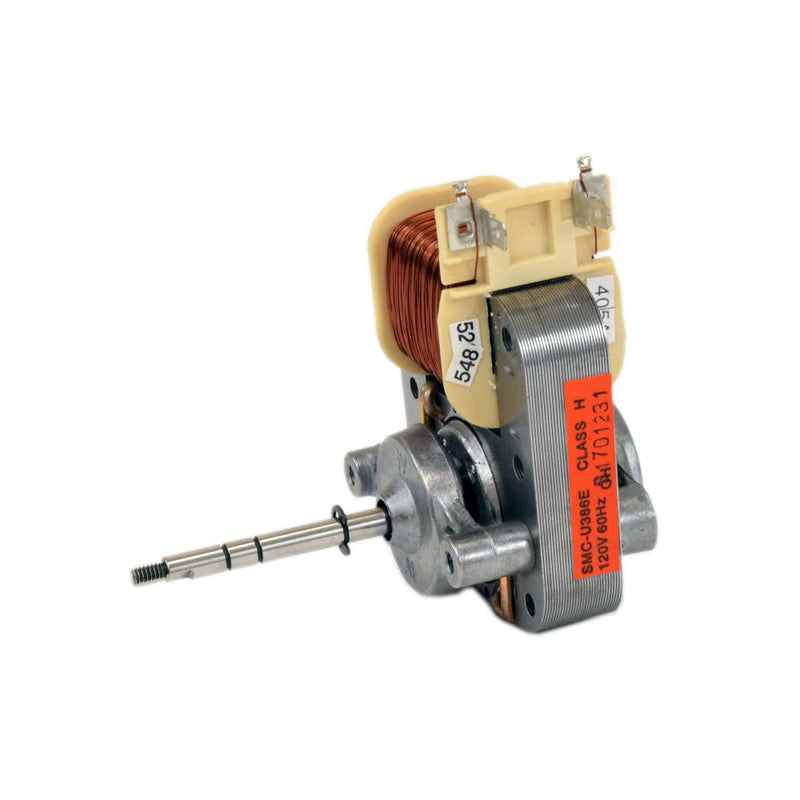

Also commonly replaced together: DG31-00005C Convection AC Motor — DG67-00001B Convection Fan Blade

DG96-00110E Samsung Range Convection Motor Diagram

✅ Cross Reference Information

Item # in diagram.

Samsung

Part number DG96-00110E replaces DG96-00110E, DG9600110E, DG96-00110A, DG9600110A

DG96-00110E, Samsung convection motor, range convection fan motor, oven fan not spinning, Samsung oven fan motor, convection motor replacement, oven convection not working, Samsung range fan motor, lower oven convection motor, oven fan grinding noise, convection fan motor replacement, Samsung range convection, oven fan buzzing, convection cooking uneven, Samsung oven repair, oven convection fan, oven rear fan motor, Samsung convection fan, oven circulation fan motor, convection motor lower oven

✅ Guaranteed to Fit Your Model

✅ Frequently Asked Questions

Why is my oven not cooking evenly on convection mode?

Uneven convection cooking means the circulating airflow system isn't working properly. The most common cause is a failed convection fan motor — if the motor has died or is running slowly, the fan can't circulate air effectively, and the oven behaves like a conventional oven with heat radiating from the elements only. Set the oven to convection bake and listen near the rear wall — you should hear a steady whooshing sound of air being circulated. If it's silent, the motor has failed. If you hear grinding or rattling, the motor bearings are worn and the motor is failing. Open the oven door briefly and look at the fan behind the rear panel — if it's not spinning or spinning slowly, the motor needs replacement. Other causes of uneven convection cooking include a blocked rear oven panel (food debris covering the air vents), a failed convection heating element (fan spins but the air isn't heated — check if the ring element glows when convection is selected), and overloading the oven (too many pans blocking airflow — leave space between pans and the oven walls for air to circulate).
