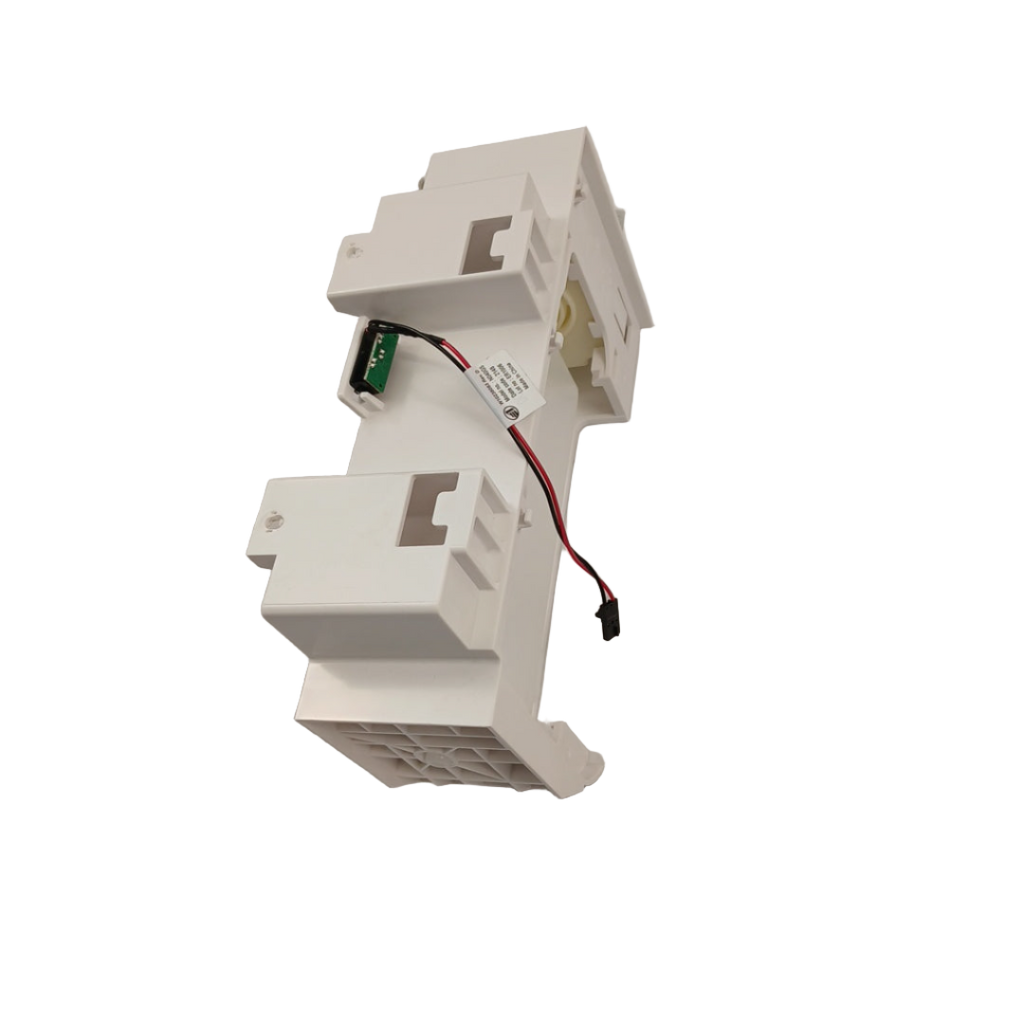

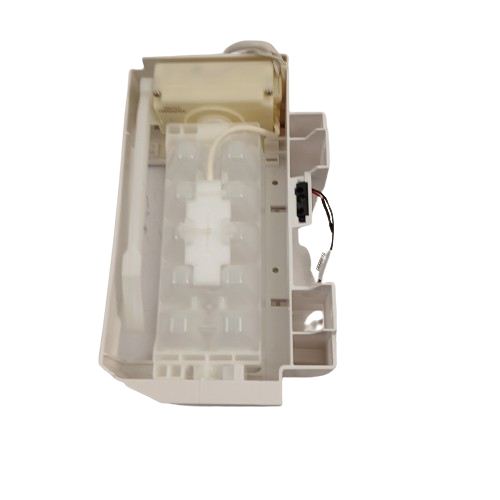

Whirlpool Refrigerator Ice Maker Assembly W10873791 (Replaces W10760070)
W10873791 Refrigerator Ice Maker Assembly - XPart Supply
W10873791 Refrigerator Ice Maker Assembly - XPart Supply
W10873791 Refrigerator Ice Maker Assembly - XPart Supply
W10873791 Refrigerator Ice Maker Assembly - XPart Supply
Whirlpool Refrigerator Ice Maker Assembly W10873791 (Replaces W10760070)
Customers rate us 4.9/5 based on 189 reviews.

Whirlpool Refrigerator Ice Maker Assembly W10873791 (Replaces W10760070)

Sale price
$122.98
Regular price
$146.80
You save
$23.82 (16%)

XPart Number: 9777925718305   |   GTIN: 810032865368

Buying options: XPart

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 833-899-7278

Shipper / Seller: Whirlpool Refrigerator Parts

Professional Repair Time: 20–45 minutes
DIY Repair Time: 30–75 minutes
Difficulty Rating: Easy–Medium (2/5)

  • No ice production (ice maker not cycling)
  • Ice maker won’t harvest / cubes stuck in mold
  • Ice maker cycles intermittently or stalls mid-cycle
  • Motor/module noise or clicking with no ice ejection
  • Ice maker cycles but won’t dump ice (weak heater/module failure)
  • Overfilling/odd cube shape (verify valve/pressure first)

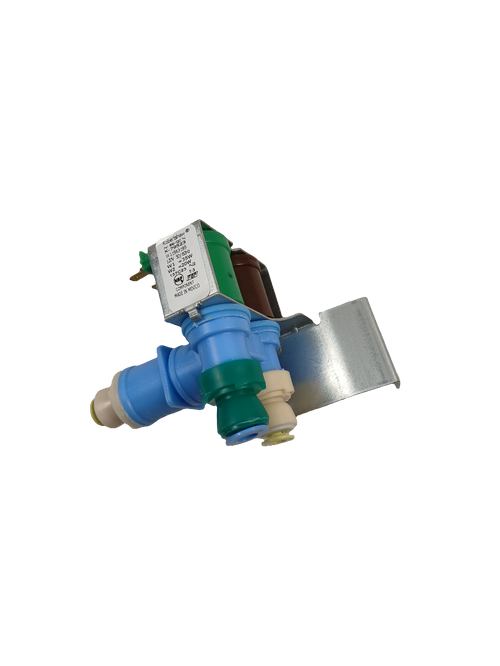

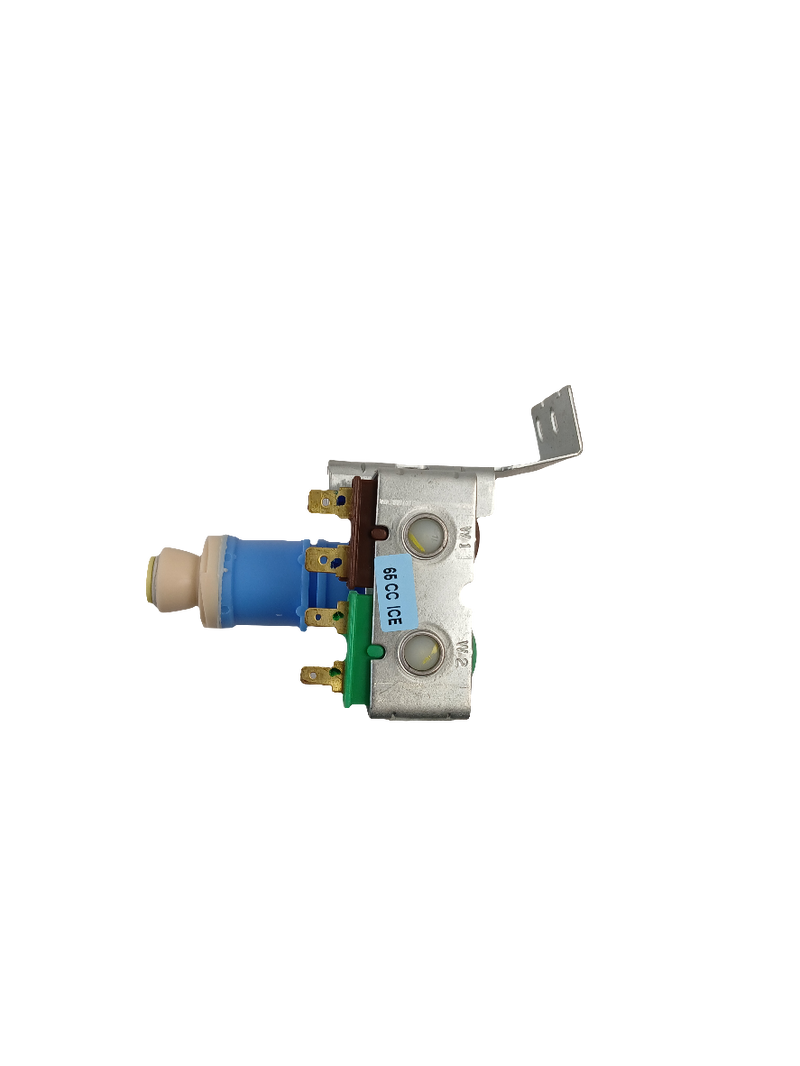

Whirlpool Refrigerator Water Inlet Valve WPW10179146 (Replaces W10155357)

Item #21 in diagram.

Part number W10873791 replaces W10760070, W10798411, W10847507, W10873791VP, W11130444

Whirlpool, Maytag, KitchenAid, JennAir, Amana, Kenmore (Whirlpool-built) (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)


10651132213, 10651133213, 10651134213, 10651135610, 10651139213, 10651139214, 10651332710, 10651335710, 10651339710, 10651762510, 10651762511, 10651763510, 10651763511, 10651764510, 10651764511, 10651769510, 10651769511, 10651769512, 10651772510, 10651773510, 10651779510, 10651779511, 10651782412, 10651782413, 10651783412, 10651789412, 7KRSF77EST00, JSC23C9EEM00, KRSC500ESS00, KRSC500ESS01, KRSC503EBS00, KRSC503EBS01, KRSC503ESS00, KRSC503ESS01, KRSC700HBS00, KRSC700HBS01, KRSC700HPS00, KRSC700HPS01, KRSC703HBS00, KRSC703HBS01, KRSC703HPS00, KRSC703HPS01, KRSF505EBL00, KRSF505EBL01, KRSF505ESS00, KRSF505ESS01, KRSF505EWH00, KRSF505EWH01, KRSF705HBS00, KRSF705HBS01, KRSF705HPS00, KRSF705HPS01, MSB26C6MDE02, MSB26C6MDH02, MSB26C6MDM02, MSC21C6MDM02, MSC21C6MEZ00, MSC21C6MFZ00, MSC21C6MFZ05, MSS25C4MGB00, MSS25C4MGB06, MSS25C4MGK00, MSS25C4MGK03, MSS25C4MGW00, MSS25C4MGW03, MSS25C4MGZ00, MSS25C4MGZ03, MSS25C4MGZ06, MSS26C6MEZ00, MSS26C6MFB00, MSS26C6MFB01, MSS26C6MFW00, MSS26C6MFW01, MSS26C6MFZ00, MSS26C6MFZ01, WRS555SIHB00, WRS555SIHB03, WRS555SIHB06, WRS555SIHV00, WRS555SIHV03, WRS555SIHV06, WRS555SIHW00, WRS555SIHW03, WRS555SIHW06, WRS555SIHZ00, WRS555SIHZ03, WRS555SIHZ06, WRS571CIDB00, WRS571CIDB01, WRS571CIDB02, WRS571CIDM01, WRS571CIDM02, WRS571CIDW00, WRS571CIDW01, WRS571CIHB00, WRS571CIHB01, WRS571CIHV00, WRS571CIHV01, WRS571CIHW00, WRS571CIHW01, WRS571CIHZ00, WRS571CIHZ01, WRS576FIDB01, WRS576FIDB02, WRS576FIDM01, WRS576FIDM02, WRS576FIDW01, WRS576FIDW02, WRS586FIEH04, WRS586FIEM04, WRS586FIEM05, WRS588FIHB00, WRS588FIHV00, WRS588FIHW00, WRS588FIHZ00, WRS970CIDE00, WRS970CIDE01, WRS970CIDH00, WRS970CIDH01, WRS970CIDM00, WRS970CIDM01, WRS970CIHZ00, WRS970CIHZ01, WRS973CIDM00, WRS973CIHV00, WRS973CIHV01, WRS973CIHZ00, WRS973CIHZ01, WRS975SIDM00, WRSA71CIHN00, WRSA71CIHN01, WRSA71CIHZ00, WRSA71CIHZ01, WRSA88FIHN00, WRSA88FIHZ00

CRITICAL SAFETY WARNING: Unplug refrigerator and turn off water supply (recommended).

  1. Unplug refrigerator (or switch off breaker).
  2. Remove ice bin and any shelves needed for access.
  3. Turn off the ice maker (switch/arm depending on design).
  4. Remove mounting screws securing the ice maker to the freezer wall/liner.
  5. Disconnect the wire harness plug (release locking tab).
  6. Transfer any mounting bracket/cover from the old unit if not included.
  7. Connect the new W10873791 harness plug fully seated.
  8. Mount the ice maker and tighten screws (do not overtighten into liner).
  9. Reinstall ice bin, restore power, and turn ice maker on.
  10. Purge air by dispensing water (if equipped) and allow 12–24 hours for full ice production.
  1. If cubes are small/hollow, check the water filter and inlet valve before replacing the ice maker.
  2. A frozen fill tube is common—thaw and correct root cause (seeping valve or warm air leak).
  3. Confirm freezer temp is ~0°F / -18°C; warm freezers mimic “bad ice maker.”
  4. After install, verify the fill cup is aligned with the fill tube—misalignment causes leaks/ice buildup.
  5. If the ice maker cycles but no water enters, test the valve output and harness voltage during fill.
  6. If the bin is overfilling, check for a seeping valve or incorrect fill time (control issue).
  7. Ensure harness pins are tight; loose pins cause intermittent cycling.
  8. If the unit uses optics/IR bin sensors, confirm they’re not blocked and the door switch works.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

W10873791 Whirlpool Ice Maker Assembly – Complete Ice Production System

The W10873791 is a genuine OEM Whirlpool-family complete ice maker assembly from XPart Supply Ltd. that cycles to fill, freeze, harvest, and eject ice into the bin. This comprehensive assembly includes the mold, motor/module, and heater/thermostat components needed for reliable ice production in your refrigerator.

Key Features and Design

  • Complete Assembly: Includes all necessary components - mold, motor/module, and heater/thermostat system for full ice production functionality.
  • Genuine OEM Quality: Manufactured to exact Whirlpool specifications ensuring perfect fit and reliable performance.
  • Automated Cycle: The refrigerator control energizes the water inlet valve for timed fill, then the harvest system releases cubes and signals for the next cycle.
  • Durable Construction: Built to withstand continuous freeze/harvest cycles for long-lasting ice production.
  • Wide Compatibility: Designed for Whirlpool-family refrigerators with compatible ice maker systems.

Performance and Benefits

This ice maker assembly solves common refrigerator issues including no ice production, partial batches, small or hollow cubes, cubes stuck in mold, ice maker cycles but no water fill, or intermittent operation. Typical failures include stripped module gears (no harvest), weak heater (cubes won't release), failed thermostat/thermistor feedback (won't cycle), stalled motor, broken mold coating, or internal switch failures. By replacing a worn or failed ice maker, you restore full ice production capability backed by XPart Supply Ltd.'s commitment to quality OEM parts.

IMPORTANT: Many "no ice" issues are actually caused by frozen fill tube, bad water valve, clogged filter, low water pressure, or optics/door switch problems—confirm diagnosis before replacing.

CRITICAL: Unplug refrigerator before servicing.

✅ Cross Reference Information

Item #21 in diagram.

Whirlpool, Maytag, KitchenAid, JennAir, Amana, Kenmore (Whirlpool-built) (verify by model)

Part number W10873791 replaces W10760070, W10798411, W10847507, W10873791VP, W11130444

Ice Maker Assembly, Icemaker Assembly, Ice Maker Module, Complete Ice Maker

✅ Guaranteed to Fit Your Model


10651132213, 10651133213, 10651134213, 10651135610, 10651139213, 10651139214, 10651332710, 10651335710, 10651339710, 10651762510, 10651762511, 10651763510, 10651763511, 10651764510, 10651764511, 10651769510, 10651769511, 10651769512, 10651772510, 10651773510, 10651779510, 10651779511, 10651782412, 10651782413, 10651783412, 10651789412, 7KRSF77EST00, JSC23C9EEM00, KRSC500ESS00, KRSC500ESS01, KRSC503EBS00, KRSC503EBS01, KRSC503ESS00, KRSC503ESS01, KRSC700HBS00, KRSC700HBS01, KRSC700HPS00, KRSC700HPS01, KRSC703HBS00, KRSC703HBS01, KRSC703HPS00, KRSC703HPS01, KRSF505EBL00, KRSF505EBL01, KRSF505ESS00, KRSF505ESS01, KRSF505EWH00, KRSF505EWH01, KRSF705HBS00, KRSF705HBS01, KRSF705HPS00, KRSF705HPS01, MSB26C6MDE02, MSB26C6MDH02, MSB26C6MDM02, MSC21C6MDM02, MSC21C6MEZ00, MSC21C6MFZ00, MSC21C6MFZ05, MSS25C4MGB00, MSS25C4MGB06, MSS25C4MGK00, MSS25C4MGK03, MSS25C4MGW00, MSS25C4MGW03, MSS25C4MGZ00, MSS25C4MGZ03, MSS25C4MGZ06, MSS26C6MEZ00, MSS26C6MFB00, MSS26C6MFB01, MSS26C6MFW00, MSS26C6MFW01, MSS26C6MFZ00, MSS26C6MFZ01, WRS555SIHB00, WRS555SIHB03, WRS555SIHB06, WRS555SIHV00, WRS555SIHV03, WRS555SIHV06, WRS555SIHW00, WRS555SIHW03, WRS555SIHW06, WRS555SIHZ00, WRS555SIHZ03, WRS555SIHZ06, WRS571CIDB00, WRS571CIDB01, WRS571CIDB02, WRS571CIDM01, WRS571CIDM02, WRS571CIDW00, WRS571CIDW01, WRS571CIHB00, WRS571CIHB01, WRS571CIHV00, WRS571CIHV01, WRS571CIHW00, WRS571CIHW01, WRS571CIHZ00, WRS571CIHZ01, WRS576FIDB01, WRS576FIDB02, WRS576FIDM01, WRS576FIDM02, WRS576FIDW01, WRS576FIDW02, WRS586FIEH04, WRS586FIEM04, WRS586FIEM05, WRS588FIHB00, WRS588FIHV00, WRS588FIHW00, WRS588FIHZ00, WRS970CIDE00, WRS970CIDE01, WRS970CIDH00, WRS970CIDH01, WRS970CIDM00, WRS970CIDM01, WRS970CIHZ00, WRS970CIHZ01, WRS973CIDM00, WRS973CIHV00, WRS973CIHV01, WRS973CIHZ00, WRS973CIHZ01, WRS975SIDM00, WRSA71CIHN00, WRSA71CIHN01, WRSA71CIHZ00, WRSA71CIHZ01, WRSA88FIHN00, WRSA88FIHZ00

✅ Frequently Asked Questions


Not sure about your model number? Call 833-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
