Whirlpool Refrigerator Water Inlet Valve WPW10179146, Replaces W10155357, W10179146, W11563185, WPW10179146VP

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Ice maker stops producing ice
• Water dispenser does not dispense water
• Water leaks from the valve or connected tubing
• Ice maker overfills because the valve does not shut off completely
• Reduced water flow when the valve or supply path is restricted

Check Before Replacing

• Confirm the refrigerator water shutoff valve is fully open and the household supply line is not kinked.
• Check or temporarily remove the refrigerator water filter if the dispenser and ice maker have reduced or no water flow.
• Inspect the inlet-valve connections and tubing for visible leaks, loose connections, or damage.
• Verify that household water pressure is adequate; RepairClinic identifies a minimum of 20 psi for the valve to shut off properly.
• Before inspecting or replacing the valve, disconnect refrigerator power and shut off the water supply.
• If the valve receives the appropriate activation signal during a fill or dispense request but water does not pass through, the valve may warrant further testing; do not replace it based on symptoms alone.

Pro Tip

Part Details

Installation Notes

• Shut off the refrigerator water supply and disconnect electrical power before service.

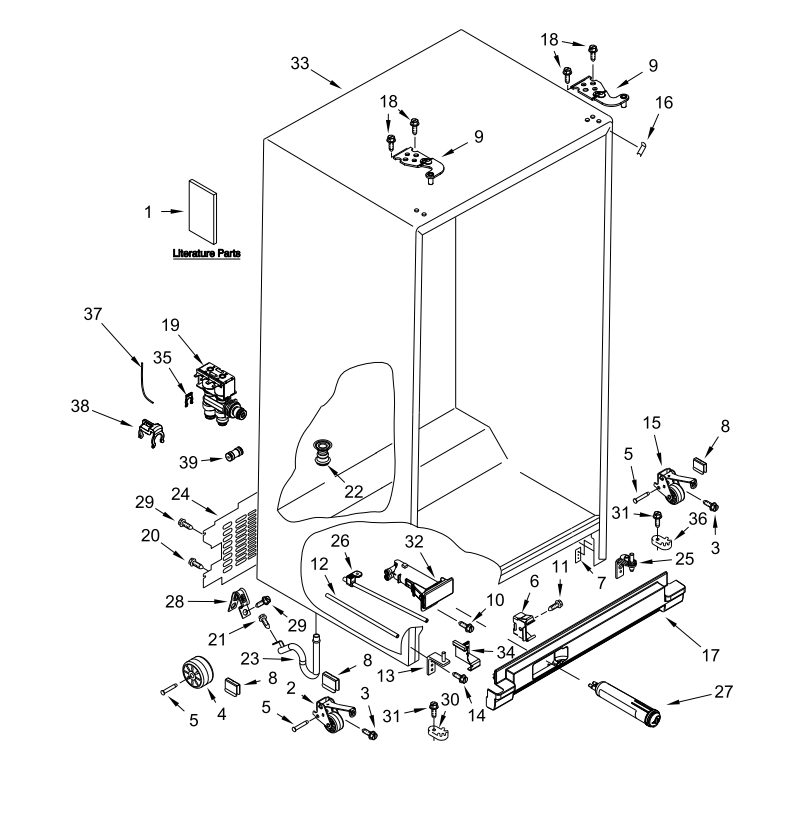

• The valve is located at the rear/lower area of the refrigerator; access varies by model.
• Label or note tubing and electrical connections before disconnecting them so each connection returns to the corresponding port.
• Use the existing mounting hardware and reconnect tubing and electrical connectors securely; do not force or damage push-in tubing connections.
• Restore the water supply gradually and inspect all valve and tubing connections for leaks before returning the refrigerator to normal operation.

Verified Compatible Models

WRS311SDHB00, WRS311SDHM00, WRS311SDHT00, WRS311SDHW00, WRS325FDAM01, WRS325FDAM02, WRS325FDAM04, WRS325FDAT02, WRS325SDHB00, WRS325SDHV00, WRS325SDHW00, WRS325SDHZ00, WRS331FDDB01, WRS331FDDM01, WRS331FDDW01, WRS322FDAM04

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
