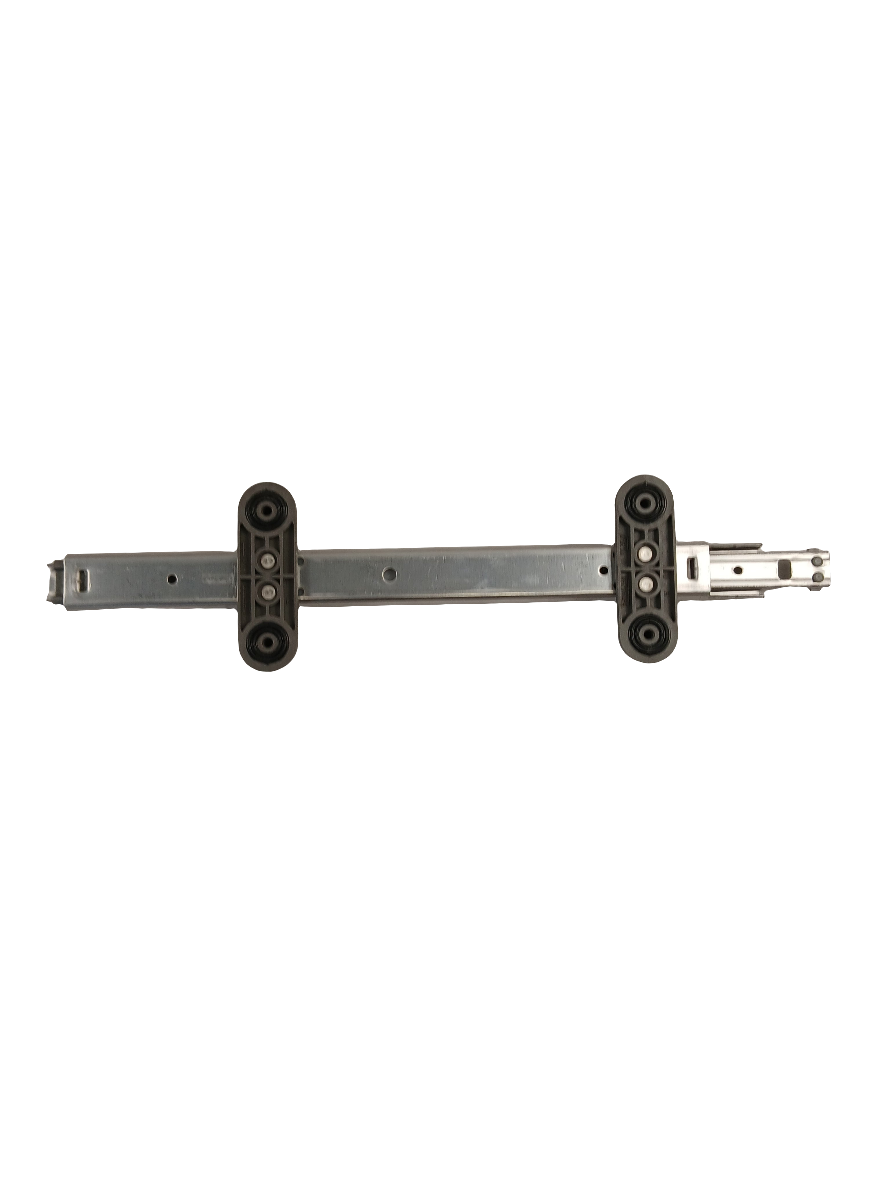

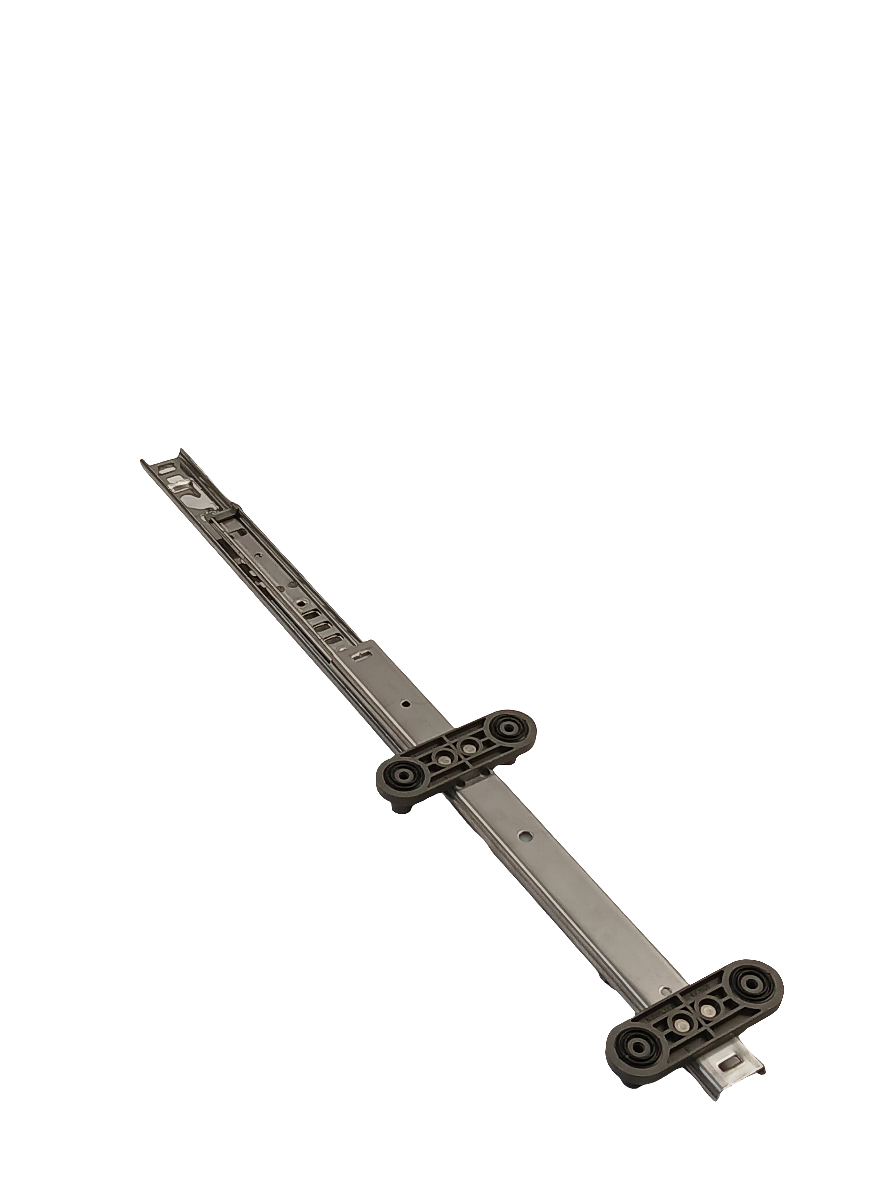

Whirlpool Dishwasher upper dishrack slide track / rail, left-hand side W11259785, Replaces W11192640, W11048934, W10915185, W10914015, W10852728, W10811586, W10781301, W10752595, W10462359, W10311157

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Upper rack binds, catches, or moves unevenly.
• Upper rack becomes crooked, wobbly, or difficult to extend.
• Track assembly is visibly bent, cracked, or damaged.
• Ball bearings or other track components come loose, allowing the rack to sag or detach on the left side.

Check Before Replacing

• With the dishwasher empty and the door open, pull the upper rack out slowly and observe whether the left side binds or moves unevenly.
• Visually inspect the left upper track for bending, cracks, loose mounting, obstructions, or missing track components.
• Compare the left track’s alignment and rack movement with the right-side track.
• Check that the upper rack is correctly engaged with the track and that the rack stops or end caps are present.
• Do not force the rack; if resistance remains after removing visible obstructions, discontinue use until the track and rack assembly can be inspected further.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before beginning installation; follow the dishwasher’s service or installation documentation.
• Remove the upper rack according to the appliance manual before accessing the track.
• The dishwasher may need to be pulled forward from the cabinet to access the track mounting points; protect utility connections and do not stretch or pinch them.
• Support the track assembly while removing its mounting fasteners.
• Install the replacement on the left side in the same orientation as the removed assembly, align the mounting holes, and secure it with the original fasteners.
• Reinstall the rack and end stops or caps, then verify smooth rack movement before returning the dishwasher to service.

Verified Compatible Models

2214715N710, 66512782K310, 66512782K312, 66512782K313, 66512783K311, 66512783K312, 66512783K313, 66512789K311, 66512789K312, 66512789K313, 66512793K312, 66512793K313, 66512793K314, 66512803K312, 66512833K311, 66512833K312, 66512833K313, 66512833K314, 66514712N710, 66514713N710, 66514715N710, 66514719N710, BLB14BRANA0, BLB14DRANA0, BLB14DRANA1, BLB14DRANA2, BLB14DRANA4, BLB14DRANA5, BLB14FRANA0, GLB14BBANA0, GLB14BBANA1, IDT930SAGX0, JDB9200CWS3, JDB9200CWX4, JDB9800CWP3, JDB9800CWS3, JDTSS243GX0, JDTSS244GP0, JDTSS244GS0, JDTSS245GX0, KDTE104EWH2, KDTE204ESS1, KDTE234GBL0, KDTE304GPS1, KDTM404ESS2, KDTM504EPA1, MDB8959SBB0, MDB8959SFH4, MDB8969SDH3, MDB8989SHZ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
