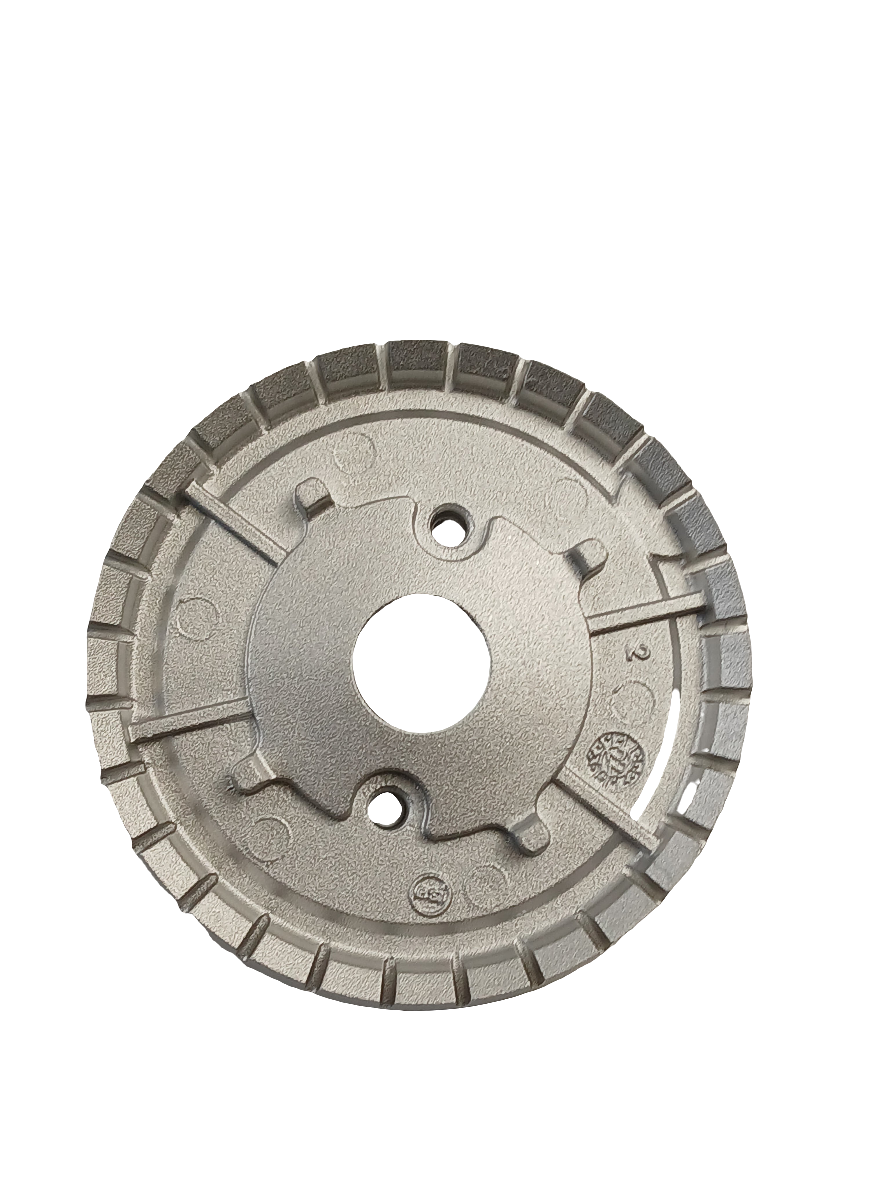

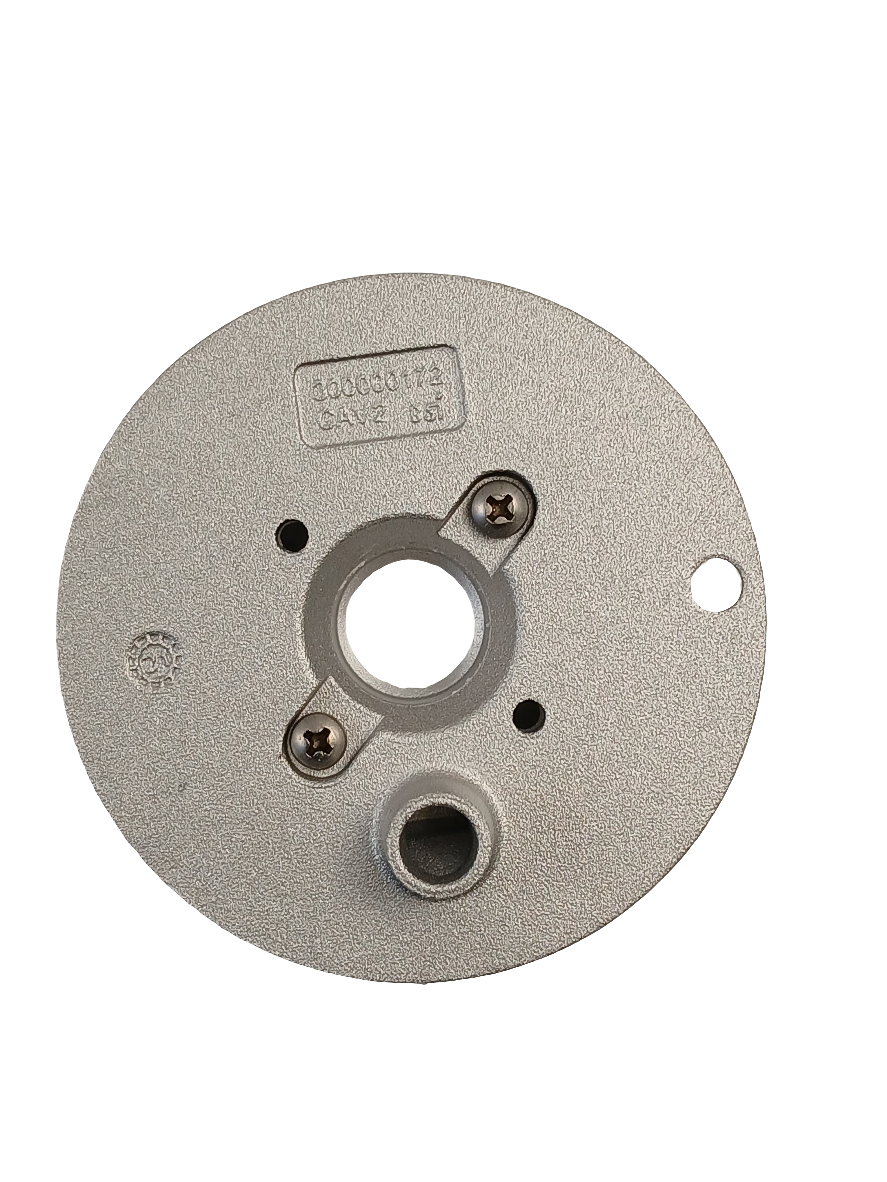

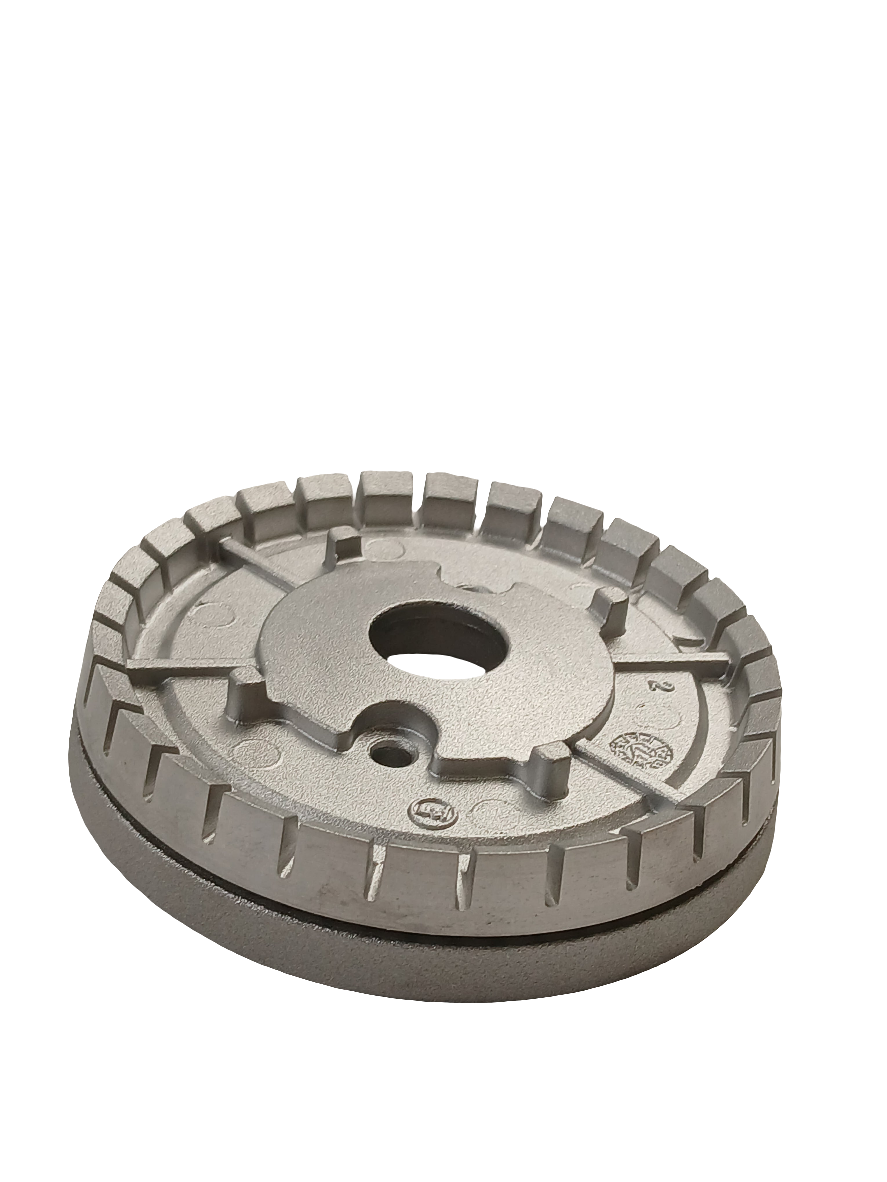

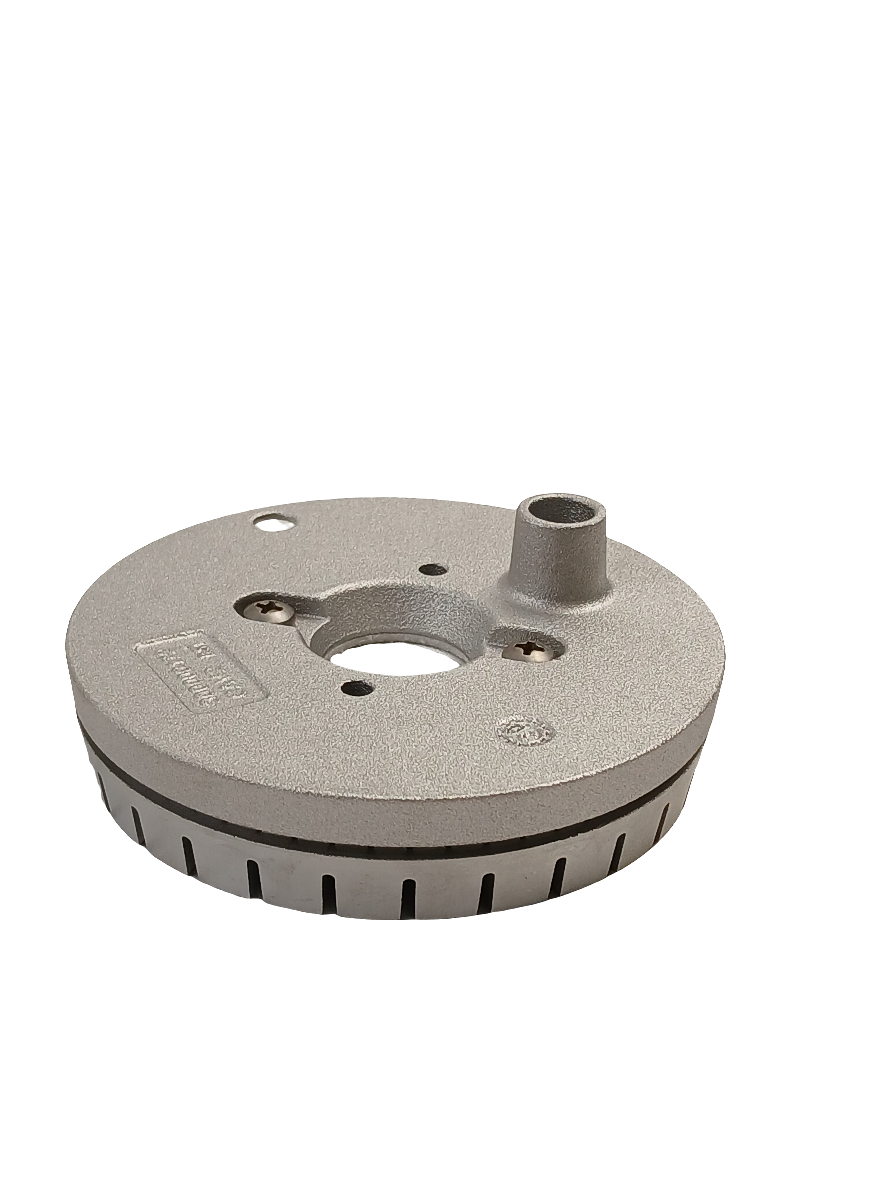

Whirlpool Range Burner Head - Left and Right Front W11344539, Replaces W10891746

Genuine Whirlpool surface gas burner head for the left and right front burner positions. It distributes gas through openings around its edge to produce an even, steady flame; documented for gas ranges and cooktops.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven, weak, or sputtering flame
• Delayed or unreliable ignition when the burner head is damaged or its ports are obstructed
• Flame instability or inconsistent heating
• Visible corrosion, cracking, warping, or damaged burner-port areas

Check Before Replacing

• Turn the burner off and allow the burner assembly to cool completely before inspection.
• Confirm that the burner head and cap are seated correctly and that the burner-head opening is aligned with the igniter electrode or locating feature specified for the appliance.
• Inspect the burner ports and surrounding surface for food residue, corrosion, cracks, or deformation.
• Clean accessible burner ports and surfaces only as directed by the appliance owner's manual; do not enlarge or mechanically alter the ports.
• Compare the affected burner’s flame pattern with another burner of the same appliance while observing normal gas-appliance safety precautions.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM burner head
• For left and right front burner positions on documented models
• Distributes gas through openings around the burner edge
• Documented for Whirlpool and KitchenAid gas ranges and cooktops
• Replaces prior OEM number W10891746

Installation Notes

• Verify the appliance model and burner position before installation.
• Turn off the burner and allow the surface to cool before removing the existing head.
• Remove and reinstall the burner head in accordance with the appliance owner's manual.
• Align the burner-head locating feature with the igniter electrode or corresponding appliance feature, and ensure the burner cap is correctly positioned before testing.
• If the burner does not ignite normally or produces an abnormal flame after installation, turn it off and contact a qualified appliance service professional.

Verified Compatible Models

BDR90ARNNA00, KCGC500JSS00, KCGC506JSS00, KCGC558JSS00, KFDC500JAV00, KFDC500JBK01, KFDC500JBK03, KFDC500JIB00, KFDC500JIB01, KFDC500JMB00, KFDC500JMH00, KFDC500JPA00, KFDC500JSC00, KFDC500JSC01, KFDC500JSC03, KFDC500JSS00, KFDC500JSS01, KFDC500JSS03, KFDC500JYP01, KFDC500JYP03, KFDC506JAV01, KFDC506JAV03, KFDC506JBK01, KFDC506JBK03, KFDC506JIB00, KFDC506JMB01, KFDC506JMH00, KFDC506JPA01, KFDC506JPA03, KFDC506JSC00, KFDC506JSC01, KFDC506JSC03, KFDC506JSS00, KFDC506JSS01, KFDC506JSS03, KFDC506JYP00, KFDC558JAV00, KFDC558JAV01, KFDC558JBK00, KFDC558JIB01, KFDC558JMB01, KFDC558JMH00, KFDC558JMH01, KFDC558JPA00, KFDC558JPA01, KFDC558JSC01, KFDC558JSC03, KFDC558JSS01, KFDC558JSS03, KFDC558JYP00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
