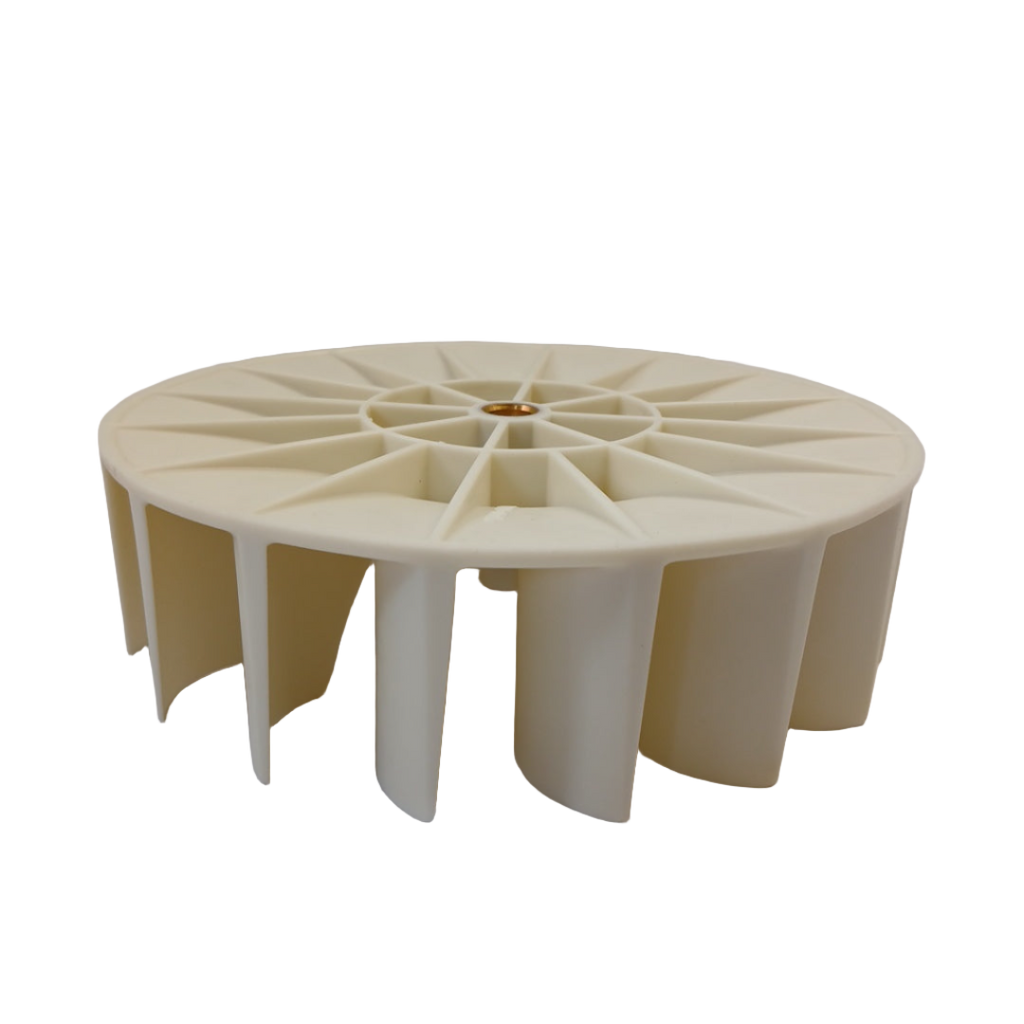

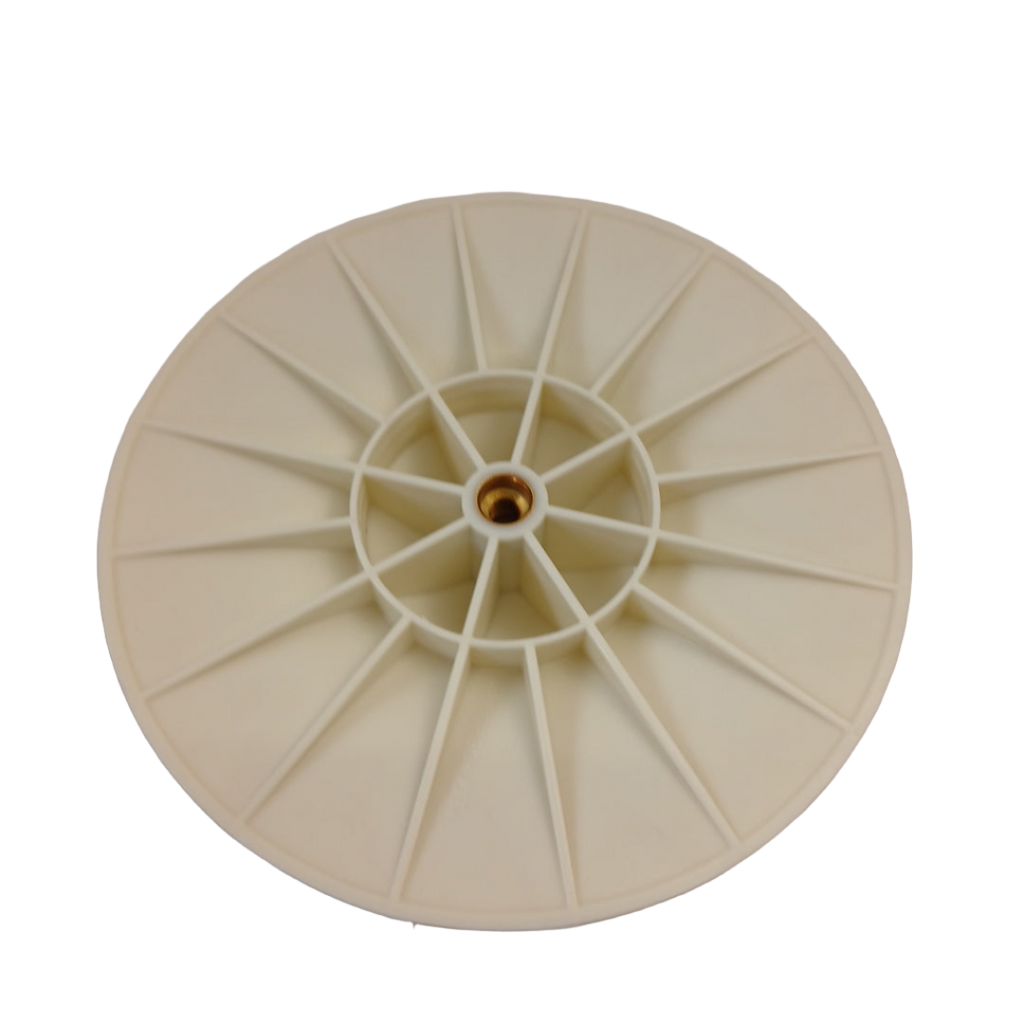

Whirlpool Dryer blower wheel W11573366, Replaces W10364994

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer takes too long to dry
• Weak exhaust airflow
• Dryer may overheat when airflow is restricted
• Rattling, scraping, vibration, or wobbling from the blower area
• Dryer drum may not turn if the blower wheel is obstructed or damaged

Check Before Replacing

• Disconnect electrical power before inspection or service.
• With the dryer safely disconnected, remove the exhaust vent connection and briefly assess whether airflow is weak; restore the vent connection before normal operation.
• Inspect the blower area for lint, socks, or other small objects that may have bypassed the lint filter.
• With power disconnected, rotate the blower wheel by hand and check for visible wobble, looseness, obstruction, or rubbing.
• Do not treat weak airflow alone as confirmation that the blower wheel is defective; also consider vent blockage and other airflow restrictions.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing the dryer.
• Follow the appliance-specific service documentation because access to the blower wheel varies by model.
• The Whirlpool service procedure identifies the blower wheel as threaded onto the motor shaft and notes that it uses a left-hand thread on the documented platform.
• When reinstalling, ensure the wheel is seated correctly on the motor shaft and spins without rubbing or wobbling.
• Reinstall all removed ducts, panels, and guards before operating the dryer.

Verified Compatible Models

WED99HEDC0, WED99HEDW0, WED7990FW0, WED9290FC0, WED9290FW0, WHD560CHW0, WHD560CHW1, WHD560CHW2, WHD862CHC0, WHD862CHC1, WHD862CHC2, YWED99HEDC0, YWED7990FW0, YWED9290FC0, YWED9290FW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
