Maytag Top-Load Washer Main Control Board W11627413 — Fixes No Start or Cycle Problems / Restores Washer Control
🇺🇸 Matching U.S. Part Number: W11627413
Maytag Top-Load Washer Main Control Board W11627413 — Fixes No Start or Cycle Problems / Restores Washer Control

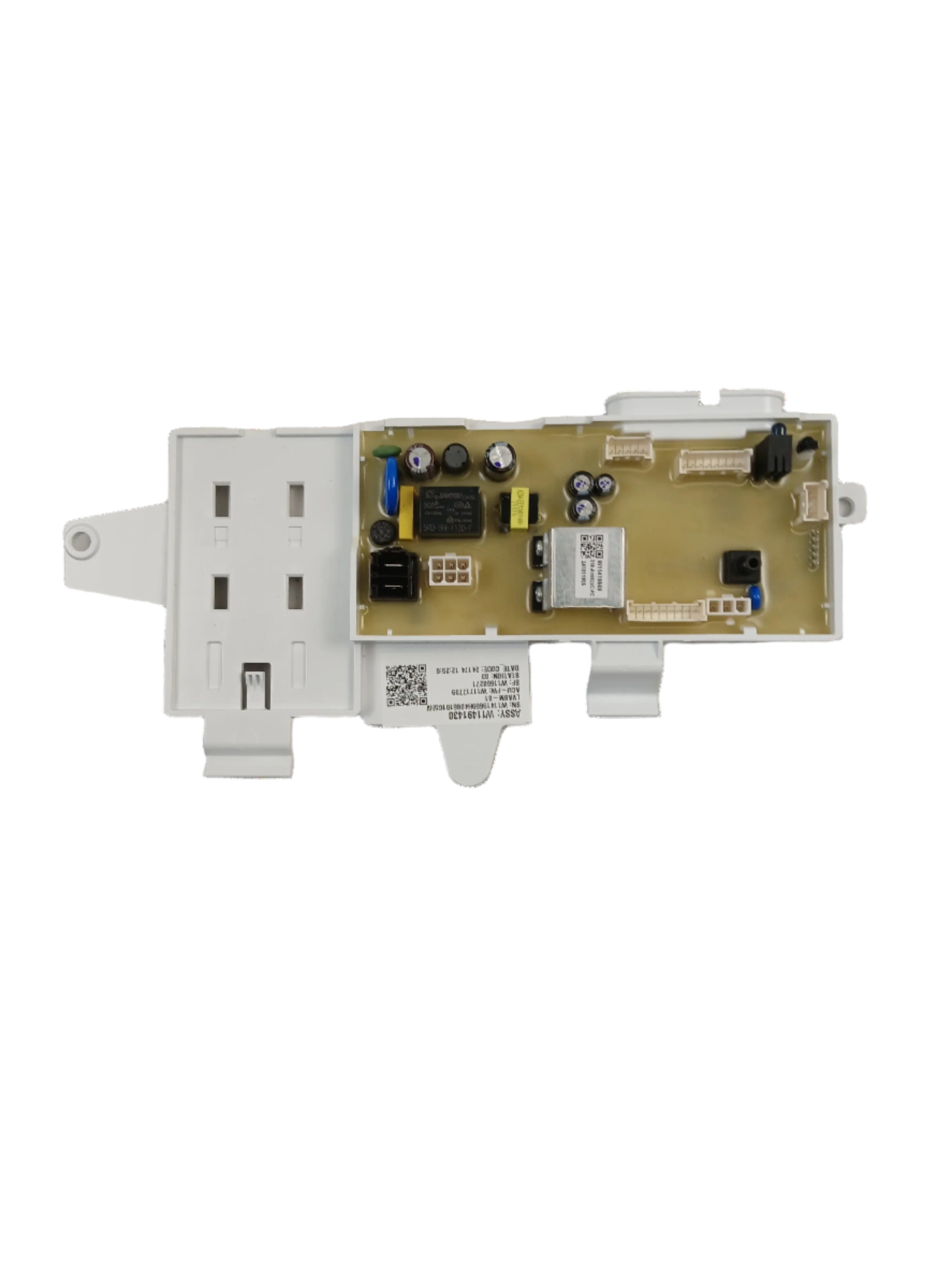

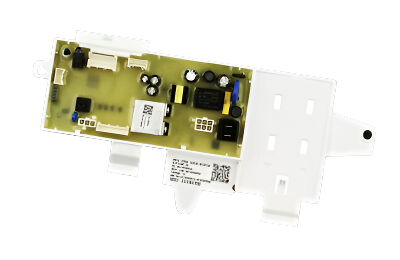

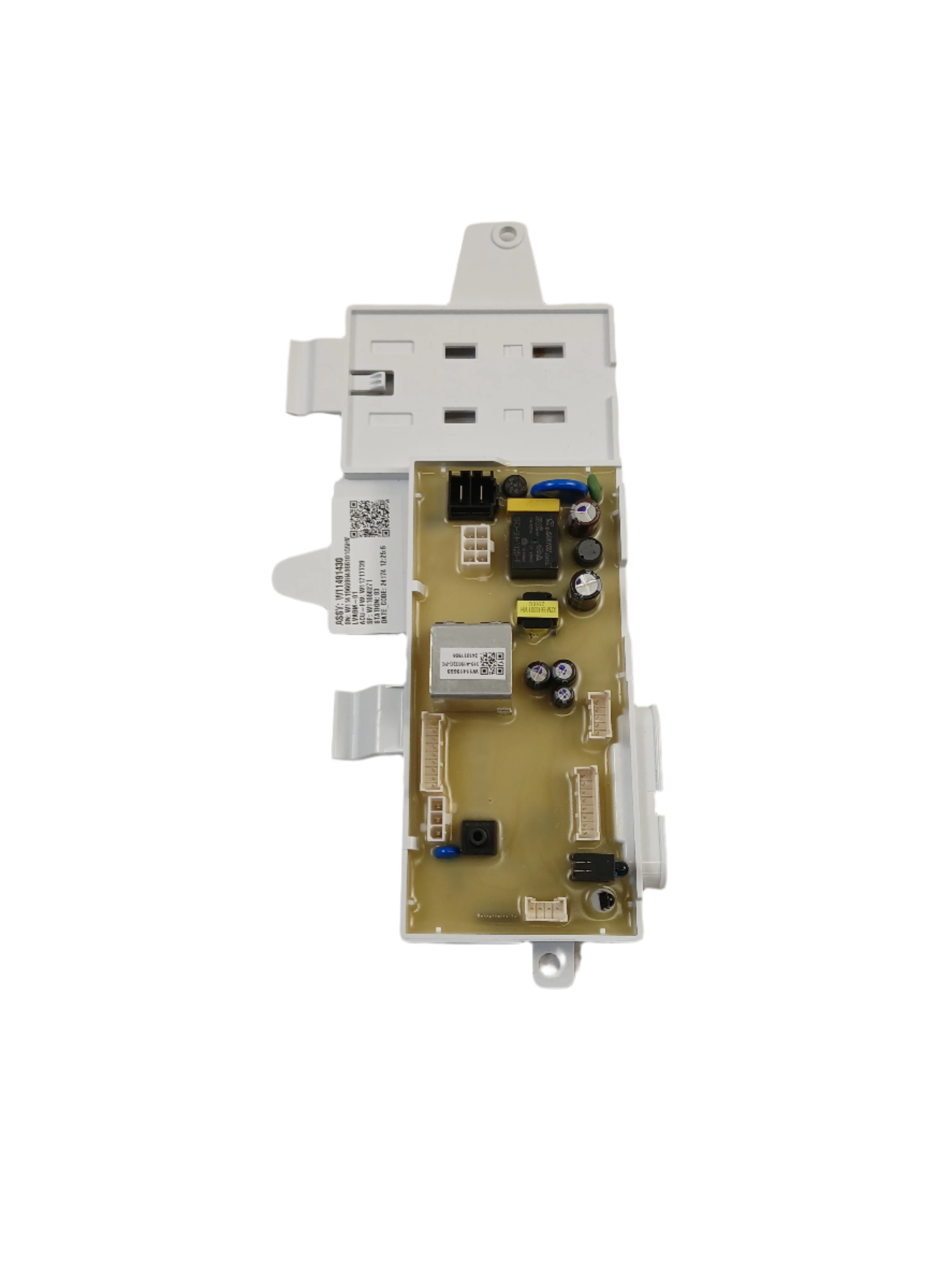

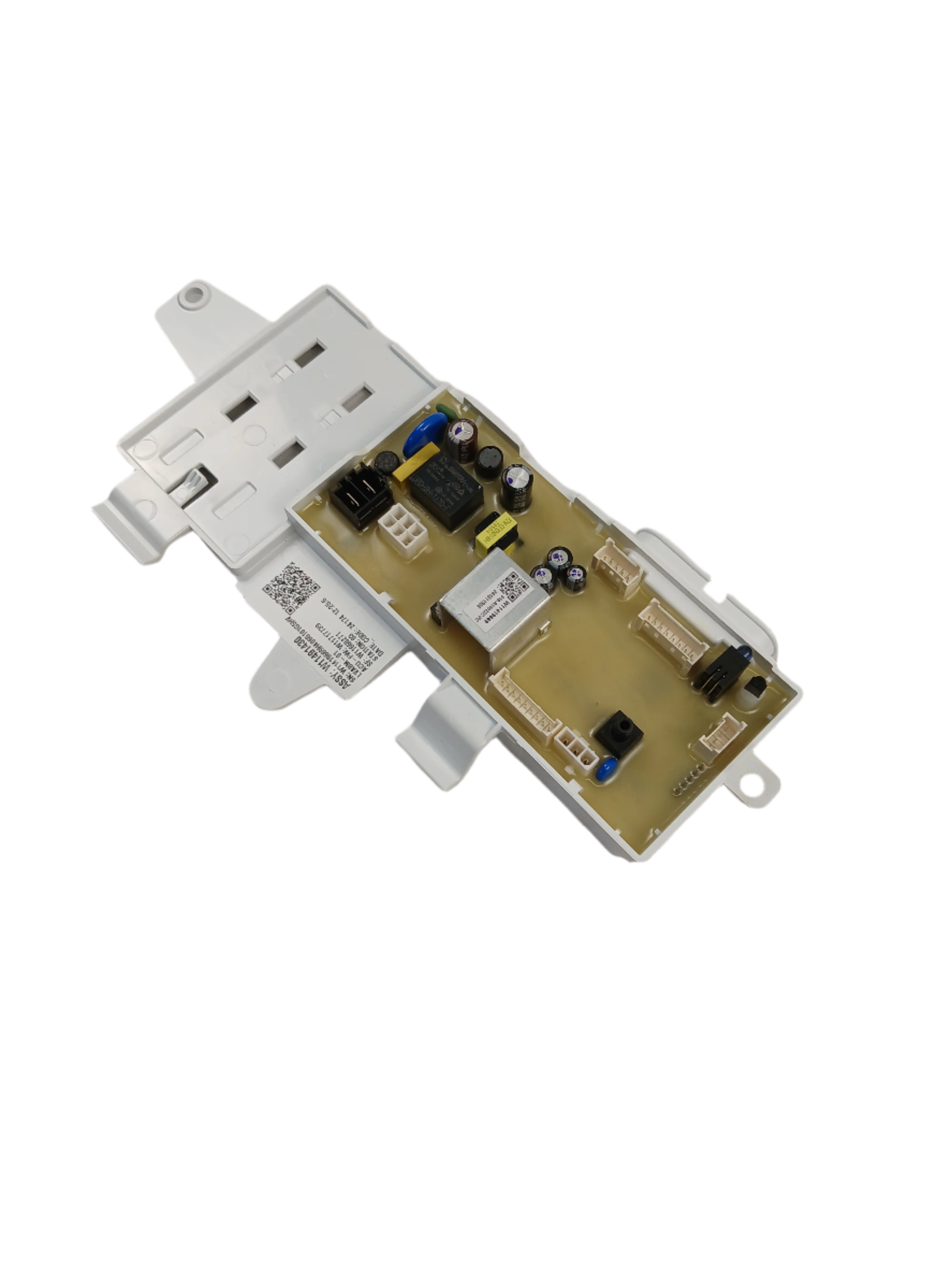

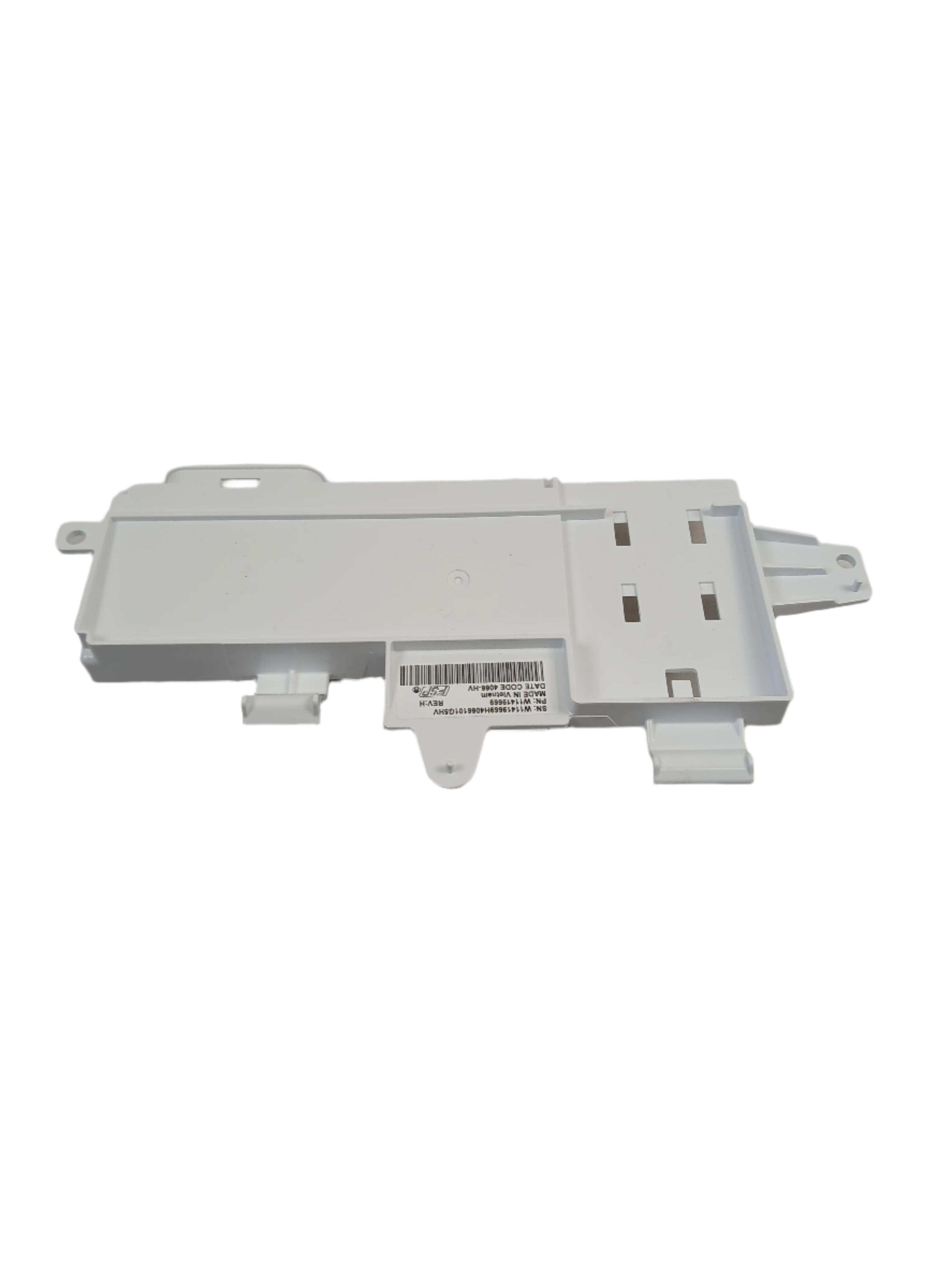

W11627413 is a genuine Whirlpool-manufactured main control board used in select Maytag top-load washers. The control board processes cycle selections and coordinates functions such as filling, washing, draining and spinning. It also communicates with the washer’s other electrical components and sensors. It replaces discontinued control-board number W11491430.
A defective board may contribute to a washer that will not start, stops during a cycle, fails to advance, displays control-related fault codes or operates unpredictably. Similar symptoms can also result from the power supply, wiring, lid lock, water-level pressure system, inlet valve, drain pump, motor, capacitor or another component. Confirm the complete washer model before ordering. Disconnect electrical power before service, protect the board from static electricity and reconnect each wiring harness in its original position. Complete the model-specific diagnostic or calibration procedure after installation when required.
❓ Is This the Right Part?
This may be the correct part if ALL of the following are true:
- ✔ MODEL CONFIRMED — your washer is one of the seven verified Maytag top-load models listed below
- ✔ OTHER CAUSES RULED OUT — power supply, lid lock, wiring, inlet valve, drain pump and motor have been checked
- ✔ BOARD FAULT CONFIRMED — the model-specific diagnostic procedure points to the control board
- ✔ CONNECTOR CONFIGURATION VERIFIED — the replacement board matches the harness layout of the original
Persistent or random error codes do not automatically confirm board failure — run the model-specific diagnostic before ordering. Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Washer will not start or power on despite receiving power
- Washer stops mid-cycle and will not advance
- Persistent or random fault codes with no clear component cause
- Controls are unresponsive or behave erratically
- Washer starts and stops randomly
- Washer will not advance through wash, rinse or spin cycles
✔ The control board is one possible cause of these symptoms and should be confirmed through the model-specific diagnostic procedure before ordering.
📦 Part Details
- Part Number: W11627413 (current service number)
- Type: Programmed appliance-control unit and main machine/motor control board for select Maytag top-load washers. Processes cycle selections and coordinates filling, washing, draining and spinning.
- Replaces (verified OEM predecessor): W11491430 (discontinued)
- Manufacturer: Whirlpool Corporation (Maytag application)
- Canadian / U.S. Part Number: Identical — W11627413

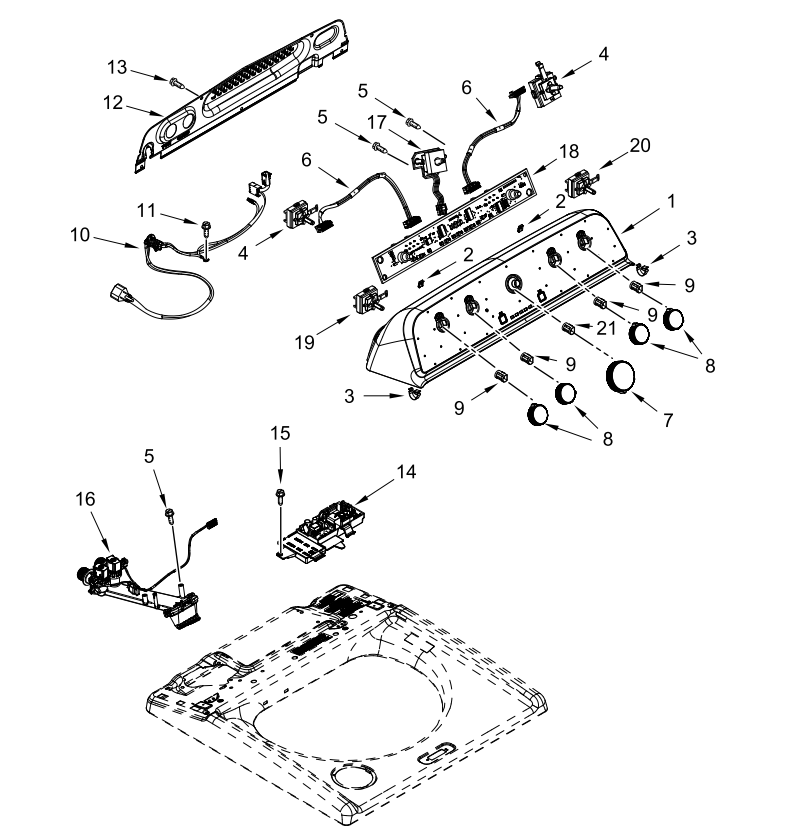

- Note: Item #14 in the parts diagram. Confirm the complete model revision before ordering — control boards can have model-specific programming and connector configurations.
Control boards are non-returnable once installed. Before ordering, confirm the power supply is stable, the lid lock tests correctly, and individual components such as the inlet valve, drain pump and motor are functioning. A failed lid lock or wiring fault can produce the same no-start or mid-cycle-stop symptoms as a defective board at a fraction of the cost.
⚙️ Installation
Skill Level: ADVANCED. Disconnect electrical power before beginning. The control board is typically located behind the rear panel or inside the control console depending on model. Photograph all wiring harness connections before disconnecting. Transfer connectors one at a time to the new board to avoid mis-wiring. Protect the board from static electricity throughout handling. Reassemble, restore power and complete the model-specific diagnostic or calibration procedure to confirm all functions are restored. Installation time and programming or calibration requirements vary by model.
✓ Compatible Models
Confirmed compatible with MVW5035MW0, MVW5035MW1, MVW5430MW0, MVW5430MW1, MVW5430PBK0, MVW5435PBK0, MVW5435PW0. Contact us to verify your model number before ordering.
💡 Pro Tip
Matyag top-load washers have a built-in diagnostic mode accessible through the cycle selector. Run the diagnostic and record the fault codes before ordering a control board. Many no-start and mid-cycle-stop faults trace back to the lid lock, pressure switch, inlet valve or wiring — components that cost a fraction of a control board. The diagnostic output, combined with the model-specific service manual, is the only reliable way to confirm board failure before committing to a non-returnable part.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
