Customers rate us 4.9/5 based on 188 reviews.

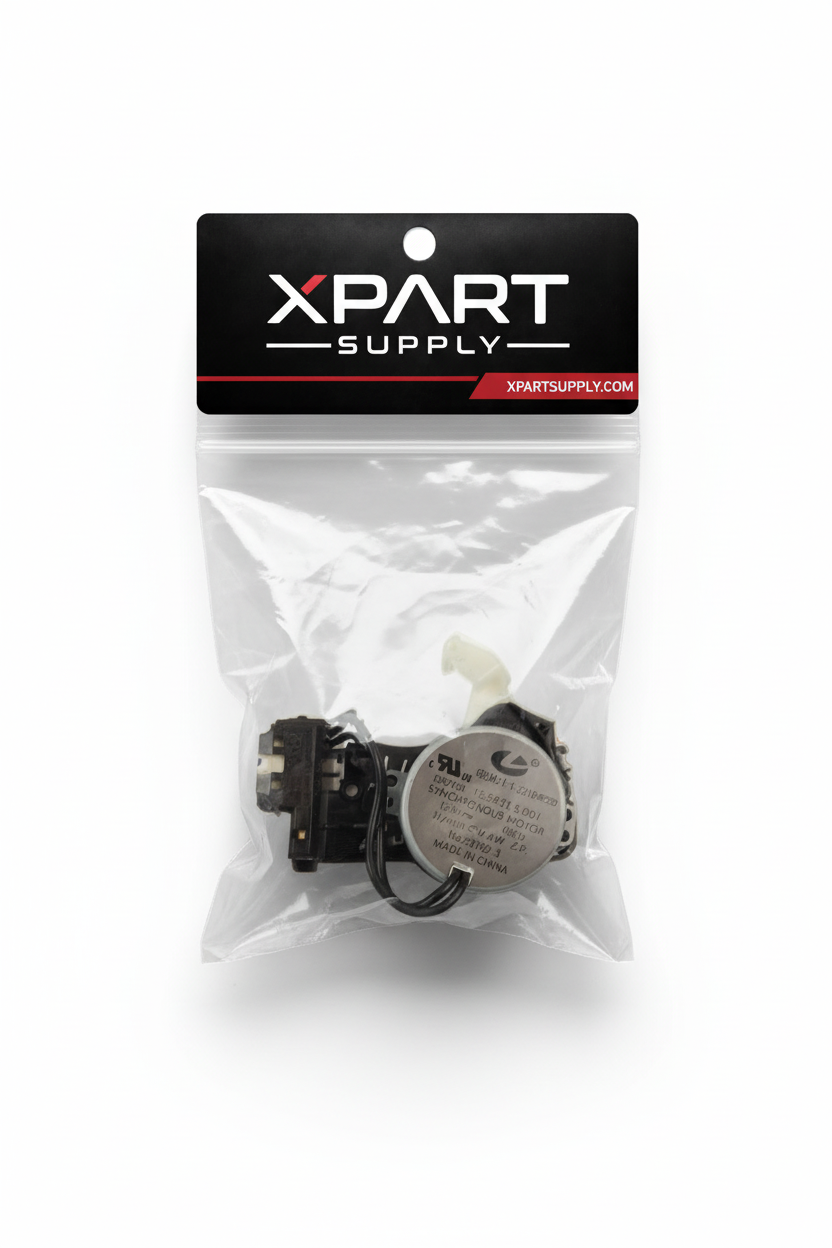

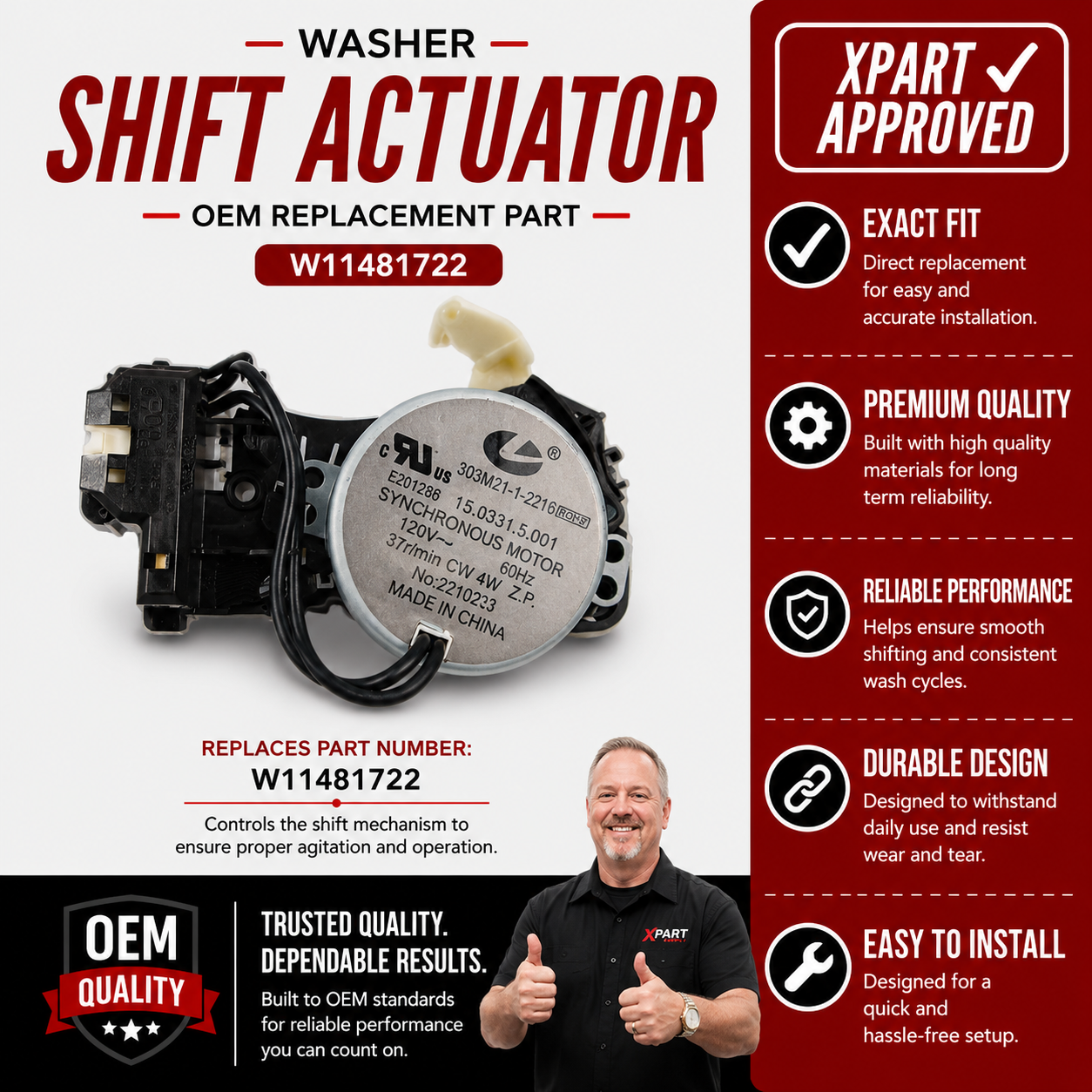

Whirlpool Washer Shift Actuator W11481722 (Replaces W10597177)

Sale price
$49.99
Regular price
$118
You save
$68.01 (58%)

XPart Number: 9768403534113   |   GTIN: 883049632599

Buying Options: OEM
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 833-899-7278

Shipper / Seller: Whirlpool

Professional Repair Time: 20–30 minutes
DIY Repair Time: 25–35 minutes
Difficulty Rating: Easy–Medium (2/5) — Requires safe tilting and basic tools

  • Washer won’t spin or agitate
  • Error codes (F7E1, F7E5, “shifter,” “actuator”)
  • Loud clicking or grinding during cycle transitions
  • Stuck in spin or wash mode
  • Washer stops mid-cycle
  • Incomplete or skipped cycles

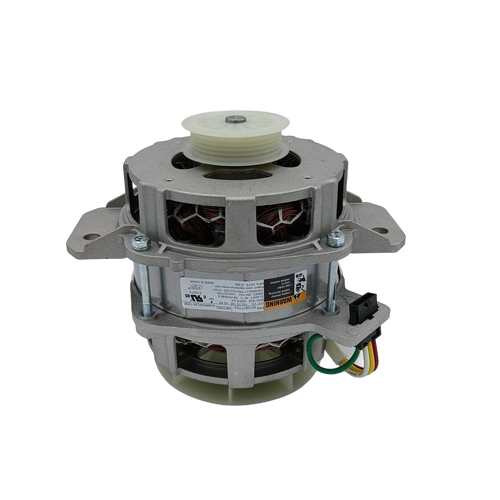

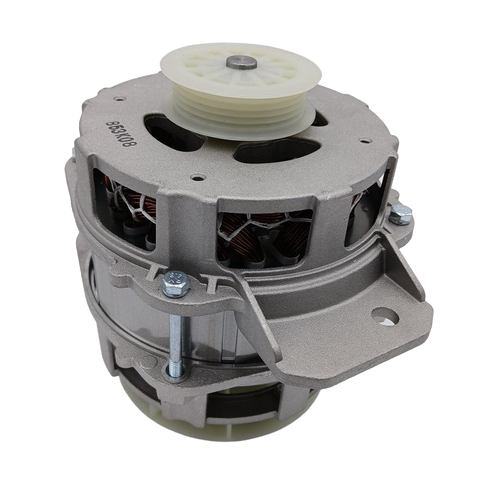

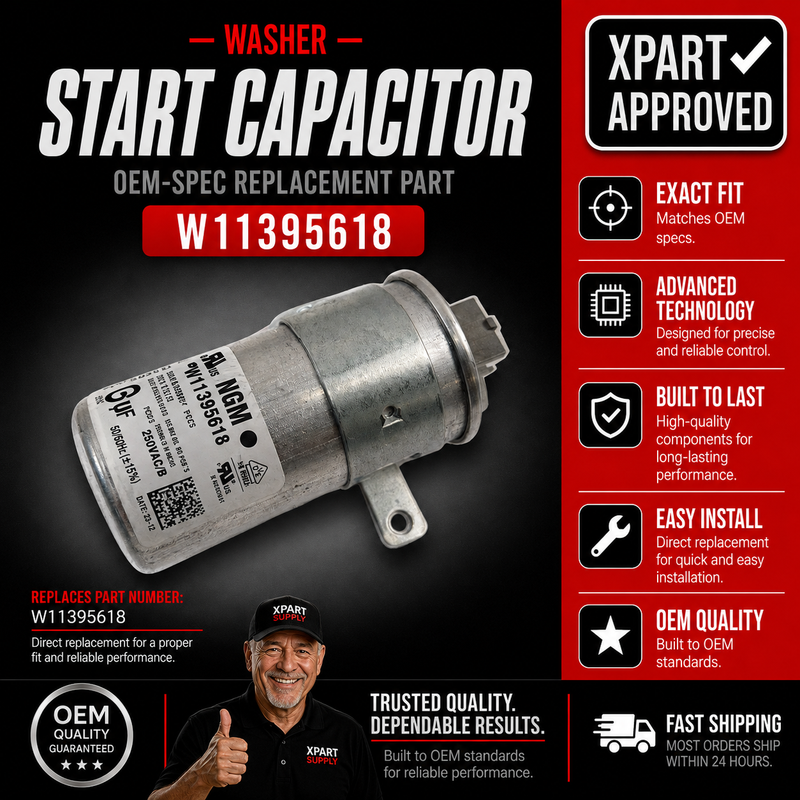

Whirlpool Washer Drive Motor - Genuine OEM W11026785 Whirlpool Washer Motor Start Capacitor - Genuine OEM W11395618

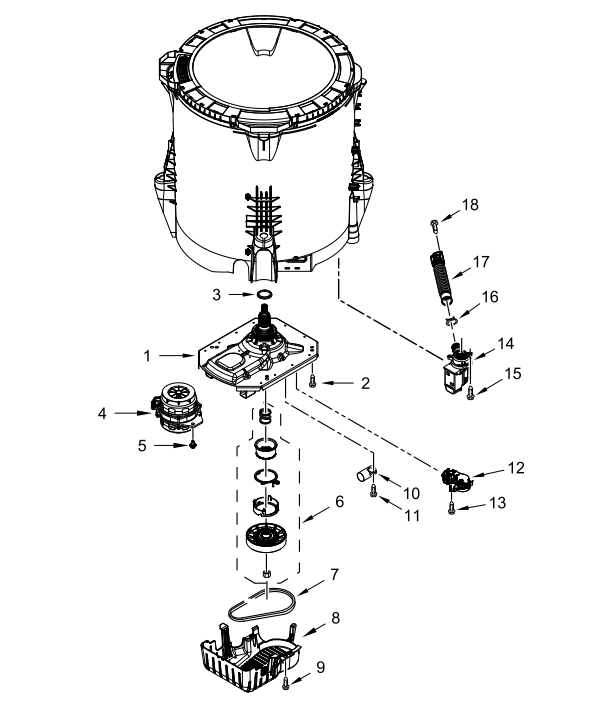

Item #16 in diagram.

Part number W11481722 replaces W10597177, W11237117, W11398781, WPW10597177, W10006355, W10315818, PS11752609, AP6020066, 8540751, 8540749

Whirlpool, Maytag, Amana, Kenmore, Roper, Crosley (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)

11020022014, 11020112311, 11022102311, 11022352510, 11022442511, 11023102311, 11025132410, 11025132411, 11031312021, 1105142510, 1CWTW4740YQ2, 1CWTW4800YQ2, 1CWTW4815EW0, 1CWTW4815EW1, 1CWTW4840YW2, 1CWTW4845EW0, 1CWTW4845EW1, 2DWTW4705EW0, 2DWTW4705EW1, 2DWTW4800YQ1, 2DWTW4845EW0, 2DWTW4845EW1, 7MMVWC100DW1, 7MMVWC200DW1, 7MMVWC355DW1, 7MMVWH450DW1, 7MMVWX521BW1, 7MMVWX655EW0, 7MMVWX722BG1, 7MWTW1500EM0, 7MWTW1500EM1, 7MWTW1502BM1, 7MWTW1504DQ1, 7MWTW1602BM1, 7MWTW1604DM1, 7MWTW1700EM0, 7MWTW1700EM1, 7MWTW1701DQ1, 7MWTW1704BM1, 7MWTW1709DM1, 7MWTW1715BM1, 7MWTW1800DM1, 7MWTW1801BQ1, 7MWTW1805DM1, 7MWTW1805EM0, 7MWTW1805EM1, 7MWTW1808AW1, 7MWTW1812AW1, 7MWTW1905DW1, 7MWTW1935DW1, 7MWTW1950EW0, 7MWTW1950EW1, 7MWTW1955EW0, 7MWTW1955EW1, 7MWTW4915EW0, 7MWTW4925EW0, 7MWTW5521BW1, 7MWTW5622BW1, 7MWTW9919DM1, 7MWTW9920EM0, ATW4676BQ1, CAW11544EW1, CAW12444DW1, CAW8350EW0, CAW8350EW1, CAW9244DW1, CAW9352EW1, CAW9444DW1, ITW4671DQ0, ITW4771DQ0, ITW4971DQ0, MVW6200KW1, MVW6200KW2, MVW6230HC1, MVW6230HC2, MVW6230HW1, MVW6230HW2, MVW6230RHW1, MVW6230RHW2, MVWC200BW1, MVWC215EW0, MVWC215EW1, MVWC300BW1, MVWC415EW0, MVWC415EW1, MVWC425BW1, MVWC555DW0, MVWC555DW1, MVWC565FW0, MVWP475EW0, MVWX655DW0, MVWX655DW1, NTW4516FW0, NTW4601BQ1, NTW4611BQ1, NTW4631BQ1, NTW4651BQ1, NTW4701BQ1, NTW4750BQ1,, RTW4516FW0, RTW4641BQ1, WTW4715EW0, WTW4800BQ1, WTW4810BQ1, WTW4810EW0, WTW4815EW0, WTW4816FW0, WTW4850BW1, WTW4850BW2, WTW4900BW1, WTW4915EW0, WTW4915EW1, WTW5000DW0, WTW5000DW1, WTW5100HC1, WTW5100HC2, WTW5100HW1, WTW5100HW2, WTW5105HC1, WTW5105HC2, WTW5105HW1, WTW5105HW2, WTW6120HC1, WTW6120HC2, WTW6120HW1, WTW6120HW2

CRITICAL SAFETY WARNING: Unplug washer before servicing.

  1. Unplug washer from wall outlet.
  2. Tilt washer back and secure for safe access underneath.
  3. Locate shift actuator on transmission or gearcase.
  4. Disconnect wiring harness from actuator.
  5. Remove mounting screws and take out old actuator.
  6. Install new actuator in same orientation, secure with screws.
  7. Reconnect wiring harness.
  8. Return washer to upright position.
  9. Plug in washer and run a diagnostic/test cycle to ensure proper shifting.

Safety Notes: Avoid pinching wires during reassembly. Do not force actuator—ensure proper alignment with cam or lever.

  1. Run diagnostic mode to confirm actuator fault before replacement.
  2. Check for water or oil leaks near actuator—replace seals if needed.
  3. Inspect wiring harness for corrosion or pin damage.
  4. Document installation for warranty and troubleshooting.
  5. Use only OEM actuators—aftermarket may not signal correctly.
  6. Test shifting through multiple cycles before returning to service.
  7. Keep spare actuators in stock for high-turnover properties.
  8. If errors persist, check control board and lid lock.
  9. Never force actuator into position—align with transmission cam.
  10. Update service records for compliance and liability.
  11. Clean mounting area to ensure proper seating and sealing.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

W11481722 Whirlpool Washer Shift Actuator – OEM Replacement

Fix your washer that won't spin, won't agitate, or is stuck in one mode with this genuine OEM shift actuator. Designed for Whirlpool and Maytag top-load washers, this actuator controls the transmission shifting mechanism that allows your washer to switch between agitate and spin cycles.

✓ Key Features

  • OEM Quality: Genuine Whirlpool replacement part built to original specifications
  • Direct Fit: Designed for Whirlpool and Maytag top-load washer models
  • Critical Function: Controls transmission shifting between agitate and spin modes
  • Durable Construction: Heavy-duty actuator engineered for reliable performance
  • Complete Assembly: Includes motor and mounting hardware

✓ Replaces These Part Numbers

W11481722, W10597177, W11237117, W11398781, W11316246, W10913953, W10815026, W10609438

✓ Common Symptoms

Replace your shift actuator if you're experiencing:

  • Washer won't spin or agitate
  • Washer stuck in one mode (agitate or spin)
  • Error codes F7E1, F7E5, or F7E6
  • Grinding or clicking noise during cycle transitions
  • Washer fills but won't agitate or spin
  • Transmission not shifting properly

✓ Installation Guidance

Difficulty Level: Moderate to Advanced – Requires mechanical knowledge

Tools Needed: Socket set, screwdrivers, pliers, towels

Safety First: Always disconnect power before servicing your washer. Unplug the unit or turn off the circuit breaker.

Basic Steps:

  1. Unplug washer and turn off water supply
  2. Tilt washer back against the wall to access the bottom
  3. Locate the shift actuator mounted to the transmission
  4. Disconnect wire harness from the actuator
  5. Remove mounting bolts securing the actuator
  6. Install the new actuator and reconnect all wiring
  7. Return washer to upright position
  8. Run diagnostic mode to confirm proper operation

✓ Diagnostic Tip

Run your washer's diagnostic mode to confirm actuator fault before replacing. Listen for clicking sounds from the actuator during mode transitions. If the actuator doesn't click or the washer displays F7E1/F7E5 error codes, the shift actuator is likely faulty.

✓ Why Choose XPart Supply?

  • 30+ Years Experience: Canadian appliance parts experts since 1995
  • Guaranteed Fit: Free phone support to verify compatibility before you order
  • Fast Shipping: Quick delivery across Canada
  • Expert Support: Real technicians available to answer your questions

Need help verifying fit? Contact our team with your washer model number and we'll confirm compatibility.

✅ Cross Reference Information

Item #16 in diagram.

Whirlpool, Maytag, Amana, Kenmore, Roper, Crosley (verify by model)

Part number W11481722 replaces W10597177, W11237117, W11398781, WPW10597177, W10006355, W10315818, PS11752609, AP6020066, 8540751, 8540749

W11481722, Whirlpool washer shift actuator, washer actuator, washer won't spin, W11316246, washer mode shifter, washer won't agitate, shift actuator replacement, Maytag washer actuator, washer stuck in spin, washer stuck in agitate, Kenmore washer actuator, washer shifter, washer transmission actuator, actuator assembly, washer clicking noise, washer lid lock flashing, Amana washer actuator, splutch actuator, washer not shifting

✅ Guaranteed to Fit Your Model

11020022014, 11020112311, 11022102311, 11022352510, 11022442511, 11023102311, 11025132410, 11025132411, 11031312021, 1105142510, 1CWTW4740YQ2, 1CWTW4800YQ2, 1CWTW4815EW0, 1CWTW4815EW1, 1CWTW4840YW2, 1CWTW4845EW0, 1CWTW4845EW1, 2DWTW4705EW0, 2DWTW4705EW1, 2DWTW4800YQ1, 2DWTW4845EW0, 2DWTW4845EW1, 7MMVWC100DW1, 7MMVWC200DW1, 7MMVWC355DW1, 7MMVWH450DW1, 7MMVWX521BW1, 7MMVWX655EW0, 7MMVWX722BG1, 7MWTW1500EM0, 7MWTW1500EM1, 7MWTW1502BM1, 7MWTW1504DQ1, 7MWTW1602BM1, 7MWTW1604DM1, 7MWTW1700EM0, 7MWTW1700EM1, 7MWTW1701DQ1, 7MWTW1704BM1, 7MWTW1709DM1, 7MWTW1715BM1, 7MWTW1800DM1, 7MWTW1801BQ1, 7MWTW1805DM1, 7MWTW1805EM0, 7MWTW1805EM1, 7MWTW1808AW1, 7MWTW1812AW1, 7MWTW1905DW1, 7MWTW1935DW1, 7MWTW1950EW0, 7MWTW1950EW1, 7MWTW1955EW0, 7MWTW1955EW1, 7MWTW4915EW0, 7MWTW4925EW0, 7MWTW5521BW1, 7MWTW5622BW1, 7MWTW9919DM1, 7MWTW9920EM0, ATW4676BQ1, CAW11544EW1, CAW12444DW1, CAW8350EW0, CAW8350EW1, CAW9244DW1, CAW9352EW1, CAW9444DW1, ITW4671DQ0, ITW4771DQ0, ITW4971DQ0, MVW6200KW1, MVW6200KW2, MVW6230HC1, MVW6230HC2, MVW6230HW1, MVW6230HW2, MVW6230RHW1, MVW6230RHW2, MVWC200BW1, MVWC215EW0, MVWC215EW1, MVWC300BW1, MVWC415EW0, MVWC415EW1, MVWC425BW1, MVWC555DW0, MVWC555DW1, MVWC565FW0, MVWP475EW0, MVWX655DW0, MVWX655DW1, NTW4516FW0, NTW4601BQ1, NTW4611BQ1, NTW4631BQ1, NTW4651BQ1, NTW4701BQ1, NTW4750BQ1,, RTW4516FW0, RTW4641BQ1, WTW4715EW0, WTW4800BQ1, WTW4810BQ1, WTW4810EW0, WTW4815EW0, WTW4816FW0, WTW4850BW1, WTW4850BW2, WTW4900BW1, WTW4915EW0, WTW4915EW1, WTW5000DW0, WTW5000DW1, WTW5100HC1, WTW5100HC2, WTW5100HW1, WTW5100HW2, WTW5105HC1, WTW5105HC2, WTW5105HW1, WTW5105HW2, WTW6120HC1, WTW6120HC2, WTW6120HW1, WTW6120HW2

✅ Frequently Asked Questions

Why does my washer make a clicking noise and won't spin or agitate?

A clicking noise coming from underneath the washer, especially when it's trying to change between wash and spin cycles, is the telltale sign of a failing shift actuator. The actuator is a small motor that physically shifts the transmission between agitate mode and spin mode. When the actuator's internal gears wear out or the motor weakens, it clicks repeatedly as it tries (and fails) to shift the transmission. The washer may get stuck in one mode — agitating but not spinning, or vice versa — or it may not do either. The clicking sound is the actuator motor running but the gears slipping. Replacing the shift actuator restores the washer's ability to properly shift between modes and complete its cycles.


Not sure about your model number? Call 833-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
