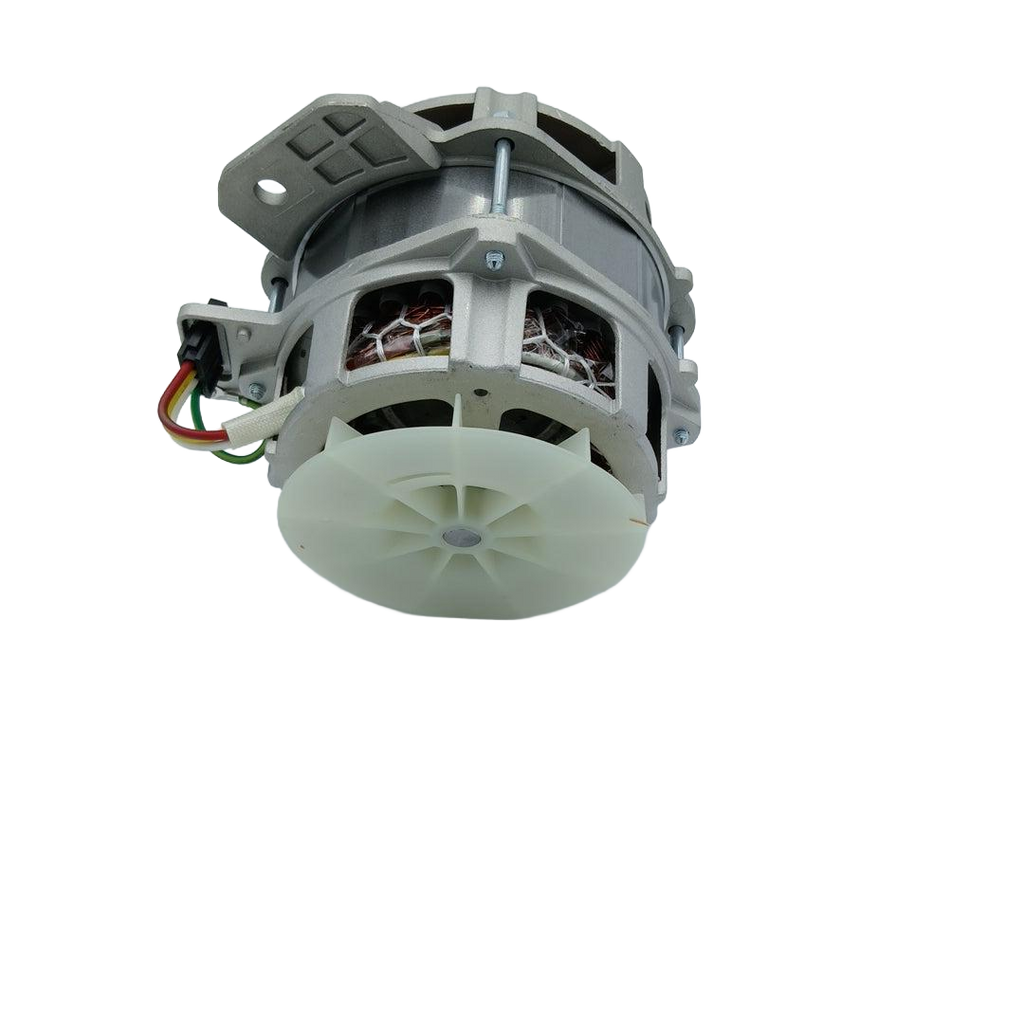

XPart Supply W11026785 washer drive motor replacement with sturdy metal frame and pulley

XPart Supply W11026785 washer drive motor replacement showing metal housing and pulley

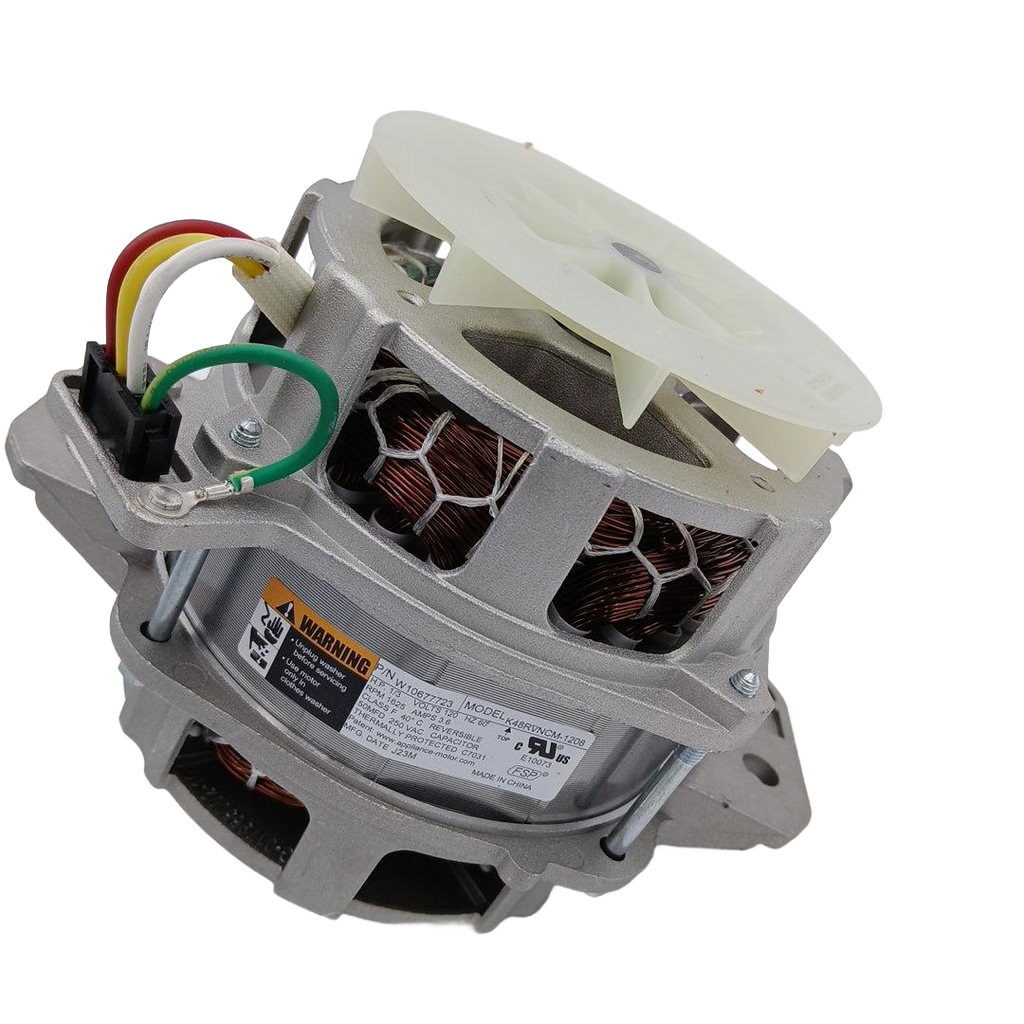

XPart Supply W11026785 washer drive motor replacement with wiring and fan blade visible

W11026785 washer drive motor replacement with metal frame and wiring by XPart Supply

W11395618 Top Load Washer Start Capacitor - XPart Supply

Whirlpool Washer Drive Motor - Genuine OEM W11026785

Sale price: $199.99
Regular price: $318.60
You save: $118.61 (37%)

XPart Number: 9665380253985 | GTIN: 88304949649661

Buying Options: OEM

OEM

Condition: New

New

Used

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 833-899-7278

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 30–45 minutes
DIY Repair Time: 45–60 minutes
Difficulty Rating: Medium (3/5) — Requires lifting, tool use, and safe electrical work

Washer won’t spin or agitate
Humming or buzzing but no movement
Motor overheats/trips breaker
Burning smell from motor area
Error codes related to drive or motor
Washer stops mid-cycle
Excessive vibration or noise during spin/agitate

Item #7 in diagram.

Part number W11026785 replaces W11026785, W10677723

Whirlpool, Maytag, Amana, Kenmore

Fits Models: (Ctrl+F and Enter Your Model Number)

11022352510, 11022352511, 11022352512, 7MMVWC565FW0, CAW42114GW0, CAW42114GW1, MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HW0, MVW6230HW1, MVW6230HW2, MVW6230RHW0, MVW6230RHW1, MVW6230RHW2, MVWC565FW0, MVWC565FW1, WTW5100HC0, WTW5100HC1, WTW5100HC2, WTW5100HW0, WTW5100HW1, WTW5100HW2, WTW5105HC0, WTW5105HC1, WTW5105HC2, WTW5105HW0, WTW5105HW1, WTW5105HW2, WTW6120HC0, WTW6120HC1, WTW6120HC2, WTW6120HW0, WTW6120HW1, WTW6120HW2

CRITICAL SAFETY WARNING: Unplug washer and turn off water supply. This repair involves 120V wiring and moving mechanical parts.

Unplug the washer and shut off water supply.
Lay the washer on its back for easier undercarriage access.
Remove rear access panel (if equipped).
Disconnect wiring harness from the drive motor (release locking tabs).
Remove drive belt (if present; most models are direct drive).
Unbolt the motor mounting bolts using a socket wrench (typically 3/8” or 10mm).
Support the motor and carefully remove from the mounting bracket.
Inspect coupler, wiring, and mounting points for wear or damage.
Position the new drive motor and align with the mounting holes and coupler.
Secure with mounting bolts—tighten firmly but do not overtighten.
Reconnect wiring harness and ensure all connections are secure.
Reinstall drive belt (if used).
Reinstall rear access panel and return washer upright.
Plug in the washer, turn on water, and run a test cycle (no clothes) to verify operation.
Check for abnormal noise, vibration, or error codes; re-seat or rewire if necessary.

Safety Notes: Always use proper lifting technique—motors are heavy. If washer displays motor errors after installation, reset control board by unplugging for 5 minutes.

Always test the old motor windings with a multimeter (expect low resistance, ~2–10Ω; infinite = open winding).
Check for seized bearings by spinning the shaft by hand—should rotate smoothly with no resistance.
Inspect the motor coupler for cracks or wear—replace if damaged.
Verify wiring harness integrity and look for signs of burning or corrosion.
Use anti-seize compound on mounting bolts if prone to corrosion.
Torque mounting bolts evenly to avoid vibration.
If the new motor hums but doesn’t turn, check for jammed transmission or basket.
Ensure proper wire routing to avoid pinching during reassembly.
Reset the washer’s control board after installation to clear error codes.
Test with a small load before returning washer to normal use.
Keep the old motor for core return if required by supplier.

Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

W11026785 Whirlpool Washer Drive Motor – Fix Your Washer That Won't Agitate, Won't Spin, or Makes Loud Noises

The W11026785 is a genuine OEM drive motor designed for modern Whirlpool and compatible top-load washers. This 120V, 60Hz, 1/3 HP AC motor is the primary power unit for both the agitation and spin cycles, directly driving the transmission or basket without belts or gears. It features a robust, sealed motor housing, precision-wound copper windings, integrated mounting brackets, and a high-torque shaft with keyed coupler for positive engagement with the drive system. The W11026785 is engineered for high efficiency, quiet operation, and long service life, with built-in thermal overload protection. Typical lifespan is 8–12 years. Failure is most often due to winding burnout (overload, overheating), bearing seizure (water ingress), or electrical faults. Common symptoms: washer won’t spin or agitate, hums but won’t start, trips breaker, or displays motor error codes. IMPORTANT: Always confirm diagnosis with multimeter and visual inspection before replacing. CRITICAL: Only use OEM motors to ensure proper fit, torque, and reliability.

✅ Cross Reference Information

Item #7 in diagram.

Whirlpool, Maytag, Amana, Kenmore

Part number W11026785 replaces W11026785, W10677723

W11026785, Whirlpool washer drive motor, washer motor, washer won't agitate, washer won't spin, W10677723, washing machine motor, Maytag washer motor, washer motor replacement, Kenmore washer drive motor, washer not spinning, washer motor noise, Amana washer motor, washer drum not turning, washer humming not spinning, top load washer motor, washer drive motor assembly, washer motor burned out, washer won't start, washer makes loud noise

✅ Guaranteed to Fit Your Model

✅ Frequently Asked Questions

Why won't my washer agitate or spin?

The drive motor powers both the agitation (washing) and spin cycles in your washer. When the motor fails, the drum won't turn during wash or spin — or both. Common signs of motor failure include humming without movement, loud grinding or squealing noises, a burning smell, or the motor overheating and shutting off. If you've checked the lid switch, drive belt, and motor coupling but the drum still won't move, the motor itself has likely burned out. Replacing the drive motor restores full agitation and spin function to your washer.

Not sure about your model number? Call 833-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
