W11692144 Refrigerator Ice Maker (replaces W11322152, W11456887, W11525253, W11556926)

XPart Supply Ltd. 0883049698960

Sale price
$190.20
Regular price
$199.71
You save
$9.51 (5%)
Buying Options: W11556926
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together


W11322152, W11456887, W11525253, W11556926

Fits Models: (Ctrl+F and Enter Your Model Number)


WRF535SWHB08, WRFF5333PV00, WRF540CWHV08, WRF540CWHZ09, WRF540CWHZ10, WRF540CWHZ11, WRF535SWHW09, WRF535SWHW05, WRF535SWHW08, WRF535SWHZ06, WRF535SWHZ08, WRF535SMHW04, WRF535SMHW05, WRF535SMHW08, WRF535SMHZ08, WRF540CWHB08, WRF540CWHZ06, WRF540CWHZ07, WRF540CWHZ08, WRF540CWHZ10, WRF540CWHZ11, WRF540CWHW08, WRF540CWHW09, WRF540CWHW10, WRF540CWHW11, WRF540CWHZ12, WRF540CWHZ13, WRF540CWHZ14, WRF540CWHZ15, WRF540CWHZ16, WRF540CWHZ17, WRF540CWHZ18, WRF540CWHZ19, WRF540CWHZ20, WRF540CWHZ21, WRF540CWHZ22, WRF540CWHZ23, WRF540CWHZ24, WRF540CWHZ25, WRF540CWHZ26, WRF540CWHZ27, WRF540CWHZ28, WRF540CWHZ29, WRF540CWHZ30, WRF540CWHZ31, WRF540CWHZ32, WRF540CWHZ33, WRF540CWHZ34, WRF540CWHZ35, WRF540CWHZ36, WRF540CWHZ37, WRF540CWHZ38, WRF540CWHZ39, WRF540CWHZ40, WRF540CWHZ41, WRF540CWHZ42, WRF540CWHZ43, WRF540CWHZ44, WRF540CWHZ45, WRF540CWHZ46, WRF540CWHZ47, WRF540CWHZ48, WRF540CWHZ49, WRF540CWHZ50, WRF540CWHZ51, WRF540CWHZ52, WRF540CWHZ53, WRF540CWHZ54, WRF540CWHZ55, WRF540CWHZ56, WRF540CWHZ57, WRF540CWHZ58, WRF540CWHZ59, WRF540CWHZ60, WRF540CWHZ61, WRF540CWHZ62, WRF540CWHZ63, WRF540CWHZ64, WRF540CWHZ65, WRF540CWHZ66, WRF540CWHZ67, WRF540CWHZ68, WRF540CWHZ69, WRF540CWHZ70, WRF540CWHZ71, WRF540CWHZ72, WRF540CWHZ73, WRF540CWHZ74, WRF540CWHZ75, WRF540CWHZ76, WRF540CWHZ77, WRF540CWHZ78, WRF540CWHZ79, WRF540CWHZ80, WRF540CWHZ81, WRF540CWHZ82, WRF540CWHZ83, WRF540CWHZ84, WRF540CWHZ85, WRF540CWHZ86, WRF540CWHZ87, WRF540CWHZ88, WRF540CWHZ89, WRF540CWHZ90, WRF540CWHZ91, WRF540CWHZ92, WRF540CWHZ93, WRF540CWHZ94, WRF540CWHZ95, WRF540CWHZ96, WRF540CWHZ97, WRF540CWHZ98, WRF540CWHZ99, WRF540CWHZ100, WRF540CWHZ101, WRF540CWHZ102, WRF540CWHZ103, WRF540CWHZ104, WRF540CWHZ105, WRF540CWHZ106, WRF540CWHZ107, WRF540CWHZ108, WRF540CWHZ109, WRF540CWHZ110, WRF540CWHZ111, WRF540CWHZ112, WRF540CWHZ113, WRF540CWHZ114, WRF540CWHZ115, WRF540CWHZ116, WRF540CWHZ117, WRF540CWHZ118, WRF540CWHZ119, WRF540CWHZ120, WRF540CWHZ121, WRF540CWHZ122, WRF540CWHZ123, WRF540CWHZ124, WRF540CWHZ125, WRF540CWHZ126, WRF540CWHZ127, WRF540CWHZ128, WRF540CWHZ129, WRF540CWHZ130, WRF540CWHZ131, WRF540CWHZ132, WRF540CWHZ133, WRF540CWHZ134, WRF540CWHZ135, WRF540CWHZ136, WRF540CWHZ137, WRF540CWHZ138, WRF540CWHZ139, WRF540CWHZ140, WRF540CWHZ141, WRF540CWHZ142, WRF540CWHZ143, WRF540CWHZ144, WRF540CWHZ145, WRF540CWHZ146, WRF540CWHZ147, WRF540CWHZ148, WRF540CWHZ149, WRF540CWHZ150, WRF540CWHZ151, WRF540CWHZ152, WRF540CWHZ153, WRF540CWHZ154, WRF540CWHZ155, WRF540CWHZ156, WRF540CWHZ157, WRF540CWHZ158, WRF540CWHZ159, WRF540CWHZ160, WRF540CWHZ161, WRF540CWHZ162, WRF540CWHZ163, WRF540CWHZ164, WRF540CWHZ165, WRF540CWHZ166, WRF540CWHZ167, WRF540CWHZ168, WRF540CWHZ169, WRF540CWHZ170, WRF540CWHZ171, WRF540CWHZ172, WRF540CWHZ173, WRF540CWHZ174, WRF540CWHZ175, WRF540CWHZ176, WRF540CWHZ177, WRF540CWHZ178, WRF540CWHZ179, WRF540CWHZ180, WRF540CWHZ181, WRF540CWHZ182, WRF540CWHZ183, WRF540CWHZ184, WRF540CWHZ185, WRF540CWHZ186, WRF540CWHZ187, WRF540CWHZ188, WRF540CWHZ189, WRF540CWHZ190, WRF540CWHZ191, WRF540CWHZ192, WRF540CWHZ193, WRF540CWHZ194, WRF540CWHZ195, WRF540CWHZ196, WRF540CWHZ197, WRF540CWHZ198, WRF540CWHZ199, WRF540CWHZ200, WRF540CWHZ201, WRF540CWHZ202, WRF540CWHZ203, WRF540CWHZ204, WRF540CWHZ205, WRF540CWHZ206, WRF540CWHZ207, WRF540CWHZ208, WRF540CWHZ209, WRF540CWHZ210, WRF540CWHZ211, WRF540CWHZ212, WRF540CWHZ213, WRF540CWHZ214, WRF540CWHZ215, WRF540CWHZ216, WRF540CWHZ217, WRF540CWHZ218, WRF540CWHZ219, WRF540CWHZ220, WRF540CWHZ221, WRF540CWHZ222, WRF540CWHZ223, WRF540CWHZ224, WRF540CWHZ225, WRF540CWHZ226, WRF540CWHZ227, WRF540CWHZ228, WRF540CWHZ229, WRF540CWHZ230, WRF540CWHZ231, WRF540CWHZ232, WRF540CWHZ233, WRF540CWHZ234, WRF540CWHZ235, WRF540CWHZ236, WRF540CWHZ237, WRF540CWHZ238, WRF540CWHZ239, WRF540CWHZ240, WRF540CWHZ241, WRF540CWHZ242, WRF540CWHZ243, WRF540CWHZ244, WRF540CWHZ245, WRF540CWHZ246, WRF540CWHZ247, WRF540CWHZ248, WRF540CWHZ249, WRF540CWHZ250, WRF540CWHZ251, WRF540CWHZ252, WRF540CWHZ253, WRF540CWHZ254, WRF540CWHZ255, WRF540CWHZ256, WRF540CWHZ257, WRF540CWHZ258, WRF540CWHZ259, WRF540CWHZ260, WRF540CWHZ261, WRF540CWHZ262, WRF540CWHZ263, WRF540CWHZ264, WRF540CWHZ265, WRF540CWHZ266, WRF540CWHZ267, WRF540CWH



🧰 Tools Needed


  • 1/4" nut driver or socket wrench

  • Phillips & flathead screwdrivers

  • Adjustable wrench

  • Drill (optional, if water line hole is missing)

  • Level

  • Teflon tape (for water line)

⚙️ Step-by-Step Installation Tips


  1. Disconnect Power

    Unplug the refrigerator to prevent electrical shock.

  2. Shut Off Water Supply

    Turn off water to the fridge or home line to prevent leaks.

  3. Inspect Kit Contents


    Ice maker assembly (W11692144)


    Mounting bracket(s)


    Ice bin


    Fill tube for water


    Wiring harness


    Mounting screws & instructions



  4. Mount the Ice Maker


    Locate pre-drilled holes inside the freezer.


    Secure the ice maker with screws and brackets.


    Ensure it is level to avoid ice jams or uneven cubes.



  5. Connect Wiring Harness


    Plug the 4- or 5-wire connector into the freezer socket.


    Tuck the wire to avoid fan interference.



  6. Install Water Fill Tube


    Feed the tube through the rear opening into the ice maker fill cup.


    Make sure it is seated securely to avoid leaks.



  7. Connect Water Supply


    Use 1/4" copper or braided tubing.


    Wrap threads with Teflon tape and tighten gently.


    Avoid overtightening, which can crack fittings.



  8. Restore Power and Water


    Turn on water supply and plug in the refrigerator.


    Wait 24 hours for the first ice batch.



  9. Test Operation


    Check all connections for leaks.


    Discard the first batch of ice to remove debris.


    Ensure ice production is consistent and cubes are uniform.


💡 Pro Tips


  • Maintain freezer temp 0–5 °F (-18–15 °C).

  • Check water pressure 30–120 psi.

  • Avoid running the water line near heat sources.

  • For new installations, a shut-off valve kit is recommended (e.g., Whirlpool 8212547RP).


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

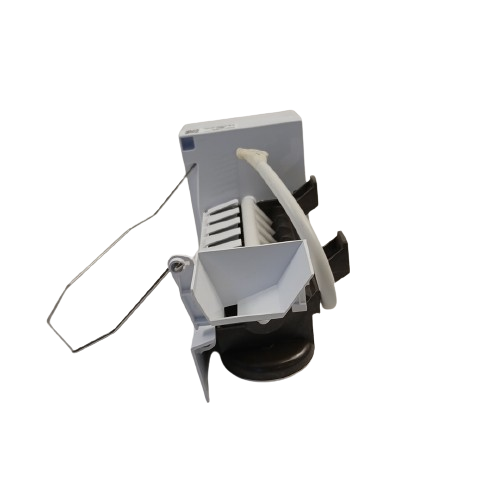

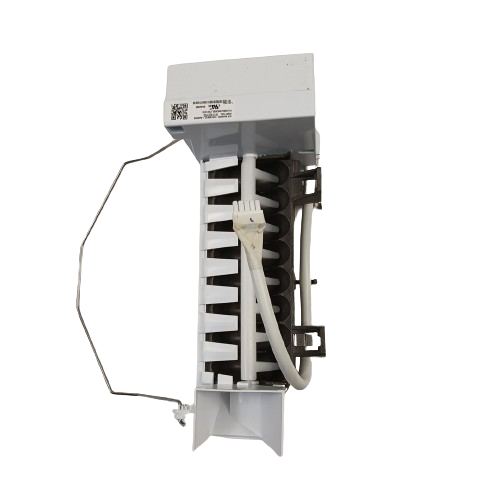

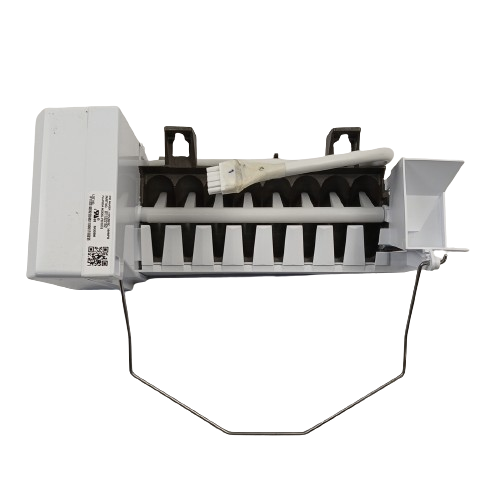

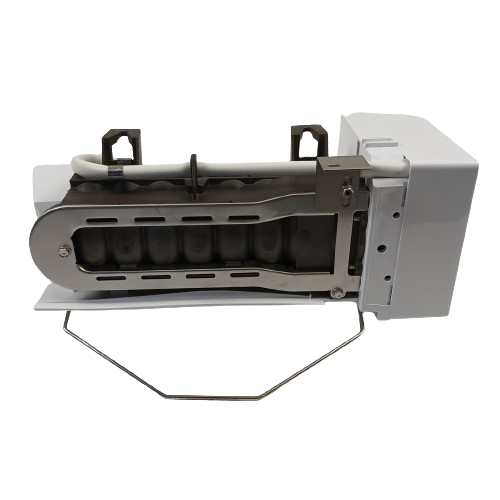

W11692144 Refrigerator Ice Maker

Discover the W11692144 Refrigerator Ice Maker from XPart Supply Ltd., a dependable replacement part designed for homeowners seeking efficient ice production in their kitchen appliances. With its compact and reliable design, this ice maker delivers a steady supply of ice to keep up with daily household needs.

Key Features and Design

  • Efficient Ice Production: Capable of producing up to 120 ice cubes in 24 hours, ensuring you never run out during gatherings or everyday use.
  • Compact and Energy-Saving Build: Engineered for seamless integration into compatible refrigerator models, with a focus on energy-efficient operation to reduce household electricity costs.
  • Versatile Compatibility: Replaces multiple part numbers like W11322152 and W11456887, making it a practical choice for various refrigerator models from leading brands.

Performance and Benefits

This ice maker solves the common problem of inconsistent ice supply by providing reliable performance that enhances your refrigerator's functionality. By conserving energy through optimized operation, it not only extends the life of your appliance but also offers a hassle-free experience, allowing you to focus on what matters most in your busy routine. Trust XPart Supply Ltd.'s reputation for quality parts to keep your kitchen running smoothly and efficiently.

The W11692144 Refrigerator Ice Maker provides reliable and efficient ice production in a convenient, compact design. Producing up to 120 cubes of ice in 24 hours, this ice maker can easily keep up with the demands of a busy household. The ice maker is designed for efficient operation to help conserve energy.

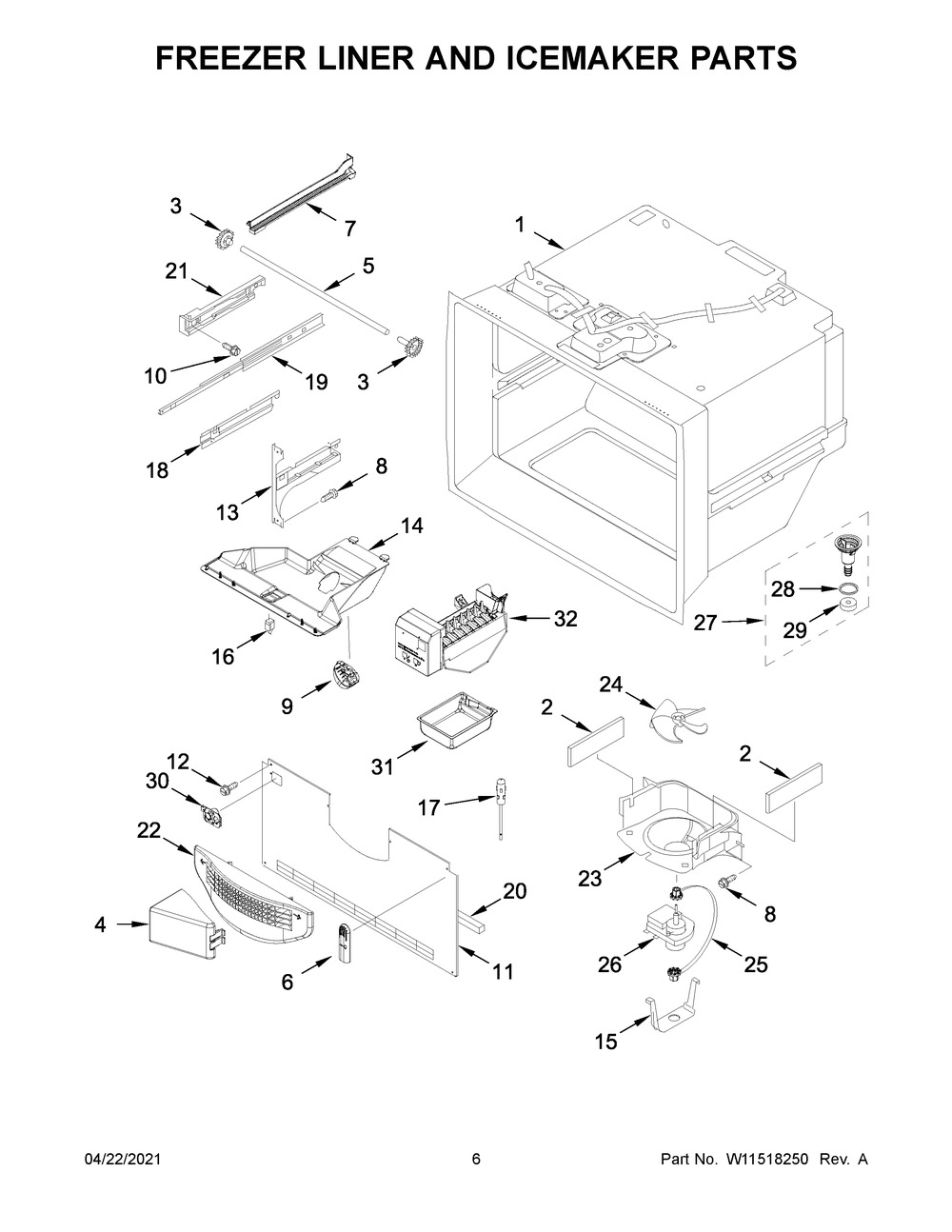

Item #32 in diagram

Part Number W11692144 replaces W11322152, W11456887, W11525253, W11556926
