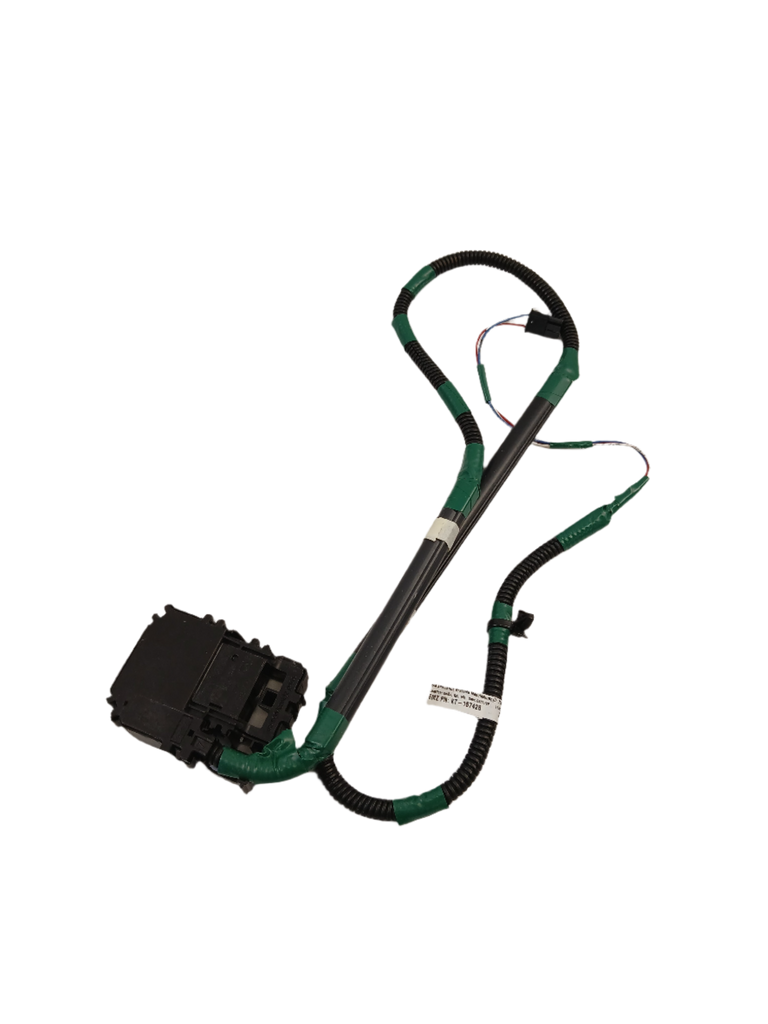

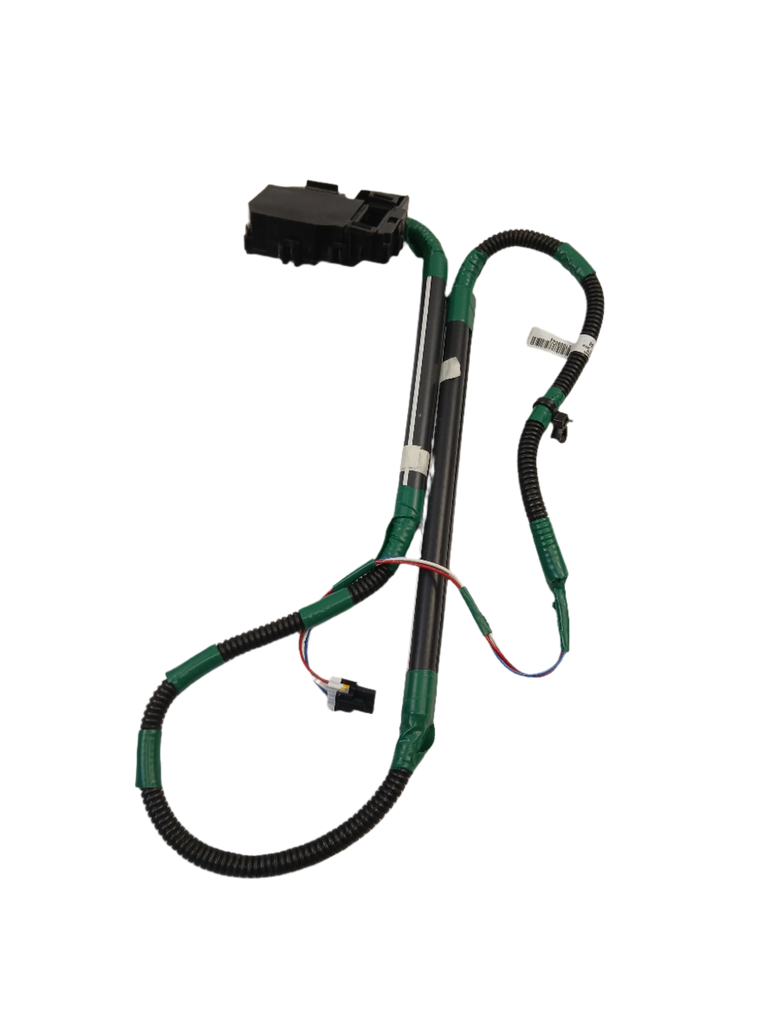

Whirlpool Washer Lid Lock Assembly W11700916, Replaces W11032875, W11394572, W11543566

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer will not start when the lid is closed.
• Washer may stop shortly after starting if the lid-lock signal is not confirmed.
• Lid-lock indicator may remain flashing or show a lid-lock-related error.
• Lid may fail to unlock at the end of a cycle.
• Washer may not enter spin or agitation when the lock is not engaging.

Check Before Replacing

• With power disconnected, inspect the lid strike and lock opening for visible damage, debris, obstruction, or misalignment; do not force the lid.
• Confirm the lid closes fully and the strike enters the lock assembly cleanly.
• Check the visible wiring harness and connector for looseness, damage, or pinched wires, following the washer’s model-specific service documentation.
• If the model’s technical sheet specifies resistance checks, perform them only with the washer unplugged and using the stated connector pins and resistance values; otherwise have a qualified technician test the assembly.
• Use the washer’s model-specific diagnostic or manual-test procedure to verify lid-lock operation when available; a failed lock test does not by itself exclude a wiring or control problem.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing the washer.
• Use the service instructions for the exact washer model because access to the lid-lock assembly and connector arrangement can vary.
• Match the replacement assembly’s orientation and connector routing to the original, and ensure the wiring is not pinched during reassembly.
• Do not force the lid or lock mechanism during installation.
• After reassembly, confirm that the lid closes and locks correctly before operating the washer.

Verified Compatible Models

7MMVW7230LC0, 7MMVW7230LW0, 11021112020, 11021112022, 11021652020, 11031312020, 11031312021, 11031312022, 11031652020, MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6200KW3, MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HC3, MVW6230HC4, MVW6230HC5, MVW6230HW0, MVW6230HW1, MVW6230HW2, MVW6230HW4, MVW6230HW5, MVW6230RHW0, MVW6230RHW1, MVW6230RHW2, MVW6230RHW3, MVW6230RHW4, MVW6230RHW5, MVW6500MBK0, MVW6500MBK1, MVW6500MW0, MVW6500MW1, MVW7230HC0, MVW7230HC1, MVW7230HC2, MVW7230HW0, MVW7230HW1, MVW7230HW2, MVW7232HC0, MVW7232HC1, MVW7232HC2, MVW7232HC3, MVW7232HW0, MVW7232HW1, MVW7232HW2, MVW7232HW3, MVW8230HC0, WTW500CMW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
