GE Range Burner Not Heating? Dual Radiant Surface Element WG02F04309 – Fix No-Heat Fast

If one or both zones of your GE electric range surface burner produce no heat, heat unevenly, or fail to cycle on at all, a failed dual radiant surface element is the most common cause. In most GE and Electrolux-built electric ranges, the dual radiant element powers two concentric heating zones — a smaller inner ring and a larger outer ring — allowing the burner to operate at two different sizes depending on cookware. When the element fails, one or both zones stop heating, leaving the burner dead or partially functional. ⚡ Common failure point in GE electric ranges after 5–8 years of use. Part WG02F04309 is the genuine OEM replacement that restores full dual-zone heating performance immediately — no modification required. XPart premium option also available.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on and other burners or the oven function normally
• ✔ Surface element switch or knob is confirmed functional
• ✔ No error codes or control board faults present
• ✔ Element shows visible damage (burn marks, breaks, blistering) or tests open on a multimeter
• ✔ ONLY problem is one or both zones of this specific burner not heating

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Surface burner produces no heat on one or both zones — most common complaint
• Inner ring heats but outer ring stays cold (or vice versa)
• Burner glows red briefly then cuts out
• Visible burn marks, cracks, or blistering on the element surface
• Burner cycles on and off erratically at any setting
• Burning smell or smoke from the cooktop surface during use

✔ If these symptoms match, the surface element is the most likely failed component.

✔ In most cases, replacing the element restores full dual-zone heating immediately.

📦 Part Details

• Part Number: WG02F04309 (OEM) / SU10044 (XPart aftermarket)

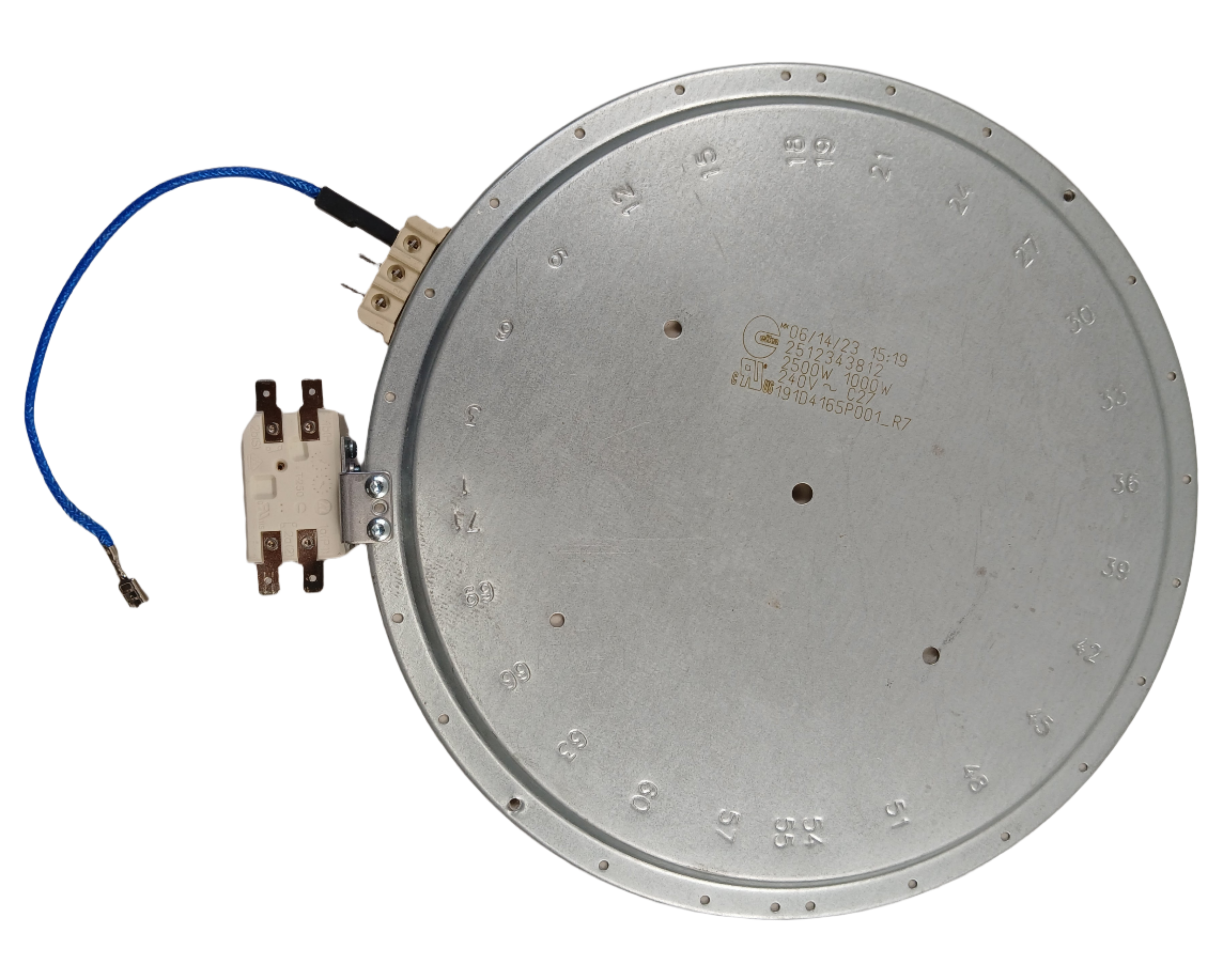

• Type: Dual Radiant Surface Element — 9”, 1000W inner / 2500W outer, two-zone operation
• Replaces: OEM direct-fit element — supersedes WB30K5032, WB30T10035, WB30T10044, WB30T10050, WB30T10099 (no modification required)
• Brands: GE, Electrolux, EER series
• Platforms: JB660, JB710, JB800, JB900, JB905, ECBP70, ECBP82, EER3000, EER3001 series

⚙️ Installation

Skill Level: EASY — 15–25 minutes. Disconnect power to the range at the breaker or by unplugging before beginning. Lift the cooktop or access the element from above depending on your model. Disconnect the element terminal block by pulling it straight out of the receptacle — no tools required on most models. Align the new WG02F04309 element terminals with the receptacle, press firmly until seated, lower the cooktop, and restore power. Test both zones before returning to service.

🔗 Model Repair Pages

ECBP70SK1SS, ECBP70SK2SS, ECBP82BJ1BB, ECBP82SJ1SS, EER3000F01BB, EER3000H01BB, EER3000H01TW, EER3001H01SS, JB660DM1BB, JB660SM1SS, JB710BF1BB, JB710BH1BB, JB710BH2BB, JB710BH3BB, JB710SH1SS, JB710WH1WW, JB800BD1BB, JB900BD1BB, JB900BK1BB, JB900SK1SS, JB900SK2SS, JB900SK3SS, JB900TK1WW, JB905BH1BB, JB905BH2BB, JB905BH3BB, JB905BH4BB, JB905KH1CC
