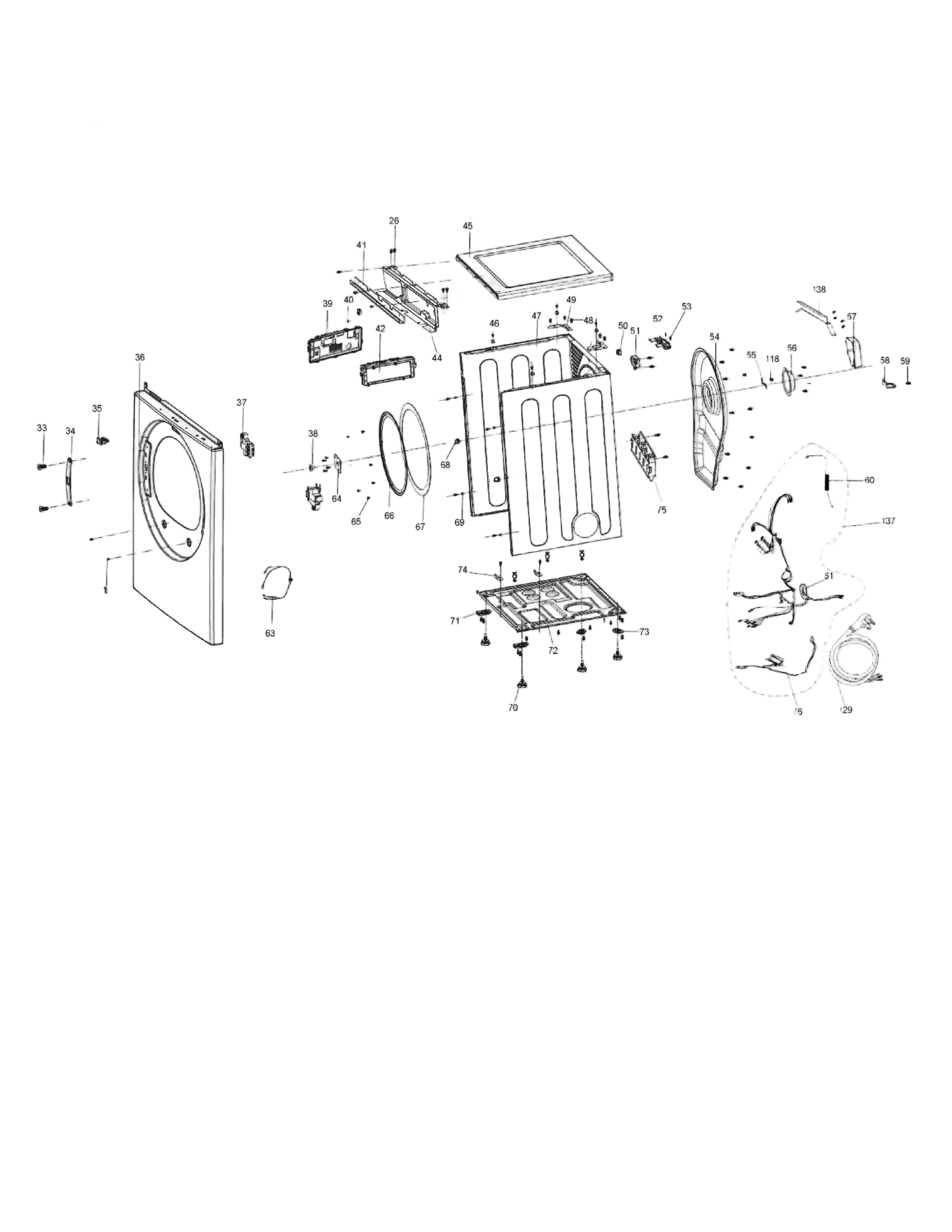

Item #75 in diagram

Part number WG04A04391 replaces WE11X28897, 0024000291E

GE (General Electric)

GFD14JSIN1WW, GFD14JSIN2WW, QFD15ESMN0WW

⚠️ Safety Warning: This repair involves working with 240V wiring. Always disconnect power completely before starting. 240V can cause serious injury or death.

Tools Needed:

• Phillips screwdriver
• 1/4" nut driver or socket
• 5/16" nut driver or socket
• Flathead screwdriver
• Multimeter (to verify element and test other components)
• Work gloves
• Smartphone or camera
• Vacuum cleaner (for lint cleanup)

Installation Steps:

Preparation:

1. Disconnect power – Unplug the dryer from the 240V outlet, or turn off the double-pole circuit breaker. Verify power is off — 240V is extremely dangerous.
2. Pull the dryer away from the wall — give yourself room to work at the back.
3. For gas dryers: This part is for electric dryers only. Gas dryers use a gas burner assembly, not an electric heating element.

Access the Heating Element:
4. Locate the heating element:

• On most GE dryers, the heating element is housed in a metal can or box mounted on the rear bulkhead (back wall inside the dryer) or in a separate heater housing at the bottom rear.
• Access is typically from the rear of the dryer.

1. Remove the rear access panel:Remove the screws securing the rear panel of the dryer (typically 6–10 screws around the perimeter).Lift the panel off and set aside.The heating element housing is now visible.
2. Photograph all connections — Before disconnecting anything, take clear photos of the wire connections on the heating element terminals.

Remove the Old Heating Element:
7. Disconnect the wire terminals:

• Locate the spade connectors on the heating element terminals (typically 2 power wires).
• Also note any wires connected to the high-limit thermostat or operating thermostat mounted on or near the element housing.
• Using needle-nose pliers, pull each spade connector straight off its terminal.
• Grip the connector, not the wire — pulling on wires damages them.
• Label wires if needed.

1. Remove the element mounting screws:The element housing is secured to the rear bulkhead or dryer frame with screws or bolts (typically 1–4 fasteners).Remove all mounting hardware.
2. Remove the old element assembly:Carefully pull the element housing out of the dryer.The element may have a thermostat or thermal fuse mounted on it — note their positions.
3. Transfer thermostats (if applicable):If the operating thermostat and/or high-limit thermostat are mounted on the old element housing, transfer them to the new element housing.Remove the mounting screws, move the thermostat(s) to the same position on the new housing, and secure.While you have them off, test each thermostat with a multimeter — replace any that don't show continuity (when cool).

Test the Old Element (optional confirmation):
11. Verify the old element is bad:
- Set your multimeter to resistance (ohms).
- Touch the probes to the two element terminals.
- Good element: Should read approximately 8–20 ohms (varies by wattage — lower ohms = higher wattage).
- Bad element (open): Reads OL (open line / infinite resistance) — the coil is broken.
- Bad element (shorted): Reads near 0 ohms, or shows continuity between a terminal and the metal housing — coil is touching the housing.Install the New Heating Element:

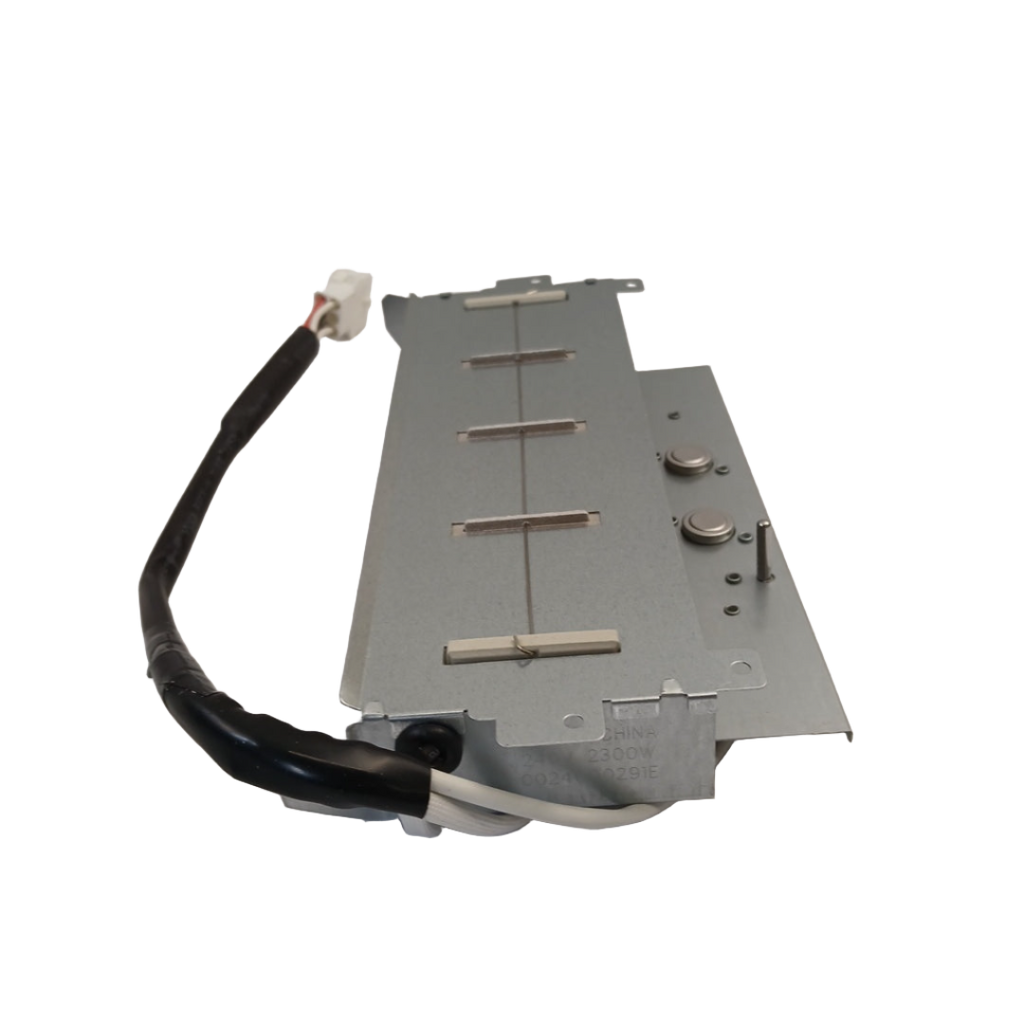

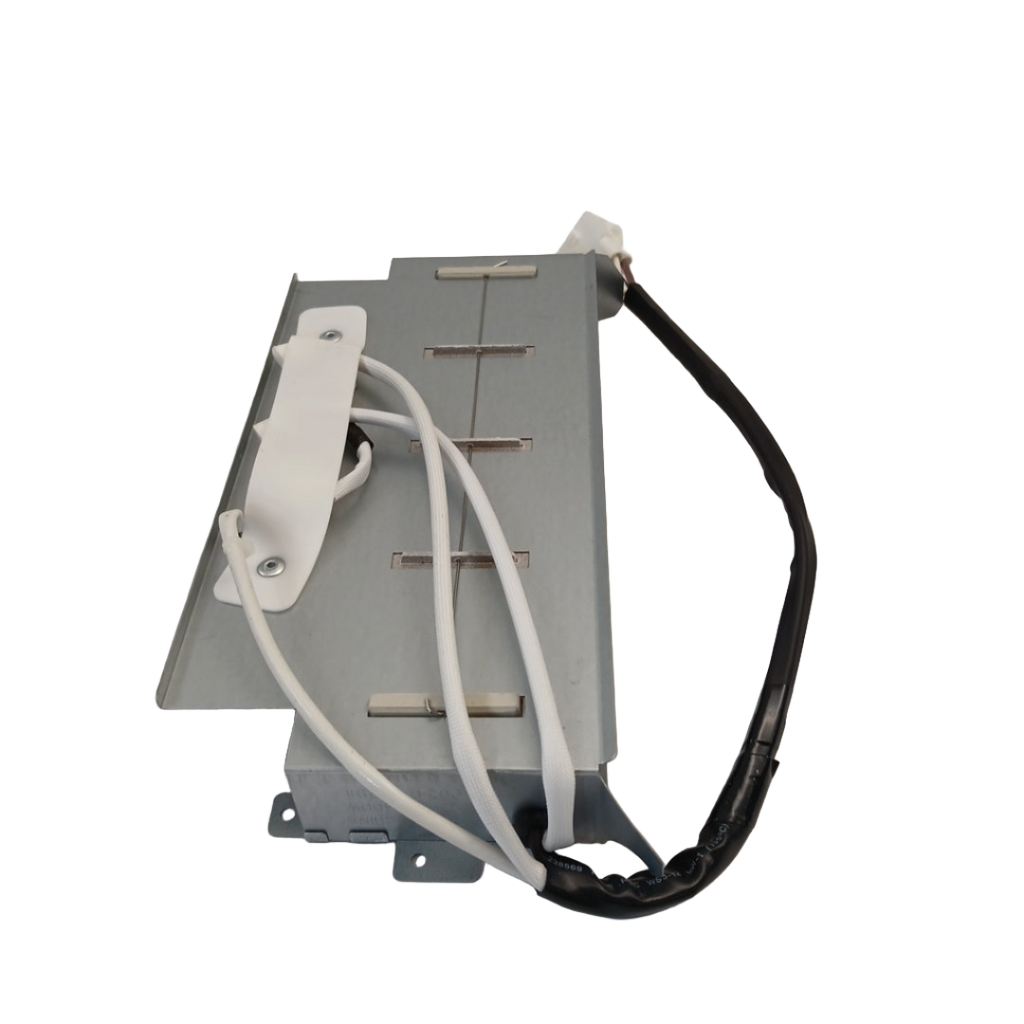

12. Position the new WG04A04391 element:
- Slide the new element housing into the same position as the old one.
- Align the mounting holes.
13. Secure with mounting screws:
- Install and tighten all mounting hardware.
14. Reconnect the wire terminals:
- Refer to your photos.
- Push each spade connector firmly onto its correct terminal.
- Ensure tight, secure connections — loose connections cause arcing, overheating, and premature failure.
15. Reconnect thermostat wires (if transferred):
- Reconnect any wires to the thermostats mounted on the element housing.
16. Verify all connections:
- Double-check every wire — correct terminal, tight fit, no loose connectors.
- Ensure no wires are touching the element coils or other metal surfaces.Reassemble:
17. Reinstall the rear access panel:
- Position the panel and secure with all screws.
18. Clean the exhaust vent (CRITICAL):
- Before pushing the dryer back, disconnect the exhaust vent from the back of the dryer.
- Vacuum or brush out the vent hose and the vent duct going through the wall.
- A clogged vent is the #1 cause of heating element failure — if you don't clean it, the new element will fail prematurely.
- Reconnect the vent hose securely.
19. Push the dryer back into position.Test the Repair:
20. Restore power — Plug in the dryer or turn on the circuit breaker.
21. Run the dryer on a timed heat cycle:
- Select a timed dry cycle on high heat.
- Within 3–5 minutes, you should feel warm/hot air coming from the exhaust vent outside or from inside the drum.
- The element should glow orange/red if you can see it through the rear vent holes (don't stare directly at it).
22. Dry a load of laundry:
- Dry a normal load and verify it dries completely in the expected time (typically 40–60 minutes for a medium load).
23. Monitor for the first few cycles:
- Check that the dryer heats consistently.
- Verify the circuit breaker doesn't trip.
- Check for any unusual smells (a slight smell during the first use of a new element is normal — it's the manufacturing oils burning off).

If your dryer's heating element burned out, there's a 70% chance the real culprit is a clogged exhaust vent — and if you don't fix the vent, the new element will burn out too. Here's why: the heating element is designed to operate with continuous airflow across it. The blower fan pulls room air through the element housing, across the hot coils, into the drum, and out the exhaust vent. When the exhaust vent is clogged with lint, airflow is restricted. Less air flows across the element, so the element runs hotter than designed. The operating thermostat cycles it off, but the restricted airflow means it can't cool down quickly — so it cycles back on at a higher-than-normal temperature. Over time, this thermal stress weakens the nichrome wire at its thinnest points until it eventually burns through and breaks — killing the element. Meanwhile, the thermal fuse may have already blown (cutting off heat entirely) as a safety response to the overheating. This is why so many "no heat" repairs involve replacing both the thermal fuse AND the heating element — and why the repair fails again in 6 months if the vent isn't cleaned.
