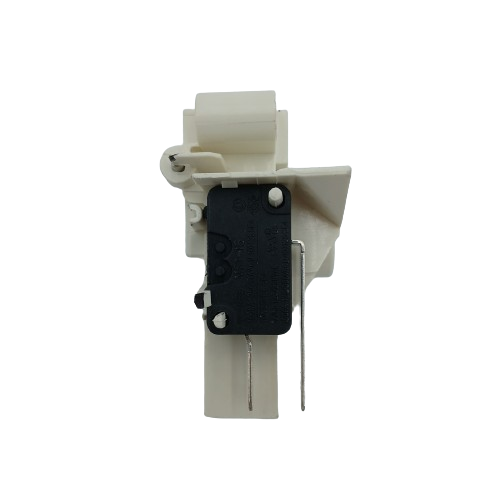

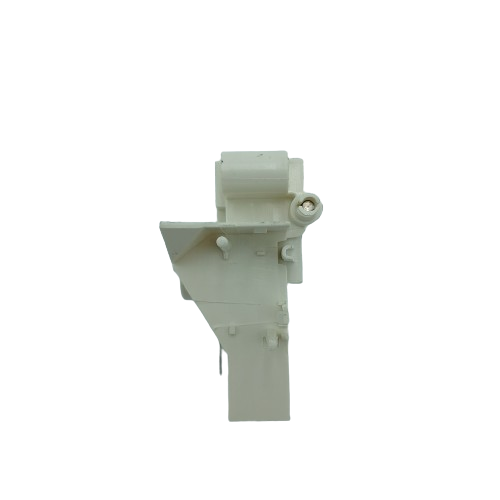

GE Dishwasher door latch and switch assembly WG04F10172

Genuine GE dishwasher door latch/switch assembly. It secures the dishwasher door and provides the door-closed interlock function required for operation; documented repair symptoms include door-latch failure and a door that will not close.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ QUALIFIER 1 — dishwasher powers on and control panel lights up normally
• ✔ QUALIFIER 2 — cycle selection and delay start buttons respond correctly
• ✔ QUALIFIER 3 — water supply confirmed OK and door latch strike on the tub is not bent or broken
• ✔ ONLY problem is dishwasher won't start when door is closed, stops mid-cycle, or leaks at the door

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dishwasher won't start even when door appears fully closed and latched
• Control panel lights up but cycle won't begin after pressing Start
• Dishwasher stops mid-cycle unexpectedly and door pops open
• Water leaking from the door area during the wash cycle

✔ If these symptoms match, the door switch is the most likely failed component in the system.

✔ In most cases, replacing this door switch restores normal operation immediately.

✅ Cross Reference Information

Part Details

• Part Number: WG04F10172
• Part Type: Dishwasher door latch and switch assembly
• Manufacturer: GE
• Appliance Type: Dishwasher

⚙️ Installation

Skill Level: EASY — 20–30 minutes. Disconnect power at the breaker before starting. Open the door, remove the inner door panel screws along the perimeter, and carefully separate the inner panel to access the switch housing. Disconnect the wiring harness from the old switch, snap the new WG04F10172 into the mounting bracket, reconnect the harness, and reassemble the door panel. Basic hand tools required: Phillips screwdriver, flathead, needle-nose pliers.
