Whirlpool Range Oven Spark Igniter W11524031 — Fixes Oven Not Igniting / Restores Bake Ignition

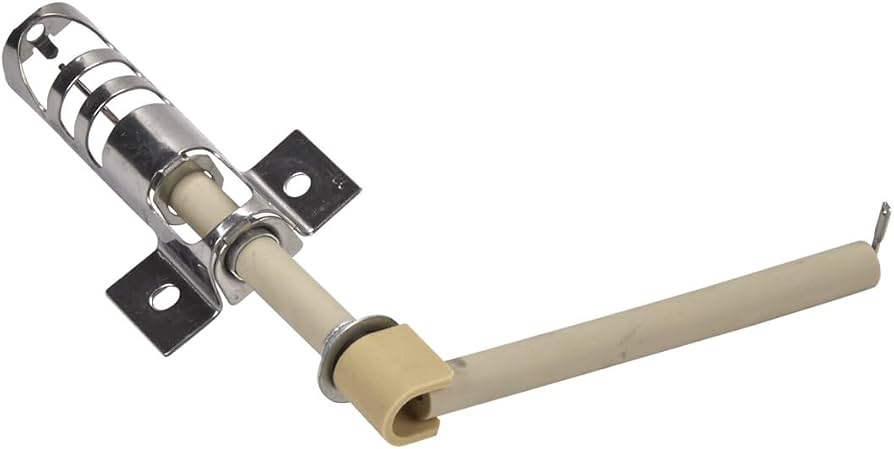

W11524031 is a genuine Whirlpool oven spark-igniter electrode used in select Whirlpool-manufactured gas ranges. It replaces discontinued OEM number W11450459.
The electrode creates the spark needed to ignite the applicable oven burner and provides flame-sensing feedback as part of the Direct Spark Ignition system.
A damaged or contaminated electrode may contribute to repeated clicking, intermittent ignition, delayed ignition or an oven burner that does not light.
Similar symptoms can also result from incorrect electrode positioning, damaged wiring, poor grounding, a blocked burner port, gas-valve failure, the spark module or the electronic control. Confirm the complete range model and diagnose the ignition circuit before ordering.
⚠️ Safety: Disconnect electrical power and shut off the gas supply before service. A suspected gas leak requires immediate shutdown and inspection by a qualified gas-appliance technician.
❓ Is This the Right Part?
This part may correct an oven burner that will not ignite when testing confirms that the original spark electrode is defective. A defective spark electrode is one possible cause of oven-ignition failure. Repeated clicking does not independently confirm electrode failure; inspect the electrode, burner, grounding, wiring and ignition controls before ordering.
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven burner does not ignite when set to bake or broil
- Repeated clicking from the ignition system without the burner lighting
- Intermittent or delayed oven burner ignition
- Oven burner fails to re-ignite mid-cycle
These symptoms can have multiple causes. Diagnose the full ignition circuit — electrode, wiring, grounding, burner ports, spark module and electronic control — before ordering.
📦 Part Details
- Part Number: W11524031
- Replaces: W11450459
- Type: Direct Spark Ignition oven spark-igniter electrode (not a hot-surface glow-bar igniter)
- Brands: Whirlpool, Maytag, KitchenAid, Amana, Crosley, select Kenmore
- OEM: Genuine Whirlpool replacement part
- Canadian Part Number: W11524031 (identical to U.S. number)
While the oven bottom panel is removed, inspect the oven door gasket for tears or gaps. A damaged door seal causes heat loss that can mimic ignition-related symptoms. Replacing both in one visit eliminates multiple common causes of poor oven performance.
⚙️ Installation
Skill Level: Moderate. Disconnect electrical power and shut off the gas supply before servicing. Remove the oven racks and bottom panel to access the igniter electrode. Disconnect the wire harness connector, remove the mounting hardware, and install the new electrode in reverse order. Do not touch the electrode tip with bare hands — skin oils can affect performance. Restore gas and power, then test ignition before returning the range to service.
✓ Compatible Models
Confirmed compatible with 29 select Whirlpool-manufactured gas range models including Whirlpool, Maytag, KitchenAid, Amana and Crosley brands. Confirm the complete model and revision code before ordering. Contact us to verify your model number.
💡 Pro Tip
W11524031 is a spark electrode used in Direct Spark Ignition systems — it is not a hot-surface glow-bar igniter. These are different components with different failure modes. Confirm your range uses a DSI system and that the electrode is the diagnosed failed component before ordering.
✓ Model-Specific Repair Pages
Verified Compatible Models
AGR6603SFB4, AGR6603SFB8, AGR6603SFW4, AGR6603SFW8, AGR6603SMS0, AGR6603SMS1, CRGW3484RB0, CRGW3484RS0, CRGW3484RW0, CRGW3487RB0, CRGW3487RS0, CRGW3487RW0, KFGS530SPS0, KSGS330SPS0, KSGS430SPS0, KSGS530SBE0, KSGS530SJP0, KSGS530SPS0, MFGS4030RB0, MFGS4030RS0, MFGS4030RW0, MFGS6030RB0, MFGS6030RW0, MFGS6030RZ0, MFGS8030RZ0, MGR6600FB3, MGR6600FB6, MGR6600FB7
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
