Whirlpool Range Burner Drip Bowl WPW10196405, Replaces W10196405

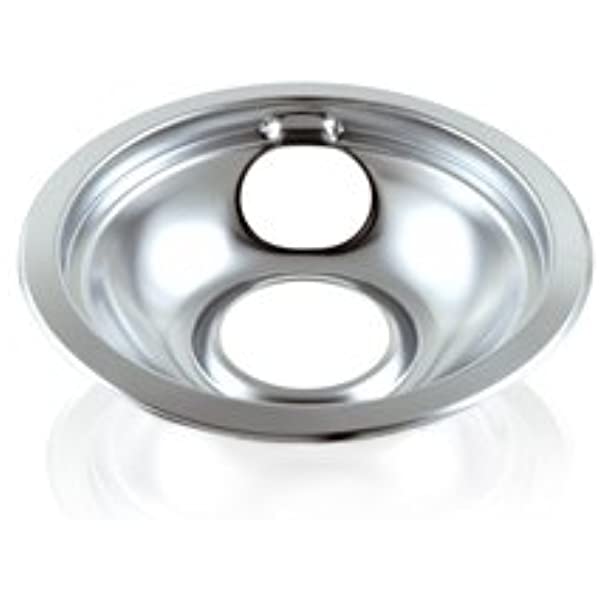

Chrome drip bowl (drip pan) for an 8-inch surface element on an electric range. It installs beneath the burner element to catch drips and spills.

Is This the Right Part?

Common Symptoms

• Heavy baked-on staining or discoloration
• Rust or corrosion
• Warping or poor seating beneath the surface element
• Burn-through or other physical damage
• Spills collecting beneath the burner instead of in the bowl

Check Before Replacing

• Turn the range off, disconnect power or switch off the appliance circuit breaker, and allow the surface to cool completely.
• Inspect the existing bowl for rust, burn-through, cracks, severe staining, or warping.
• Confirm that the bowl is the 8-inch size and is intended for a compatible non-hinged, 2-wire plug electric coil element.
• Place the replacement bowl beneath the element and verify that it seats evenly and the element rests correctly in the bowl opening.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM component
• Chrome-finished metal construction
• Designed for an 8-inch electric coil burner
• Single drip bowl
• Helps contain splatters and spills
• Whirlpool describes the related W10196405RW accessory as dishwasher safe

Installation Notes

• Disconnect power or switch off the range circuit breaker and wait until the surface is cool before installation.
• Remove the surface element and old drip bowl, position the replacement bowl beneath the element, and reinstall the element.
• The related Whirlpool accessory listing states that installation requires no tools, disassembly, or repair experience.
• Verify the bowl is seated correctly before restoring power.

Verified Compatible Models

1058AF-CW, 1058AF-CZ, 1058AH-W, 1058AH-Z, 1058WF-CW, 1058WF-CZ, 1058WH-W, 1068F-CZ, 1151AA-36, 1151AA-36G, 1151AD-30, 1151AD-36, 1151AH-30, 1151AH-36G, 1151AJ-30, 1151AL-30, 1151AL-36G, 1151WA-36, 1151WA-36G, 1151WD-30, 1151WD-36, 1151WH-30, 1151WH-36G, 1151WJ-30, 1151WL-30, 1151WL-36G, 1500PAA, 1500PAW, 1500PRA, 1500PRW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
