Whirlpool Range Burner Drip Bowl WPW10196406, Replaces W10196406

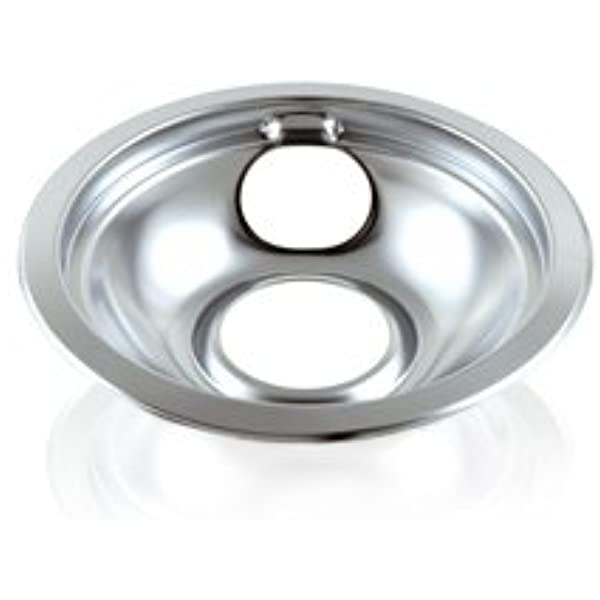

Genuine Whirlpool chrome drip bowl/pan with a center opening for a 6-inch electric surface element. It sits below the element to catch spills and drips; the bowl is sold individually. Sources describe the bowl's overall diameter as 8 inches despite its 6-inch burner application.

Is This the Right Part?

Common Symptoms

• Warping or dents that prevent the bowl from sitting flat
• Rust, corrosion, or damaged chrome finish
• Spills or grease collecting beneath or outside the bowl
• Bowl shifting or failing to align correctly beneath the surface element

Check Before Replacing

• With the appliance completely cool and disconnected from power, remove the surface element according to the appliance owner's manual.
• Inspect the bowl for warping, dents, corrosion, cracks, or burned-through areas.
• Confirm that the bowl is the correct 6-inch-element type and that its center opening and support contours align with the element.
• Check that the bowl sits flat and securely in its recess without rocking or interfering with the element.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component
• Chrome-finished metal construction
• Designed for a 6-inch electric surface element
• Small center opening for the surface-element connection area
• Sold individually
• Approximately 8 inches overall diameter

Installation Notes

• Disconnect electrical power and allow the range to cool completely before handling the bowl.
• Remove the surface element before removing or installing the bowl, following the appliance owner's manual.
• Position the replacement bowl beneath the element with its opening and contours aligned correctly.
• Reinstall the surface element and verify that it sits properly before restoring power.
• Do not operate the appliance if the bowl or element is misaligned, unstable, or damaged.

Verified Compatible Models

4KAER5500AW0, 4KAER5500AW1, 4KMER7600AW0, 4KMER7600AW1, 4KMER7600AW3, 4KWFC120MAW0, 4KWFC120MAW1, 4KWFC120MAW3, 15GA-1, 15GA-1-94, 15GA-1-GG, 15GA-10, 1058AF-CW, 1058AF-CZ, 1058AH-W, 1058AH-Z, 1058WF-CW, 1058WF-CZ, 1058WH-W, 1068F-CZ, 1151AA-36, 1151AA-36G, 1151AD-30, 1151AD-36, 1151AH-30, 1151AH-36G, 1151AL-36G, 1151WA-36, 1151WA-36G, 1151WD-30, 1151WD-36, 1151WH-30, 1151WH-36G, 1151WL-36G, 1500PAA, 1500PAW, 1500PRA, 1500PRW, ACR2303MFW0, ACR2303MFW1, ACR2303MFW2, ACR2303MFW3, ACR2303MFW4, ACR2303MFW5, ACR2303MFW7, ACR3130BAW0, ACR4203MNB0, ACR4203MNB1, ACR4203MNS0, ACR4203MNS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
