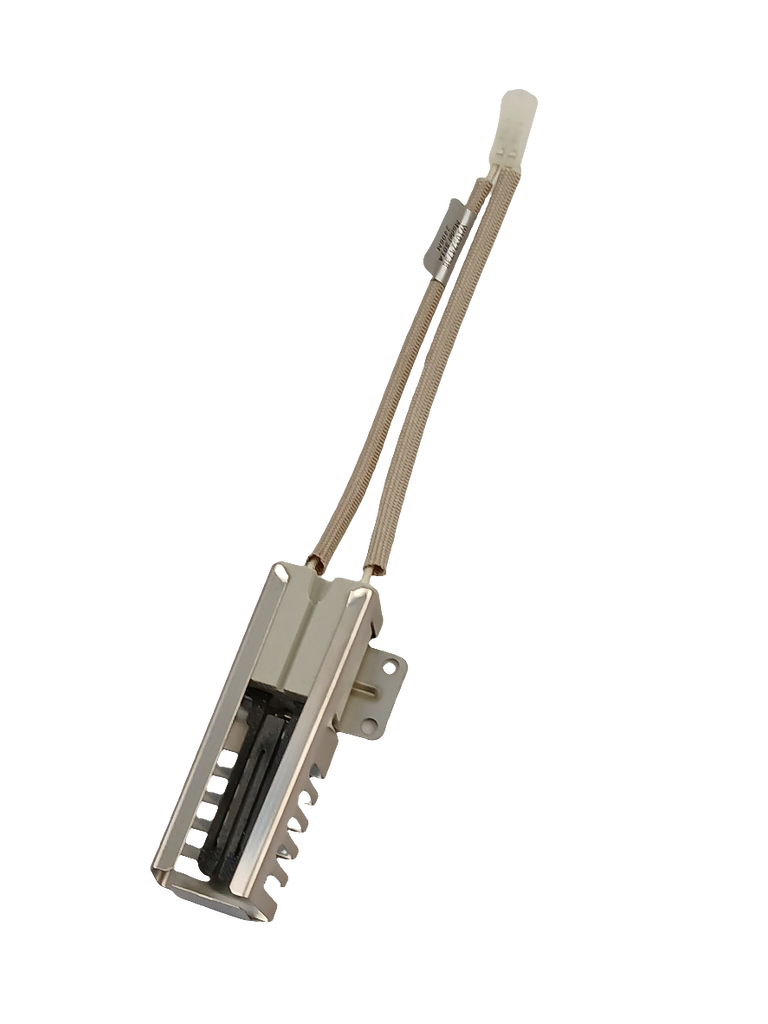

Whirlpool Range Gas oven igniter with female plug end WPW10324738, Replaces W10324738, W10295549

Genuine Whirlpool OEM flat-style gas oven/broil igniter used to ignite the gas oven burner. The part has a female plug end and is also used across selected Whirlpool-family gas ranges.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No visible igniter glow during a bake or broil call for heat
• Igniter glows but the burner does not light
• Delayed ignition or unusually long preheat
• Inconsistent oven temperature when the burner cycles on late
• Igniter has visible cracking or heat damage

Check Before Replacing

• With the range power connected and gas supply on, observe the igniter through the normal viewing area during a bake or broil call for heat; do not touch the igniter or burner.
• If the igniter does not glow, turn off power before checking that its female plug connection is fully seated and that the wiring is not visibly damaged.
• With power and gas turned off, inspect the igniter for visible cracks, breakage, or severe discoloration.
• If the igniter glows but ignition is delayed or absent, have the complete ignition system—including wiring, burner, and gas safety valve—checked rather than assuming the igniter is the only fault.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component
• Flat-style gas oven/broil igniter
• Female plug end
• Designed for Whirlpool-family gas ranges and selected related-brand models

Installation Notes

• Disconnect electrical power and shut off the gas supply before servicing.
• Disconnect the existing igniter at its plug before removing it from the burner assembly.
• Install the replacement on the burner assembly in the same orientation and reconnect the plug securely.
• Restore gas and electrical service only after reassembly, then verify bake or broil ignition and normal operation.
• Do not handle or strike the igniter element unnecessarily; it is fragile and can crack during installation.

Verified Compatible Models

GGG388LXB00, GGG388LXB01, GGG388LXB02, GGG388LXB03, GGG388LXB04, GGG388LXB05, GGG388LXQ00, GGG388LXQ01, GGG388LXQ02, GGG388LXQ03, GGG388LXQ04, GGG388LXQ05, KFGD500EBL00, WGG745S0FS00, WGG745S0FS01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
