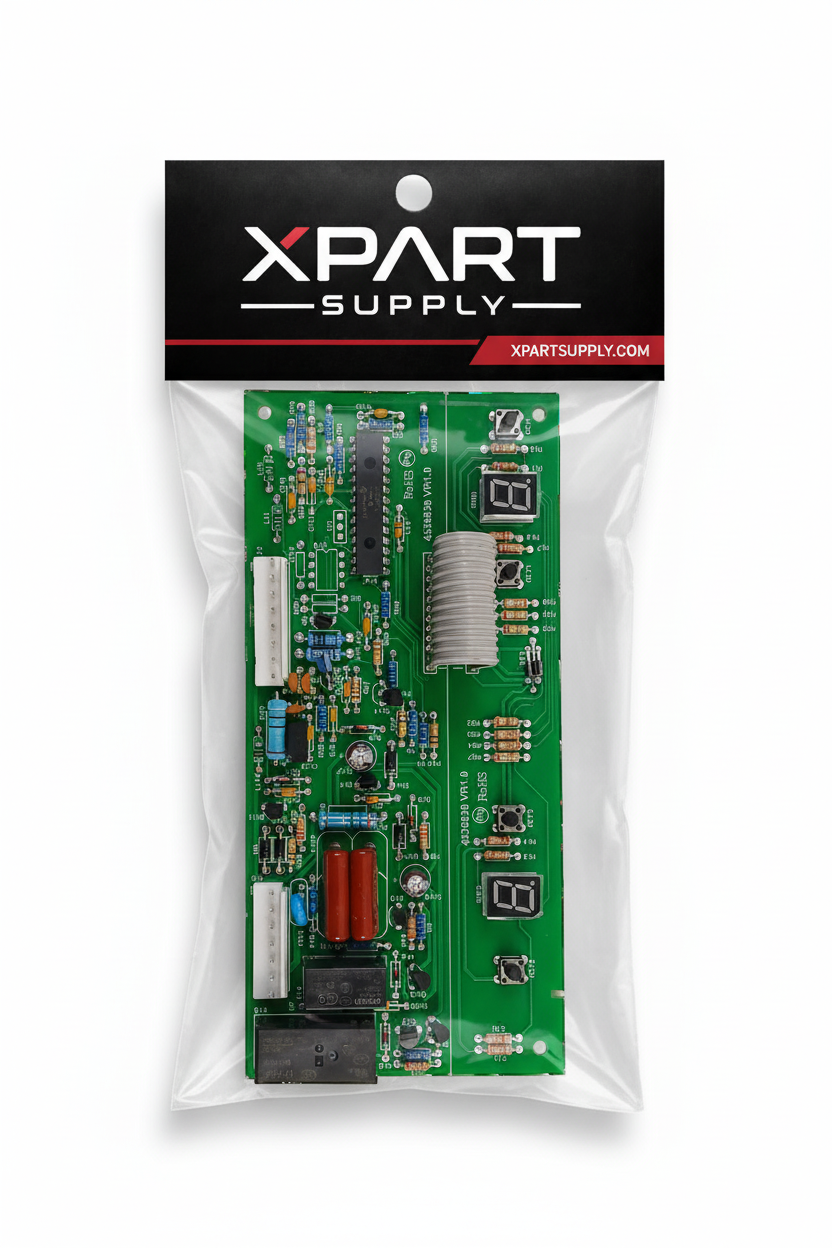

Retail bag mockup – XPart Supply
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Whirlpool Refrigerator Jazz Control Board WPW10503278
Retail bag mockup – XPart Supply
Customers rate us 4.9/5 based on 209 reviews.

Whirlpool Refrigerator Jazz Control Board WPW10503278

Sale price
$67.16
Regular price
$252.40
You save
$185.24 (73%)

XPart Number: 9769072722209   |   GTIN: 883049430577

Buying Options: OEM
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 1-877-899-7278

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 20–35 minutes
DIY Repair Time: 30–45 minutes
Difficulty Rating: Medium (3/5) — Requires careful handling and wiring

  • Refrigerator not cooling
  • Erratic temperature control
  • Defrost cycle not working
  • Non-responsive control panel or display
  • Error codes or beeping
  • Lights, fans, or compressor not running

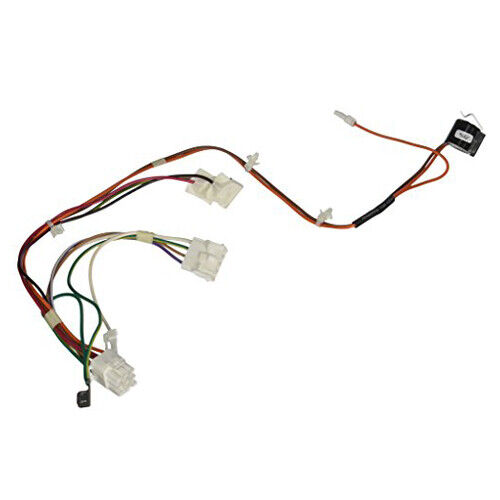

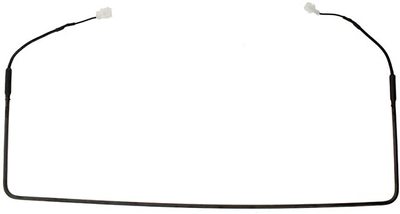

Whirlpool Refrigerator Wire Harness W11260592 WP12729128 Refrigerator Defrost Heater

Item #5 in diagram.

Refrigerator electronic (JAZZ) control board. Be aware the board will need to programmed after installation to work properly.

To set the desired Program Code number press the Freezer and Refrigerator UP /+ keys. The corresponding digit will be advanced with each key press. 7. Once the desired Program Code is displayed, press the Freezer Temperature DOWN /- Key until the Program Code begins flashing indicating it has been saved.

Part number WPW10503278 replaces 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, W10165748, W10503278

Whirlpool, Maytag, Amana, Kenmore (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)

10669312310, 596467934251, 596467934351, 596467934451, 596467934951, 59655652500, 59655653500, 59655654500, 59655659500, 59657012600, 59657013600, 59657016600, 59657019600, 59665232400, 59665232401, 59665232404, 59665234400, 59665234401, 59665234402, 59665234404, 59665239400, 59665239401, 59665239402, 59665239404, 59665239405, 59665332600, 59665332602, 59665333602, 59665339602, 59665932300, 59665932400, 59665932401, 59665932402, 59665932404, 59665934300, 59665934400, 59665934401, 59665934402, 59665934404, 59665934405, 59665939300, 59665939400, 59665939401, 59665939404, 59666032600, 59666032601, 59666032602, 59666032702, 59666039601, 59666039603, 59666039702, 59666132703, 59666252400, 59666252401, 59666253400, 59666253401, 59666254400, 59666254401, 59666259400, 59666259401, 59666952400, 59666952401, 59666953400, 59666953401, 59666954400, 59666954401, 59666959400, 59666959401, 59667252600, 59667252601, 59667253600, 59667253601, 59667253602, 59667259601, 59667952600, 59667992606, 59668042802, 59668043802, 59668252801, 59668252802, 59668253801, 59668254801, 59668254802, 59668259801, 59668942802, 59668949802, 59668953802, 59668954802, 59668959802, 59669280001, 59669280011, 59669280012, 59669280013, 59669280014, 59669282000, 59669282001, 59669282012, 59669282013, 59669282014, 59669283000, 59669283011, 59669283012, 59669283013, 59669283014, 59669284001, 59669284011, 59669289012, 59669289013, 59669289014, 59669312010, 59669312011, 59669312310, 59669313010, 59669319010, 59669332010, 59669333010, 59669339010, 59669352010, 59669353010, 59669359010, 59669362010, 59669363010, 59669382010, 59669383010, 59669912000, 59669912001, 59669912012, 59669912013, 59669932000, 59669932010, 59669932012, 59669932013, 59669933001, 59669933010, 59669933011, 59669933012, 59669933013, 59669939000, 59669939012, 59669939013, 59669942010, 59669952011, 59669952012, 59669953011, 59669953012, 59669959011, 59669959012, 59669962011, 59669962012, 59669962013, 59669963011, 59669963012, 59669963013, 59669969012, 59669969013, 59669972001, 59669972010, 59669972011, 59669972012, 59669972013, 59669973001, 59669973011, 59669973012, 59669973013, 59669979012, 59669979013, 59669980000, 59669980011, 59669982000, 59669982011, 59669982012, 59669982013, 59669982014, 59669983011, 59669983012, 59669983013, 59669983014, 59669984000, 59669984001, 59669984010, 59669984011, 59669989000, 59669989001, 59669989010, 59669989011, 59669989012, 59669989013, 59669989014, 59675232400, 59675232401, 59675232402, 59675232404, 59675232405, 59675234400, 59675234401, 59675239400, 59675239401, 59675239403, 59675239405, 59675502400, 59675503400, 59675504400, 59675509400, 59675512400, 59675513400, 59675514400, 59675519400, 59675522400, 59675523400, 59675524400, 59675529400, 59675532400, 59675533400, 59675534400, 59675539400, 59675932300, 59675932400, 59675934300, 59675934400, 59675934404, 59675939300, 59675939400, 59675939402, 59675939405, 59676052700, 59676052701, 59676052702, 59676052703, 59676053700, 59676053701, 59676053702, 59676053703, 59676054700, 59676054701, 59676054702, 59676054703, 59676059700, 59676059701, 59676059702, 59676059703, 59676062700, 59676062702, 59676063700, 59676063702, 59676064700, 59676064702, 59676069700, 59676069702, 59676252700, 59676252701, 59676252702, 59676252703, 59676253700, 59676253701, 59676253702, 59676253703, 59676254700, 59676254701, 59676254702, 59676254703, 59676259700, 59676259701, 59676259702, 59676259703, 59678282800, 59678282802, 59678282803, 59678282900, 59678282902, 59678282903, 59678283800, 59678283802, 59678283803, 59678283804, 59678283900, 59678283902, 59678283903, 59678289800, 59678289802, 59678289803, 59678289804, 59678289900, 59679212012, 59679212013, 59679213010, 59679213013, 59679213014, 59679219011, 59679219012, 59679219013, 59679222011, 59679222012, 59679222013, 59679222014, 59679223012, 59679223013, 59679223014, 59679223015, 59679229012, 59679229013, 59679229014, 59679312510, 59679312511, 59679313510, 59679313511, 59679319510, 59679342510, 59679343510, 59679344510, 59679349510, 59679462410, 59679463410, 59679512010, 59679513010, 59679513013, 59679519012, 59679522012, 59679522013, 59679522014, 59679522015, 59679523014, 59679523015, 59679523016, 59679529012, 59679529013, 59679529014, 59679529015, AB1924PEKB, AB1924PEKS, AB1924PEKW, AB2026LEKS, AB2026LEKS0, AB2026PEKB, AB2026PEKW, AB2026REKS, AB2026REKS0, AB2225PEKB, AB2225PEKS, AB2225PEKW, AB2526PEKW, ABB1921BRB00, ABB1921BRB01, ABB1921BRB02, ABB1921BRM00, ABB1921BRM01, ABB1921BRM02, ABB1921BRW00, ABB1921BRW01, ABB1921BRW02, ABB1921WEW0, ABB1921WEW1, ABB1921WEW2, ABB1921WEW3, ABB1922FEB, ABB1922FEB0, ABB1922FEB11, ABB1922FEB2, ABB1922FEB3, ABB1922FED1, ABB1922FED10, ABB1922FED2, ABB1922FEQ, ABB1922FEQ0, ABB1922FEQ11, ABB1922FEQ2, ABB1922FEQ3, ABB1922FES, ABB1922FES0, ABB1922FEW, ABB1922FEW0, ABB1922FEW11, ABB1922FEW2, ABB1922FEW3, ABB1924BRB00, ABB1924BRB01, ABB1924BRB02, ABB1924BRM00, ABB1924BRM01, ABB1924BRM02, ABB1924BRW00, ABB1924BRW01, ABB1924BRW02, ABB1924DEB, ABB1924DEQ, ABB1924DES, ABB1924DEW, ABB1924WEB0, ABB1924WEB1, ABB1924WEB2, ABB1924WEB3, ABB1924WED0, ABB1924WED1, ABB1924WEQ0, ABB1924WEQ1, ABB1924WES0, ABB1924WES1, ABB1924WES2, ABB1924WES3, ABB1924WEW0, ABB1924WEW1, ABB1924WEW2, ABB1924WEW3, ABB1927DEB, ABB1927DEQ, ABB1927DES, ABB1927DEW, ABB1927DEW14, ABB1927VEB1, ABB1927VEB10, ABB1927VEB2, ABB1927VEW1, ABB1927VEW10, ABB1927VEW2, ABB192ZDEB, ABB192ZDEB14, ABB192ZDEB5, ABB192ZDEB6, ABB192ZDEQ, ABB192ZDES, ABB192ZDEW, ABB192ZDEW14, ABB192ZDEW5, ABB192ZDEW6, ABB192ZWEB0, ABB192ZWEB1, ABB192ZWEW0, ABB192ZWEW1, ABB2221WEB0, ABB2221WEB1, ABB2221WEW0, ABB2221WEW1, ABB2222FEB, ABB2222FEB0, ABB2222FEB11, ABB2222FEB2, ABB2222FEB3, ABB2222FED1, ABB2222FED10, ABB2222FED2, ABB2222FEQ, ABB2222FEQ0, ABB2222FEQ11, ABB2222FEQ2, ABB2222FEQ3, ABB2222FES, ABB2222FES0, ABB2222FEW, ABB2222FEW0, ABB2222FEW11, ABB2222FEW2, ABB2222FEW3, ABB2223DEB, ABB2223DEB1, ABB2223DEQ, ABB2223DEQ1, ABB2223DES, ABB2223DES1, ABB2223DEW, ABB2223DEW1, ABB2224BRB00, ABB2224BRB01, ABB2224BRB02, ABB2224BRM00, ABB2224BRM01, ABB2224BRM02, ABB2224BRW00, ABB2224BRW01, ABB2224BRW02, ABB2224DEB, ABB2224DEQ, ABB2224DES, ABB2224DEW, ABB2224WEB0, ABB2224WEB1, ABB2224WEB2, ABB2224WEB3, ABB2224WED0, ABB2224WED1, ABB2224WEQ0, ABB2224WEQ1, ABB2224WES0, ABB2224WES1, ABB2224WES2, ABB2224WES3, ABB2224WEW0, ABB2224WEW1, ABB2224WEW2, ABB2224WEW3, ABB2227DEB, ABB2227DEB14, ABB2227DEQ, ABB2227DES, ABB2227DEW, ABB2227DEW14, ABB2227VEB1, ABB2227VEB10, ABB2227VEB2, ABB2227VEW1, ABB2227VEW10, ABB2227VEW2, ABB222ZDEB, ABB222ZDEQ, ABB222ZDES, ABB222ZDEW, ABB2522FEB, ABB2522FEB0, ABB2522FEB11, ABB2522FEB2, ABB2522FEB3, ABB2522FEQ, ABB2522FEQ0, ABB2522FEQ11, ABB2522FEQ2, ABB2522FEQ3, ABB2522FES, ABB2522FES0, ABB2522FEW, ABB2522FEW0, ABB2522FEW11, ABB2522FEW2, ABB2522FEW3, ABB2524DEB, ABB2524DEQ, ABB2524DES, ABB2524DEW, ABB2527DEB, ABB2527DEB14, ABB2527DEB2, ABB2527DEQ, ABB2527DES, ABB2527DEW, ABB2527DEW14, ABB2527DEW2, ABC2037DEB, ABC2037DEB14, ABC2037DEQ, ABC2037DES, ABC2037DEW, ABC2037DEW14, ABC2037DPS, ABC2037DTB, ABC2037DTS, ABC2037DTS14, ABC2037DTW, ABD2233DEB, ABD2233DEB14, ABD2233DEQ, ABD2233DES, ABD2233DEW, ABD2233DEW14, ABD2533DEB, ABD2533DEB2, ABD2533DEQ, ABD2533DES, ABD2533DES0, ABD2533DES1, ABD2533DEW, ABD2533DEW2, ABL1922FES12, ABL1922FES3, ABL1922FES4, ABL1922FES5, ABL1922FES6, ABL1927FES12, ABL1927VES1, ABL1927VES10, ABL1927VES2, ABL1927VES3, ABL1927VES4, ABL192ZFES12, ABL192ZFES3, ABL192ZFES4, ABL192ZFES5, ABL192ZFES6, ABL192ZWES0, ABL192ZWES1, ABL2037FES12, ABL2222FES, ABL2222FES0, ABL2222FES12, ABL2222FES3, ABL2222FES4, ABL2222FES5, ABL2222FES6, ABL2227FES12, ABL2227VES1, ABL2227VES10, ABL2227VES2, ABL2227VES3, ABL2227VES4, ABL2233FES, ABL2233FES0, ABL2233FES12, ABL2522FES, ABL2522FES0, ABL2522FES12, ABL2527FES12, ABL2533FES12, ABR1922FES12, ABR1922FES3, ABR1922FES4, ABR1922FES5, ABR1922FES6, ABR1927FES12, ABR1927VES1, ABR1927VES10, ABR1927VES2, ABR1927VES3, ABR1927VES4, ABR192ZFES12, ABR192ZFES3, ABR192ZFES4, ABR192ZFES5, ABR192ZFES6, ABR192ZWES0, ABR192ZWES1, ABR2037FES12, ABR2222FES, ABR2222FES0, ABR2222FES12, ABR2222FES3, ABR2222FES4, ABR2222FES5, ABR2222FES6, ABR2227FES, ABR2227FES0, ABR2227FES12, ABR2227VES1, ABR2227VES10, ABR2227VES2, ABR2227VES3, ABR2227VES4, ABR2233FES, ABR2233FES0, ABR2233FES12, ABR2522FES, ABR2522FES0, ABR2522FES12, ABR2527FES12, ABR2533FES0, ABR2533FES12, AC2224GEKB, AC2224GEKS, AC2224GEKW, AC2224PEKB, AC2224PEKB0, AC2224PEKW, AC2224PEKW0, AC2225GEKB, AC2225GEKB0, AC2225GEKS, AC2225GEKS0, AC2225GEKW, AC2225GEKW0, ADD1927DEB14, AFB2234WEB0, AFB2234WEB10, AFB2234WEB2, AFB2234WEB3, AFB2234WEB4, AFB2234WES0, AFB2234WES10, AFB2234WES2, AFB2234WES3, AFB2234WES4, AFB2234WES5, AFB2234WES6, AFB2234WEW0, AFB2234WEW10, AFB2234WEW2, AFB2234WEW3, AFB2534DEB, AFB2534DEB13, AFB2534DEQ, AFB2534DES, AFB2534DEW, AFB2534DEW13, AFB2534FES, AFB2534FES0, AFB2534FES12, AFC2033DRB, AFC2033DRQ, AFC2033DRS, AFC2033DRW, AFD2535DEB, AFD2535DEB10, AFD2535DEB11, AFD2535DEB14, AFD2535DEB5, AFD2535DEB6, AFD2535DEB7, AFD2535DEB8, AFD2535DEB9, AFD2535DEQ, AFD2535DEQ14, AFD2535DEQ5, AFD2535DEQ6, AFD2535DES, AFD2535DEW, AFD2535DEW10, AFD2535DEW11, AFD2535DEW14, AFD2535DEW5, AFD2535DEW6, AFD2535DEW7, AFD2535DEW8, AFD2535DEW9, AFD2535FES11, AFD2535FES12, AFD2535FES3, AFD2535FES4, AFD2535FES5, AFD2535FES6, AFD2535FES7, AFD2535FES8, AFD2535FES9, AFF2534FEB11, AFF2534FEB2, AFF2534FEB3, AFF2534FEB4, AFF2534FEB5, AFF2534FES11, AFF2534FES2, AFF2534FES3, AFF2534FES4, AFF2534FES5, AFF2534FES6, AFF2534FES7, AFF2534FES8, AFF2534FEW11, AFF2534FEW2, AFF2534FEW3, AFF2534FEW4, AFF2534FEW5, AS2324GEKB, AS2324GEKW, AS2625PEKB, AS2625PEKW, AS2626GEKB, AS2626GEKS, AS2626GEKW, ASD2326HEB, ASD2326HEQ, ASD2326HES, ASD2326HEW, ASD2328HEB, ASD2328HEQ, ASD2328HES, ASD2328HEW, ASD2626HEB, ASD2626HEQ, ASD2626HES, ASD2626HEW, ASD2627KEB, ASD2627KES, ASD2627KEW, ASD2628HEB, ASD2628HEQ, ASD2628HES, ASD2628HEW, EB2SHKXVD00, EB2SHKXVD01, EB2SHKXVD02, EB2SHKXVD03, EB2SHKXVQ00, EB2SHKXVQ01, EB2SHKXVQ02, EB2SHKXVQ03, EB9FVBLWS01, EB9FVBLWS02, EB9FVBLWS03, EB9FVBLWS04, EB9FVBLWS05, EB9FVBLWS06, EB9FVBRWS01, EB9FVBRWS02, EB9FVBRWS03, EB9FVBRWS04, EB9FVBRWS05, EB9FVBRWS06, EB9FVBXWB00, EB9FVBXWB01, EB9FVBXWB02, EB9FVBXWQ00, EB9FVBXWQ01, EB9FVBXWQ02, EB9FVBXWQ03, EB9FVHLVS00, EB9FVHLVS01, EB9FVHLVS02, EB9FVHLVS03, EB9FVHLVS04, EB9FVHLWS00, EB9FVHLWS01, EB9FVHLWS02, EB9FVHLWS03, EB9FVHRVS00, EB9FVHRVS01, EB9FVHRVS02, EB9FVHRVS03, EB9FVHRVS04, EB9FVHRWS00, EB9FVHRWS01, EB9FVHRWS02, EB9FVHRWS03, EB9FVHXVB00, EB9FVHXVB01, EB9FVHXVB02, EB9FVHXVQ00, EB9FVHXVQ01, EB9FVHXVQ02, EB9FVHXWB00, EB9FVHXWB01, EB9FVHXWB02, EB9FVHXWB03, EB9FVHXWQ00, EB9FVHXWQ01, EB9FVHXWQ02, EB9FVHXWQ03, EB9SHKXVQ01, EB9SHKXVQ02, EB9SHKXVQ03, EB9SHKXVQ04, EB9SHKXVQ05, EB9SHKXVQ06, EB9SHKXVQ07, G32026PEKB, G32026PEKS, G32026PEKW, G32026PELB, G32526PEKB, G32526PEKS, G32526PEKW, GB1924PEKB, GB1924PEKS, GB1924PEKW, GB2026LEKS, GB2026PEKB, GB2026PEKW, GB2026REKS, GB2225PEKW, GB2526PEKW, GB2FHDXWB00, GB2FHDXWB01, GB2FHDXWB02, GB2FHDXWB03, GB2FHDXWB04, GB2FHDXWB05, GB2FHDXWB06, GB2FHDXWB07, GB2FHDXWD00, GB2FHDXWD01, GB2FHDXWD02, GB2FHDXWQ00, GB2FHDXWQ01, GB2FHDXWQ02, GB2FHDXWQ03, GB2FHDXWQ04, GB2FHDXWQ05, GB2FHDXWQ06, GB2FHDXWQ07, GB2FHDXWQ08, GB2FHDXWS00, GB2FHDXWS01, GB2FHDXWS02, GB2FHDXWS03, GB2FHDXWS04, GB2FHDXWS05, GB2FHDXWS06, GB2FHDXWS07, GB2FHDXWS08, GB2FHDXWS09, GB2SHDXPB00, GB2SHDXPB01, GB2SHDXPB02, GB2SHDXPB12, GB2SHDXPQ00, GB2SHDXPQ01, GB2SHDXPQ02, GB2SHDXPQ12, GB2SHDXPS00, GB2SHDXPS01, GB2SHDXPS02, GB2SHDXPS12, GB2SHDXPT00, GB2SHDXPT01, GB2SHDXPT02, GB2SHDXPT12, GB2SHDXTB00, GB2SHDXTB01, GB2SHDXTB02, GB2SHDXTB03, GB2SHDXTB11, GB2SHDXTD00, GB2SHDXTD01, GB2SHDXTD02, GB2SHDXTL01, GB2SHDXTL11, GB2SHDXTQ00, GB2SHDXTQ01, GB2SHDXTQ02, GB2SHDXTQ03, GB2SHDXTQ11, GB2SHDXTS00, GB2SHDXTS01, GB2SHDXTS02, GB2SHDXTS03, GB2SHDXTS04, GB2SHDXTS11, GB2SHTXTB01, GB2SHTXTB02, GB2SHTXTB03, GB2SHTXTB11, GB2SHTXTL01, GB2SHTXTL11, GB2SHTXTQ01, GB2SHTXTQ02, GB2SHTXTQ03, GB2SHTXTQ11, GB2SHTXTS01, GB2SHTXTS02, GB2SHTXTS03, GB2SHTXTS04, GB2SHTXTS05, GB2SHTXTS11, GB2SHTXTT01, GB2SHTXTT11, GB9FHDXWB00, GB9FHDXWB01, GB9FHDXWB02, GB9FHDXWB03, GB9FHDXWB04, GB9FHDXWB05, GB9FHDXWB06, GB9FHDXWB07, GB9FHDXWD01, GB9FHDXWQ00, GB9FHDXWQ01, GB9FHDXWQ02, GB9FHDXWQ03, GB9FHDXWQ04, GB9FHDXWQ05, GB9FHDXWQ06, GB9FHDXWQ07, GB9FHDXWS00, GB9FHDXWS01, GB9FHDXWS02, GB9FHDXWS03, GB9FHDXWS04, GB9FHDXWS05, GB9FHDXWS06, GB9FHDXWS07, GB9FHDXWS08, GB9FHDXWS09, GB9SHDXPB00, GB9SHDXPB01, GB9SHDXPB02, GB9SHDXPB12, GB9SHDXPQ00, GB9SHDXPQ01, GB9SHDXPQ02, GB9SHDXPQ12, GB9SHDXPS00, GB9SHDXPS01, GB9SHDXPS02, GB9SHDXPS12, GB9SHDXVB00, GB9SHDXVB01, GB9SHDXVB02, GB9SHDXVQ00, GB9SHDXVQ01, GB9SHDXVQ02, GB9SHDXVS00, GB9SHDXVS01, GB9SHDXVS02, GB9SHDXVS03, GC2224GEKB, GC2224GEKW, GC2225GEK3, GC2225GEK5, GC2225GEK9, GC2225GEKB, GC2225GEKS, GC2225GEKW, GC2225PEKB, GC2225PEKS, GC2225PEKW, GS2325GEKB, GS2325GEKW, GS2624PEKW, GS2625GEKB, GS2625GEKS, GS2625GEKW, GSD2657HEB, GSD2657HEQ, GX2FHDXVA00, GX2FHDXVA02, GX2FHDXVA03, GX2FHDXVB00, GX2FHDXVB02, GX2FHDXVB03, GX2FHDXVB04, GX2FHDXVB05, GX2FHDXVB06, GX2FHDXVB07, GX2FHDXVB08, GX2FHDXVD00, GX2FHDXVQ00, GX2FHDXVQ02, GX2FHDXVQ03, GX2FHDXVQ04, GX2FHDXVQ05, GX2FHDXVQ06, GX2FHDXVQ07, GX2FHDXVT00, GX2FHDXVT02, GX2FHDXVT03, GX2FHDXVY00, GX2FHDXVY010, GX2FHDXVY02, GX2FHDXVY03, GX2FHDXVY04, GX2FHDXVY05, GX2FHDXVY06, GX2FHDXVY07, GX2FHDXVY08, GX2FHDXVY09, GX2SHBXVB00, GX2SHBXVB02, GX2SHBXVB03, GX2SHBXVB04, GX2SHBXVB05, GX2SHBXVB06, GX2SHBXVB07, GX2SHBXVQ00, GX2SHBXVQ02, GX2SHBXVQ03, GX2SHBXVQ04, GX2SHBXVQ05, GX2SHBXVY00, GX2SHBXVY02, GX2SHBXVY03, GX2SHBXVY04, GX2SHBXVY05, GX2SHBXVY06, GX2SHBXVY07, GX2SHBXVY08, GX2SHBXVY09, GX2SHDXVB00, GX2SHDXVB02, GX2SHDXVD00, GX2SHDXVQ00, GX2SHDXVY00, GX2SHDXVY02, GX5FHDXTB00, GX5FHDXTB01, GX5FHDXTB11, GX5FHDXTL01, GX5FHDXTL11, GX5FHDXTQ00, GX5FHDXTQ01, GX5FHDXTQ11, GX5FHDXTS00, GX5FHDXTS01, GX5FHDXTS11, GX5FHDXVA00, GX5FHDXVA01, GX5FHDXVA02, GX5FHDXVA03, GX5FHDXVA04, GX5FHDXVB00, GX5FHDXVB01, GX5FHDXVB02, GX5FHDXVB03, GX5FHDXVB04, GX5FHDXVB05, GX5FHDXVB06, GX5FHDXVB07, GX5FHDXVB08, GX5FHDXVD00, GX5FHDXVD01, GX5FHDXVD02, GX5FHDXVQ00, GX5FHDXVQ01, GX5FHDXVQ02, GX5FHDXVQ03, GX5FHDXVQ04, GX5FHDXVQ05, GX5FHDXVQ06, GX5FHDXVQ07, GX5FHDXVT00, GX5FHDXVT01, GX5FHDXVT02, GX5FHDXVY00, GX5FHDXVY01, GX5FHDXVY010, GX5FHDXVY02, GX5FHDXVY03, GX5FHDXVY04, GX5FHDXVY05, GX5FHDXVY06, GX5FHDXVY07, GX5FHDXVY08, GX5FHDXVY09, GX5FHTXTB00, GX5FHTXTB01, GX5FHTXTB11, GX5FHTXTL01, GX5FHTXTL11, GX5FHTXTQ00, GX5FHTXTQ01, GX5FHTXTQ11, GX5FHTXTS00, GX5FHTXTS01, GX5FHTXTS11, GX5FHTXTT00, GX5FHTXTT01, GX5FHTXTT11, GX5FHTXVA00, GX5FHTXVA01, GX5FHTXVA02, GX5FHTXVA03, GX5FHTXVA04, GX5FHTXVB00, GX5FHTXVB01, GX5FHTXVB02, GX5FHTXVB03, GX5FHTXVB04, GX5FHTXVB05, GX5FHTXVB06, GX5FHTXVB07, GX5FHTXVB08, GX5FHTXVQ00, GX5FHTXVQ01, GX5FHTXVQ02, GX5FHTXVQ03, GX5FHTXVQ04, GX5FHTXVQ05, GX5FHTXVQ06, GX5FHTXVQ07, GX5FHTXVY00, GX5FHTXVY01, GX5FHTXVY010, GX5FHTXVY02, GX5FHTXVY03, GX5FHTXVY04, GX5FHTXVY05, GX5FHTXVY06, GX5FHTXVY07, GX5FHTXVY08, GX5FHTXVY09, GX5SHDXTB00, GX5SHDXTB01, GX5SHDXTB11, GX5SHDXTL01, GX5SHDXTL11, GX5SHDXTQ00, GX5SHDXTQ01, GX5SHDXTQ11, GX5SHDXTS00, GX5SHDXTS01, GX5SHDXTS11, GX5SHDXVA00, GX5SHDXVA01, GX5SHDXVA02, GX5SHDXVB00, GX5SHDXVB01, GX5SHDXVB02, GX5SHDXVB03, GX5SHDXVD00, GX5SHDXVD01, GX5SHDXVD02, GX5SHDXVD03, GX5SHDXVQ00, GX5SHDXVQ01, GX5SHDXVQ02, GX5SHDXVQ03, GX5SHDXVT00, GX5SHDXVT01, GX5SHDXVY00, GX5SHDXVY01, GX5SHDXVY02, GX5SHDXVY03, GX5SHDXVY04, GX5SHDXVY05, GX5SHTXTB00, GX5SHTXTB01, GX5SHTXTB11, GX5SHTXTL01, GX5SHTXTL11, GX5SHTXTQ00, GX5SHTXTQ01, GX5SHTXTQ11, GX5SHTXTS00, GX5SHTXTS01, GX5SHTXTS11, GX5SHTXTT00, GX5SHTXTT01, GX5SHTXTT11, GX5SHTXVA00, GX5SHTXVA01, GX5SHTXVB00, GX5SHTXVB01, GX5SHTXVB02, GX5SHTXVQ00, GX5SHTXVQ01, GX5SHTXVY00, GX5SHTXVY01, GX5SHTXVY02, GZ2626GEKB, GZ2626GEKS, GZ2626GEKW, ITB19440Q00, ITB19440Q01, ITB19440Q02, ITB19440Q03, IX3HHEXDSM00, IX3HHGXSS000, IX3HHGXSS001, IX5HHEXVS00, IX5HHEXWS01, IX5HHEXWS02, IX5HHEXWS03, IX5HHEXWS04, IX5HHEXWS05, IX5HHEXWS06, IX5HHEXWS07, IX5HHEXWS08, IX5HHEXWS09, IX5HHEXWS10, IX7HHEXDSM00, JBD2256HEB, JBD2256HEW, JBL2086HES, JBL2256HES, JBR2086HES, JBR2256HES, JC2225GEKB, JCB2280HEB, JCB2280HEQ, JCB2280HES, JCB2280HEW, JCB2282HTB, JCB2282HTW, JCB2285HES, JCD2290HEB, JCD2290HEQ, JCD2290HES, JCD2290HEW, JCD2292HTB, JCD2292HTW, JCD2295HES, JFC2070KRB, JFC2070KRB11, JFC2070KRS, JFC2070KRS12, JFC2070KRW, JFC2070KRW11, JFC2087HRP, JFC2087HRS, JSD2690HEB, JSD2690HES, JSD2690HEW, KBLS19KCMS00, KBLS19KTMS0, KBLS19KTMS1, KBLS19KTMS2, KBLS19KTMS3, KBLS19KTSS00, KBLS19KTSS01, KBLS19KTSS2, KBLS19KTSS3, KBLS19KTSS4, KBLS19KTSS5, KBLS22KCMS00, KBLS22KWMS4, KBLS22KWMS5, KBLS22KWMS6, KBRS19KCMS00, KBRS19KTBL00, KBRS19KTBL01, KBRS19KTBL2, KBRS19KTBL3, KBRS19KTBL4, KBRS19KTBL5, KBRS19KTBL6, KBRS19KTBL7, KBRS19KTMS0, KBRS19KTMS1, KBRS19KTMS2, KBRS19KTMS3, KBRS19KTSS00, KBRS19KTSS01, KBRS19KTSS2, KBRS19KTSS3, KBRS19KTSS4, KBRS19KTSS5, KBRS19KTWH00, KBRS19KTWH01, KBRS19KTWH2, KBRS19KTWH3, KBRS19KTWH4, KBRS19KTWH5, KBRS19KTWH6, KBRS19KTWH7, KBRS22KCMS00, KBRS22KWBL4, KBRS22KWBL5, KBRS22KWBL6, KBRS22KWBL7, KBRS22KWMS4, KBRS22KWMS5, KBRS22KWMS6, KBRS22KWWH4, KBRS22KWWH5, KBRS22KWWH6, KBRS22KWWH7, KBWS19KCBL00, KBWS19KCMS00, KBWS19KCWH00, KBWS22KCBL00, KBWS22KCMS00, KBWS22KCWH00, KRBL102ESS00, KRBL102ESS01, KRBL102ESS02, KRBL109ESS00, KRBL109ESS01, KRBL109ESS02, KRBR102ESS00, KRBR102ESS01, KRBR102ESS02, KRBR109ESS00, KRBR109ESS01, KRBR109ESS02, KRBX102EBL00, KRBX102EWH00, KRBX109EBL00, KRBX109EWH00, MB2216PUAW, MB2216PUAW11, MB2216PUAW2, MBB1953WEB0, MBB1953WEB1, MBB1953WEB2, MBB1953WEW0, MBB1953WEW1, MBB1953WEW2, MBB1953XEB0, MBB1953XEB1, MBB1953XEW0, MBB1953XEW1, MBB1953XEW2, MBB1953XEW3, MBB1956HEB, MBB1956HEB14, MBB1956HEQ, MBB1956HES, MBB1956HEW, MBB1956HEW14, MBB1957DEE00, MBB1957DEH00, MBB1957DEM00, MBB1957FEB00, MBB1957FEE00, MBB1957FEH00, MBB1957FEW00, MBB1957FEW01, MBB1957FEW02, MBB1957VEB1, MBB1957VEB10, MBB1957VEB2, MBB1957VEW1, MBB1957VEW10, MBB1957VEW2, MBB1957WEB0, MBB1957WEB1, MBB1957WEB2, MBB1957WEB3, MBB1957WEW0, MBB1957WEW1, MBB1957WEW2, MBB1957WEW3, MBF1952VEW1, MBF1953DEE00, MBF1953DEH00, MBF1953DEM00, MBF1953YEB0, MBF1953YEB2, MBF1953YEB3, MBF1953YEB4, MBF1953YEW0, MBF1953YEW2, MBF1953YEW3, MBF1953YEW4, MBF1956HEB, MBF1956HEQ, MBF1956HES, MBF1956HEW, MBF1956KEB, MBF1956KEB11, MBF1956KEB2, MBF1956KEB3, MBF1956KEB4, MBF1956KEQ, MBF1956KEQ11, MBF1956KEQ2, MBF1956KEQ3, MBF1956KEQ4, MBF1956KEW, MBF1956KEW11, MBF1956KEW2, MBF1956KEW3, MBF1956KEW4, MBF1958DEE00, MBF1958DEH00, MBF1958DEM00, MBF1958FEB00, MBF1958FEE00, MBF1958FEH00, MBF1958FEW00, MBF1958FEZ00, MBF1958FEZ01, MBF1958FEZ02, MBF1958FEZ03, MBF1958FEZ04, MBF1958FEZ05, MBF1958WEB0, MBF1958WEB1, MBF1958WEB2, MBF1958WES0, MBF1958WES1, MBF1958WES2, MBF1958WES3, MBF1958WES4, MBF1958WEW0, MBF1958WEW1, MBF1958WEW2, MBF1958XEB0, MBF1958XEB1, MBF1958XEB2, MBF1958XEB3, MBF1958XEB4, MBF1958XEB5, MBF1958XEB6, MBF1958XEQ0, MBF1958XEQ1, MBF1958XEQ2, MBF1958XES0, MBF1958XES1, MBF1958XES2, MBF1958XES3, MBF1958XES4, MBF1958XES5, MBF1958XES6, MBF1958XEW0, MBF1958XEW1, MBF1958XEW2, MBF1958XEW3, MBF1958XEW4, MBF1958XEW5, MBF1958XEW6, MBF2254HEB, MBF2254HEB14, MBF2254HEB4, MBF2254HEQ, MBF2254HEQ14, MBF2254HEQ4, MBF2254HES, MBF2254HEW, MBF2254HEW14, MBF2254HEW4, MBF2255KEB, MBF2255KEB11, MBF2255KEQ, MBF2255KEQ11, MBF2255KEW, MBF2255KEW11, MBF2256HEB, MBF2256HEQ, MBF2256HES, MBF2256HEW, MBF2256KEB, MBF2256KEB11, MBF2256KEB2, MBF2256KEB3, MBF2256KEQ, MBF2256KEQ11, MBF2256KEQ2, MBF2256KEQ3, MBF2256KEW, MBF2256KEW11, MBF2256KEW2, MBF2256KEW3, MBF2258DEE00, MBF2258DEH00, MBF2258DEM00, MBF2258FEB00, MBF2258FEE00, MBF2258FEH00, MBF2258FEW00, MBF2258FEZ00, MBF2258FEZ01, MBF2258FEZ02, MBF2258FEZ03, MBF2258FEZ04, MBF2258FEZ05, MBF2258HEB, MBF2258HEQ, MBF2258HES, MBF2258HEW, MBF2258WEB0, MBF2258WEB1, MBF2258WES0, MBF2258WES1, MBF2258WES2, MBF2258WES3, MBF2258WEW0, MBF2258WEW1, MBF2258XEB0, MBF2258XEB1, MBF2258XEB3, MBF2258XEB4, MBF2258XEB5, MBF2258XEB6, MBF2258XEQ0, MBF2258XEQ1, MBF2258XEW0, MBF2258XEW1, MBF2258XEW3, MBF2258XEW4, MBF2258XEW5, MBF2258XEW6, MBF2556HEB, MBF2556HEQ, MBF2556HES, MBF2556HEW, MBF2556KEB, MBF2556KEB11, MBF2556KEB3, MBF2556KEQ, MBF2556KEQ11, MBF2556KEQ3, MBF2556KEW, MBF2556KEW11, MBF2556KEW3, MBF2558HEB, MBF2558HEQ, MBF2558HES, MBF2558HEW, MBL1953WES1, MBL1953WES2, MBL1953WES3, MBL1953WES4, MBL1953XES0, MBL1953XES1, MBL1953XES2, MBL1953XES3, MBL1956HES, MBL1956HES14, MBL1956KES, MBL1956KES12, MBL1956KES3, MBL1956KES4, MBL1956KES5, MBL1956KES6, MBL1956KES7, MBL1957DEM00, MBL1957FEZ00, MBL1957FEZ01, MBL1957FEZ02, MBL1957FEZ04, MBL1957FEZ05, MBL1957FEZ06, MBL1957VES1, MBL1957VES10, MBL1957VES2, MBL1957VES3, MBL1957VES4, MBL1957VES5, MBL1957WES0, MBL1957WES1, MBL1957WES2, MBL1957WES3, MBL2255KES, MBL2255KES12, MBL2256KES, MBL2256KES12, MBL2256KES3, MBL2256KES4, MBL2256KES5, MBL2256KES6, MBL2258XES0, MBL2258XES1, MBL2258XES3, MBL2258XES4, MBL2258XES5, MBL2258XES6, MBL2556KES, MBL2556KES12, MBL2556KES4, MBL2556KES5, MBR1953WES1, MBR1953WES2, MBR1953WES3, MBR1953WES4, MBR1953XES0, MBR1953XES1, MBR1953XES2, MBR1953XES3, MBR1953YES0, MBR1953YES2, MBR1953YES3, MBR1953YES4, MBR1956HES, MBR1956HES14, MBR1956KES, MBR1956KES12, MBR1956KES3, MBR1956KES4, MBR1956KES5, MBR1956KES6, MBR1956KES7, MBR1957DEM00, MBR1957FEZ00, MBR1957FEZ01, MBR1957FEZ02, MBR1957FEZ03, MBR1957FEZ04, MBR1957FEZ05, MBR1957VES1, MBR1957VES10, MBR1957VES2, MBR1957VES3, MBR1957VES4, MBR1957VES5, MBR1957WES0, MBR1957WES1, MBR1957WES2, MBR1957WES3, MBR2255KES, MBR2255KES12, MBR2256KES, MBR2256KES12, MBR2256KES3, MBR2256KES4, MBR2256KES5, MBR2256KES6, MBR2258XES0, MBR2258XES1, MBR2258XES3, MBR2258XES4, MBR2258XES5, MBR2258XES6, MBR2556KES, MBR2556KES12, MBR2556KES4, MBR2556KES5, MCB2256HEB, MCB2256HES, MCB2256HEW, MCD2257HEB, MCD2257HEQ, MCD2257HES, MCD2257HEW, MCD2257KES, MFD2560HEB, MFD2560HEQ, MFD2560HES, MFD2560HEW, MFF2258VEA10, MFF2258VEA2, MFF2258VEB10, MFF2258VEB2, MFF2258VEB3, MFF2258VEB4, MFF2258VEB5, MFF2258VEB6, MFF2258VEB7, MFF2258VEB8, MFF2258VEM10, MFF2258VEM2, MFF2258VEM3, MFF2258VEM4, MFF2258VEM5, MFF2258VEM6, MFF2258VEM7, MFF2258VEM8, MFF2258VEM9, MFF2258VEW10, MFF2258VEW2, MFF2258VEW3, MFF2258VEW4, MFF2258VEW5, MFF2258VEW6, MFF2258VEW7, MFF2557HEB, MFF2557HEB14, MFF2557HEQ, MFF2557HES, MFF2557HEW, MFF2557KES, MFF2558DEE00, MFF2558DEH00, MFF2558DEM00, MFF2558FEB00, MFF2558FEE00, MFF2558FEH00, MFF2558FEW00, MFF2558FEW01, MFF2558FEZ00, MFF2558FEZ01, MFF2558FEZ02, MFF2558FEZ03, MFF2558FEZ04, MFF2558FEZ05, MFF2558FEZ06, MFF2558KEB, MFF2558KEB11, MFF2558KES, MFF2558KES12, MFF2558KEW, MFF2558KEW11, MFF2558VEA1, MFF2558VEA10, MFF2558VEA2, MFF2558VEB1, MFF2558VEB10, MFF2558VEB2, MFF2558VEB3, MFF2558VEB4, MFF2558VEB5, MFF2558VEB6, MFF2558VEB7, MFF2558VEB8, MFF2558VEM1, MFF2558VEM10, MFF2558VEM2, MFF2558VEM3, MFF2558VEM4, MFF2558VEM5, MFF2558VEM6, MFF2558VEM9, MFF2558VEQ1, MFF2558VEQ10, MFF2558VEQ2, MFF2558VEW1, MFF2558VEW10, MFF2558VEW2, MFF2558VEW3, MFF2558VEW4, MFF2558VEW5, MFF2558VEW6, MFF2558VEW7, MSD2357HEB, MSD2357HEQ, MSD2357HES, MSD2357HEW, MSD2656KES, MSD2656KEU, MSD2656KGB, MSD2656KGW, MSD2657HEB, MSD2657HEQ, MSD2657HES, MSD2657HEW, MZD2666KEB, MZD2666KES, MZD2666KEW, MZD2667HEB, MZD2667HEQ, MZD2667HES, MZD2667HEW, PBF2253HEB, PBF2253HEQ, PBF2253HEW, PBF2255HEB, PBF2255HEQ, PBF2255HES, PBF2255HEW, PBF2555HEB, PBF2555HEQ, PBF2555HES, PBF2555HEW, PSD269LHEB, PSD269LHEQ, PSD269LHES, PSD269LHEW, W10304543A, WRB119WFBB00, WRB119WFBB01, WRB119WFBB02, WRB119WFBM00, WRB119WFBM01, WRB119WFBM02, WRB119WFBW00, WRB119WFBW01, WRB119WFBW02, WRB322DMBB00, WRB322DMBB01, WRB322DMBB02, WRB322DMBM00, WRB322DMBM01, WRB322DMBM02, WRB322DMBW00, WRB322DMBW01, WRB322DMBW02, WRB322DMHV00, WRB322DMHV01, WRB322DMHV02, WRB329DFBB00, WRB329DFBB01, WRB329DFBB02, WRB329DFBM00, WRB329DFBW00, WRB329DFBW01, WRB329DFBW02, WRB329DMBB00, WRB329DMBB01, WRB329DMBB02, WRB329DMBM00, WRB329DMBM01, WRB329DMBM02, WRB329DMBW00, WRB329DMBW01, WRB329DMBW02, WRB329LFBM00, WRB329LFBM01, WRB329LFBM02, WRB329RFBM00, WRB329RFBM01, WRB329RFBM02, WRF532SMBB00, WRF532SMBM00, WRF532SMBW00, WRF535SMBB00, WRF535SMBM00, WRF535SMBW00, WRF535SMHB00, WRF535SMHB01, WRF535SMHB02, WRF535SMHB03, WRF535SMHW00, WRF535SMHW01, WRF535SMHW02, WRF535SMHW03, WRF535SMHZ00, WRF535SMHZ01, WRF535SMHZ02, WRF535SMHZ03, WRF535SMHZ04, WRF535SMHZ05, WRF535SWBB00, WRF535SWBM00, WRF535SWBW00, WRF535SWHB00, WRF535SWHB01, WRF535SWHB02, WRF535SWHB03, WRF535SWHV00, WRF535SWHV01, WRF535SWHV02, WRF535SWHV03, WRF535SWHW00, WRF535SWHW01, WRF535SWHW02, WRF535SWHW03, WRF535SWHZ00, WRF535SWHZ01, WRF535SWHZ02, WRF535SWHZ03, WRF535SWHZ04, WRF535SWHZ05, WRFA35SWHN00, WRFA35SWHN01, WRFA35SWHN02, WRFA35SWHZ00, WRFA35SWHZ01, WRFA35SWHZ02, WRFA35SWHZ03, WRFA35SWHZ04, WRFA35SWHZ05

CRITICAL SAFETY WARNING: Unplug refrigerator before servicing. Use ESD strap to avoid static damage.

  1. Unplug refrigerator from power.
  2. Remove control housing cover (usually in fresh food section ceiling).
  3. Disconnect wire harnesses and ribbon cables from old board.
  4. Release mounting tabs or screws and remove old board.
  5. Install new WPW10503278 board, aligning all tabs and connectors.
  6. Reconnect all harnesses and cables.
  7. Reinstall control housing cover.
  8. Plug in refrigerator and restore power.
  9. Run diagnostic mode or test cooling/defrost cycles to confirm operation.

Safety Notes: Handle board by edges only. Avoid touching electronic components.

  1. Always match part number and model—software compatibility is critical.
  2. Use ESD strap and handle board by edges only.
  3. Inspect connectors for corrosion or bent pins.
  4. Document repair for warranty/service records.
  5. If new board doesn’t resolve issue, check sensors and power supply.
  6. Keep spare boards in stock for high-turnover or rental properties.
  7. Update refrigerator firmware if required (per manufacturer instructions).
  8. Check for water leaks at control housing—seal if needed.
  9. Update inventory and service records after replacement.
  10. Recycle old board assemblies per local guidelines.
  11. Test all functions after replacement, including defrost and temp adjustment.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts
OEM & PREMIUM XPART OPTIONS AVAILABLE

Fridge Won’t Cool, Shows Error Codes, or Controls Are Dead? Replace the Jazz Control Board — WPW10503278

Replaces W10503278 Replaces W10165748 Compatible: Whirlpool · Maytag · Amana · KitchenAid · Jenn-Air

Is This the Part You Need?

Part number WPW10503278 is the Jazz control board (main PCB) for hundreds of Whirlpool, Maytag, Amana, KitchenAid, and Jenn-Air refrigerators. This board manages temperature regulation, defrost cycles, fan operation, compressor control, and the user interface. When it fails, your fridge may stop cooling entirely, display error codes, or have completely unresponsive controls — leaving your food at risk. This is a factory-programmed, plug-and-play replacement requiring no additional setup.

Symptoms of a Failed Jazz Control Board

  • Refrigerator not cooling or freezing — compressor not starting
  • Error codes displayed on the control panel
  • Controls completely unresponsive or display blank
  • Defrost system not running — frost buildup on evaporator
  • Erratic or incorrect temperatures in fridge or freezer
  • Fans not running despite compressor operating

Part Details

  • OEM Part Number: WPW10503278
  • Replaces: W10503278 · W10165748
  • Type: Jazz Control Board (Main PCB)
  • Compatible Brands: Whirlpool · Maytag · Amana · KitchenAid · Jenn-Air
  • Firmware: Factory pre-programmed — no setup required after installation
  • Condition: OEM new or Premium XPart — select your option above

Installation Notes

  • Skill Level: Intermediate — basic electrical comfort recommended
  • Disconnect power to the refrigerator before beginning
  • Use ESD precautions — ground yourself before handling the board, hold by edges only
  • Board is typically located behind the rear wall panel inside the fridge compartment
  • Photograph all wiring harness connections before disconnecting
  • Swap connectors one at a time, restore power, and verify cooling, display, and defrost cycle

Compatible Models

Fits hundreds of Whirlpool, Maytag, Amana, KitchenAid, and Jenn-Air refrigerators including GB2, GB9, EB9, ABB, ABR, ABL, ABD, ABC, AFF, AFD, AFB, ASD, AS2, AC2, AB2 series and many more. Full model list in product tags. Contact us with your model number for fit verification.

💡 Pro Tip — Check the Temperature Sensors While You’re In There:
If your fridge showed erratic temperatures before the board failed, a faulty thermistor (temperature sensor) may have sent bad readings that caused the board to overwork or fail prematurely. While the fridge is open, test the thermistors with a multimeter — replacing a failed sensor now prevents the new board from failing for the same reason.

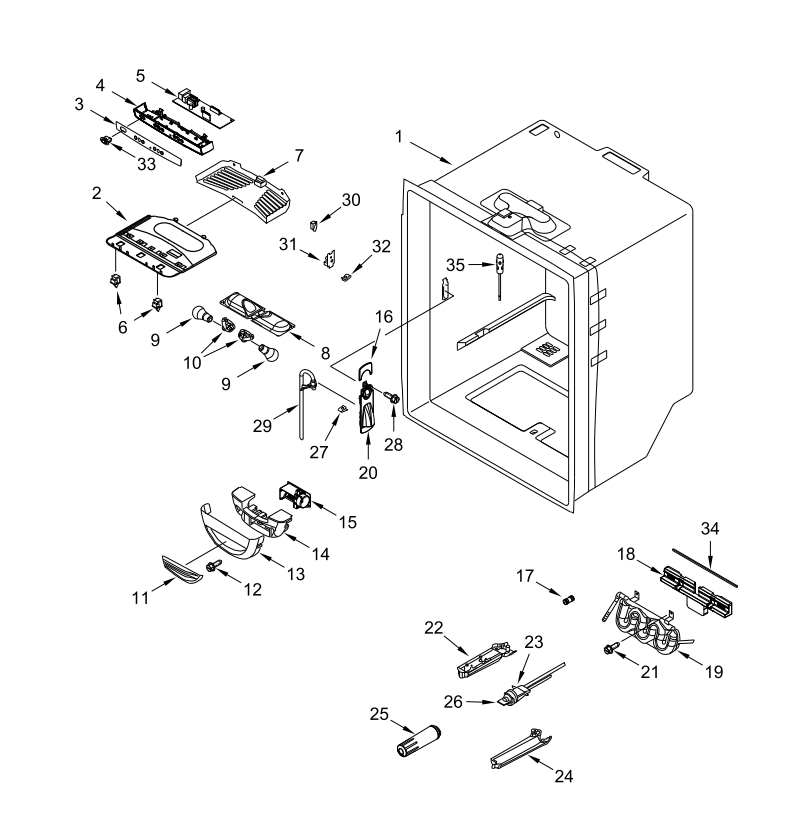

WPW10503278 – Whirlpool Refrigerator Parts Diagram

✅ Cross Reference Information

Item #5 in diagram.

Refrigerator electronic (JAZZ) control board. Be aware the board will need to programmed after installation to work properly.

To set the desired Program Code number press the Freezer and Refrigerator UP /+ keys. The corresponding digit will be advanced with each key press. 7. Once the desired Program Code is displayed, press the Freezer Temperature DOWN /- Key until the Program Code begins flashing indicating it has been saved.

Whirlpool, Maytag, Amana, Kenmore (verify by model)

Part number WPW10503278 replaces 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, W10165748, W10503278

✅ Guaranteed to Fit Your Model

10669312310, 596467934251, 596467934351, 596467934451, 596467934951, 59655652500, 59655653500, 59655654500, 59655659500, 59657012600, 59657013600, 59657016600, 59657019600, 59665232400, 59665232401, 59665232404, 59665234400, 59665234401, 59665234402, 59665234404, 59665239400, 59665239401, 59665239402, 59665239404, 59665239405, 59665332600, 59665332602, 59665333602, 59665339602, 59665932300, 59665932400, 59665932401, 59665932402, 59665932404, 59665934300, 59665934400, 59665934401, 59665934402, 59665934404, 59665934405, 59665939300, 59665939400, 59665939401, 59665939404, 59666032600, 59666032601, 59666032602, 59666032702, 59666039601, 59666039603, 59666039702, 59666132703, 59666252400, 59666252401, 59666253400, 59666253401, 59666254400, 59666254401, 59666259400, 59666259401, 59666952400, 59666952401, 59666953400, 59666953401, 59666954400, 59666954401, 59666959400, 59666959401, 59667252600, 59667252601, 59667253600, 59667253601, 59667253602, 59667259601, 59667952600, 59667992606, 59668042802, 59668043802, 59668252801, 59668252802, 59668253801, 59668254801, 59668254802, 59668259801, 59668942802, 59668949802, 59668953802, 59668954802, 59668959802, 59669280001, 59669280011, 59669280012, 59669280013, 59669280014, 59669282000, 59669282001, 59669282012, 59669282013, 59669282014, 59669283000, 59669283011, 59669283012, 59669283013, 59669283014, 59669284001, 59669284011, 59669289012, 59669289013, 59669289014, 59669312010, 59669312011, 59669312310, 59669313010, 59669319010, 59669332010, 59669333010, 59669339010, 59669352010, 59669353010, 59669359010, 59669362010, 59669363010, 59669382010, 59669383010, 59669912000, 59669912001, 59669912012, 59669912013, 59669932000, 59669932010, 59669932012, 59669932013, 59669933001, 59669933010, 59669933011, 59669933012, 59669933013, 59669939000, 59669939012, 59669939013, 59669942010, 59669952011, 59669952012, 59669953011, 59669953012, 59669959011, 59669959012, 59669962011, 59669962012, 59669962013, 59669963011, 59669963012, 59669963013, 59669969012, 59669969013, 59669972001, 59669972010, 59669972011, 59669972012, 59669972013, 59669973001, 59669973011, 59669973012, 59669973013, 59669979012, 59669979013, 59669980000, 59669980011, 59669982000, 59669982011, 59669982012, 59669982013, 59669982014, 59669983011, 59669983012, 59669983013, 59669983014, 59669984000, 59669984001, 59669984010, 59669984011, 59669989000, 59669989001, 59669989010, 59669989011, 59669989012, 59669989013, 59669989014, 59675232400, 59675232401, 59675232402, 59675232404, 59675232405, 59675234400, 59675234401, 59675239400, 59675239401, 59675239403, 59675239405, 59675502400, 59675503400, 59675504400, 59675509400, 59675512400, 59675513400, 59675514400, 59675519400, 59675522400, 59675523400, 59675524400, 59675529400, 59675532400, 59675533400, 59675534400, 59675539400, 59675932300, 59675932400, 59675934300, 59675934400, 59675934404, 59675939300, 59675939400, 59675939402, 59675939405, 59676052700, 59676052701, 59676052702, 59676052703, 59676053700, 59676053701, 59676053702, 59676053703, 59676054700, 59676054701, 59676054702, 59676054703, 59676059700, 59676059701, 59676059702, 59676059703, 59676062700, 59676062702, 59676063700, 59676063702, 59676064700, 59676064702, 59676069700, 59676069702, 59676252700, 59676252701, 59676252702, 59676252703, 59676253700, 59676253701, 59676253702, 59676253703, 59676254700, 59676254701, 59676254702, 59676254703, 59676259700, 59676259701, 59676259702, 59676259703, 59678282800, 59678282802, 59678282803, 59678282900, 59678282902, 59678282903, 59678283800, 59678283802, 59678283803, 59678283804, 59678283900, 59678283902, 59678283903, 59678289800, 59678289802, 59678289803, 59678289804, 59678289900, 59679212012, 59679212013, 59679213010, 59679213013, 59679213014, 59679219011, 59679219012, 59679219013, 59679222011, 59679222012, 59679222013, 59679222014, 59679223012, 59679223013, 59679223014, 59679223015, 59679229012, 59679229013, 59679229014, 59679312510, 59679312511, 59679313510, 59679313511, 59679319510, 59679342510, 59679343510, 59679344510, 59679349510, 59679462410, 59679463410, 59679512010, 59679513010, 59679513013, 59679519012, 59679522012, 59679522013, 59679522014, 59679522015, 59679523014, 59679523015, 59679523016, 59679529012, 59679529013, 59679529014, 59679529015, AB1924PEKB, AB1924PEKS, AB1924PEKW, AB2026LEKS, AB2026LEKS0, AB2026PEKB, AB2026PEKW, AB2026REKS, AB2026REKS0, AB2225PEKB, AB2225PEKS, AB2225PEKW, AB2526PEKW, ABB1921BRB00, ABB1921BRB01, ABB1921BRB02, ABB1921BRM00, ABB1921BRM01, ABB1921BRM02, ABB1921BRW00, ABB1921BRW01, ABB1921BRW02, ABB1921WEW0, ABB1921WEW1, ABB1921WEW2, ABB1921WEW3, ABB1922FEB, ABB1922FEB0, ABB1922FEB11, ABB1922FEB2, ABB1922FEB3, ABB1922FED1, ABB1922FED10, ABB1922FED2, ABB1922FEQ, ABB1922FEQ0, ABB1922FEQ11, ABB1922FEQ2, ABB1922FEQ3, ABB1922FES, ABB1922FES0, ABB1922FEW, ABB1922FEW0, ABB1922FEW11, ABB1922FEW2, ABB1922FEW3, ABB1924BRB00, ABB1924BRB01, ABB1924BRB02, ABB1924BRM00, ABB1924BRM01, ABB1924BRM02, ABB1924BRW00, ABB1924BRW01, ABB1924BRW02, ABB1924DEB, ABB1924DEQ, ABB1924DES, ABB1924DEW, ABB1924WEB0, ABB1924WEB1, ABB1924WEB2, ABB1924WEB3, ABB1924WED0, ABB1924WED1, ABB1924WEQ0, ABB1924WEQ1, ABB1924WES0, ABB1924WES1, ABB1924WES2, ABB1924WES3, ABB1924WEW0, ABB1924WEW1, ABB1924WEW2, ABB1924WEW3, ABB1927DEB, ABB1927DEQ, ABB1927DES, ABB1927DEW, ABB1927DEW14, ABB1927VEB1, ABB1927VEB10, ABB1927VEB2, ABB1927VEW1, ABB1927VEW10, ABB1927VEW2, ABB192ZDEB, ABB192ZDEB14, ABB192ZDEB5, ABB192ZDEB6, ABB192ZDEQ, ABB192ZDES, ABB192ZDEW, ABB192ZDEW14, ABB192ZDEW5, ABB192ZDEW6, ABB192ZWEB0, ABB192ZWEB1, ABB192ZWEW0, ABB192ZWEW1, ABB2221WEB0, ABB2221WEB1, ABB2221WEW0, ABB2221WEW1, ABB2222FEB, ABB2222FEB0, ABB2222FEB11, ABB2222FEB2, ABB2222FEB3, ABB2222FED1, ABB2222FED10, ABB2222FED2, ABB2222FEQ, ABB2222FEQ0, ABB2222FEQ11, ABB2222FEQ2, ABB2222FEQ3, ABB2222FES, ABB2222FES0, ABB2222FEW, ABB2222FEW0, ABB2222FEW11, ABB2222FEW2, ABB2222FEW3, ABB2223DEB, ABB2223DEB1, ABB2223DEQ, ABB2223DEQ1, ABB2223DES, ABB2223DES1, ABB2223DEW, ABB2223DEW1, ABB2224BRB00, ABB2224BRB01, ABB2224BRB02, ABB2224BRM00, ABB2224BRM01, ABB2224BRM02, ABB2224BRW00, ABB2224BRW01, ABB2224BRW02, ABB2224DEB, ABB2224DEQ, ABB2224DES, ABB2224DEW, ABB2224WEB0, ABB2224WEB1, ABB2224WEB2, ABB2224WEB3, ABB2224WED0, ABB2224WED1, ABB2224WEQ0, ABB2224WEQ1, ABB2224WES0, ABB2224WES1, ABB2224WES2, ABB2224WES3, ABB2224WEW0, ABB2224WEW1, ABB2224WEW2, ABB2224WEW3, ABB2227DEB, ABB2227DEB14, ABB2227DEQ, ABB2227DES, ABB2227DEW, ABB2227DEW14, ABB2227VEB1, ABB2227VEB10, ABB2227VEB2, ABB2227VEW1, ABB2227VEW10, ABB2227VEW2, ABB222ZDEB, ABB222ZDEQ, ABB222ZDES, ABB222ZDEW, ABB2522FEB, ABB2522FEB0, ABB2522FEB11, ABB2522FEB2, ABB2522FEB3, ABB2522FEQ, ABB2522FEQ0, ABB2522FEQ11, ABB2522FEQ2, ABB2522FEQ3, ABB2522FES, ABB2522FES0, ABB2522FEW, ABB2522FEW0, ABB2522FEW11, ABB2522FEW2, ABB2522FEW3, ABB2524DEB, ABB2524DEQ, ABB2524DES, ABB2524DEW, ABB2527DEB, ABB2527DEB14, ABB2527DEB2, ABB2527DEQ, ABB2527DES, ABB2527DEW, ABB2527DEW14, ABB2527DEW2, ABC2037DEB, ABC2037DEB14, ABC2037DEQ, ABC2037DES, ABC2037DEW, ABC2037DEW14, ABC2037DPS, ABC2037DTB, ABC2037DTS, ABC2037DTS14, ABC2037DTW, ABD2233DEB, ABD2233DEB14, ABD2233DEQ, ABD2233DES, ABD2233DEW, ABD2233DEW14, ABD2533DEB, ABD2533DEB2, ABD2533DEQ, ABD2533DES, ABD2533DES0, ABD2533DES1, ABD2533DEW, ABD2533DEW2, ABL1922FES12, ABL1922FES3, ABL1922FES4, ABL1922FES5, ABL1922FES6, ABL1927FES12, ABL1927VES1, ABL1927VES10, ABL1927VES2, ABL1927VES3, ABL1927VES4, ABL192ZFES12, ABL192ZFES3, ABL192ZFES4, ABL192ZFES5, ABL192ZFES6, ABL192ZWES0, ABL192ZWES1, ABL2037FES12, ABL2222FES, ABL2222FES0, ABL2222FES12, ABL2222FES3, ABL2222FES4, ABL2222FES5, ABL2222FES6, ABL2227FES12, ABL2227VES1, ABL2227VES10, ABL2227VES2, ABL2227VES3, ABL2227VES4, ABL2233FES, ABL2233FES0, ABL2233FES12, ABL2522FES, ABL2522FES0, ABL2522FES12, ABL2527FES12, ABL2533FES12, ABR1922FES12, ABR1922FES3, ABR1922FES4, ABR1922FES5, ABR1922FES6, ABR1927FES12, ABR1927VES1, ABR1927VES10, ABR1927VES2, ABR1927VES3, ABR1927VES4, ABR192ZFES12, ABR192ZFES3, ABR192ZFES4, ABR192ZFES5, ABR192ZFES6, ABR192ZWES0, ABR192ZWES1, ABR2037FES12, ABR2222FES, ABR2222FES0, ABR2222FES12, ABR2222FES3, ABR2222FES4, ABR2222FES5, ABR2222FES6, ABR2227FES, ABR2227FES0, ABR2227FES12, ABR2227VES1, ABR2227VES10, ABR2227VES2, ABR2227VES3, ABR2227VES4, ABR2233FES, ABR2233FES0, ABR2233FES12, ABR2522FES, ABR2522FES0, ABR2522FES12, ABR2527FES12, ABR2533FES0, ABR2533FES12, AC2224GEKB, AC2224GEKS, AC2224GEKW, AC2224PEKB, AC2224PEKB0, AC2224PEKW, AC2224PEKW0, AC2225GEKB, AC2225GEKB0, AC2225GEKS, AC2225GEKS0, AC2225GEKW, AC2225GEKW0, ADD1927DEB14, AFB2234WEB0, AFB2234WEB10, AFB2234WEB2, AFB2234WEB3, AFB2234WEB4, AFB2234WES0, AFB2234WES10, AFB2234WES2, AFB2234WES3, AFB2234WES4, AFB2234WES5, AFB2234WES6, AFB2234WEW0, AFB2234WEW10, AFB2234WEW2, AFB2234WEW3, AFB2534DEB, AFB2534DEB13, AFB2534DEQ, AFB2534DES, AFB2534DEW, AFB2534DEW13, AFB2534FES, AFB2534FES0, AFB2534FES12, AFC2033DRB, AFC2033DRQ, AFC2033DRS, AFC2033DRW, AFD2535DEB, AFD2535DEB10, AFD2535DEB11, AFD2535DEB14, AFD2535DEB5, AFD2535DEB6, AFD2535DEB7, AFD2535DEB8, AFD2535DEB9, AFD2535DEQ, AFD2535DEQ14, AFD2535DEQ5, AFD2535DEQ6, AFD2535DES, AFD2535DEW, AFD2535DEW10, AFD2535DEW11, AFD2535DEW14, AFD2535DEW5, AFD2535DEW6, AFD2535DEW7, AFD2535DEW8, AFD2535DEW9, AFD2535FES11, AFD2535FES12, AFD2535FES3, AFD2535FES4, AFD2535FES5, AFD2535FES6, AFD2535FES7, AFD2535FES8, AFD2535FES9, AFF2534FEB11, AFF2534FEB2, AFF2534FEB3, AFF2534FEB4, AFF2534FEB5, AFF2534FES11, AFF2534FES2, AFF2534FES3, AFF2534FES4, AFF2534FES5, AFF2534FES6, AFF2534FES7, AFF2534FES8, AFF2534FEW11, AFF2534FEW2, AFF2534FEW3, AFF2534FEW4, AFF2534FEW5, AS2324GEKB, AS2324GEKW, AS2625PEKB, AS2625PEKW, AS2626GEKB, AS2626GEKS, AS2626GEKW, ASD2326HEB, ASD2326HEQ, ASD2326HES, ASD2326HEW, ASD2328HEB, ASD2328HEQ, ASD2328HES, ASD2328HEW, ASD2626HEB, ASD2626HEQ, ASD2626HES, ASD2626HEW, ASD2627KEB, ASD2627KES, ASD2627KEW, ASD2628HEB, ASD2628HEQ, ASD2628HES, ASD2628HEW, EB2SHKXVD00, EB2SHKXVD01, EB2SHKXVD02, EB2SHKXVD03, EB2SHKXVQ00, EB2SHKXVQ01, EB2SHKXVQ02, EB2SHKXVQ03, EB9FVBLWS01, EB9FVBLWS02, EB9FVBLWS03, EB9FVBLWS04, EB9FVBLWS05, EB9FVBLWS06, EB9FVBRWS01, EB9FVBRWS02, EB9FVBRWS03, EB9FVBRWS04, EB9FVBRWS05, EB9FVBRWS06, EB9FVBXWB00, EB9FVBXWB01, EB9FVBXWB02, EB9FVBXWQ00, EB9FVBXWQ01, EB9FVBXWQ02, EB9FVBXWQ03, EB9FVHLVS00, EB9FVHLVS01, EB9FVHLVS02, EB9FVHLVS03, EB9FVHLVS04, EB9FVHLWS00, EB9FVHLWS01, EB9FVHLWS02, EB9FVHLWS03, EB9FVHRVS00, EB9FVHRVS01, EB9FVHRVS02, EB9FVHRVS03, EB9FVHRVS04, EB9FVHRWS00, EB9FVHRWS01, EB9FVHRWS02, EB9FVHRWS03, EB9FVHXVB00, EB9FVHXVB01, EB9FVHXVB02, EB9FVHXVQ00, EB9FVHXVQ01, EB9FVHXVQ02, EB9FVHXWB00, EB9FVHXWB01, EB9FVHXWB02, EB9FVHXWB03, EB9FVHXWQ00, EB9FVHXWQ01, EB9FVHXWQ02, EB9FVHXWQ03, EB9SHKXVQ01, EB9SHKXVQ02, EB9SHKXVQ03, EB9SHKXVQ04, EB9SHKXVQ05, EB9SHKXVQ06, EB9SHKXVQ07, G32026PEKB, G32026PEKS, G32026PEKW, G32026PELB, G32526PEKB, G32526PEKS, G32526PEKW, GB1924PEKB, GB1924PEKS, GB1924PEKW, GB2026LEKS, GB2026PEKB, GB2026PEKW, GB2026REKS, GB2225PEKW, GB2526PEKW, GB2FHDXWB00, GB2FHDXWB01, GB2FHDXWB02, GB2FHDXWB03, GB2FHDXWB04, GB2FHDXWB05, GB2FHDXWB06, GB2FHDXWB07, GB2FHDXWD00, GB2FHDXWD01, GB2FHDXWD02, GB2FHDXWQ00, GB2FHDXWQ01, GB2FHDXWQ02, GB2FHDXWQ03, GB2FHDXWQ04, GB2FHDXWQ05, GB2FHDXWQ06, GB2FHDXWQ07, GB2FHDXWQ08, GB2FHDXWS00, GB2FHDXWS01, GB2FHDXWS02, GB2FHDXWS03, GB2FHDXWS04, GB2FHDXWS05, GB2FHDXWS06, GB2FHDXWS07, GB2FHDXWS08, GB2FHDXWS09, GB2SHDXPB00, GB2SHDXPB01, GB2SHDXPB02, GB2SHDXPB12, GB2SHDXPQ00, GB2SHDXPQ01, GB2SHDXPQ02, GB2SHDXPQ12, GB2SHDXPS00, GB2SHDXPS01, GB2SHDXPS02, GB2SHDXPS12, GB2SHDXPT00, GB2SHDXPT01, GB2SHDXPT02, GB2SHDXPT12, GB2SHDXTB00, GB2SHDXTB01, GB2SHDXTB02, GB2SHDXTB03, GB2SHDXTB11, GB2SHDXTD00, GB2SHDXTD01, GB2SHDXTD02, GB2SHDXTL01, GB2SHDXTL11, GB2SHDXTQ00, GB2SHDXTQ01, GB2SHDXTQ02, GB2SHDXTQ03, GB2SHDXTQ11, GB2SHDXTS00, GB2SHDXTS01, GB2SHDXTS02, GB2SHDXTS03, GB2SHDXTS04, GB2SHDXTS11, GB2SHTXTB01, GB2SHTXTB02, GB2SHTXTB03, GB2SHTXTB11, GB2SHTXTL01, GB2SHTXTL11, GB2SHTXTQ01, GB2SHTXTQ02, GB2SHTXTQ03, GB2SHTXTQ11, GB2SHTXTS01, GB2SHTXTS02, GB2SHTXTS03, GB2SHTXTS04, GB2SHTXTS05, GB2SHTXTS11, GB2SHTXTT01, GB2SHTXTT11, GB9FHDXWB00, GB9FHDXWB01, GB9FHDXWB02, GB9FHDXWB03, GB9FHDXWB04, GB9FHDXWB05, GB9FHDXWB06, GB9FHDXWB07, GB9FHDXWD01, GB9FHDXWQ00, GB9FHDXWQ01, GB9FHDXWQ02, GB9FHDXWQ03, GB9FHDXWQ04, GB9FHDXWQ05, GB9FHDXWQ06, GB9FHDXWQ07, GB9FHDXWS00, GB9FHDXWS01, GB9FHDXWS02, GB9FHDXWS03, GB9FHDXWS04, GB9FHDXWS05, GB9FHDXWS06, GB9FHDXWS07, GB9FHDXWS08, GB9FHDXWS09, GB9SHDXPB00, GB9SHDXPB01, GB9SHDXPB02, GB9SHDXPB12, GB9SHDXPQ00, GB9SHDXPQ01, GB9SHDXPQ02, GB9SHDXPQ12, GB9SHDXPS00, GB9SHDXPS01, GB9SHDXPS02, GB9SHDXPS12, GB9SHDXVB00, GB9SHDXVB01, GB9SHDXVB02, GB9SHDXVQ00, GB9SHDXVQ01, GB9SHDXVQ02, GB9SHDXVS00, GB9SHDXVS01, GB9SHDXVS02, GB9SHDXVS03, GC2224GEKB, GC2224GEKW, GC2225GEK3, GC2225GEK5, GC2225GEK9, GC2225GEKB, GC2225GEKS, GC2225GEKW, GC2225PEKB, GC2225PEKS, GC2225PEKW, GS2325GEKB, GS2325GEKW, GS2624PEKW, GS2625GEKB, GS2625GEKS, GS2625GEKW, GSD2657HEB, GSD2657HEQ, GX2FHDXVA00, GX2FHDXVA02, GX2FHDXVA03, GX2FHDXVB00, GX2FHDXVB02, GX2FHDXVB03, GX2FHDXVB04, GX2FHDXVB05, GX2FHDXVB06, GX2FHDXVB07, GX2FHDXVB08, GX2FHDXVD00, GX2FHDXVQ00, GX2FHDXVQ02, GX2FHDXVQ03, GX2FHDXVQ04, GX2FHDXVQ05, GX2FHDXVQ06, GX2FHDXVQ07, GX2FHDXVT00, GX2FHDXVT02, GX2FHDXVT03, GX2FHDXVY00, GX2FHDXVY010, GX2FHDXVY02, GX2FHDXVY03, GX2FHDXVY04, GX2FHDXVY05, GX2FHDXVY06, GX2FHDXVY07, GX2FHDXVY08, GX2FHDXVY09, GX2SHBXVB00, GX2SHBXVB02, GX2SHBXVB03, GX2SHBXVB04, GX2SHBXVB05, GX2SHBXVB06, GX2SHBXVB07, GX2SHBXVQ00, GX2SHBXVQ02, GX2SHBXVQ03, GX2SHBXVQ04, GX2SHBXVQ05, GX2SHBXVY00, GX2SHBXVY02, GX2SHBXVY03, GX2SHBXVY04, GX2SHBXVY05, GX2SHBXVY06, GX2SHBXVY07, GX2SHBXVY08, GX2SHBXVY09, GX2SHDXVB00, GX2SHDXVB02, GX2SHDXVD00, GX2SHDXVQ00, GX2SHDXVY00, GX2SHDXVY02, GX5FHDXTB00, GX5FHDXTB01, GX5FHDXTB11, GX5FHDXTL01, GX5FHDXTL11, GX5FHDXTQ00, GX5FHDXTQ01, GX5FHDXTQ11, GX5FHDXTS00, GX5FHDXTS01, GX5FHDXTS11, GX5FHDXVA00, GX5FHDXVA01, GX5FHDXVA02, GX5FHDXVA03, GX5FHDXVA04, GX5FHDXVB00, GX5FHDXVB01, GX5FHDXVB02, GX5FHDXVB03, GX5FHDXVB04, GX5FHDXVB05, GX5FHDXVB06, GX5FHDXVB07, GX5FHDXVB08, GX5FHDXVD00, GX5FHDXVD01, GX5FHDXVD02, GX5FHDXVQ00, GX5FHDXVQ01, GX5FHDXVQ02, GX5FHDXVQ03, GX5FHDXVQ04, GX5FHDXVQ05, GX5FHDXVQ06, GX5FHDXVQ07, GX5FHDXVT00, GX5FHDXVT01, GX5FHDXVT02, GX5FHDXVY00, GX5FHDXVY01, GX5FHDXVY010, GX5FHDXVY02, GX5FHDXVY03, GX5FHDXVY04, GX5FHDXVY05, GX5FHDXVY06, GX5FHDXVY07, GX5FHDXVY08, GX5FHDXVY09, GX5FHTXTB00, GX5FHTXTB01, GX5FHTXTB11, GX5FHTXTL01, GX5FHTXTL11, GX5FHTXTQ00, GX5FHTXTQ01, GX5FHTXTQ11, GX5FHTXTS00, GX5FHTXTS01, GX5FHTXTS11, GX5FHTXTT00, GX5FHTXTT01, GX5FHTXTT11, GX5FHTXVA00, GX5FHTXVA01, GX5FHTXVA02, GX5FHTXVA03, GX5FHTXVA04, GX5FHTXVB00, GX5FHTXVB01, GX5FHTXVB02, GX5FHTXVB03, GX5FHTXVB04, GX5FHTXVB05, GX5FHTXVB06, GX5FHTXVB07, GX5FHTXVB08, GX5FHTXVQ00, GX5FHTXVQ01, GX5FHTXVQ02, GX5FHTXVQ03, GX5FHTXVQ04, GX5FHTXVQ05, GX5FHTXVQ06, GX5FHTXVQ07, GX5FHTXVY00, GX5FHTXVY01, GX5FHTXVY010, GX5FHTXVY02, GX5FHTXVY03, GX5FHTXVY04, GX5FHTXVY05, GX5FHTXVY06, GX5FHTXVY07, GX5FHTXVY08, GX5FHTXVY09, GX5SHDXTB00, GX5SHDXTB01, GX5SHDXTB11, GX5SHDXTL01, GX5SHDXTL11, GX5SHDXTQ00, GX5SHDXTQ01, GX5SHDXTQ11, GX5SHDXTS00, GX5SHDXTS01, GX5SHDXTS11, GX5SHDXVA00, GX5SHDXVA01, GX5SHDXVA02, GX5SHDXVB00, GX5SHDXVB01, GX5SHDXVB02, GX5SHDXVB03, GX5SHDXVD00, GX5SHDXVD01, GX5SHDXVD02, GX5SHDXVD03, GX5SHDXVQ00, GX5SHDXVQ01, GX5SHDXVQ02, GX5SHDXVQ03, GX5SHDXVT00, GX5SHDXVT01, GX5SHDXVY00, GX5SHDXVY01, GX5SHDXVY02, GX5SHDXVY03, GX5SHDXVY04, GX5SHDXVY05, GX5SHTXTB00, GX5SHTXTB01, GX5SHTXTB11, GX5SHTXTL01, GX5SHTXTL11, GX5SHTXTQ00, GX5SHTXTQ01, GX5SHTXTQ11, GX5SHTXTS00, GX5SHTXTS01, GX5SHTXTS11, GX5SHTXTT00, GX5SHTXTT01, GX5SHTXTT11, GX5SHTXVA00, GX5SHTXVA01, GX5SHTXVB00, GX5SHTXVB01, GX5SHTXVB02, GX5SHTXVQ00, GX5SHTXVQ01, GX5SHTXVY00, GX5SHTXVY01, GX5SHTXVY02, GZ2626GEKB, GZ2626GEKS, GZ2626GEKW, ITB19440Q00, ITB19440Q01, ITB19440Q02, ITB19440Q03, IX3HHEXDSM00, IX3HHGXSS000, IX3HHGXSS001, IX5HHEXVS00, IX5HHEXWS01, IX5HHEXWS02, IX5HHEXWS03, IX5HHEXWS04, IX5HHEXWS05, IX5HHEXWS06, IX5HHEXWS07, IX5HHEXWS08, IX5HHEXWS09, IX5HHEXWS10, IX7HHEXDSM00, JBD2256HEB, JBD2256HEW, JBL2086HES, JBL2256HES, JBR2086HES, JBR2256HES, JC2225GEKB, JCB2280HEB, JCB2280HEQ, JCB2280HES, JCB2280HEW, JCB2282HTB, JCB2282HTW, JCB2285HES, JCD2290HEB, JCD2290HEQ, JCD2290HES, JCD2290HEW, JCD2292HTB, JCD2292HTW, JCD2295HES, JFC2070KRB, JFC2070KRB11, JFC2070KRS, JFC2070KRS12, JFC2070KRW, JFC2070KRW11, JFC2087HRP, JFC2087HRS, JSD2690HEB, JSD2690HES, JSD2690HEW, KBLS19KCMS00, KBLS19KTMS0, KBLS19KTMS1, KBLS19KTMS2, KBLS19KTMS3, KBLS19KTSS00, KBLS19KTSS01, KBLS19KTSS2, KBLS19KTSS3, KBLS19KTSS4, KBLS19KTSS5, KBLS22KCMS00, KBLS22KWMS4, KBLS22KWMS5, KBLS22KWMS6, KBRS19KCMS00, KBRS19KTBL00, KBRS19KTBL01, KBRS19KTBL2, KBRS19KTBL3, KBRS19KTBL4, KBRS19KTBL5, KBRS19KTBL6, KBRS19KTBL7, KBRS19KTMS0, KBRS19KTMS1, KBRS19KTMS2, KBRS19KTMS3, KBRS19KTSS00, KBRS19KTSS01, KBRS19KTSS2, KBRS19KTSS3, KBRS19KTSS4, KBRS19KTSS5, KBRS19KTWH00, KBRS19KTWH01, KBRS19KTWH2, KBRS19KTWH3, KBRS19KTWH4, KBRS19KTWH5, KBRS19KTWH6, KBRS19KTWH7, KBRS22KCMS00, KBRS22KWBL4, KBRS22KWBL5, KBRS22KWBL6, KBRS22KWBL7, KBRS22KWMS4, KBRS22KWMS5, KBRS22KWMS6, KBRS22KWWH4, KBRS22KWWH5, KBRS22KWWH6, KBRS22KWWH7, KBWS19KCBL00, KBWS19KCMS00, KBWS19KCWH00, KBWS22KCBL00, KBWS22KCMS00, KBWS22KCWH00, KRBL102ESS00, KRBL102ESS01, KRBL102ESS02, KRBL109ESS00, KRBL109ESS01, KRBL109ESS02, KRBR102ESS00, KRBR102ESS01, KRBR102ESS02, KRBR109ESS00, KRBR109ESS01, KRBR109ESS02, KRBX102EBL00, KRBX102EWH00, KRBX109EBL00, KRBX109EWH00, MB2216PUAW, MB2216PUAW11, MB2216PUAW2, MBB1953WEB0, MBB1953WEB1, MBB1953WEB2, MBB1953WEW0, MBB1953WEW1, MBB1953WEW2, MBB1953XEB0, MBB1953XEB1, MBB1953XEW0, MBB1953XEW1, MBB1953XEW2, MBB1953XEW3, MBB1956HEB, MBB1956HEB14, MBB1956HEQ, MBB1956HES, MBB1956HEW, MBB1956HEW14, MBB1957DEE00, MBB1957DEH00, MBB1957DEM00, MBB1957FEB00, MBB1957FEE00, MBB1957FEH00, MBB1957FEW00, MBB1957FEW01, MBB1957FEW02, MBB1957VEB1, MBB1957VEB10, MBB1957VEB2, MBB1957VEW1, MBB1957VEW10, MBB1957VEW2, MBB1957WEB0, MBB1957WEB1, MBB1957WEB2, MBB1957WEB3, MBB1957WEW0, MBB1957WEW1, MBB1957WEW2, MBB1957WEW3, MBF1952VEW1, MBF1953DEE00, MBF1953DEH00, MBF1953DEM00, MBF1953YEB0, MBF1953YEB2, MBF1953YEB3, MBF1953YEB4, MBF1953YEW0, MBF1953YEW2, MBF1953YEW3, MBF1953YEW4, MBF1956HEB, MBF1956HEQ, MBF1956HES, MBF1956HEW, MBF1956KEB, MBF1956KEB11, MBF1956KEB2, MBF1956KEB3, MBF1956KEB4, MBF1956KEQ, MBF1956KEQ11, MBF1956KEQ2, MBF1956KEQ3, MBF1956KEQ4, MBF1956KEW, MBF1956KEW11, MBF1956KEW2, MBF1956KEW3, MBF1956KEW4, MBF1958DEE00, MBF1958DEH00, MBF1958DEM00, MBF1958FEB00, MBF1958FEE00, MBF1958FEH00, MBF1958FEW00, MBF1958FEZ00, MBF1958FEZ01, MBF1958FEZ02, MBF1958FEZ03, MBF1958FEZ04, MBF1958FEZ05, MBF1958WEB0, MBF1958WEB1, MBF1958WEB2, MBF1958WES0, MBF1958WES1, MBF1958WES2, MBF1958WES3, MBF1958WES4, MBF1958WEW0, MBF1958WEW1, MBF1958WEW2, MBF1958XEB0, MBF1958XEB1, MBF1958XEB2, MBF1958XEB3, MBF1958XEB4, MBF1958XEB5, MBF1958XEB6, MBF1958XEQ0, MBF1958XEQ1, MBF1958XEQ2, MBF1958XES0, MBF1958XES1, MBF1958XES2, MBF1958XES3, MBF1958XES4, MBF1958XES5, MBF1958XES6, MBF1958XEW0, MBF1958XEW1, MBF1958XEW2, MBF1958XEW3, MBF1958XEW4, MBF1958XEW5, MBF1958XEW6, MBF2254HEB, MBF2254HEB14, MBF2254HEB4, MBF2254HEQ, MBF2254HEQ14, MBF2254HEQ4, MBF2254HES, MBF2254HEW, MBF2254HEW14, MBF2254HEW4, MBF2255KEB, MBF2255KEB11, MBF2255KEQ, MBF2255KEQ11, MBF2255KEW, MBF2255KEW11, MBF2256HEB, MBF2256HEQ, MBF2256HES, MBF2256HEW, MBF2256KEB, MBF2256KEB11, MBF2256KEB2, MBF2256KEB3, MBF2256KEQ, MBF2256KEQ11, MBF2256KEQ2, MBF2256KEQ3, MBF2256KEW, MBF2256KEW11, MBF2256KEW2, MBF2256KEW3, MBF2258DEE00, MBF2258DEH00, MBF2258DEM00, MBF2258FEB00, MBF2258FEE00, MBF2258FEH00, MBF2258FEW00, MBF2258FEZ00, MBF2258FEZ01, MBF2258FEZ02, MBF2258FEZ03, MBF2258FEZ04, MBF2258FEZ05, MBF2258HEB, MBF2258HEQ, MBF2258HES, MBF2258HEW, MBF2258WEB0, MBF2258WEB1, MBF2258WES0, MBF2258WES1, MBF2258WES2, MBF2258WES3, MBF2258WEW0, MBF2258WEW1, MBF2258XEB0, MBF2258XEB1, MBF2258XEB3, MBF2258XEB4, MBF2258XEB5, MBF2258XEB6, MBF2258XEQ0, MBF2258XEQ1, MBF2258XEW0, MBF2258XEW1, MBF2258XEW3, MBF2258XEW4, MBF2258XEW5, MBF2258XEW6, MBF2556HEB, MBF2556HEQ, MBF2556HES, MBF2556HEW, MBF2556KEB, MBF2556KEB11, MBF2556KEB3, MBF2556KEQ, MBF2556KEQ11, MBF2556KEQ3, MBF2556KEW, MBF2556KEW11, MBF2556KEW3, MBF2558HEB, MBF2558HEQ, MBF2558HES, MBF2558HEW, MBL1953WES1, MBL1953WES2, MBL1953WES3, MBL1953WES4, MBL1953XES0, MBL1953XES1, MBL1953XES2, MBL1953XES3, MBL1956HES, MBL1956HES14, MBL1956KES, MBL1956KES12, MBL1956KES3, MBL1956KES4, MBL1956KES5, MBL1956KES6, MBL1956KES7, MBL1957DEM00, MBL1957FEZ00, MBL1957FEZ01, MBL1957FEZ02, MBL1957FEZ04, MBL1957FEZ05, MBL1957FEZ06, MBL1957VES1, MBL1957VES10, MBL1957VES2, MBL1957VES3, MBL1957VES4, MBL1957VES5, MBL1957WES0, MBL1957WES1, MBL1957WES2, MBL1957WES3, MBL2255KES, MBL2255KES12, MBL2256KES, MBL2256KES12, MBL2256KES3, MBL2256KES4, MBL2256KES5, MBL2256KES6, MBL2258XES0, MBL2258XES1, MBL2258XES3, MBL2258XES4, MBL2258XES5, MBL2258XES6, MBL2556KES, MBL2556KES12, MBL2556KES4, MBL2556KES5, MBR1953WES1, MBR1953WES2, MBR1953WES3, MBR1953WES4, MBR1953XES0, MBR1953XES1, MBR1953XES2, MBR1953XES3, MBR1953YES0, MBR1953YES2, MBR1953YES3, MBR1953YES4, MBR1956HES, MBR1956HES14, MBR1956KES, MBR1956KES12, MBR1956KES3, MBR1956KES4, MBR1956KES5, MBR1956KES6, MBR1956KES7, MBR1957DEM00, MBR1957FEZ00, MBR1957FEZ01, MBR1957FEZ02, MBR1957FEZ03, MBR1957FEZ04, MBR1957FEZ05, MBR1957VES1, MBR1957VES10, MBR1957VES2, MBR1957VES3, MBR1957VES4, MBR1957VES5, MBR1957WES0, MBR1957WES1, MBR1957WES2, MBR1957WES3, MBR2255KES, MBR2255KES12, MBR2256KES, MBR2256KES12, MBR2256KES3, MBR2256KES4, MBR2256KES5, MBR2256KES6, MBR2258XES0, MBR2258XES1, MBR2258XES3, MBR2258XES4, MBR2258XES5, MBR2258XES6, MBR2556KES, MBR2556KES12, MBR2556KES4, MBR2556KES5, MCB2256HEB, MCB2256HES, MCB2256HEW, MCD2257HEB, MCD2257HEQ, MCD2257HES, MCD2257HEW, MCD2257KES, MFD2560HEB, MFD2560HEQ, MFD2560HES, MFD2560HEW, MFF2258VEA10, MFF2258VEA2, MFF2258VEB10, MFF2258VEB2, MFF2258VEB3, MFF2258VEB4, MFF2258VEB5, MFF2258VEB6, MFF2258VEB7, MFF2258VEB8, MFF2258VEM10, MFF2258VEM2, MFF2258VEM3, MFF2258VEM4, MFF2258VEM5, MFF2258VEM6, MFF2258VEM7, MFF2258VEM8, MFF2258VEM9, MFF2258VEW10, MFF2258VEW2, MFF2258VEW3, MFF2258VEW4, MFF2258VEW5, MFF2258VEW6, MFF2258VEW7, MFF2557HEB, MFF2557HEB14, MFF2557HEQ, MFF2557HES, MFF2557HEW, MFF2557KES, MFF2558DEE00, MFF2558DEH00, MFF2558DEM00, MFF2558FEB00, MFF2558FEE00, MFF2558FEH00, MFF2558FEW00, MFF2558FEW01, MFF2558FEZ00, MFF2558FEZ01, MFF2558FEZ02, MFF2558FEZ03, MFF2558FEZ04, MFF2558FEZ05, MFF2558FEZ06, MFF2558KEB, MFF2558KEB11, MFF2558KES, MFF2558KES12, MFF2558KEW, MFF2558KEW11, MFF2558VEA1, MFF2558VEA10, MFF2558VEA2, MFF2558VEB1, MFF2558VEB10, MFF2558VEB2, MFF2558VEB3, MFF2558VEB4, MFF2558VEB5, MFF2558VEB6, MFF2558VEB7, MFF2558VEB8, MFF2558VEM1, MFF2558VEM10, MFF2558VEM2, MFF2558VEM3, MFF2558VEM4, MFF2558VEM5, MFF2558VEM6, MFF2558VEM9, MFF2558VEQ1, MFF2558VEQ10, MFF2558VEQ2, MFF2558VEW1, MFF2558VEW10, MFF2558VEW2, MFF2558VEW3, MFF2558VEW4, MFF2558VEW5, MFF2558VEW6, MFF2558VEW7, MSD2357HEB, MSD2357HEQ, MSD2357HES, MSD2357HEW, MSD2656KES, MSD2656KEU, MSD2656KGB, MSD2656KGW, MSD2657HEB, MSD2657HEQ, MSD2657HES, MSD2657HEW, MZD2666KEB, MZD2666KES, MZD2666KEW, MZD2667HEB, MZD2667HEQ, MZD2667HES, MZD2667HEW, PBF2253HEB, PBF2253HEQ, PBF2253HEW, PBF2255HEB, PBF2255HEQ, PBF2255HES, PBF2255HEW, PBF2555HEB, PBF2555HEQ, PBF2555HES, PBF2555HEW, PSD269LHEB, PSD269LHEQ, PSD269LHES, PSD269LHEW, W10304543A, WRB119WFBB00, WRB119WFBB01, WRB119WFBB02, WRB119WFBM00, WRB119WFBM01, WRB119WFBM02, WRB119WFBW00, WRB119WFBW01, WRB119WFBW02, WRB322DMBB00, WRB322DMBB01, WRB322DMBB02, WRB322DMBM00, WRB322DMBM01, WRB322DMBM02, WRB322DMBW00, WRB322DMBW01, WRB322DMBW02, WRB322DMHV00, WRB322DMHV01, WRB322DMHV02, WRB329DFBB00, WRB329DFBB01, WRB329DFBB02, WRB329DFBM00, WRB329DFBW00, WRB329DFBW01, WRB329DFBW02, WRB329DMBB00, WRB329DMBB01, WRB329DMBB02, WRB329DMBM00, WRB329DMBM01, WRB329DMBM02, WRB329DMBW00, WRB329DMBW01, WRB329DMBW02, WRB329LFBM00, WRB329LFBM01, WRB329LFBM02, WRB329RFBM00, WRB329RFBM01, WRB329RFBM02, WRF532SMBB00, WRF532SMBM00, WRF532SMBW00, WRF535SMBB00, WRF535SMBM00, WRF535SMBW00, WRF535SMHB00, WRF535SMHB01, WRF535SMHB02, WRF535SMHB03, WRF535SMHW00, WRF535SMHW01, WRF535SMHW02, WRF535SMHW03, WRF535SMHZ00, WRF535SMHZ01, WRF535SMHZ02, WRF535SMHZ03, WRF535SMHZ04, WRF535SMHZ05, WRF535SWBB00, WRF535SWBM00, WRF535SWBW00, WRF535SWHB00, WRF535SWHB01, WRF535SWHB02, WRF535SWHB03, WRF535SWHV00, WRF535SWHV01, WRF535SWHV02, WRF535SWHV03, WRF535SWHW00, WRF535SWHW01, WRF535SWHW02, WRF535SWHW03, WRF535SWHZ00, WRF535SWHZ01, WRF535SWHZ02, WRF535SWHZ03, WRF535SWHZ04, WRF535SWHZ05, WRFA35SWHN00, WRFA35SWHN01, WRFA35SWHN02, WRFA35SWHZ00, WRFA35SWHZ01, WRFA35SWHZ02, WRFA35SWHZ03, WRFA35SWHZ04, WRFA35SWHZ05

✅ Frequently Asked Questions


Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
