GE Range Oven Floor Cracked, Warped, or Damaged? Oven Bottom WS01L13018 – Fix Oven Interior Damage Fast

If your GE range oven floor is cracked, warped, chipped, or has a hole from a dropped rack or thermal stress, the oven bottom must be replaced — a damaged oven floor disrupts heat distribution, creates hot spots, and can allow heat to escape into the oven cavity structure. In most GE electric ranges, this is caused by a dropped oven rack, thermal shock from a cold spill on a hot surface, or long-term heat cycling fatigue. When it fails, the oven cannot maintain even heat distribution, baking results become inconsistent, and the damaged panel may allow grease and food debris to reach the oven cavity insulation. ⚡ Common wear item in GE, GE Café, GE Profile, and Hotpoint electric ranges — Item #480 in the parts diagram. Part WS01L13018 is the genuine OEM replacement oven bottom that restores proper heat distribution and a clean, intact oven interior immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Oven powers on and heating elements function normally
• ✔ Oven floor (bottom panel) is visibly cracked, warped, chipped, or has a hole
• ✔ Baking results are uneven — hot spots or inconsistent browning
• ✔ Your model is in the GE PCB, PCS, JCS, CBC, CC2, or related series
• ✔ ONLY problem is physical damage to the oven floor panel — not a bake element, sensor, or control board issue

🔧 Common Symptoms

• Visible crack, chip, or hole in the oven floor panel
• Oven floor warped or bowed — no longer sitting flat
• Uneven baking results — food browning inconsistently across the oven
• Grease or food debris falling through a crack into the oven cavity below the panel
• Discolouration, scaling, or spalling on the oven floor surface from heat damage
• Oven floor panel loose or shifting during use

✔ If these symptoms match, the oven bottom is the correct replacement for this GE range.

✔ In most cases, replacing this oven bottom restores even heat distribution and a clean oven interior immediately.

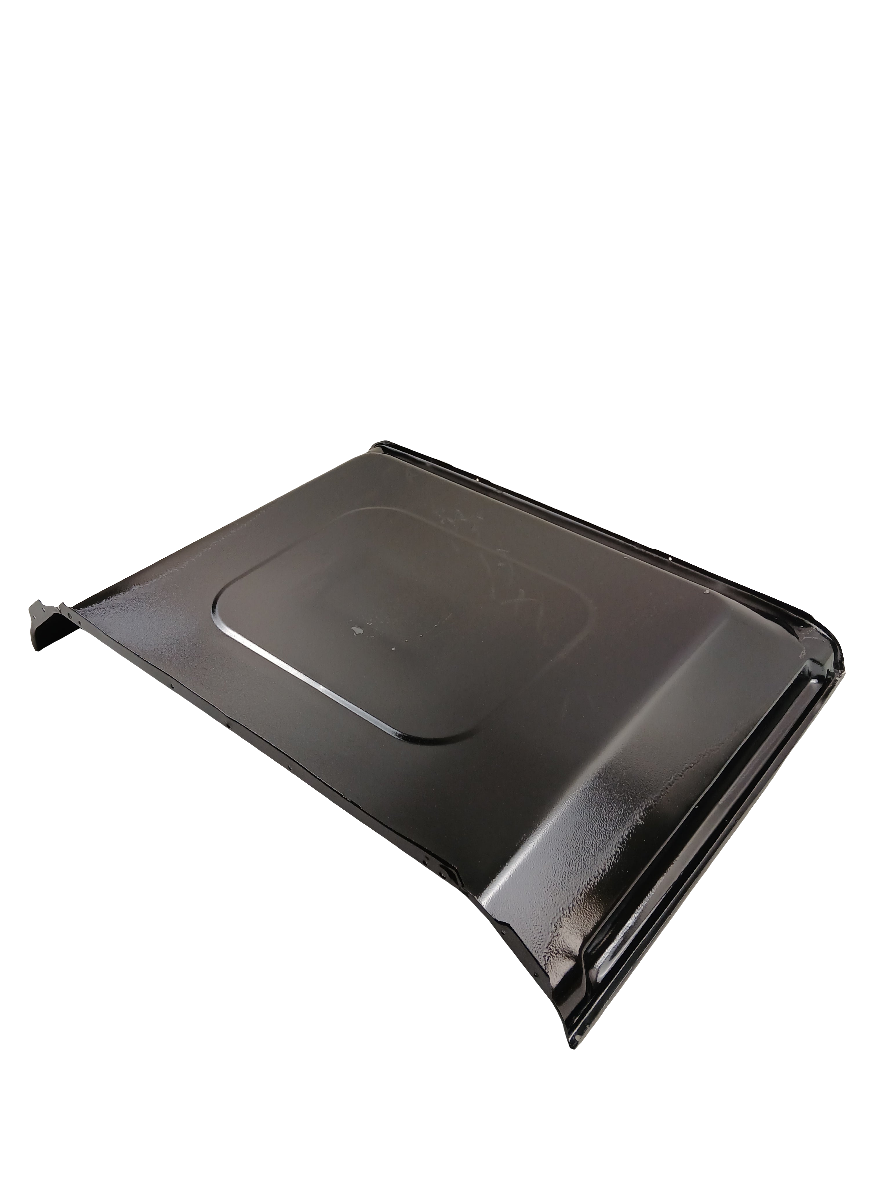

📦 Part Details

• Part Number: WS01L13018
• Type: Range Oven Bottom (Oven Floor Panel) — Item #480 in diagram — the removable porcelain-coated steel panel that forms the floor of the oven cavity and protects the bake element and insulation below
• Replaces: WB53M349, WB53M363, WS01L06161 — no modification required
• Brands: GE (General Electric), GE Café, GE Profile, Hotpoint

⚙️ Installation Notes

Skill Level: EASY — 5–10 minutes. Disconnect power before servicing. Allow the oven to cool completely. Open the oven door and remove the oven racks. Lift the front edge of the old oven bottom panel slightly, then slide it forward and out of the oven cavity — the panel rests on two support clips at the rear and lifts free without tools. Slide the new WS01L13018 panel into the same position, ensuring the rear edge seats fully on both support clips, and reinstall the oven racks. Restore power and verify the panel sits flat before use.
