GE Range PCHS920YM3FS Parts

Model: PCHS920YM3FS

Browse this model’s parts or select a diagram to see its matching parts beside the drawing.

Diagram section

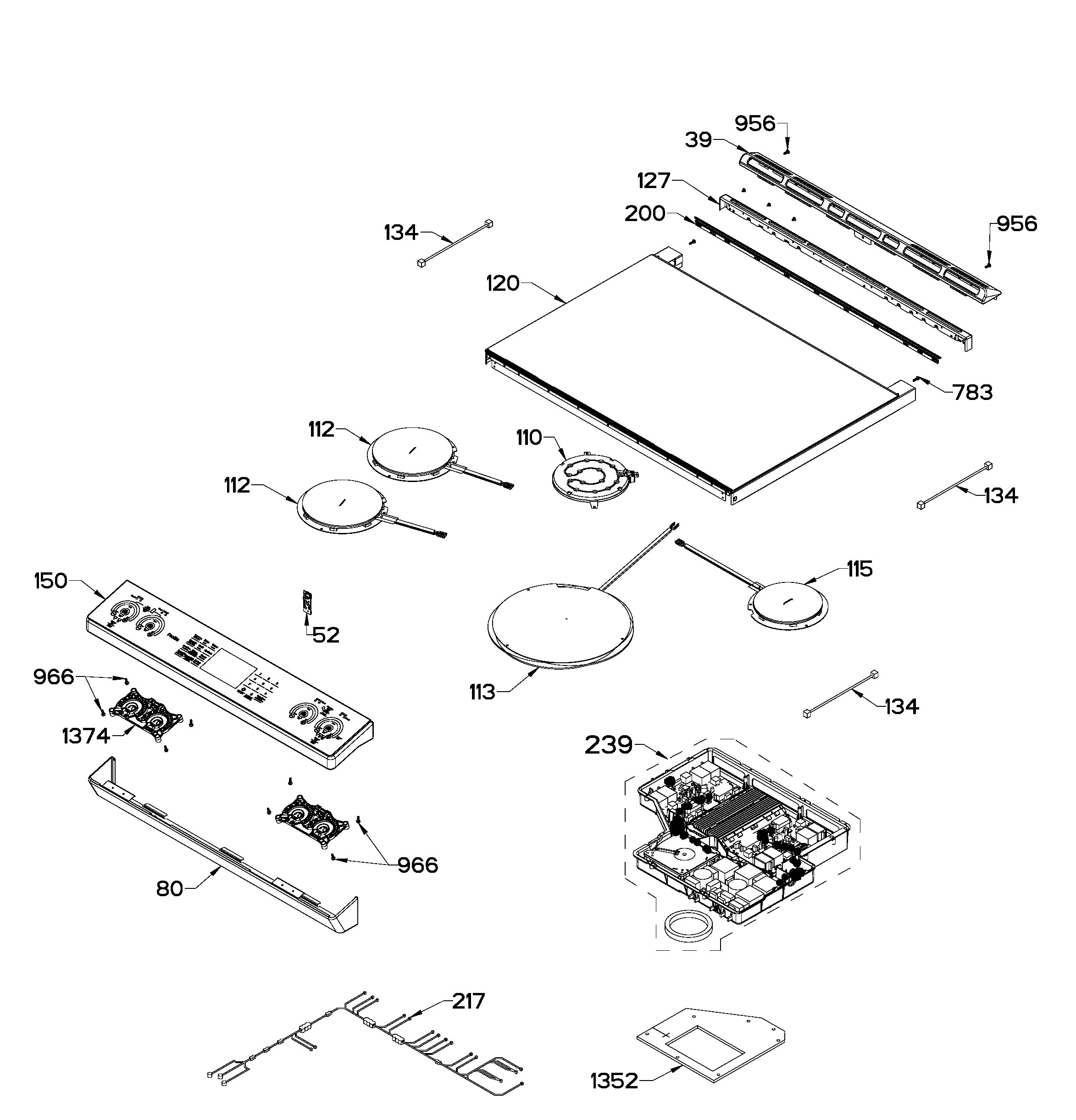

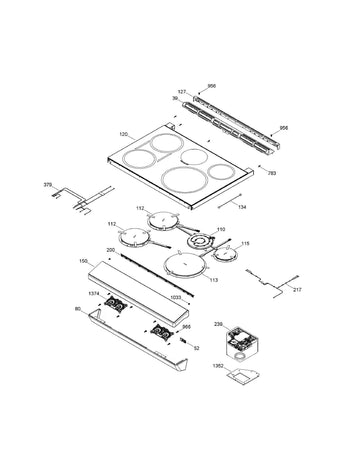

Exploded View 1

11 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

VENT TRIM

XPart Number XP10715132

OEMWS01L16245

View buying options

PANEL MANIFOLD LOWER SS

XPart Number XP10715702

OEMWS01L16315

View buying options

Range Induction Element, 3700W

XPart Number XP10000725

OEMWS01F08622

$170.99 CAD

View buying options

INDUCTION ELEMENT 1800 W

XPart Number XP10715130

OEMWS01F08623

View buying options

RANGE TOP AND GLASS ASM

XPart Number XP10750601

OEMWS01L18199

View buying options

TRIM KIT MA GRAY DORIAN BLACK

XPart Number XP10788301

OEMWS01A02838

View buying options

HARNESS JUMPER

XPart Number XP10787981

OEMWS01F08659

View buying options

Range Front Panel Assembly

XPart Number XP10011716

OEMWS01L18249

$366.00 CAD

View buying options

Range Front Frame Gasket Assembly

XPart Number XP10001071

OEMWS01L16931

$21.99 CAD

View buying options

INDUCTION HARNESS

XPart Number XP10750615

OEMWS01F10115

View buying options

CONTROL LIGHTS GUIDE

XPart Number XP10792362

OEMWS01F09125

View buying options

Diagram section

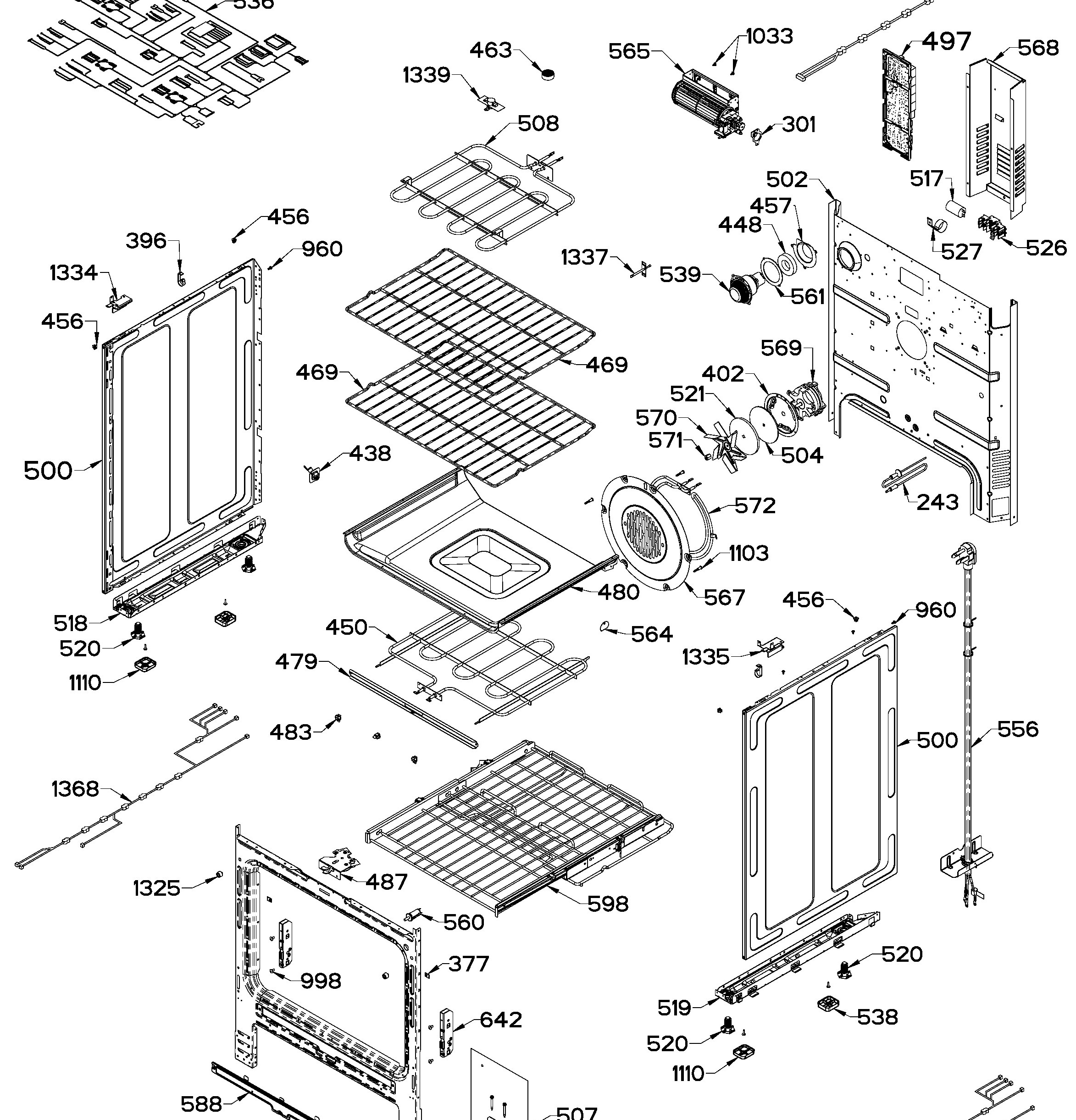

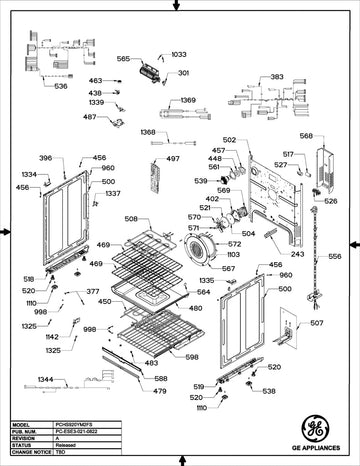

Exploded View 2

16 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

PANEL MANIFOLD LOWER SS

XPart Number XP10715702

OEMWS01L16315

View buying options

Range Sensor Board

XPart Number XP10000812

OEMWS01F08621

$16.99 CAD

View buying options

CLIP WIRE

XPart Number XP10774539

OEMWS01A02146

View buying options

Range Oven Bake Element

XPart Number XP10000808

OEMWS01F02249

See available options

Certified Pre-Owned$39.99 CAD OEM Genuine$83.05 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $39.99 CAD

View buying options

SUPPORT CATALYST

XPart Number XP10712049

OEMWS01A01414

$5.99 CAD

View buying options

Range Oven Rack

XPart Number XP10010971

OEMWS01L11954

See available options

Certified Pre-Owned$46.99 CAD OEM Genuine$93.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $46.99 CAD

View buying options

PANEL SIDE

XPart Number XP10733037

OEMWS01L19196

View buying options

RANGE BACK

XPart Number XP10714400

OEMWS01L16472

View buying options

SUPPORT BASE

XPart Number XP10713477

OEMWS01A01979

View buying options

Range Leveling Leg

XPart Number XP10000687

OEMWS01L05470

See available options

Certified Pre-Owned$1.99 CAD OEM Genuine$3.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $1.99 CAD

View buying options

FAN INSULATOR

XPart Number XP10712058

OEMWS01F00259

$15.99 CAD

View buying options

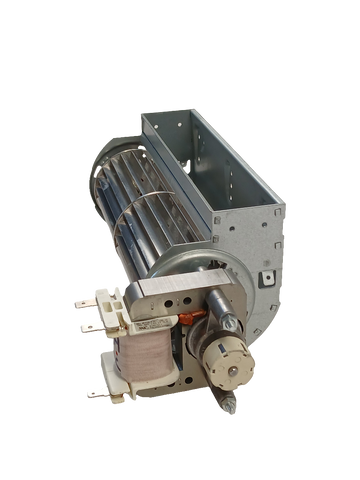

BLOWER TANGENTIAL

XPart Number XP10714399

OEMWS01F09894

See available options

Certified Pre-Owned$51.99 CAD OEM Genuine$102.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $51.99 CAD

View buying options

Range Oven Convection Motor

XPart Number XP10000549

OEMWS01F07347

$104.99 CAD

View buying options

Convection fan blade

XPart Number XP10000555

OEMWS01F00749

See available options

Certified Pre-Owned$17.99 CAD OEM Genuine$34.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $17.99 CAD

View buying options

Screw

XPart Number XP10006369

OEMWS01A01078

$3.99 CAD

View buying options

Spacer

XPart Number XP10712100

OEMWS01A01996

View buying options

Diagram section

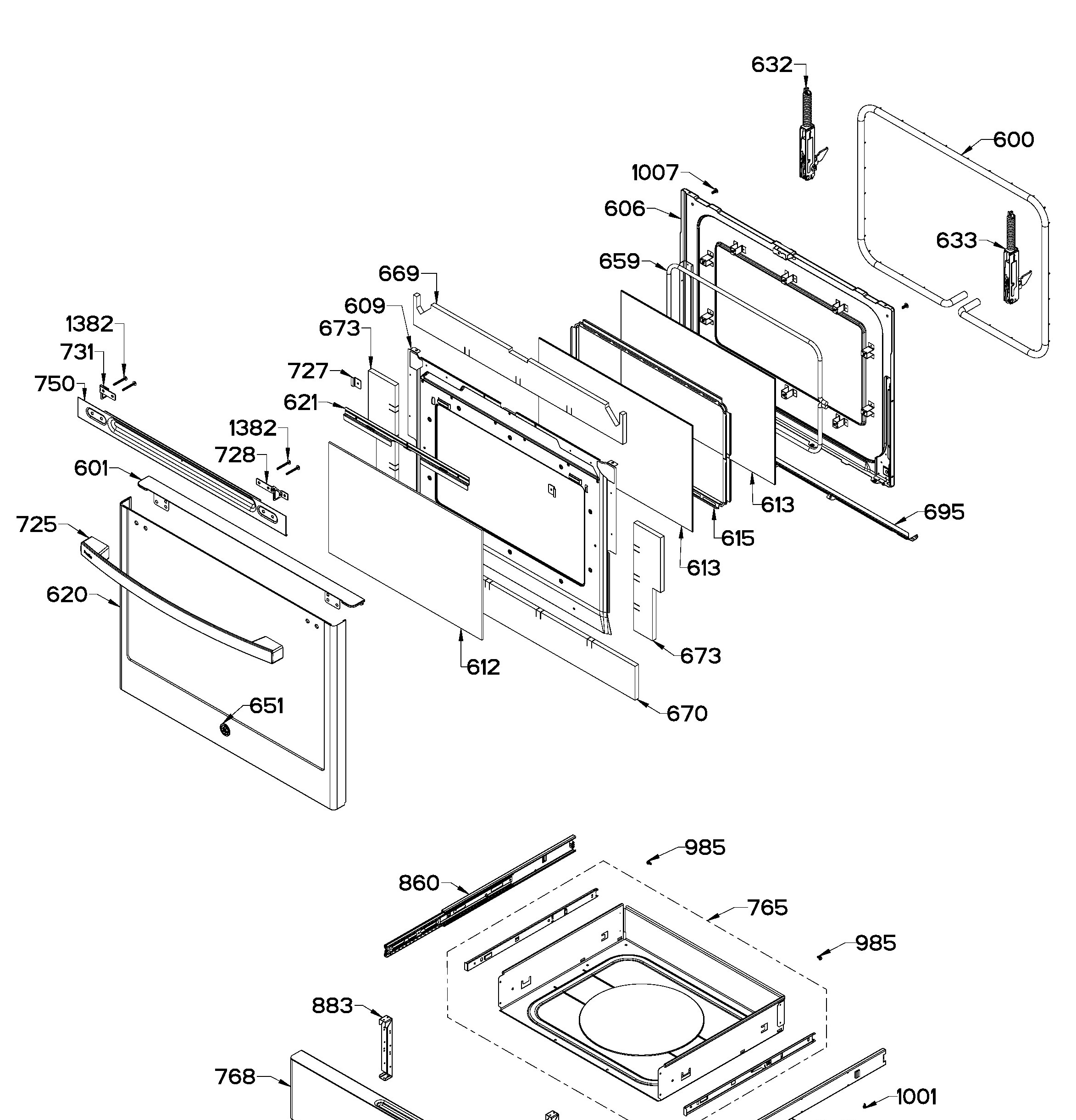

Exploded View 3

15 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

COVER VENT TRIM

XPart Number XP10750616

OEMWS01L16936

View buying options

Range oven door liner assembly (liner door weld assembly)

XPart Number XP10009764

OEMWS01L13904

Range oven door liner assembly (liner door weld assembly)

$94.99 CAD

View buying options

DOOR GUARD

XPart Number XP10774522

OEMWS01L13848

View buying options

Window PHG Large (inner oven door glass)

XPart Number XP10005232

OEMWS01L00806

Window PHG Large (inner oven door glass)

$68.99 CAD

View buying options

CRYSTAL WINDOW

XPart Number XP10000694

OEMWS01L00803

$65.00 CAD

View buying options

FRAME WINDOW ASM SO

XPart Number XP10009678

OEMWS01L16284

$37.99 CAD

View buying options

Range door hinge, left- or right-hand

XPart Number XP10000667

OEMWS01L15043

View buying options

HINGE DOOR

XPart Number XP10035651

OEMWS01L14673

$44.98 CAD

View buying options

CORD FIBER GLASS

XPart Number XP10711722

OEMWS01F01093

View buying options

BARRIER DOOR

XPart Number XP10733087

OEMWS01L18943

View buying options

Handle Assembly

XPart Number XP10005646

OEMWS01L18019

$73.73 CAD

View buying options

PANEL VENT BACKER PROFILE

XPart Number XP10805882

OEMWS01L16327

View buying options

Range Drawer Slide Rail Left

XPart Number XP10009443

OEMWS01L01914

See available options

Certified Pre-Owned$26.99 CAD OEM Genuine$53.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $26.99 CAD

View buying options

BRACKET DRAWER

XPart Number XP10714456

OEMWS01A03177

View buying options

SCREW 10-24 1 5/8

XPart Number XP10005640

OEMWS01A03083

$4.55 CAD

View buying options

Parts group

More verified model parts

44 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

Plunger Switch

XPart Number XP10000805

OEMWS01F08160

Model fitment is verified. A diagram position has not been assigned.

$37.99 CAD

View buying options

Sensor Assembly

XPart Number XP10000878

OEMWS01F02431

See available options

Certified Pre-Owned$12.99 CAD OEM Genuine$25.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $12.99 CAD

View buying options

Switch High Limit

XPart Number XP10001032

OEMWS01F08630

Model fitment is verified. A diagram position has not been assigned.

$47.99 CAD

View buying options

Range Oven Nameplate

XPart Number XP10001126

OEMWS01A02876

Model fitment is verified. A diagram position has not been assigned.

$14.99 CAD

View buying options

Range Motorized Oven Door Latch Assembly

XPart Number XP10002372

OEMWS01F08624

Model fitment is verified. A diagram position has not been assigned.

Range Motorized Oven Door Latch Assembly

$78.99 CAD

View buying options

BOARD WIFI CAT MODULE

XPart Number XP10002888

OEMWG02F11039

Model fitment is verified. A diagram position has not been assigned.

View buying options

Terminal Block Assembly

XPart Number XP10003413

OEMWS01F09529

Model fitment is verified. A diagram position has not been assigned.

View buying options

Range Drawer Slide Rail Right

XPart Number XP10003418

OEMWS01L01913

See available options

Certified Pre-Owned$29.99 CAD OEM Genuine$59.85 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $29.99 CAD

View buying options

Range oven light bulb and socket assembly

XPart Number XP10005660

OEMWS01F01684

See available options

Certified Pre-Owned$16.99 CAD OEM Genuine$35.28 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

Range oven light bulb and socket assembly

From $16.99 CAD

View buying options

LINE CORD SUBASSEMBLY

XPart Number XP10007852

OEMWS01A03258

Model fitment is verified. A diagram position has not been assigned.

$31.99 CAD

View buying options

Range Utility Drawer Assembly

XPart Number XP10009458

OEMWS01A02667

Model fitment is verified. A diagram position has not been assigned.

$110.99 CAD

View buying options

Range Oven Hinge Receiver

XPart Number XP10009855

OEMWS01L16108

Model fitment is verified. A diagram position has not been assigned.

$11.99 CAD

View buying options

Range Oven Control Assembly

XPart Number XP10009865

OEMWS01F10906

Model fitment is verified. A diagram position has not been assigned.

View buying options

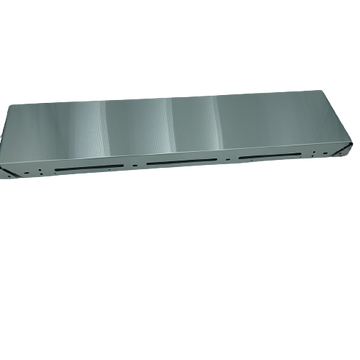

Range Panel Drawer

XPart Number XP10010499

OEMWS01L18314

Model fitment is verified. A diagram position has not been assigned.

$92.99 CAD

View buying options

BROIL ELEMENT

XPart Number XP10010751

OEMWS01F08445

Model fitment is verified. A diagram position has not been assigned.

$82.99 CAD

View buying options

Heat Element Convection

XPart Number XP10011370

OEMWS01F02415

Model fitment is verified. A diagram position has not been assigned.

$29.99 CAD

View buying options

Induction Element, 2500W

XPart Number XP10011722

OEMWG02A03682

Model fitment is verified. A diagram position has not been assigned.

$146.76 CAD

View buying options

Clip

XPart Number XP10056818

OEMWS01A01361

Model fitment is verified. A diagram position has not been assigned.

$0.99 CAD

View buying options

Grommet

XPart Number XP10325512

OEMWS01A01052

See available options

Certified Pre-Owned$0.99 CAD OEM Genuine$2.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $0.99 CAD

View buying options

Screw

XPart Number XP10562588

OEMWS01A01018

See available options

Certified Pre-Owned$0.99 CAD OEM Genuine$2.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $0.99 CAD

View buying options

Speed Nut

XPart Number XP10711523

OEMWS01A01047

Model fitment is verified. A diagram position has not been assigned.

$1.99 CAD

View buying options

INSULATION DOOR

XPart Number XP10711703

OEMWS01F00163

Model fitment is verified. A diagram position has not been assigned.

View buying options

Spacer

XPart Number XP10711720

OEMWS01A01995

Model fitment is verified. A diagram position has not been assigned.

View buying options

SUPPORT GLASS

XPart Number XP10711721

OEMWS01A01388

Model fitment is verified. A diagram position has not been assigned.

View buying options

RECEPTACLE ASM

XPart Number XP10711725

OEMWS01L06890

Model fitment is verified. A diagram position has not been assigned.

$27.99 CAD

View buying options

Screw

XPart Number XP10711741

OEMWS01A01203

Model fitment is verified. A diagram position has not been assigned.

$3.99 CAD

View buying options

GASKET OVEN LIGHT

XPart Number XP10711743

OEMWS01L07527

Model fitment is verified. A diagram position has not been assigned.

$0.99 CAD

View buying options

SPACER FRONT FRAME

XPart Number XP10712042

OEMWS01L16281

Model fitment is verified. A diagram position has not been assigned.

View buying options

CAPACITOR MOTOR

XPart Number XP10712906

OEMWS01F00866

Model fitment is verified. A diagram position has not been assigned.

$17.99 CAD

View buying options

BOTTOM OVEN(BK) (BK)

XPart Number XP10714134

OEMWS01L06161

Model fitment is verified. A diagram position has not been assigned.

$60.99 CAD

View buying options

GASKET OVEN ASM

XPart Number XP10714397

OEMWS01L16428

Model fitment is verified. A diagram position has not been assigned.

View buying options

ELEMENT WARMER LOW PRF

XPart Number XP10715125

OEMWG02F07433

Model fitment is verified. A diagram position has not been assigned.

$89.95 CAD

View buying options

SCREW

XPart Number XP10715133

OEMWS01A02968

Model fitment is verified. A diagram position has not been assigned.

View buying options

HARNESS SUPPLIER

XPart Number XP10715137

OEMWS01F09254

Model fitment is verified. A diagram position has not been assigned.

View buying options

ELEMENT INDUCTION 2500W

XPart Number XP10715155

OEMWG02F07440

Model fitment is verified. A diagram position has not been assigned.

View buying options

ANTITIP KIT ASM.

XPart Number XP10715723

OEMWS01A02796

Model fitment is verified. A diagram position has not been assigned.

View buying options

SCR 8-18 AB TRP 3/8 SS

XPart Number XP10715727

OEMWS01A01420

Model fitment is verified. A diagram position has not been assigned.

View buying options

DC HARNESS

XPart Number XP10750592

OEMWS01F09003

Model fitment is verified. A diagram position has not been assigned.

View buying options

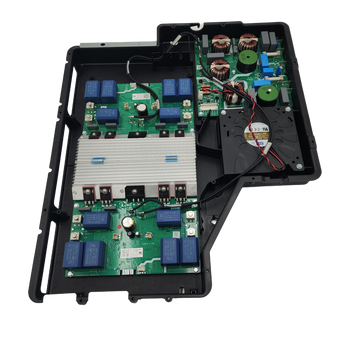

INDUCTION CONTROL & SEAL

XPart Number XP10774213

OEMWS01F10909

Model fitment is verified. A diagram position has not been assigned.

$438.94 CAD

View buying options

RACK OVEN SLIDE ASM

XPart Number XP10787974

OEMWS01L11420

Model fitment is verified. A diagram position has not been assigned.

View buying options

HARNESS BLOWER

XPart Number XP10787992

OEMWS01F09256

Model fitment is verified. A diagram position has not been assigned.

View buying options

FAN COVER

XPart Number XP10788154

OEMWS01L16333

Model fitment is verified. A diagram position has not been assigned.

View buying options

SCREW (NI)

XPart Number XP10788162

OEMWS01A01113

Model fitment is verified. A diagram position has not been assigned.

$0.99 CAD

View buying options

GLASS DOOR ASM SS

XPart Number XP10805881

OEMWS01L18355

Model fitment is verified. A diagram position has not been assigned.

View buying options

Choose a diagram or section

Parts for PCHS920YM3FS
