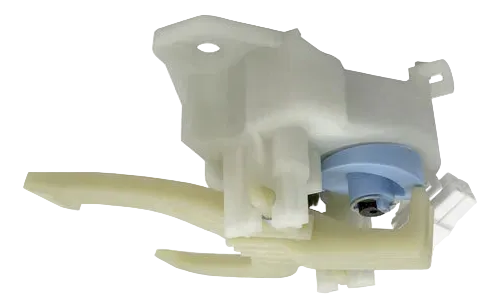

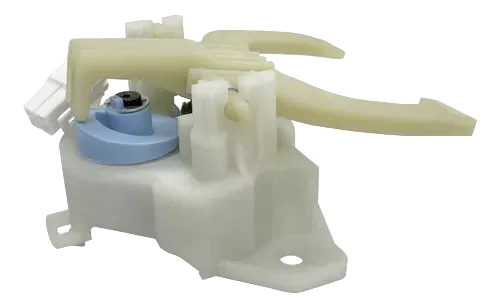

WW01F03184 GE Mode Shifter Assembly for Top-Load Washers, Fixes No Agitation or No Spin

WW01F03184 is the current Canadian/Mabe OEM service number for the GE washer mode-shifter assembly, superseding the previous number WW02F00671. The matching current U.S. GE service number is WH03X36897, which supersedes legacy U.S. number WH18X27186.

The mode shifter changes the washer drive system between agitation and spin operation. A damaged or electrically failed mode shifter may contribute to a washer that does not agitate, does not spin, remains in one drive mode or produces clicking or grinding noises during cycle transitions.

Similar symptoms can also result from a defective lid lock, drive belt, motor, pulley, speed sensor, wiring connection or electronic control. Test the lid lock, motor, belt, pulleys, speed sensor, wiring and control system before replacing the mode shifter.

Confirm the complete washer model before ordering. Disconnect electrical power and shut off the water supply before servicing the washer.

❓ Is This the Right Part?

A defective mode shifter is one possible cause of no-agitation, no-spin or drive-transition problems. This is a likely candidate if ALL of the following are true:

• ✔ Washer powers on and fills with water normally
• ✔ Lid lock, drive belt, motor, pulleys and speed sensor have been confirmed functional
• ✔ Wiring connections and electronic control board have been confirmed operational
• ✔ Problem is specifically failure to agitate, failure to spin, or grinding/clicking during mode transitions

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Washer does not agitate — wash plate does not move during wash phase
• Washer does not spin — drum stays stationary during spin phase
• Washer remains locked in one drive mode throughout the cycle
• Grinding or clicking noise during the transition between wash and spin
• Cycle stops when transitioning between wash and spin

✔ These symptoms do not independently confirm mode shifter failure. May restore agitation and spin operation when diagnosis confirms that the original mode shifter is defective.

📦 Part Details

• Part Number: WW01F03184 (current Canadian/Mabe service number)
• Replaces: WW02F00671 (previous Canadian/Mabe service number)
• U.S. Equivalent: WH03X36897 (current U.S. GE) — supersedes WH18X27186 (legacy U.S.)
• Type: Washer mode-shifter actuator — changes the drive system between agitation and spin operation
• Brands: GE Appliances, Mabe

⚙️ Installation

Skill Level: ADVANCED — 45–90 minutes. Disconnect power and close water supply valves before servicing. Remove the washer cabinet panels to access the transmission and mode shifter assembly. Document all mechanical connections with photos before disassembly. Disconnect the actuator linkage, remove the mounting hardware, swap the assembly, reconnect all linkages, and reassemble. Manually test mode shifting before closing the cabinet and running a full cycle.

✓ Compatible Models

Confirmed compatible with GTW220BMK0WW, GTW220BMK1WW, GTW330BMK0WW, GTW330BMK1WW, GTW460BMK0WW, GTW465BMK0WS, GTW485BMK0WS, GTW680BMK0DG, GTW680BMK0WS, GTW680BSJ1WS, MTW200BMK0WW plus additional GE/Mabe-platform models. Contact us to verify your model number before ordering.
