Dryer Not Heating? GE Heating Element Assembly WW03F00366 – Fix No-Heat Fast

If your GE electric dryer runs but produces no heat or takes multiple cycles to dry a load, a failed heating element assembly is the most common cause. In most GE-built electric dryers, the heating element is a spiral-wound nichrome coil that converts electrical current into the thermal energy needed to dry laundry. When it fails, the drum tumbles normally but clothes come out cold and damp regardless of cycle length or temperature setting. ⚡ Most common failure point in GE electric dryers. Part WW03F00366 is the genuine OEM replacement heating element assembly that restores full heat output without modification.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dryer powers on and drum tumbles normally
• ✔ Thermal fuse tests with continuity (not open)
• ✔ High-limit thermostat tests within spec
• ✔ Lint duct is clear — no airflow restriction
• ✔ ONLY problem is no heat or insufficient heat during the drying cycle

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dryer produces no heat — drum tumbles but air is cold
• Clothes still damp after a full cycle or multiple cycles
• Dryer trips the circuit breaker during operation
• Visible coil breakage inside the element housing
• Burning smell from dryer during operation
• Element fails continuity test with a multimeter (open circuit)

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this heating element assembly restores full heat output immediately.

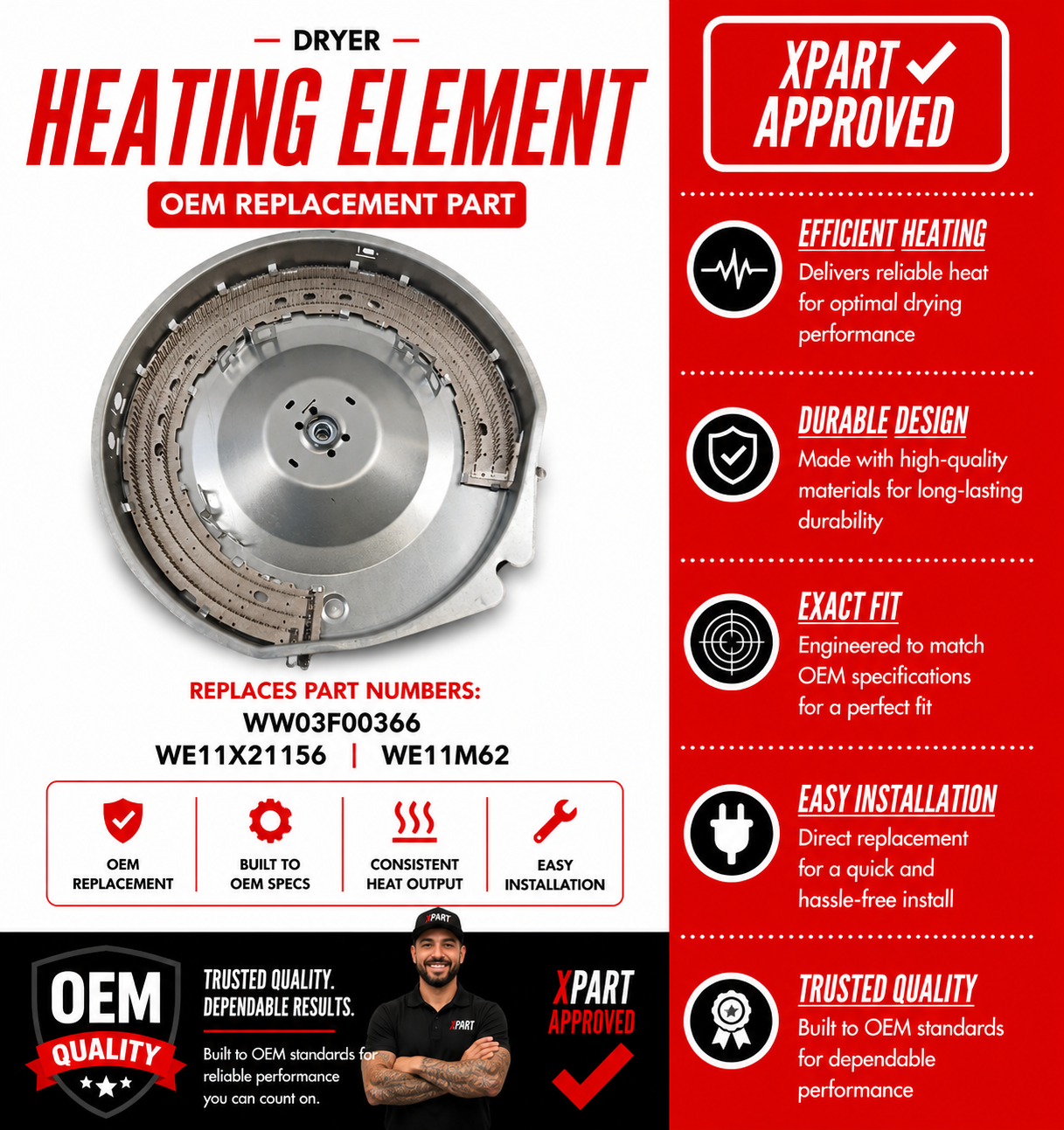

📦 Part Details

• Part Number: WW03F00366
• Type: Electric Dryer Heating Element Assembly — spiral-wound nichrome coil with ceramic insulators and metal mounting bracket, pre-installed in housing
• Replaces: WW03F00181, WW02F00743, WE11X21156, WE11M62, 189D7110G016
• Brands: GE, Hotpoint, RCA

⚙️ Installation

Skill Level: EASY — 20–40 minutes. Disconnect power before beginning. The heating element housing is accessed by removing the rear panel of the dryer (typically 6–8 screws). Disconnect the wiring harness and thermal cut-off leads, remove the old element, and install the new assembly in the same orientation. Always clean the lint duct before reinstalling — restricted airflow is the leading cause of element burnout.

✓ Compatible Models

Confirmed compatible with GTD65EBMK1DG, GTD65EBMK1WS, GTD75ECML1DG, GTD75ECML1WS, GTD72EBMN0DG, GTD72EBMN0WS, GFD45ESMM1DG, GFD45ESMM1WW, GTD42EAMJ0WW, GTD45EAMJ0WS plus additional GE and Hotpoint models. Contact us to verify your model number before ordering.

💡 Pro Tip
