GE Dryer SME26N5XNBBP00 Parts

Model: SME26N5XNBBP00

Browse this model’s parts or select a diagram to see its matching parts beside the drawing.

Diagram section

Exploded View 1

8 verified parts

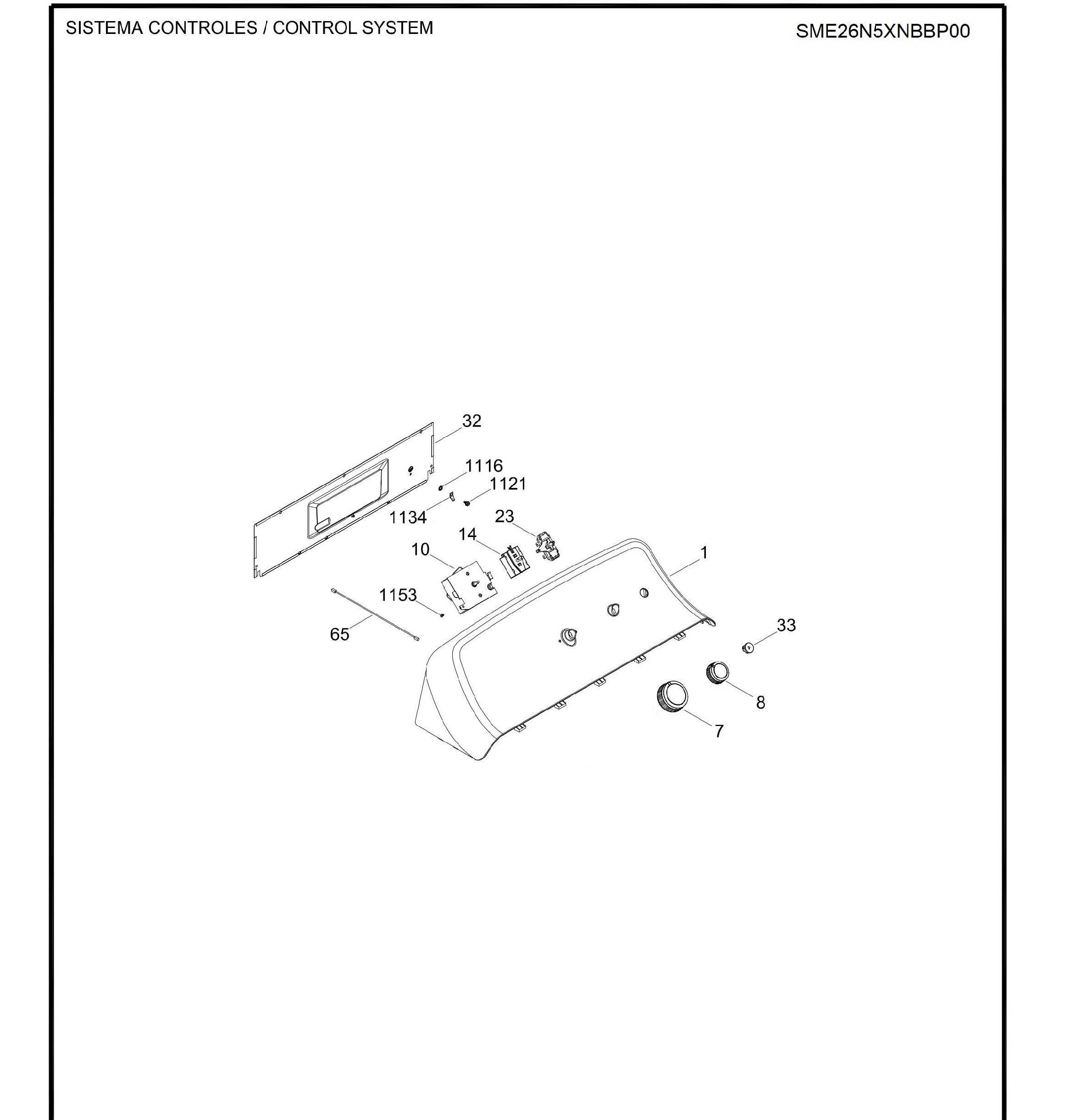

Exploded View 1 — SME26N5XNBBP00

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Diagram section

Exploded View 2

20 verified parts

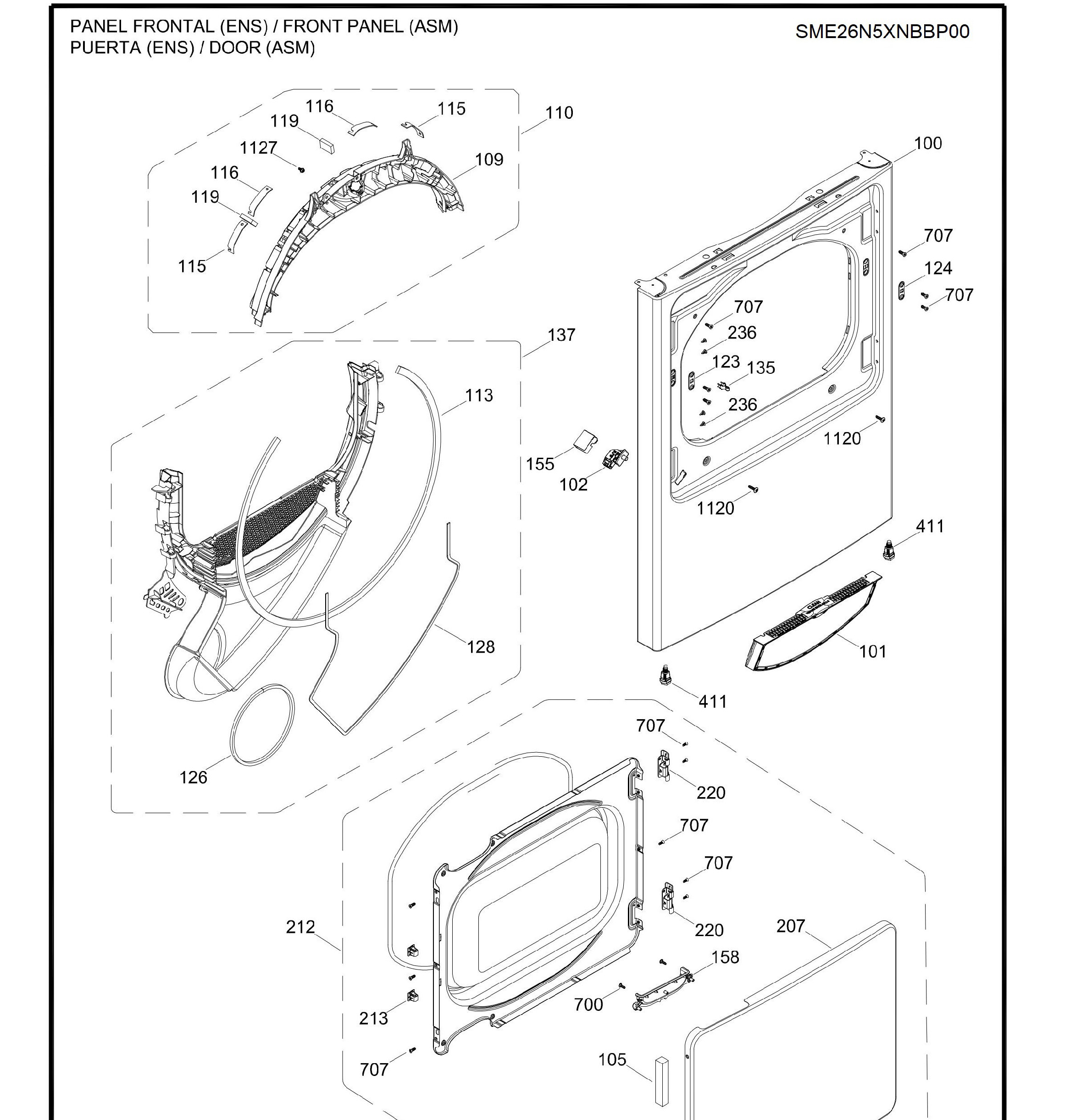

Exploded View 2 — SME26N5XNBBP00

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Diagram section

Exploded View 3

7 verified parts

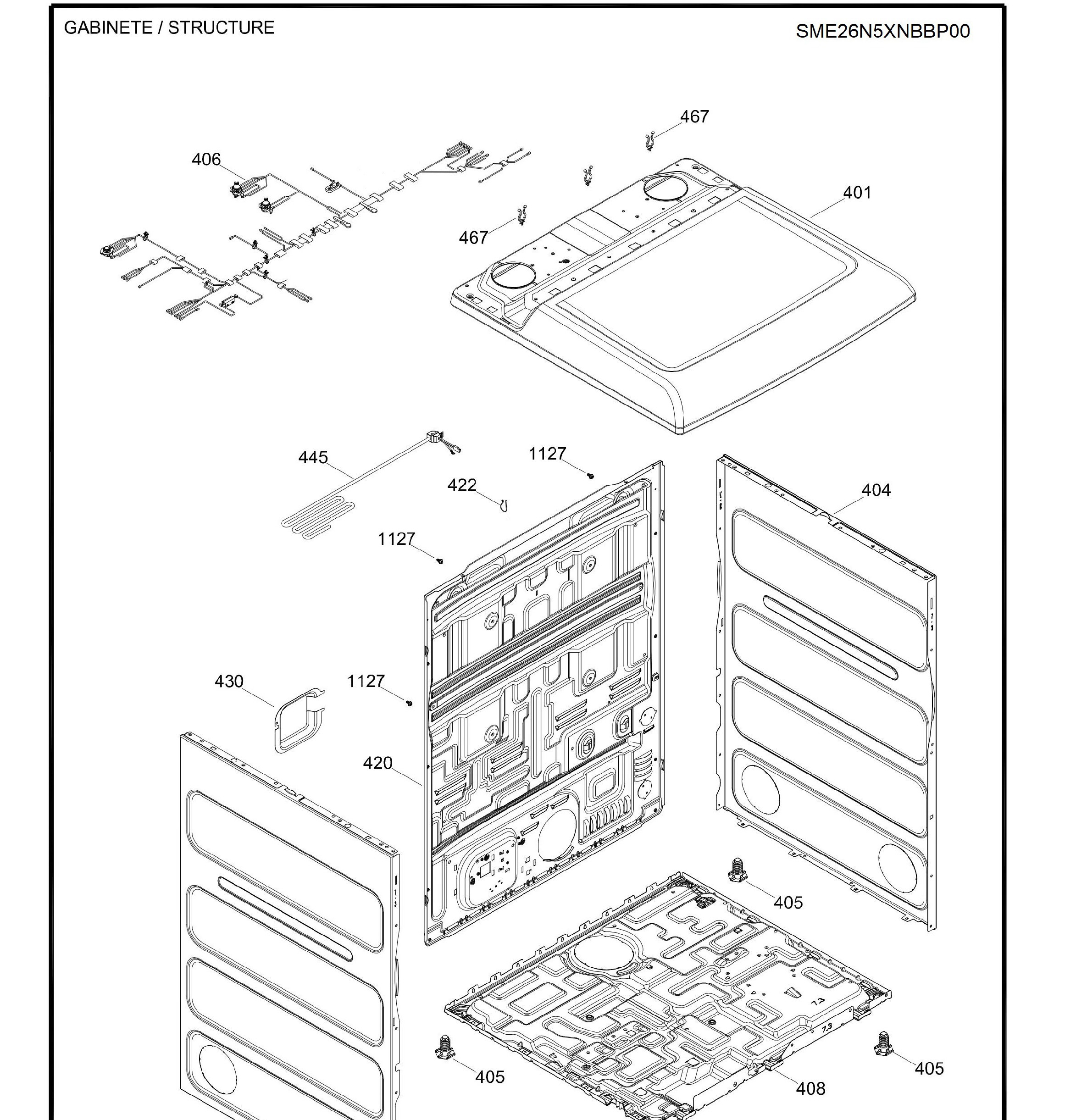

Exploded View 3 — SME26N5XNBBP00

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Diagram section

Exploded View 4

11 verified parts

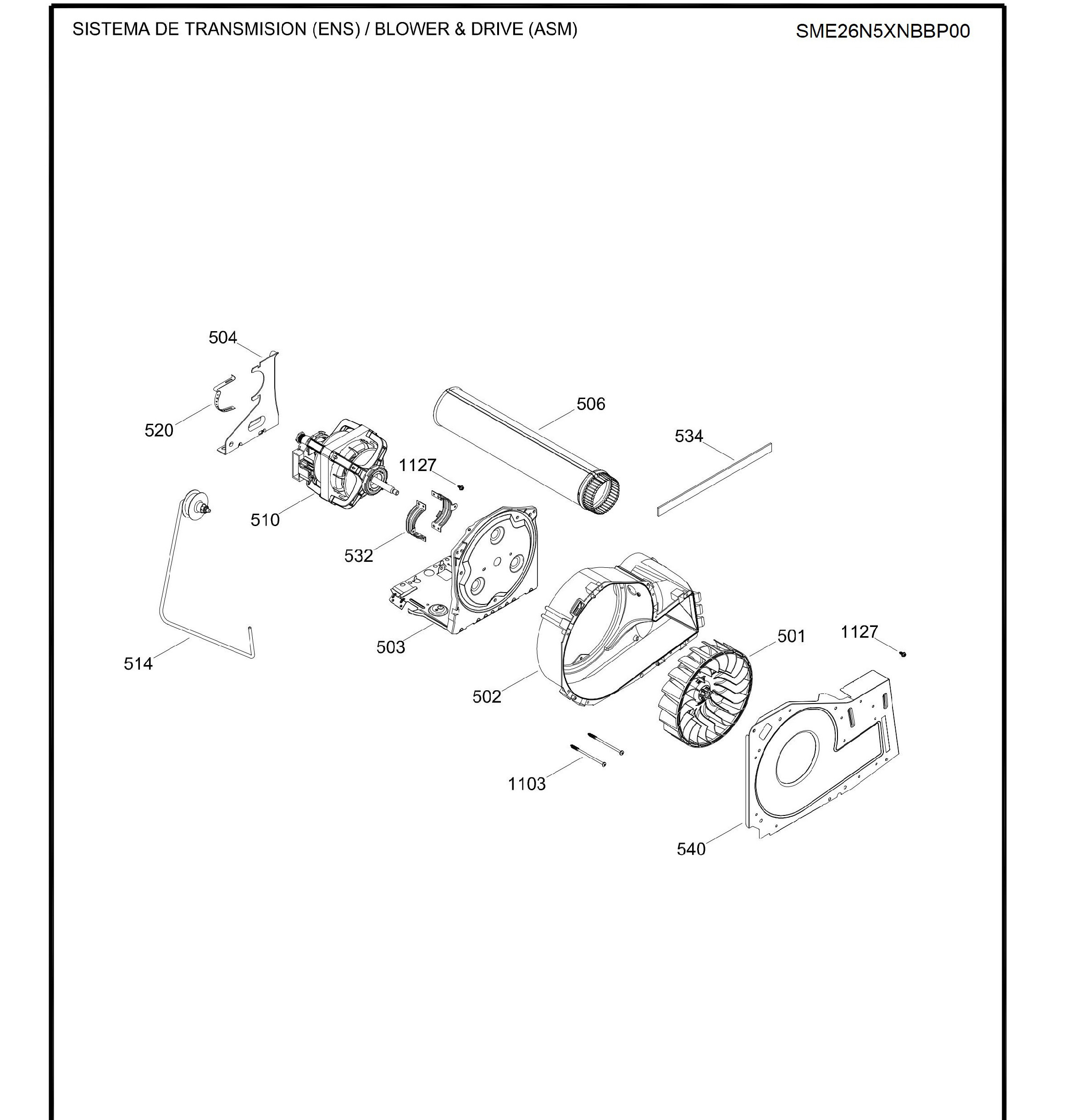

Exploded View 4 — SME26N5XNBBP00

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Diagram section

Exploded View 5

12 verified parts

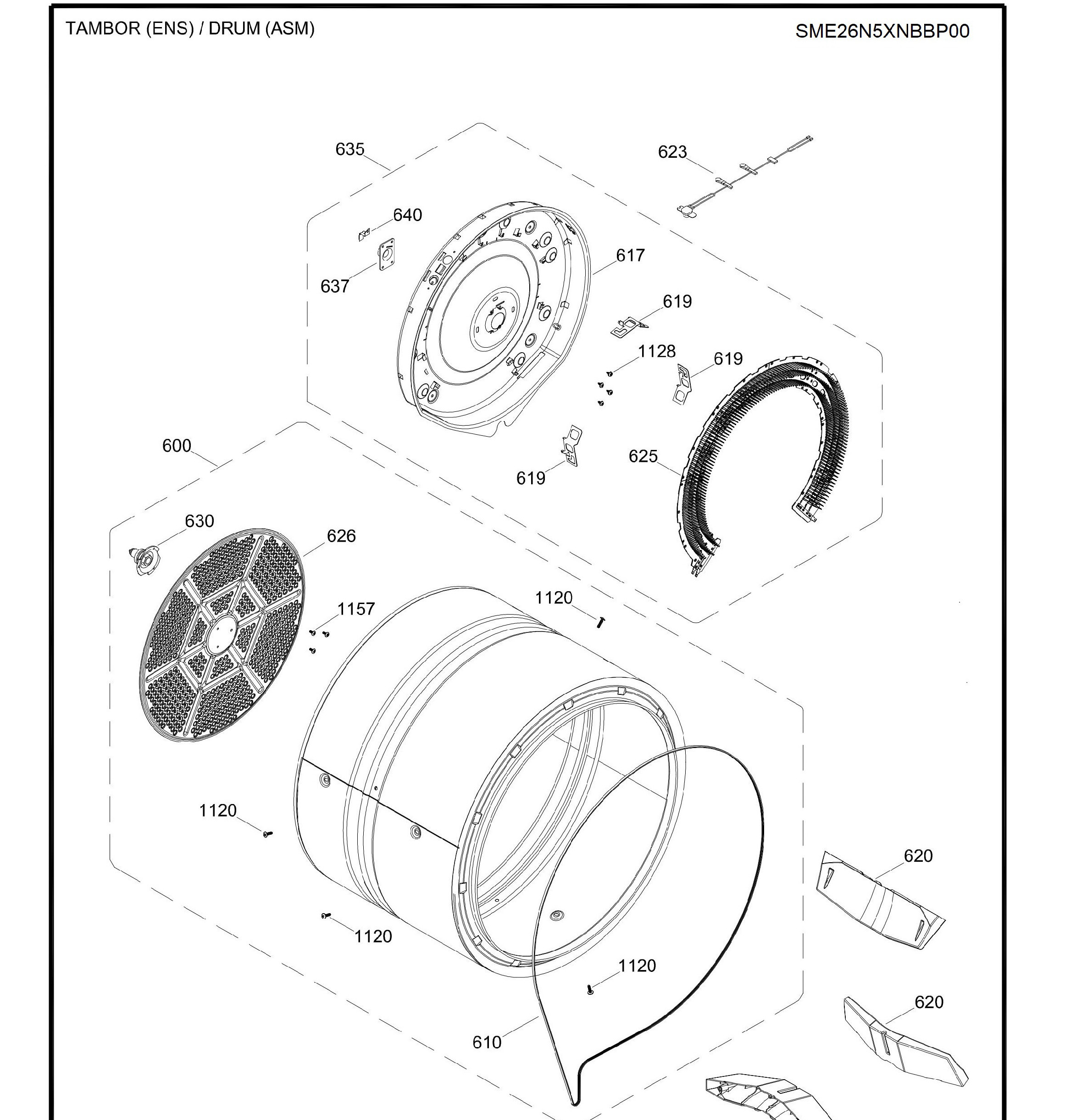

Exploded View 5 — SME26N5XNBBP00

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Parts group

More verified model parts

20 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

XPart Number XP10001972

OEMWW03F00307

Model fitment is verified. A diagram position has not been assigned.

STRIKE

XPart Number XP10712406

OEMWW02A00032

Model fitment is verified. A diagram position has not been assigned.

Screw

XPart Number XP10712438

OEMWW02L00527

Model fitment is verified. A diagram position has not been assigned.

GASKET

XPart Number XP10713054

OEMWW02L00526

Model fitment is verified. A diagram position has not been assigned.

Spacer

XPart Number XP10713059

OEMWW02F00665

Model fitment is verified. A diagram position has not been assigned.

REAR PANEL
