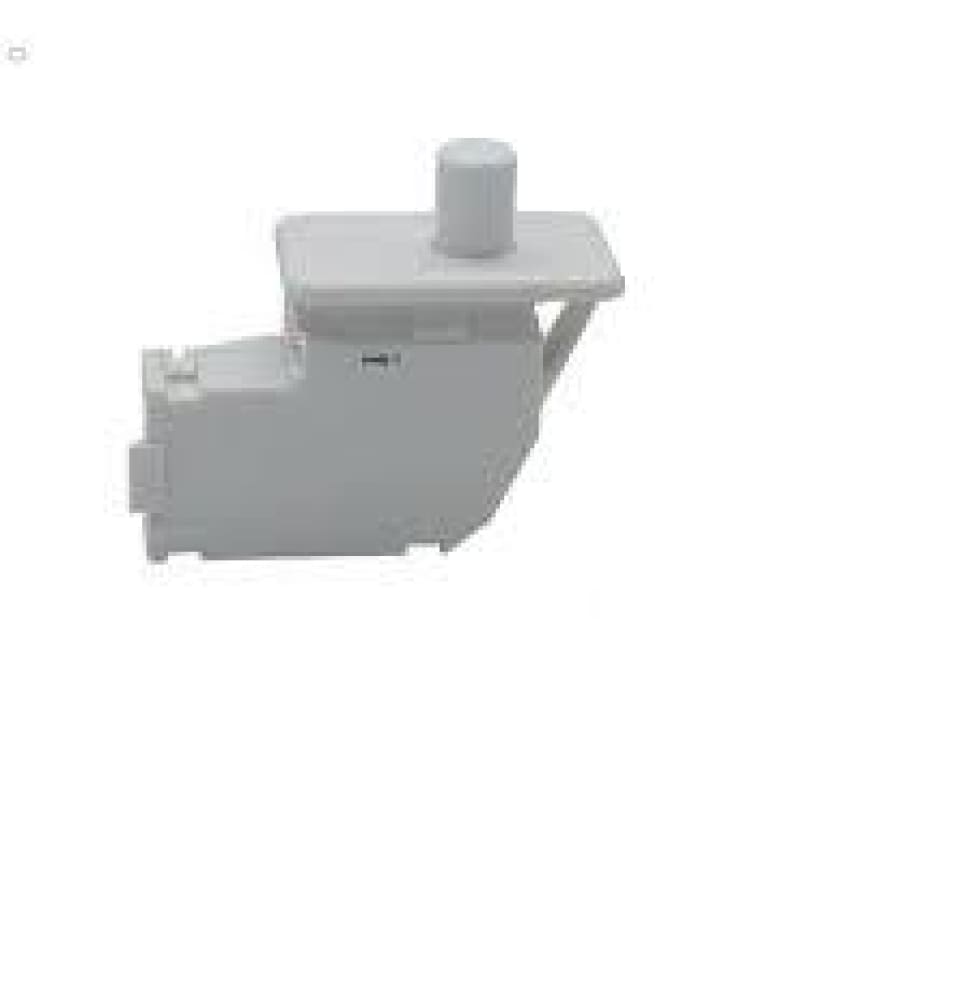

The WW02F00809 is the genuine OEM door switch for GE and Hotpoint dryers. The door switch is a safety interlock that detects whether the dryer door is open or closed. When the door is closed, the switch completes the circuit that allows the dryer to start and run. When the door is opened, the switch breaks the circuit and stops the drum and heat. When the switch fails, the dryer may not start at all, may run with the door open (a safety hazard), or may stop unexpectedly mid-cycle. This OEM replacement restores correct door-sensing function and safe dryer operation.

✓ Model-Specific Repair Pages

Don't see your model? Contact us and we'll confirm compatibility.

The WW02F00809 door switch is a snap-in component mounted in the dryer door frame. When the door closes, the door strike depresses the switch actuator button, closing the internal contacts and completing the start circuit. The most common failure mode is a worn or broken actuator button that no longer depresses fully, leaving the circuit open even when the door is closed. A secondary failure mode is failed internal contacts that no longer conduct even when the button is depressed. Both failures result in the same symptom: the dryer will not start. Before replacing the switch, test it with a multimeter set to continuity — with the button depressed, the switch should show continuity; with the button released, it should show open circuit.

✓ Common Symptoms Fixed

Dryer not starting when start button is pressed | Dryer drum running with door open | Dryer stopping unexpectedly mid-cycle | Start button unresponsive | Dryer starting only when door is held at a specific angle | Door switch actuator button visibly broken or stuck

✓ Key Features & Specifications

Genuine GE OEM door switch – guaranteed fit | Snap-in mounting – no tools required for installation | Spade terminal connections for wiring harness | Replaces WW02L00465, 254C1353P002, WE04X28977 | Compatible with GE and Hotpoint dryer models

✓ Buying Options

New / OEM: The WW02F00809 is the current genuine GE OEM door switch. Recommended for all repairs requiring correct door-sensing function and safe dryer operation.

✓ Replacement Part Numbers

WW02F00809 (current OEM) | WW02L00465 (superseded) | 254C1353P002 (superseded) | WE04X28977 (superseded)

✓ Installation Tips

Disconnect power before beginning this repair. Repair difficulty: 1/5. Estimated time: 10–15 minutes. The door switch is located in the door frame opening, typically on the side opposite the hinge. To remove: use a flat tool to gently pry the switch out of its snap-in mounting pocket, disconnect the two wiring harness spade terminals, and pull the switch free. Install the new switch by connecting the spade terminals first, then pressing the switch firmly into the mounting pocket until it snaps into place. Restore power and test by opening and closing the door — the dryer should start only when the door is fully closed.

✓ Compatible Models

GTMP280GD5WW, YTD74E2PN0DG, YTD74E2PN1DG, YTD74E2SN0WS, YTD74E2SN1WS, YTD74G2PN0DG, YTD74G2PN1DG, YTD74G2SN0WS, YTD74G2SN1WS, and additional GE and Hotpoint dryer models. Verify your full model number before ordering. Contact us to confirm compatibility.

✓ Frequently Asked Questions

How do I test my dryer door switch? Use a multimeter set to continuity. Disconnect power, remove the switch, and disconnect the wiring harness. With the actuator button depressed (simulating door closed), the switch should show continuity. With the button released (door open), it should show open circuit. If the switch fails either test, it requires replacement. See our Dryer Won't Start guide for a full diagnostic walkthrough.

Could a bad door switch cause my dryer to not heat? Yes — if the door switch fails in the open position, the dryer will not start at all, including the heating element. If the dryer runs but produces no heat, the door switch is likely not the cause. See our Dryer Won't Start troubleshooting guide for additional diagnostic steps.

Is this a difficult repair? Rated 1/5 difficulty. The switch snaps in and out of its mounting pocket with no tools required. The entire repair takes under 15 minutes. Contact us if you need help locating the switch on your specific model.

Does WW02F00809 replace WW02L00465? Yes — WW02F00809 is the current OEM part that supersedes WW02L00465, 254C1353P002, and WE04X28977. All are the same door switch; order WW02F00809 for the current version.
