GE Dryer SGN17R8XSBAB00 Parts
Model: SGN17R8XSBAB00
Browse this model’s parts or select a diagram to see its matching parts beside the drawing.
No matching verified parts in this model. Check the complete part number or try a description.
Parts for SGN17R8XSBAB00
Diagram section

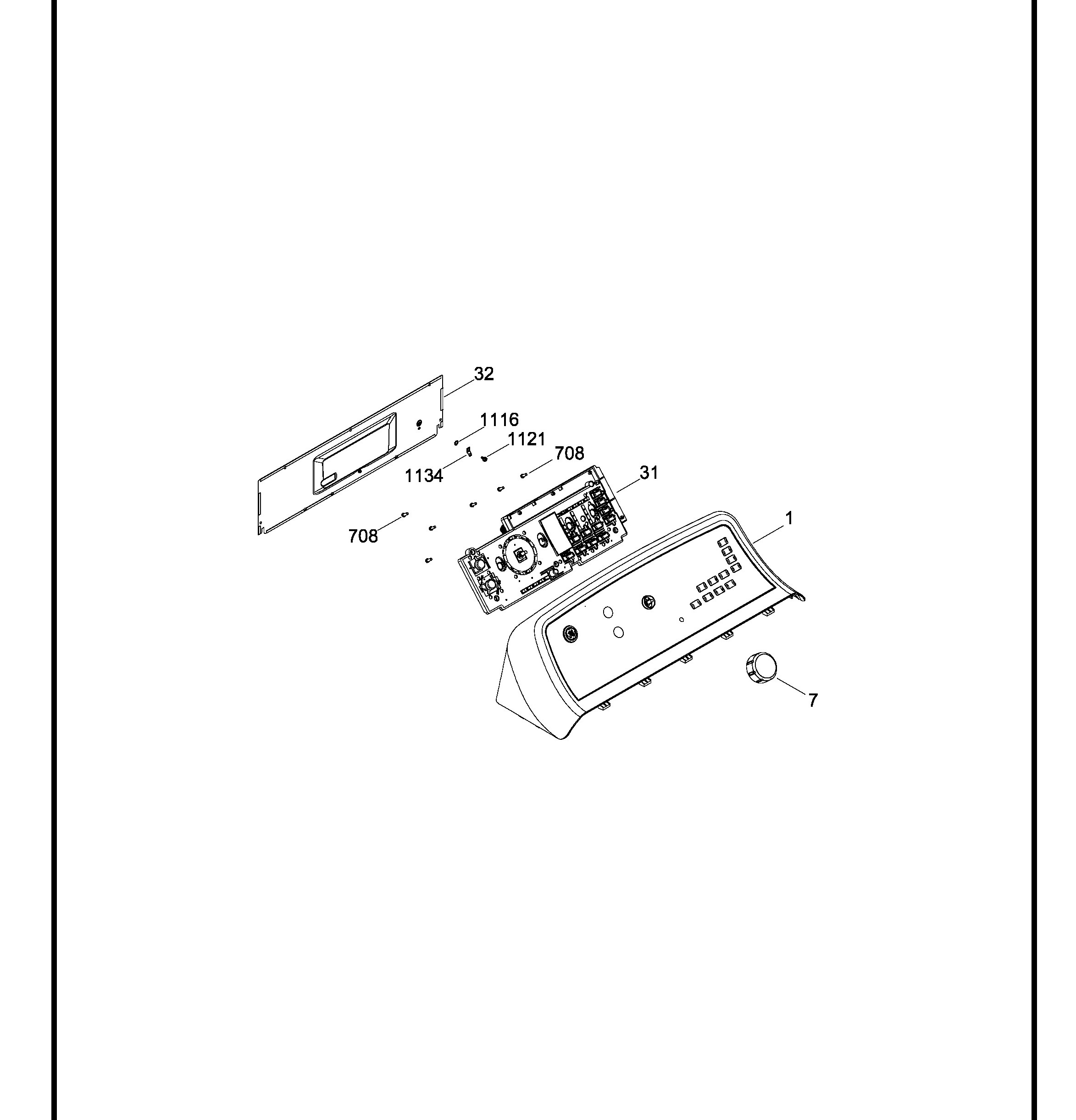

Exploded View 1
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item32
Item708
Item1116
Item1121
Item1134
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

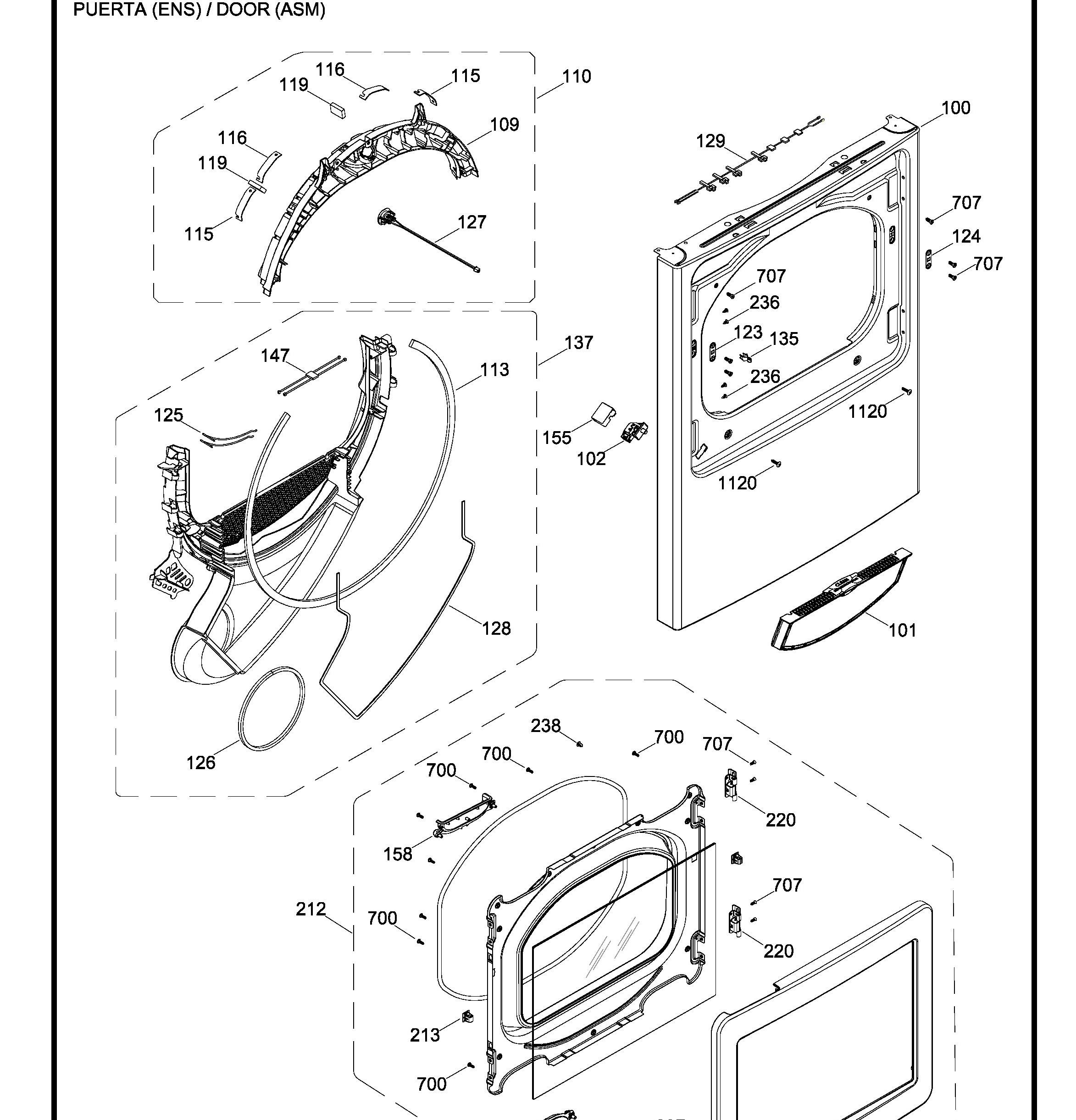

Exploded View 2
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item100
Item109
Item110
Item113
Item115
Item116
Item119
Item124
Item125
Item126
Item128
Item129
Item137
Item155
Item158
Item212
Item220
Item236
Item238
Item700
Item707
Item1120
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

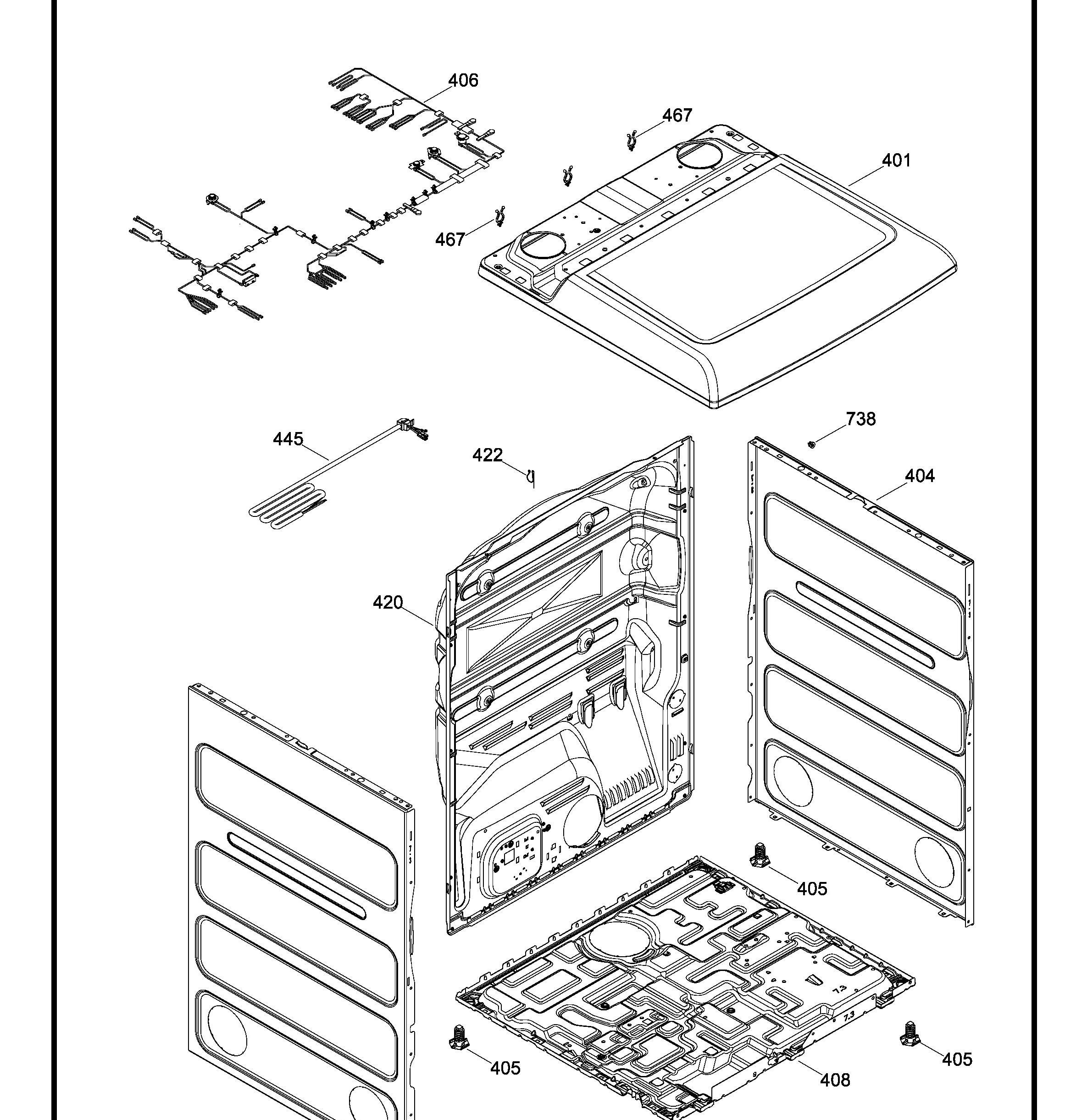

Exploded View 3
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item401
Item404
Item405
Item406
Item408
Item422
Item445
Item467
Item738
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

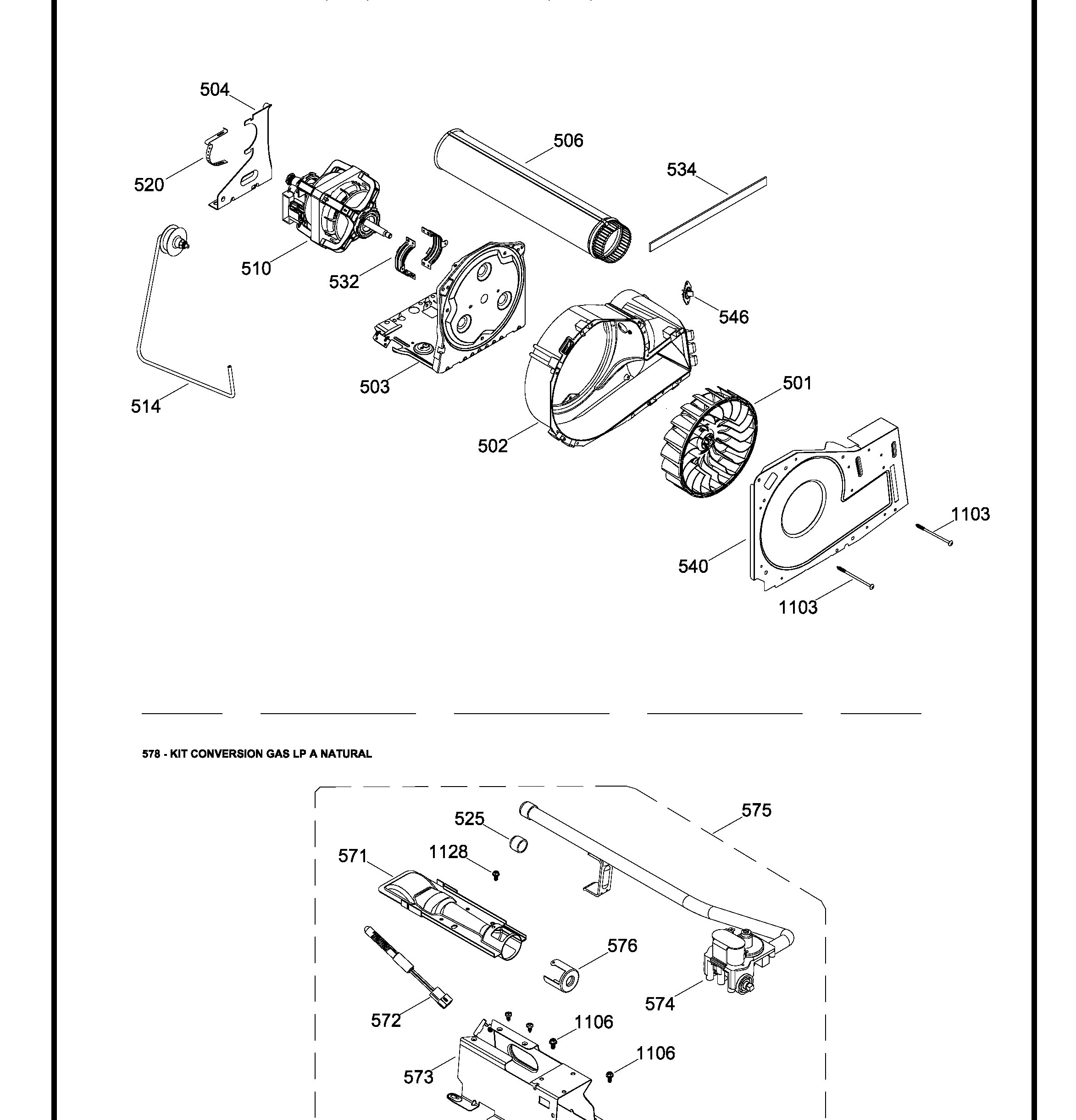

Exploded View 4
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item501
Item502
Item504
Item506
Item510
Item514
Item520
Item525
Item532
Item534
Item540
Item546
Item571
Item573
Item575
Item576
Item1103
Item1106
Item1128
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

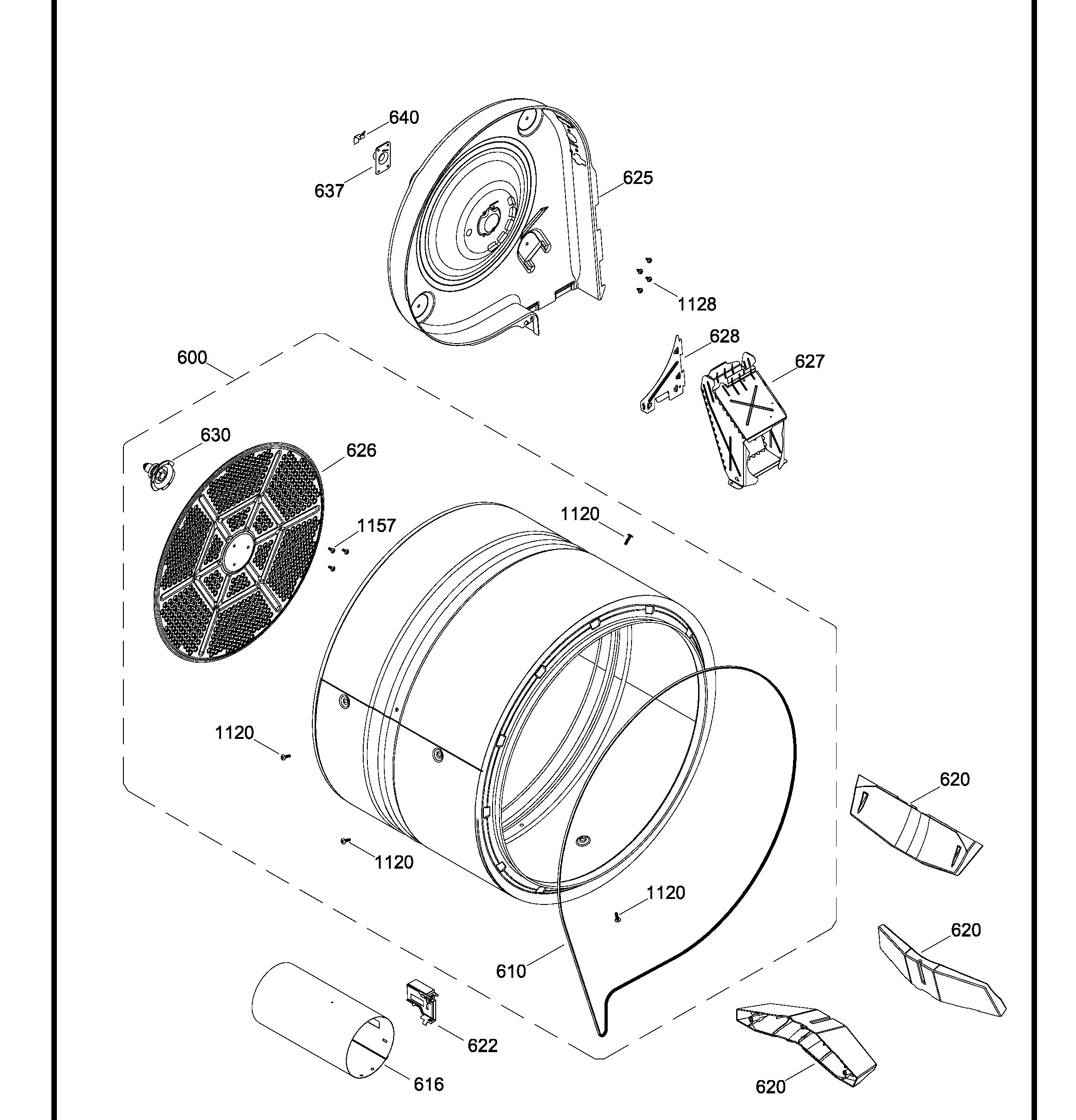

Exploded View 5
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item600
Item610
Item616
Item620
Item622
Item625
Item626
Item627
Item628
Item630
Item637
Item640
Item1120
Item1128
Item1157
No matching parts in this section. Clear your search or choose All model parts.
Parts group
More verified model parts
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
XPart Number XP10000172
OEMWW01L01654
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10001972
OEMWW03F00307
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10001976
OEMWW02F00523
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10005738
OEMWW02F00534
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10008221
OEMWW02F00622
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10050277
OEMWW02F00809
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10247207
OEMWW02A00056
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10333405
OEMWW02F00627
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10427632
OEMWW01L01671
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712398
OEMWW02L00142
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712411
OEMWW02F00541
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712426
OEMWW02L00594
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712447
OEMWW03F00453
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712455
OEMWW02F00533
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10778286
OEMWW02L00536
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10801311
OEMWW02F00002
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10802491
OEMWW02L00539
Model fitment is verified. A diagram position has not been assigned.
