Dryer Not Heating? GE Heating Element Assembly WW03F00366 – Fix No-Heat Fast
If your GE electric dryer runs but produces no heat or takes multiple cycles to dry a load, a failed heating element assembly is the most common cause. In most GE-built electric dryers, the heating element is a spiral-wound nichrome coil that converts electrical current into the thermal energy needed to dry laundry. When it fails, the drum tumbles normally but clothes come out cold and damp regardless of cycle length or temperature setting. ⚡ Most common failure point in GE electric dryers. Part WW03F00366 is the genuine OEM replacement heating element assembly that restores full heat output without modification.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on and drum tumbles normally
- ✔ Thermal fuse tests with continuity (not open)
- ✔ High-limit thermostat tests within spec
- ✔ Lint duct is clear — no airflow restriction
- ✔ ONLY problem is no heat or insufficient heat during the drying cycle
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer produces no heat — drum tumbles but air is cold
- Clothes still damp after a full cycle or multiple cycles
- Dryer trips the circuit breaker during operation
- Visible coil breakage inside the element housing
- Burning smell from dryer during operation
- Element fails continuity test with a multimeter (open circuit)
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this heating element assembly restores full heat output immediately.
📦 Part Details
- Part Number: WW03F00366

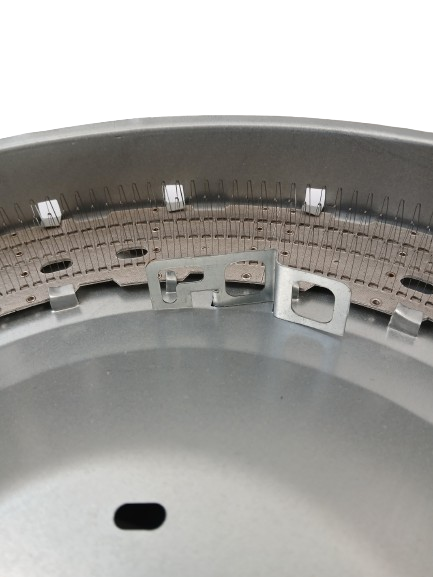

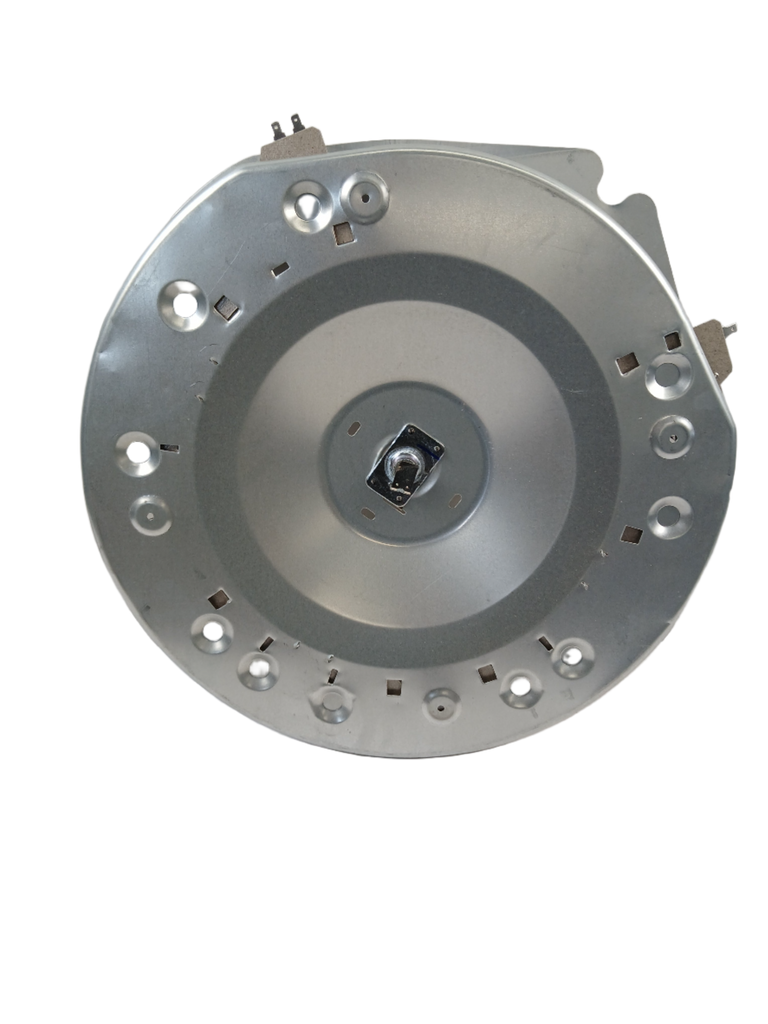

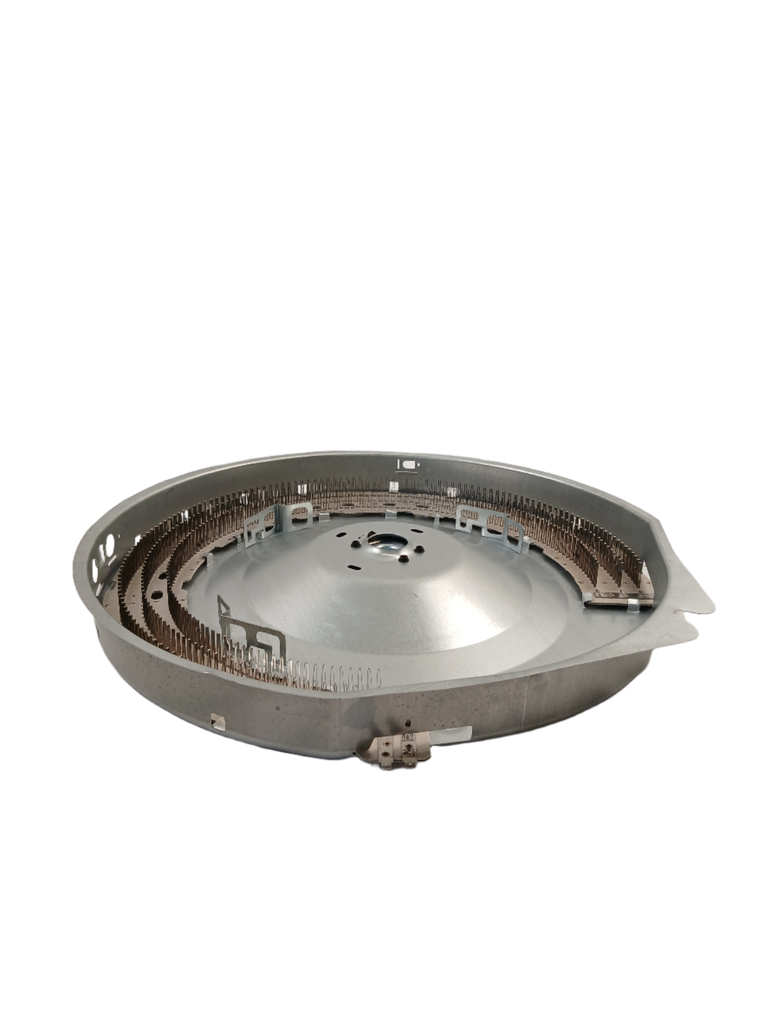

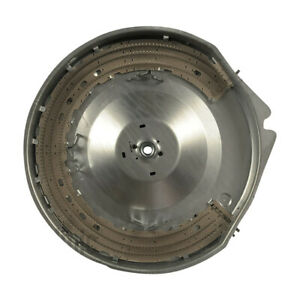

- Type: Electric Dryer Heating Element Assembly — spiral-wound nichrome coil with ceramic insulators and metal mounting bracket, pre-installed in housing
- Replaces: WW03F00181, WW02F00743, WE11X21156, WE11M62, 189D7110G016
- Brands: GE, Hotpoint, RCA
While the rear panel is off, replace the thermal fuse and high-limit thermostat — these protect the element from overheating and are often the root cause of element failure. Replacing them at the same time (typically under $20 combined) prevents repeat burnout and eliminates the most common co-failure point.
⚙️ Installation
Skill Level: EASY — 20–40 minutes. Disconnect power before beginning. The heating element housing is accessed by removing the rear panel of the dryer (typically 6–8 screws). Disconnect the wiring harness and thermal cut-off leads, remove the old element, and install the new assembly in the same orientation. Always clean the lint duct before reinstalling — restricted airflow is the leading cause of element burnout.
✓ Compatible Models
Confirmed compatible with GTD65EBMK1DG, GTD65EBMK1WS, GTD75ECML1DG, GTD75ECML1WS, GTD72EBMN0DG, GTD72EBMN0WS, GFD45ESMM1DG, GFD45ESMM1WW, GTD42EAMJ0WW, GTD45EAMJ0WS plus additional GE and Hotpoint models. Contact us to verify your model number before ordering.
💡 Pro Tip
Set a multimeter to continuity or resistance mode and probe the element terminals. A good element reads 8–12Ω; an open circuit (OL / no continuity) confirms the element has failed. Also test the thermal fuse — if it's open, replace it alongside the element or the new element will burn out again from the same root cause.
🔗 Model Repair Pages
SME47N8MSDBP00, SME26N5XNBBP01, SME47N8MSBCT11, SME17R8MSDCT01, SME27N5MSBBP01, XKR72GWTWB00, SME17R8XSBBT20, SME47N8XSBBT20, SGE47N8XSBBT20, SME47N8MSBCT10, GTD75ECML1DG, GTD75ECML1WS, GTD65EBMK1DG, GTD65EBMK1WS, GFD45ESMM1DG, GFD45ESMM1WW, SGE47N8XSBCT00, SGE26N5XNBCT00, SME27N5MSBBP00, XKR72FWTWB10, MKR62FWTWB10, SGE47N8XSBBT10, SGE26N5XNBBT10, SME47N8XSBBT10, SME47N5XSBBT10, SME26N5XNBBT10, SME17R8XSGBT10, SME17R8XSBBT10, GTD47EBAL0DG, SGE47N8XSDCT00, SGE17R8XSDCT00, GTD75ECML0DG, GTD75ECML0WS, SME17R8MSGCT00, GFD45ESMM0DG, GFD45ESMM0WW, SMW819SDECG11, SMW819SDECW11, SGE47N8XSBBT00, SGE26N5XNBBT00, SME47N8MSGBP01, SME47N5XSBBP01, SME47N8MSBBP01, SGE47N5XSBBH01, SMW819SDECG10, XKR72FWTWB00, MKR62FWTWB00, MKR62GWTWB00, SMW819SDECW10, STE26N5XNBBP00, STE26N5MNBBP00, SMW819SDECW00, SMW819SDECG00, SME26N5XNBBP00, SME26N5MNBBP00, SME17R8XSGBP00, SME17R8MSGBP00, SME17R8MSDBP00, SME17R8MSBBP00, SGW819SDECW01, SGW819SDECW00, SGW819SDECG01, SGW819SDECG00, GTD42EBMK0WW, GFD45ESMK0WW, GFD45ESMK0DG, SME47N8XSBCT00, SME47N8XSBBT00, SME47N8MSRBP00, SME47N8MSGCT00, SME47N8MSGBP00, SME47N8MSBCT00, SME47N8MSBBP00, SME47N5XSBBT00, SME47N5XSBBP00, SME26N5XNBCT00, SME26N5XNBBT00, SME17R8XSGCT00, SME17R8XSGBT00, SME17R8MSDCT00, SGE47N5XSSBP00, GTD65EBMJ2WS, GTD45EAMJ1WS, GFMS175EH1DG, GFMS175EH0DG, GFMS170EH1WW, GFMS170EH0WW, GFDS175EH0DG, GFDS170EH0WW, SGE47N5XSBBH00, SGE17R8XSBBH00, SME26N5MNBBP01, SME17R8MSDBP01, SME17R8MSBBP01, MTX22EBMR0WW, GTX33EBMR0WS, GTX22EBMR0WW, GTD84ECMN0WS, GTD84ECMN0DG, GTD72EBMN0WS, GTD72EBMN0DG, GTD65EBMR0DG, GTD65EBMK2WS, GTD65EBMK2DG, GTD46EDMN0WS, GTD45EBMR0WS, GTD40EBMR0WS, GTD32EBMP0WW, SME47N8MSBBP02, GTD65EBMR0WS, MTX22EBMK0WW, JES1140STC01, HTX21EASK0WW, GTX42EASJ2WW, GTX33EASK0WW, GTX22EBMK0WW, GTX22EASK0WW, GTD65EBMK0WS, GTD65EBMK0DG, GTD65EBMJ3WS, GTD65EBMJ1WS, GTD65EBMJ0WS, GTD45EAMJ2WS, GTD45EAMJ0WS, GTD42EAMJ2WW, GTD42EAMJ1WW, GTD42EAMJ0WW, GTD42EAAJ2WW, GTD42EAAJ1WW, GTD42EAAJ0WW, GTD40EBMK0WW, GTD33EASK0WW
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
