Thermal Fuse, High-Limit Thermostat, Safety Thermostat, Thermal Cutoff, Overheat Protection Kit

Part number 279816 replaces 279816VP, 3399848, 3977393, WP3399848

Whirlpool, Kenmore, Maytag, KitchenAid

11060012000, 11060012001, 11060012002, 11060022010, 1106012510, 1106012990, 11060172000, 11060172001, 11060172002, 11060202990, 11060212990, 11060222511, 11060232000, 11060232001, 11060232002, 11060522900, 11060602990, 11060612990, 1106062110, 11060622990, 11060702990, 11060712990, 1106072011, 11060722990, 11060724990, 11060727990, 11060802990, 11060812990, 11060814990, 11060817990, 11060832990, 11060842990, 11060852990, 11060854990, 11060857990, 11060882990, 11060884990, 11060887990, 11061202010, 11061202011, 11061252010, 11061252011, 11061402310, 11061402311, 11061802000, 11061804000, 11061812000, 11061814000, 1106192310, 11062102310, 11062202100, 11062202101, 11062212100, 11062212101, 11062332511, 11062342510, 11062512100, 11062512101, 11062512102, 11062514100, 11062514101, 11062514102, 11062602100, 11062602101, 11062612100, 11062612101, 11062622100, 11062622101, 11062702100, 11062702101, 11062702102, 11062712100, 11062712101, 11062722100, 11062722101, 11062722102, 11062724100, 11062724101, 11062802100, 11062802101, 11062802102, 11062812100, 11062812101, 11062822100, 11062822101, 11062822102, 11062824100, 11062824101, 11062824102, 11062832100, 11062832101, 11062842100, 11062842101, 11062852100, 11062852101, 11062854100, 11062854101, 11062872100, 11062872101, 11062872102, 11062882100, 11062882101, 11062884100, 11062884101, 11062886100, 11062886101, 11063102100, 11063102101, 11063112100, 11064102300, 11064102301, 11064112200, 11064202200, 11064202201, 11064212200, 11064212201, 11064602300, 11064602301, 11064612200, 11064622300, 11064622301, 11064632300, 11064632301, 11064642400, 11064652400, 11064672400, 11064712200, 11064712201, 11064722400, 11064732400, 11064742400, 11064812200, 11064812201, 11064832400, 11064842400, 11064852400, 11064854400, 11064902200, 11064902201, 11064912200, 11064922200, 11064922201, 11064924200, 11064924201, 11064932200, 11064932201, 11065102310, 11065132410, 11065132411, 11065202310, 11066051690, 11066058690, 11066071690, 11066101690, 11066101691, 11066102500, 11066112500, 11066112501, 11066512690, 11066512691, 11066512692, 11066512694, 11066514690, 11066514691, 11066514692, 11066514694, 11066522500, 11066522501, 11066524500, 11066524501, 11066611690, 11066611691, 11066611692, 11066612690, 11066612691, 11066612692, 11066642500, 11066642501, 11066652500, 11066652501, 11066662500, 11066662501, 11066702690, 11066702691, 11066702692, 11066712690, 11066712691, 11066712692, 11066712694, 11066722690, 11066722691, 11066722692, 11066722694, 11066732500, 11066732501, 11066742500, 11066742501, 11066752500, 11066752501, 11066801690, 11066801691, 11066801692, 11066801694, 11066808690, 11066808691, 11066808692, 11066808694, 11066812690, 11066812691, 11066812692, 11066812694, 11066814690, 11066814691, 11066814692, 11066814694, 11066822690, 11066822691, 11066822692, 11066822694, 11066824690, 11066824691, 11066824692, 11066824694, 11066832500, 11066832501, 11066842500, 11066842501, 11066852690, 11066852691, 11066852692, 11066852694, 11066854690, 11066854691, 11066854692, 11066854694, 11066862500, 11066862501, 11066864500, 11066864501, 11066872500, 11066872501, 11067322600, 11067332600, 11067342700, 11067402600, 11067422600, 11067432600, 11067442600, 11067522600, 11067532600, 11067542600, 11067622600, 11067632600, 11067642600, 11067652600, 11067654600, 11067732790, 11067732791, 11067732794, 11067832790, 11067832791, 11067832794, 11067834790, 11067834791, 11067834794, 11068202790, 11068202794, 11068322700, 11068332700, 11068402700, 11068402701, 11068422700, 11068432700, 11068442700, 11068522700, 11068532700, 11068622700, 11068632700, 11068652700, 11068702890, 11068702894, 11068712890, 11068712894, 11069012990, 11069032990, 11069101990, 11069101991, 11069202990, 11069422800, 11069422801, 11069432800, 11069432801, 11069522800, 11069532800, 11069622800, 11069632800, 11069652800, 11069812990, 11080764000, 11086405150, 11086405160, 11086405850, 11086405860, 11086407150, 11086407160, 11086407850, 11086407860, 11088762790, 11088762791, 11088762792, 11088764790, 11088764791, 11088764792, 11096374200, 11096374210, 11096407160, 11096510120, 11096511120, 11096512200, 11096512210, 11096520120, 11096529120, 11096529130, 11096529820, 11096529830, 11096530100, 11096530110, 11096550120, 11096551220, 11096551230, 11096560120, 11096560200, 11096560210, 11096560820, 11096561120, 11096561220, 11096561230, 11096561420, 11096561430, 11096561820, 11096562200, 11096563120, 11096563820, 11096564120, 11096564220, 11096564420, 11096564820, 11096565110, 11096565120, 11096565210, 11096565220, 11096566200, 11096566210, 11096566400, 11096566410, 11096572120, 11096572130, 11096572820, 11096572830, 11096573020, 11096573030, 11096573120, 11096573220, 11096573230, 11096573820, 11096573920, 11096573930, 11096574120, 11096574820, 11096575100, 11096575110, 11096575200, 11096575810, 11096576200, 11096576210, 11096576400, 11096576410, 11096577220, 11096577230, 11096577420, 11096577430, 11096580000, 11096580010, 11096580120, 11096580620, 11096580820, 11096580900, 11096580910, 11096581120, 11096581220, 11096581820, 11096582120, 11096582820, 11096585120, 11096585200, 11096585210, 11096585400, 11096585410, 11096585820, 11096586200, 11096586210, 11096586400, 11096586410, 11096587210, 11096587410, 11098576200, 11098576400, 110C60022011, 110C60102310, 110C60122510, 110C60122511, 110C60222510, 110C60242510, 110C60242511, 110C61102011, 110C61292011, 110C61292012, 110C61402311, 110C61492310, 110C62332510, 110C62332511, 110C65132410, 110C65132411, 110C66132410, 110C66652502, 1CWED4800DQ0, 1CWED4900DW0, 1CWED5100VQ0, 1CWED5100VQ1, 1CWED5200VQ0, 1CWED5200VQ1, 1CWED5300VW0, 1CWED5700VW0, 3CEP2910BW0, 3CEP2910DW0, 3CEP2920DW0, 3CEP2950DN0, 3CEP2950DW0, 3CEP2960DN0, 3CEP2960DN2, 3CEP2960DW0, 3CEP2960DW2, 3DWED4800YQ0, 3DWED4800YQ1, 3DWED4800YQ2, 3DWED4900YW0, 3DWED4900YW1, 3DWED4900YW2, 3DWED5605SQ0, 3HLER5437JQ0, 3HLER5437JQ1, 3HLER5437JQ2, 3HLER5437JQ3, 3HWED5205SQ0, 3SWED5205SQ0, 3SWED5205SQ1, 3XLER5435HQ0, 3XLER5435HQ2, 3ZAED4475TQ0, 3ZMED5705TW0, 3ZMED5705TW1, 4GAED4900YW0, 4GAED4900YW1, 4GAED4900YW2, 4GMEDC100YQ0, 4GMEDC100YQ1, 4GMEDC100YQ2, 4GMEDC300YW0, 4GMEDC300YW1, 4GMEDC300YW2, 4GNED4400YQ0, 4GNED4400YQ1, 4GNED4400YQ2, 4GNED4600YQ0, 4GNED4600YQ1, 4GNED4600YQ2, 4GWED4750YQ0, 4GWED4750YQ1, 4GWED4750YQ2, 4GWED4900YQ0, 4GWED4900YQ1, 4GWED4900YQ2, 4GWED4900YQ3, 4GWED4900YW0, 4GWED4900YW1, 4GWED4900YW2, 4KAED4475TQ0, 4KAED4475TQ1, 4KMED5700TQ0, 4KMED5700TQ1, 4KMED5900TW0, 4KMEDC405WQ0, 4KMEDC405WQ1, 4KNED5800TQ0, 4KNED5800TQ1, 4KWED5790VW0, 4KWED5790VW1, 4LEC6646DN0, 4LEC6646DQ0, 4LEC6646DW0, 4LEC7646EN0, 4LEC7646EQ0, 4LEC7646EZ0, 4PLEC8647JQ0, 4PLEC8647JQ2, 4PLEC8647JT0, 4PLEC8647JT2, 4PLEC8647JT3, 4PWED5905SG0, 4PWED5905SG1, 4PWED5905SW0, 4PWED5905SW1, 6LER5434BQ2, 6LER5434BQ3, 6LER5434BW2, 6LER5434BW3, 7EWED1510YM0, 7EWED1705YM0, 7EWED1705YM1, 7EWED1705YM2, 7EWED1730YW0, 7EWED1730YW1, 7EWED1730YW2, 7MMEDC300BW0, 7MMEDC300DW0, 7MMEDX655EW0, 7MMEP0080WW0, 7MMEP0080WW1, 7MWED1600BM0, 7MWED1600BM1, 7MWED1730JQ0, 7MWED1800EM0, 7MWED1900EW0, 7MWED2040JM0, 7MWED2140JB0, 8530040, 8543000, 885450, 885453, 885455, 885456, 885457, 885458, 885461, 885462, 885463, 885464, 885465, 885468, 885469, 885472, AED4370TQ0, AED4470TQ0, AED4475TQ0, AED4475TQ1, AED4675EW0, AED4675YQ0, AED4675YQ1, BYCD3722W0, BYCD3722W1, BYCD4932W0, BYCWD6274W0, BYCWD6274W1, BYCWD6274W2, CE2950XYG2, CE2950XYG3, CE2950XYN2, CE2950XYN3, CE2950XYW2, CE2950XYW3, CED123SEW0, CED126SBW0, CED126SBW1, CED126SDW0, CED126SDW1, CED126SXQ0, CED126SXQ1, CED137HXQ0, CED137HXW0, CED137SBW0, CED137SDW0, CED137SDW1, CED137SXQ0, CED147HXW0, CED147SBW0, CED147SDW0, CED147SDW1, CED147SDW2, CEDS1043VQ0, CEDS1043VQ1, CEDS563MQ0, CEDS563MQ1, CEDS563RB1, CEDS563RQ0, CEDS563RQ1, CEDS563SQ0, CEDS563ST0, CEDS663SB0, CEDS663SQ0, CEDS774JQ0, CEDS774JQ1, CEDS774MQ0, CEDS774MQ1, CEDS832VQ0, CEDS832VQ1, CEDS984RQ0, CEDS984RQ1, CEDX463JQ0, CEDX463JQ1, CEDX463MQ0, CEDX463MQ1, CEDX463RQ0, CEDX463RQ1, CEDX463RT0, CEDX463RT1, CEDX463SQ0, CEDX563JQ0, CEDX563JQ1, CEDX563JQ2, CEDX631VQ1, CEE2990AG2, CEE2990AG3, CEE2990AN2, CEE2990AN3, CEE2990AW2, CEE2990AW3, CEE2990EW0, CEM2940TQ0, CEM2940TQ1, CEP2960EW0, CEP2960JQ0, EED4100SQ0, EED4100WQ0, EED4300SQ0, EED4300TQ0, EED4300VQ0, EED4300VQ1, EED4400SQ0, EED4400TQ0, EED4400VQ0, EED4400WQ0, EED4400WQ1, GCE2900XSW3, GCE2900XSW4, GCEM2900JQ0, GCEM2900JQ1, GCEM2990LQ0, GCEM2990MQ0, GCEM2990MQ1, GCEM2990TQ0, GCEM2990TQ1, GEN2000HQ0, GEN2000HQ1, GEN2000HZ0, GEN2000HZ1, GEQ8858EQ0, GEQ8858EZ0, GEQ8858HQ0, GEQ8858HQ1, GEQ8858HZ0, GEQ8858HZ1, GEQ9858JQ0, GEQ9858JQ1, GEQ9858JT0, GEQ9858JT1, GEW9878JQ0, GEW9878JQ1, GEW9878JT0, GEW9878JT1, GEW9878LG0, GEW9878LW0, GEW9878LW1, GEW9878PG0, GEW9878PG1, GEW9878PW0, GEW9878PW1, GEX9868JQ0, GEX9868JQ1, GEX9868JQ2, GEX9868JQ3, GEX9868JT0, GEX9868JT1, GEX9868JT2, GEX9868JT3, HED4300TQ0, HED4400TQ0, IED4100SQ0, IED4300SQ0, IED4300TQ0, IED4400SQ0, IED4400TQ0, IED4400VQ0, IED4400VQ1, IES5000RQ0, IES5000RQ1, IEX3000RQ0, IEX3000RQ1, IJ80001, IJ80002, IJ82001, IJ82002, IJ84001, IJ84002, IM80000, IP80000, IP80001, IP82000, IP82001, IP84000, IP84001, IS80000, IS82000, IS84000, IV85000, IV85001, IV86000, IV86001, IV87000, IV87001, KEYE665BAL2, KEYE665BWH2, KEYE665BWH3, KEYE670BAL2, KEYE670BAL3, KEYE670BWH2, KEYE670BWH3, KEYE677BWH2, KEYE677BWH3, KEYE678BAL0, KEYE678BAL1, KEYE679BBL0, KEYE679BBL1, KEYE770BAL2, KEYE770BWH2, KEYE777BWH2, KEYE778BAL2, KEYE77BWH2, KEYL410BAL2, KEYL410BWH2, KEYL510BAL2, KEYL510BWH2, KEYL517BWH2, KEYS677EQ0, KEYS677EQ1, KEYS677EQ2, KEYS677EZ0, KEYS677EZ1, KEYS677EZ2, KEYS700EQ0, KEYS700EQ1, KEYS700EZ0, KEYS700EZ1, KEYS700GQ0, KEYS700GT0, KEYS700GZ0, KEYS700JQ0, KEYS700JQ1, KEYS700JT0, KEYS700JT1, KEYS700LQ0, KEYS700LQ1, KEYS700LT0, KEYS700LT1, KEYS710JQ0, KEYS710JQ1, KEYS710LQ0, KEYS710LQ1, KEYS750GQ0, KEYS750GT0, KEYS750GZ0, KEYS750JQ0, KEYS750JQ1, KEYS750JT0, KEYS750JT1, KEYS750LQ0, KEYS750LQ1, KEYS750LQ2, KEYS750LT0, KEYS750LT1, KEYS750LT2, KEYS777EQ0, KEYS777EQ1, KEYS777EZ0, KEYS777EZ1, KEYS850GQ0, KEYS850GT0, KEYS850GZ0, KEYS850JQ0, KEYS850JQ1, KEYS850JT0, KEYS850JT1, KEYS850LE0, KEYS850LE1, KEYS850LE2, KEYS850LQ0, KEYS850LQ1, KEYS850LQ2, KEYS850LT0, KEYS850LT1, KEYS850LT2, KEYS855JE0, KEYS855JE1, KEYS977EQ0, KEYS977EZ0, KEYW770BAL0, KEYW770BWH0, KEYW770BWH2, KEYW777BWH0, KEYW777BWH1, KEYW777BWH2, KEYW778BAL0, KEYW778BAL1, KEYW778BAL2, KEYW870BAL0, KEYW870BWH0, KEYW877BWH0, KEYW878BAL0, KEYW977BWH0, LEB6000KQ0, LEB6000KQ1, LEB6000KQ2, LEB6000PQ0, LEB6000PQ1, LEB6200KQ0, LEB6200KQ1, LEB6200KQ2, LEB6200PQ0, LEB6200PQ1, LEB6300LW0, LEB6300LW1, LEB6300PW0, LEB6300PW1, LEB6400KQ0, LEB6400KQ1, LEB6400LW0, LEB6400LW1, LEC5000PQ0, LEC5000PQ1, LEC6646AN2, LEC6646AQ2, LEC6646AW2, LEC6646AZ2, LEC6848AN3, LEC6848AQ3, LEC6848AW3, LEC6848AZ3, LEC6858AQ3, LEC7646DQ0, LEC7646DQ1, LEC7646DZ0, LEC7646DZ1, LEC7848DQ0, LEC7848DQ1, LEC7848DZ0, LEC7848DZ1, LEC7858AN2, LEC7858AQ2, LEC7858AW2, LEC7858AZ2, LEC8858DQ0, LEC8858DQ1, LEC8858DZ0, LEC8858DZ1, LEC8858EQ0, LEC8858EQ1, LEC8858EQ2, LEC8858EZ0, LEC8858EZ1, LEC8858EZ2, LEC9000PW0, LEC9000PW1, LEE9848BQ2, LEE9848BZ2, LEG8858JZ0, LEL7646EQ0, LEL7646EQ1, LEL8858DQ0, LEL8858DZ0, LEL8858EQ0, LEL8858EQ1, LEL8858EQ2, LEN1000HQ0, LEN1000HQ1, LEN1000PQ0, LEN1000PQ1, LEN2000JQ0, LEN2000JQ1, LEN2000JQ2, LEN2000JT0, LEN2000JT1, LEN2000JT2, LEN2000KQ0, LEN2000KQ1, LEN2000KQ2, LEN2000KT0, LEN2000KT1, LEN2000LG0, LEN2000LG1, LEN2000LW0, LEN2000LW1, LEN2000PG0, LEN2000PG1, LEN2000PW0, LEN2000PW1, LEN3624BN2, LEN3624BW2, LEN3634DW0, LEN3634DW1, LEP6646AN2, LEP6646AW2, LEP6848AN2, LEP6848AW2, LEP7858AN2, LEP7858AQ2, LEP7858AW2, LEP7858AZ2, LEQ5000KQ0, LEQ5000KQ1, LEQ5000KQ2, LEQ5000KW1, LEQ5000KW2, LEQ5000PW0, LEQ7000KQ0, LEQ7000KQ1, LEQ7000KQ2, LEQ7030KQ0, LEQ7030KQ1, LEQ7030KQ2, LEQ8000HQ0, LEQ8000HQ1, LEQ8000JQ0, LEQ8000JQ1, LEQ8000JQ2, LEQ8000JQ3, LEQ8000JQ4, LEQ8100KQ0, LEQ8100KQ1, LEQ8100KT0, LEQ8100KT1, LEQ8800JQ0, LEQ8800JQ1, LEQ8800JT0, LEQ8800JT1, LEQ8857HQ0, LEQ8857HQ1, LEQ8857HZ0, LEQ8857HZ1, LEQ8857JQ0, LEQ8857JQ1, LEQ8857JT0, LEQ8857JT1, LEQ8858HQ0, LEQ8858HQ1, LEQ8858HZ0, LEQ8858HZ1, LEQ8858JQ0, LEQ8858JQ1, LEQ8858JT0, LEQ8858JT1, LEQ8858JZ0, LEQ8858JZ1, LEQ9030PQ0, LEQ9030PQ1, LEQ9508KQ0, LEQ9508LG0, LEQ9508LW0, LEQ9508LW1, LEQ9508PG0, LEQ9508PG1, LEQ9508PW0, LEQ9508PW1, LEQ9557KQ1, LEQ9557KT1, LEQ9558KQ0, LEQ9558KQ1, LEQ9558KT0, LEQ9558KT1, LEQ9857LG0, LEQ9857LG1, LEQ9857LW0, LEQ9857LW1, LEQ9857PW0, LEQ9858LG0, LEQ9858LG1, LEQ9858LW0, LEQ9858LW1, LEQ9858PG0, LEQ9858PG1, LEQ9858PW0, LEQ9858PW1, LEQ9957KQ0, LEQ9957KT0, LER2614BW2, LER2614DW0, LER2614DW1, LER2614EW0, LER2614EW1, LER2614EW2, LER2614JQ0, LER2614JQ1, LER2614JQ2, LER3624BN2, LER3624BN3, LER3624BW2, LER3624BW3, LER3624DQ0, LER3624DQ1, LER3624DQ2, LER3624DZ0, LER3624DZ2, LER3624EQ0, LER3624EQ1, LER3624JQ0, LER3624JQ1, LER3624JQ2, LER3624PQ0, LER3624PQ1, LER3634EW0, LER3634EW1, LER3634EW2, LER3634JW0, LER3634JW1, LER4600PQ0, LER4600PQ1, LER4624BN2, LER4624BQ2, LER4624BW2, LER4624DQ0, LER4624DQ1, LER4624DZ0, LER4624DZ1, LER4634BQ1, LER4634BQ2, LER4634DQ0, LER4634DQ1, LER4634DZ0, LER4634DZ1, LER4634EQ0, LER4634EQ1, LER4634EQ2, LER4634EW0, LER4634EZ0, LER4634EZ1, LER4634EZ2, LER4634JQ0, LER4634JQ1, LER4634JQ2, LER4634JT0, LER4634JT1, LER4634JT2, LER4634JZ0, LER4634PQ0, LER4634PQ1, LER4634PT0, LER4634PT1, LER5600HQ0, LER5600HZ0, LER5600JQ0, LER5600JT0, LER5620KQ0, LER5620KQ1, LER5620KQ2, LER5624BN2, LER5624BW2, LER5624DQ0, LER5624DQ1, LER5624DW1, LER5624DZ0, LER5624DZ1, LER5634AQ2, LER5634DQ1, LER5634EQ0, LER5634EZ0, LER5634LG0, LER5634LQ0, LER5634LT0, LER5634LW0, LER5635LQ0, LER5635LQ1, LER5636DW0, LER5636DW1, LER5636EQ0, LER5636EQ1, LER5636EQ2, LER5636EQ3, LER5636EZ0, LER5636EZ01, LER5636EZ1, LER5636EZ2, LER5636EZ3, LER5636JQ0, LER5636JT0, LER5636KQ0, LER5636KQ1, LER5636KT0, LER5636KT1, LER5636LG0, LER5636LQ0, LER5636LQ1, LER5636LT0, LER5636LT1, LER5636LW0, LER5636PQ0, LER5636PQ1, LER5636PT0, LER5636PT1, LER5638AN3, LER5638AW3, LER5644AN2, LER5644AW2, LER5644EQ0, LER5644EQ1, LER5644EQ2, LER5644EZ0, LER5644EZ1, LER5644EZ2, LER5644JQ0, LER5644JQ1, LER5644JQ2, LER5644JQ3, LER5644JT0, LER5644JT1, LER5644JT2, LER5644JT3, LER5644PQ0, LER5644PQ1, LER5700KQ0, LER5700KQ1, LER5700KT0, LER5700KT1, LER5848EQ0, LER5848EQ1, LER5848EQ2, LER5848EQ3, LER5848EQ4, LER5848EQ5, LER6611LQ0, LER6611LQ1, LER6611PQ0, LER6620PQ0, LER6620PQ1, LER6620PT0, LER6620PT1, LER6621PQ0, LER6634BN2, LER6634BQ2, LER6634BW2, LER6634DQ0, LER6634DQ1, LER6634DW0, LER6634DW1, LER6634DZ0, LER6634DZ1, LER6636PW0, LER6636PW1, LER6638DQ0, LER6638DQ1, LER6638DW0, LER6638DW1, LER6638DZ0, LER6638DZ1, LER6644DQ0, LER6644DQ1, LER6644DZ0, LER6644DZ1, LER6646BN2, LER6646BW2, LER6646DN1, LER6646DW1, LER6646PW0, LER6646PW1, LER6848AN2, LER6848AQ2, LER6848AW2, LER6848AZ2, LER7620KQ0, LER7620KQ1, LER7620KT0, LER7620KT1, LER7620LG0, LER7620LG1, LER7620LQ0, LER7620LW0, LER7620LW1, LER7646AN2, LER7646AQ2, LER7646AW2, LER7646AZ2, LER7646DQ0, LER7646DQ1, LER7646DW0, LER7646DW1, LER7646DZ0, LER7646DZ1, LER7646EQ0, LER7646EQ1, LER7646EQ2, LER7646EZ0, LER7646EZ1, LER7646EZ2, LER7646JQ0, LER7646JT0, LER7648KQ0, LER7648KQ1, LER7648KQ2, LER7648KQ3, LER7648KT0, LER7648KT1, LER7648KT2, LER7648KT3, LER7648PQ0, LER7648PQ1, LER7648PT0, LER7648PT1, LER7848DQ0, LER7848DQ1, LER7848DZ0, LER7848DZ1, LER7858AN2, LER7858AW2, LER8620PG0, LER8620PG1, LER8620PW0, LER8620PW1, LER8648LG0, LER8648LG1, LER8648LQ0, LER8648LW0, LER8648LW1, LER8648PG0, LER8648PG1, LER8648PQ0, LER8648PQ1, LER8648PW0, LER8648PW1, LER8857EQ0, LER8857EQ1, LER8857EQ2, LER8857EZ0, LER8857EZ1, LER8857EZ2, LER8858DQ0, LER8858DQ1, LER8858DZ0, LER8858DZ1, LER8858EQ0, LER8858EQ1, LER8858EQ2, LER8858EZ0, LER8858EZ1, LER8858EZ2, LER8875EQ1, LET5624BN2, LET5624BQ2, LET5624BW2, LET5624DQ0, LET5624DQ1, LET6634AN2, LET6634AQ2, LET6634AW2, LET6634DQ0, LET6634DQ1, LET6634DZ0, LET6634DZ1, LET6638AN2, LET6638AQ2, LET6638AW2, LET6638DQ0, LET6638DQ1, LET6638DZ0, LET6638DZ1, LET7646AQ2, LET7646AZ2, LET7646DQ0, LET7646DQ1, LET7646DZ0, LET7646DZ1, LET7646EQ0, LET7646EQ1, LET7646EQ2, LET7646EZ0, LET7646EZ1, LET7646EZ2, LET7848AQ2, LET7848AZ2, LET7848DQ0, LET7848DQ1, LET7848DZ0, LET7848DZ1, LET8858AN2, LET8858AQ2, LET8858AW2, LET8858AZ2, LET8858DQ0, LET8858DQ1, LET8858DZ0, LET8858DZ1, LEV4634JQ0, LEV4634JQ1, LEV4634JQ2, LEV4634JT0, LEV4634JT1, LEV4634PQ0, LEV4634PQ1, LEV6634BN2, LEV6634BQ2, LEV6634BW2, LEV6634DQ0, LEV6634DQ1, LEV6634DZ0, LEV6634DZ1, LEV6646AN2, LEV6646AW2, LEV7646AN2, LEV7646AW2, LEV7646DQ0, LEV7646DQ1, LEV7646DZ0, LEV7646DZ1, LEV7848DQ0, LEV7848DQ1, LEV7848DZ0, LEV7848DZ1, LEV7858AN2, LEV7858AW2, LEW8858HQ0, LEW8858HQ1, LTE6234AN3, LTE6234AW3, LTE6234DQ0, LTE6234DQ1, LTE6234DQ2, LTE6234DT2, LTE6234DZ0, LTE6234DZ1, LTE6234DZ2, MED5570TQ0, MED5591TQ0, MED5600TQ0, MED5600TQ1, MED5620TQ0, MED5620TQ1, MED5621TQ0, MED5630TQ0, MED5630TQ1, MED5640TQ0, MED5640TQ1, MED5700TQ0, MED5700TQ1, MED5707TQ0, MED5707TQ1, MED5720TQ0, MED5721TQ0, MED5730TQ0, MED5740TQ0, MED5740TQ1, MED5770TQ0, MED5800TW0, MED5800TW1, MED5805TW0, MED5805TW1, MED5820TW0, MED5820TW1, MED5821TW0, MED5830TW0, MED5830TW1, MED5840TW0, MED5840TW1, MED5870TW0, MED5870TW1, MED5900TW0, MED5900TW1, MED5920TW0, MED5921TW0, MED6600TQ0, MEDC100YQ0, MEDC200XW0, MEDC200XW1, MEDC200XW2, MEDC200XW3, MEDC215EW0, MEDC215EW1, MEDC300BW0, MEDC300XW0, MEDC300XW1, MEDC400BW0, MEDC400BW1, MEDC400VW0, MEDC415EW0, MEDC415EW1, MEDC500VW0, MEDC500VW1, MEDC555DW1, MEDC555DW2, MEDX500BW0, MEDX500BW1, MEDX655DW0, MEDX655DW1, NED4500TQ0, NED4500VQ0, NED4500VQ2, NED4600YQ0, NED4600YQ1, NED4655EW0, NED4655EW1, NED4700YQ0, NED4700YQ1, NED4705EW0, NED4705EW1, NED4800VQ0, NED4800VQ1, NED5100TQ0, NED5100TQ1, NED5200TQ0, NED5240TQ0, NED5400TQ0, NED5500TQ0, NED5800TQ0, RED4000SW0, RED4100SQ0, RED4300SQ0, RED4300TQ0, RED4340SQ0, RED4340SQ1, RED4400SQ0, RED4400TQ0, RED4400VQ0, RED4400VQ1, RED4440SQ0, RED4440VQ0, RED4440VQ1, RED4440VQ2, RED4640YQ0, RED4640YQ1, RED4645EW0, REK2950KQ0, REK2950KQ1, REK2950KQ2, REL3612BW2, REL3612BW3, REL4622BL2, REL4622BW2, REL4622DL0, REL4622DL1, REL4622DW0, REL4622DW1, REL4632BL2, REL4632BL3, REL4632BQ2, REL4632BQ3, REL4632BW2, REL4632BW3, REL4632DL0, REL4632DL1, REL4632DW0, REL4632DW1, REL4634BL2, REL4634BL3, REL4634BW2, REL4634BW3, REL4636BL2, REL4636BL3, REL4636BW2, REL4636BW3, RES6745PQ0, RES7646JQ0, RES7646KQ0, RES7646KQ1, RES7646KQ2, RES7646KQ3, RES7648EN0, RES7648EN1, RES7648EN2, RES7648EQ0, RES7648EQ2, RES7648EW0, RES7648EW1, RES7648EW2, RES7648JQ0, RES7648KQ0, RES7648KQ1, RES7745PQ0, RES7745RQ0, RES7745RQ1, REX2614LQ0, REX3514PQ0, REX3514RQ0, REX3514RQ1, REX3519PQ0, REX3614JW0, REX3614KW0, REX3614KW1, REX3614KW2, REX3614PW0, REX3614PW1, REX3614PW2, REX3615EW0, REX3615EW1, REX3615EW2, REX4625EN0, REX4625EW0, REX4625EW1, REX4625EW2, REX4634JQ0, REX4634KQ0, REX4634KQ1, REX4634KQ2, REX4635EN0, REX4635EN1, REX4635EN2, REX4635EQ0, REX4635EQ1, REX4635EQ2, REX4635EW0, REX4635EW1, REX4635EW2, REX5634JQ0, REX5634KQ0, REX5634KQ1, REX5634KQ2, REX5634PQ0, REX5634PQ1, REX5634RQ0, REX5635EN0, REX5635EN1, REX5635EN2, REX5635EQ0, REX5635EQ1, REX5635EQ2, REX5635EW0, REX5635EW1, REX5635EW2, REX5636AL2, REX5636AW2, REX6634PQ0, REX6634RQ0, REX6634RQ1, REX6646AL2, REX6646AL3, REX6646AQ2, REX6646AQ3, REX6646AW2, REX6646AW3, SEDS800HQ0, SEDS800JQ0, SEDS800JQ1, SEDS800MQ0, SEDS800MQ1, SEDX600HQ0, SEDX600JQ0, SEDX600JQ1, SEDX600MQ0, SEDX600MQ1, TEDL400BW2, TEDL640BW2, TEDL640DQ0, TEDL640DQ1, TEDS680BN2, TEDS680BQ2, TEDS680BW2, TEDS680DQ0, TEDS680DQ1, TEDS680EQ0, TEDS680EQ1, TEDS680EQ2, TEDS740JQ0, TEDS740JQ1, TEDS740JQ2, TEDS740PQ0, TEDS740PQ1, TEDS780JQ0, TEDS840JQ0, TEDS840JQ1, TEDS840JQ2, TEDS840JQ3, TEDS840PQ0, TEDS840PQ1, TEDX340RW0, TEDX340RW1, TEDX340RW2, TEDX540RQ0, TEDX540RQ1, TEDX640EQ0, TEDX640EQ1, TEDX640EQ2, TEDX640JQ0, TEDX640JQ1, TEDX640JQ2, TEDX640PQ0, TEDX640PQ1, WED4616FW0, WED4700YQ0, WED4750XQ0, WED4750XQ1, WED4800BQ0, WED4800BQ1, WED4800XQ0, WED4800XQ1, WED4800XQ2, WED4800XQ3, WED4800XQ4, WED4810BQ0, WED4810EW0, WED4810EW1, WED48153W1, MODEL, WED48153W1, PARTS, WED4815EW0, WED4815EW1, WED4850BW0, WED4850BW1, WED4850XQ0, WED4850XQ1, WED4850XQ2, WED4870BW0, WED4890BQ0, WED4890BW0, WED4890XQ0, WED4890XQ1, WED4890XQ2, WED4900XW0, WED4900XW1, WED4900XW2, WED4910XQ0, WED4910XQ1, WED4910XQ2, WED4915EW0, WED4915EW1, WED4916FW0, WED4975EW1, WED4985EW0, WED4995EW0, WED4995EW1, WED5000DW1, WED5000DW2, WED5000VQ0, WED5000VQ1, WED5100SQ0, WED5100VQ0, WED5100VQ1, WED5200TQ0, WED5200VQ0, WED5200VQ1, WED5300SQ0, WED5300ST0, WED5300VW0, WED5310SQ0, WED5320SQ0, WED5321SQ0, WED5500SQ0, WED5500ST0, WED5510VQ0, WED5510VQ1, WED5520SQ0, WED5521SQ0, WED5530SQ0, WED5540SQ0, WED5540ST0, WED5550SQ0, WED5550ST0, WED5560SQ0, WED5590SQ0, WED5590VQ0, WED5590VQ1, WED5600SQ0, WED5600ST0, WED5600VQ0, WED5700SW0, WED5700VH0, WED5700VH1, WED5700VW0, WED5700VW1, WED5790SQ0, WED5790ST0, WED5790VQ0, WED5790VQ1, WED5800SG0, WED5800SW0, WED5810SW0, WED5820SW0, WED5821SW0, WED5830SW0, WED5840SG0, WED5840SW0, WED5850SG0, WED5850SW0, WED5860SG0, WED5860SW0, WED5900SB0, WED5900SW0, WED6200SW0, WED6200SW1, WED6600WL0, WED7000DW0, WED7000DW1, YAED4370TQ0, YAED4470TQ0, YAED4475TQ1, YCEDS563SQ0, YCEDX463RQ1, YCEP2960JQ0, YEED4300TQ0, YEED4300VQ0, YEED4300VQ1, YEED4400TQ0, YEED4400WQ0, YGEW9877JQ1, YGEX9868JQ1, YGEX9868JQ2, YHED4300TQ0, YHED4400TQ0, YIED4400VQ1, YIED4400VQ2, YIED4600YQ0, YIED4671DQ0, YIED4671EW0, YIED4671EW1, YIED4700YQ0, YIED4700YQ1, YIED4771DQ0, YKEYE677BW2, MODEL, YKEYE677BW2, PARTS, YKEYS710JQ0, YKEYS710JQ1, YKEYS710LQ0, YLEN1000PQ0, YLEN1000PQ1, YLEN2000JQ1, YLEN2000KQ0, YLEN2000KQ1, YLEN2000LW0, YLEN2000LW1, YLEN2000PW1, YLEQ5000KQ0, YLEQ5000KQ1, YLEQ5000KQ2, YLEQ5000KW1, YLEQ5000KW2, YLEQ5000PW0, YLEQ5000PW1, YLEQ7000KQ0, YLEQ7000KQ1, YLEQ8000JQ2, YLEQ9857LW0, YLEQ9857LW1, YLER3624JQ1, YLER4000RQ0, YLER4000RQ1, YLER4634JQ1, YLER4634JQ2, YLER4634PQ0, YLER4634PQ1, YLER5635JQ1, YLER5636PQ0, YLER5636PQ1, YLER8648PW0, YLER8648PW1, YLEV4634JQ1, YMED5600TQ0, YMED5600TQ1, YMED5620TQ0, YMED5620TQ1, YMED5640TQ0, YMED5700TQ0, YMED5700TQ1, YMED5707TQ0, YMED5720TQ0, YMED5720TQ1, YMED5740TQ0, YMED5740TQ1, YMED5800TW0, YMED5820TW0, YMED5820TW1, YMED5840TW0, YMED5900TW0, YMED5900TW1, YMED6600TQ0, YMEDB755DW1, YMEDC200XW0, YMEDC200XW1, YMEDC200XW2, YMEDC200XW3, YMEDC300BW0, YMEDC300XW0, YMEDC300XW1, YMEDC400BW0, YMEDC400BW1, YMEDC400VW0, YMEDC415EW0, YMEDC415EW1, YMEDC500VW0, YMEDC555DW0, YMEDC555DW1, YMEDX500BW0, YMEDX500BW1, YMEDX6STBW0, YMEDX6STBW1, YNED4500VQ0, YNED4600YQ0, YNED4600YQ1, YNED4655EW0, YNED4655EW1, YNED4700YQ0, YNED4700YQ1, YNED4705EW0, YNED4755EW0, YNED4800VQ0, YNED4800VQ1, YNED5200TQ0, YNED5500TQ0, YNED5800TQ0, YRED4300SQ0, YRED4300TQ0, YRED4340SQ0, YRED4340SQ2, YRES7645KQ1, YREX3614KW1, YREX4634KQ0, YREX4634KQ1, YREX4634KQ2, YREX5634PQ0, YREX6634RQ0, YREX6634RQ1, YWED4616FW0, YWED4800BQ0, YWED4800BQ1, YWED4800XQ0, YWED4800XQ1, YWED4800XQ2, YWED4815EW1, YWED4850BW0, YWED4850BW1, YWED4900XW0, YWED4900XW1, YWED4900XW2, YWED4915EW0, YWED4915EW1, YWED4916FW0, YWED49STBW0, YWED49STBW1, YWED5200VQ0, YWED5200VQ1, YWED5300SQ0, YWED5300VW0, YWED5700SW0, YWED5700VH0, YWED5700VH1, YWED5700VW0, YWED5700VW1, YWED5800SW0, YWED6200SW1, YWED6600WL0, YWED7300DW0, YWED7300DW1

Professional Repair Time: 60-90 minutes
DIY Repair Time: 90-120 minutes
Difficulty Rating: Medium-High (3.5/5) — Requires unplugging dryer, removing rear panel, accessing heating element housing, disconnecting wires, removing old components, installing new components, reconnecting wires, verifying proper operation, identifying and correcting root cause of overheating

CRITICAL SAFETY WARNING: This repair involves working with electrical components and accessing the heating element housing. Always unplug the dryer from the electrical outlet before beginning work to prevent electrical shock. The heating element and thermal protection components may be hot if the dryer was recently used—allow to cool completely before beginning work. If uncomfortable with this repair or unfamiliar with dryer disassembly procedures, hire a qualified appliance technician. IMPORTANT: Before replacing the thermal fuse and thermostat, identify and correct the root cause of overheating (restricted airflow, clogged lint filter or exhaust vent, defective heating element, etc.) or the new components will fail again immediately.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, nut driver or socket set (typically 1/4-inch or 5/16-inch), needle-nose pliers, flashlight, work gloves, multimeter (for testing).IMPORTANT: Before replacing the thermal fuse and thermostat, verify they are actually faulty by testing for continuity and identifying the root cause of overheating.

1. Unplug the dryer from the electrical outlet to ensure complete power disconnection. CRITICAL: Never work on the dryer while it's plugged in.
2. Pull the dryer away from the wall to access the rear panel. Caution: The dryer may be heavy—get assistance if needed.
3. Disconnect the dryer exhaust vent from the dryer by loosening the clamp and pulling the vent hose off. Important: Inspect the exhaust vent for blockages or lint buildup—this is the most common cause of thermal fuse failure.
4. Take multiple photos of the thermal fuse and thermostat locations, wire connections, mounting positions, and surrounding components before disassembly. CRITICAL: Proper reassembly requires exact wire positioning.
5. Take detailed close-up photos of: the thermal fuse wire connections and wire colors, the thermostat wire connections and wire colors, the mounting screw locations, and any other components nearby.
6. Remove the rear panel by removing the mounting screws (typically 6-10 screws around the perimeter) using a Phillips screwdriver. Caution: Support the panel while removing the last screw.
7. Carefully remove the rear panel and set it aside. Important: The heating element housing is now exposed.
8. Locate the heating element housing (large metal canister typically at the bottom or side of the dryer cabinet).
9. Locate the thermal fuse mounted on the heating element housing or blower housing (typically a small rectangular component with two wire terminals).
10. Locate the high-limit thermostat mounted on the heating element housing (typically a round disc component with two wire terminals).
11. Inspect the old thermal fuse and thermostat for damage indicators: no continuity when tested with multimeter (blown fuse or open thermostat, most common), visible burn marks or melted plastic (extreme overheating), loose or corroded wire connections (connection failure), or physical damage (cracking or breaking). This confirms the diagnosis.
12. Test the old thermal fuse with a multimeter by measuring resistance across the terminals. A functioning thermal fuse should have zero resistance (continuity). If resistance is infinite (open circuit), the fuse is blown.
13. Test the old high-limit thermostat with a multimeter by measuring resistance across the terminals at room temperature. A functioning thermostat should have zero resistance (continuity) at room temperature. If resistance is infinite (open circuit), the thermostat is stuck open or faulty.
14. Disconnect the thermal fuse wire terminals by pulling the wire connectors straight off the terminals. Caution: Do not pull on the wires—grasp the connectors and pull straight.
15. Remove the mounting screw(s) securing the thermal fuse to the heating element housing or blower housing using a Phillips screwdriver or nut driver (typically 1 screw). Caution: Support the fuse while removing the screw.
16. Carefully remove the old thermal fuse from the dryer.

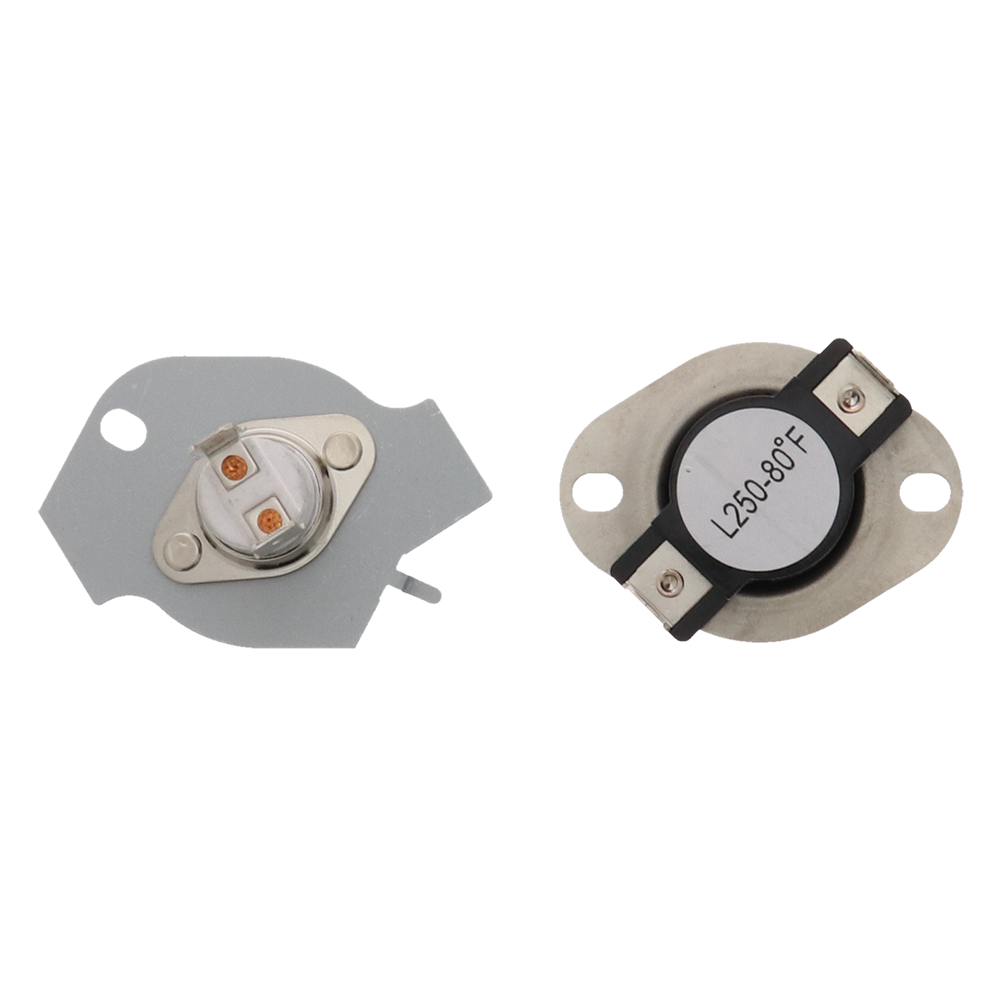

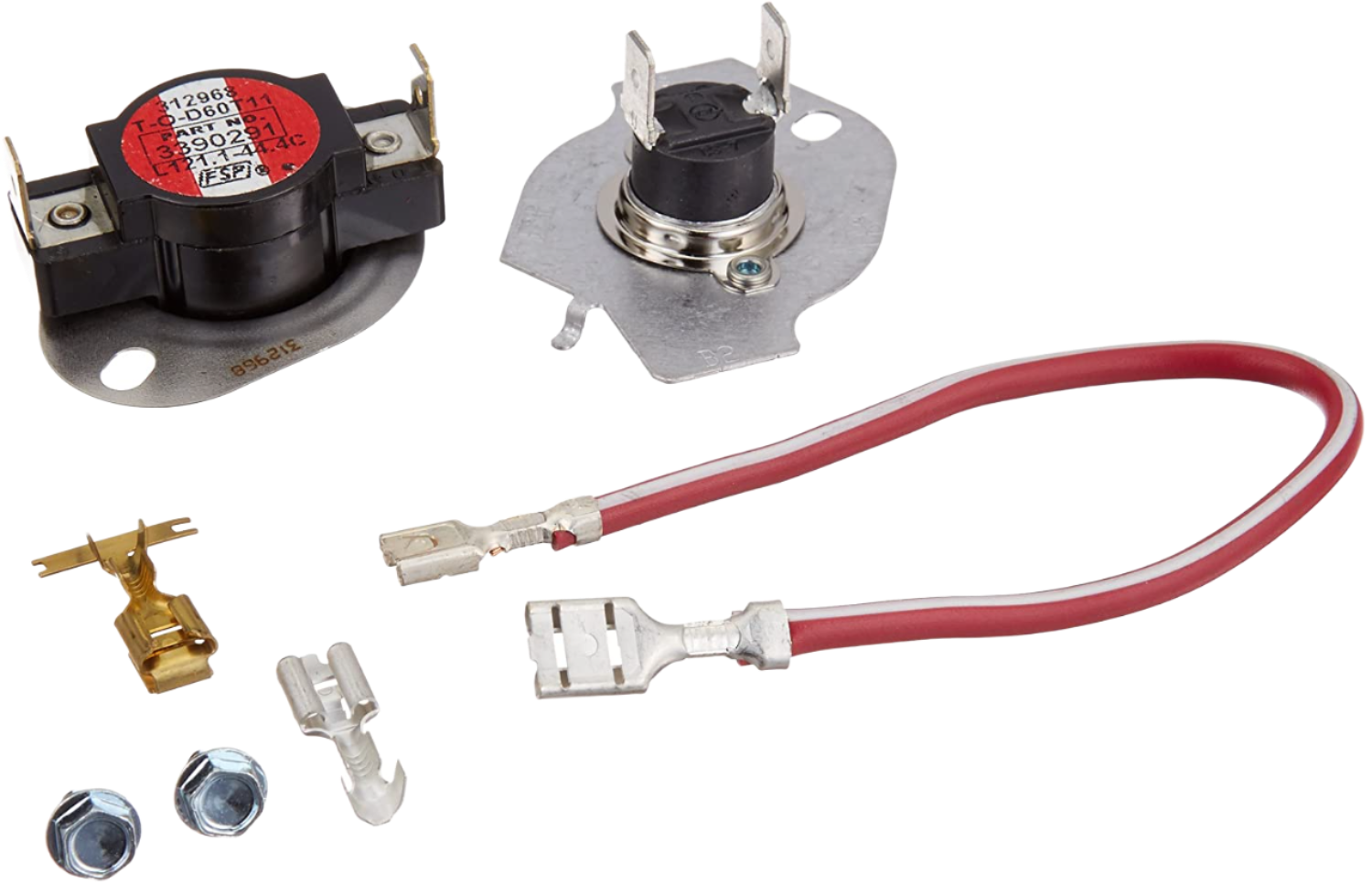

17. Disconnect the high-limit thermostat wire terminals by pulling the wire connectors straight off the terminals. Caution: Do not pull on the wires—grasp the connectors and pull straight.
18. Remove the mounting screw(s) securing the high-limit thermostat to the heating element housing using a Phillips screwdriver or nut driver (typically 1 screw). Caution: Support the thermostat while removing the screw.
19. Carefully remove the old high-limit thermostat from the dryer.
20. Inspect the mounting areas for damage, corrosion, or debris. Clean thoroughly if needed.
21. Inspect the heating element housing for lint buildup or blockages. Clean thoroughly if needed—lint buildup causes overheating.
22. Inspect the blower wheel for lint buildup or blockages. Clean thoroughly if needed—blocked blower causes overheating.
23. Inspect the exhaust vent for blockages or restrictions. Clean thoroughly if needed—blocked exhaust is the most common cause of thermal fuse failure.
24. Unpack the new 279816 thermal fuse and high-limit thermostat kit from its packaging. CAUTION: The components are precision safety devices—handle carefully.
25. Verify the kit includes: thermal fuse (309°F / 154°C), high-limit thermostat (250°F / 121°C), mounting screws, and installation instructions.
26. Compare the new components to the old ones to verify overall dimensions, terminal configurations, mounting bracket designs, and overall design match.
27. Inspect the new components for any shipping damage before installation. The housings should be intact with no cracks or damage, the terminals should be clean and undamaged, and the mounting brackets should be intact.
28. Position the new thermal fuse on the heating element housing or blower housing, aligning the mounting hole with the mounting screw hole. Important: Ensure the thermal fuse is positioned for good thermal contact with the housing—proper thermal contact is critical for accurate temperature sensing.
29. Install the mounting screw to secure the thermal fuse. Important: Tighten firmly to ensure good thermal contact but do not over-tighten.
30. Connect the thermal fuse wire terminals by pushing the wire connectors onto the terminals until they're fully seated. CRITICAL: Incorrect connections cause safety system malfunction.
31. Verify the wire connections are secure by gently tugging on the wires—they should not come loose.
32. Position the new high-limit thermostat on the heating element housing, aligning the mounting hole with the mounting screw hole. Important: Ensure the thermostat is positioned for good thermal contact with the housing—proper thermal contact is critical for accurate temperature sensing.
33. Install the mounting screw to secure the thermostat. Important: Tighten firmly to ensure good thermal contact but do not over -tighten.
    34. Connect the high-limit thermostat wire terminals by pushing the wire connectors onto the terminals until they're fully seated. CRITICAL: Incorrect connections cause safety system malfunction.
    35. Verify the wire connections are secure by gently tugging on the wires—they should not come loose.
    36. Verify both components are securely mounted with no excessive play or movement. Both should be stable but not over-tightened.
    37. Verify the thermal fuse and thermostat are wired correctly by checking against your detailed photos. Both components should be in series with the heating element circuit.
    38. Reinstall the rear panel by aligning it with the mounting holes and installing the mounting screws around the perimeter.
    39. Tighten the rear panel screws firmly using a Phillips screwdriver. Caution: Do not over-tighten—this can crack the panel.
    40. Reconnect the dryer exhaust vent by pushing the vent hose onto the dryer outlet and tightening the clamp.
    41. Verify the exhaust vent is securely connected with no gaps or air leaks.
    42. Push the dryer back into position against the wall.
    43. Restore electrical power by plugging in the dryer.
    44. Run a test cycle to verify proper thermal protection operation:
    - Set the dryer to a heat cycle (medium or high heat)
    - Observe the dryer for 5-10 minutes
    - Verify the dryer heats normally and clothes dry properly
    - Listen for any unusual sounds or smells
    - Allow the dryer to complete a full cycle
    - Verify the dryer shuts off when the cycle completes
    45. Check for proper heating during the test cycle. The dryer should heat normally and dry clothes in a reasonable time.
    46. Verify the dryer doesn't overheat during the test cycle. The dryer should maintain normal operating temperature.
    47. Monitor for any unusual sounds or smells during the test cycle. There should be no burning smells or unusual noises.
    48. Verify the dryer completes the cycle normally and shuts off when finished.
    49. If the dryer heats normally and completes cycles without overheating, the repair is complete.Safety Notes: Always unplug the dryer before working on thermal protection components. Identify and correct the root cause of overheating (restricted airflow, clogged lint filter or exhaust vent, defective heating element) before replacing the thermal fuse and thermostat, or the new components will fail again. Ensure all wire connections are secure and properly installed before testing. Verify good thermal contact between the thermal fuse/thermostat and the heating element housing. Test operation through a complete drying cycle to verify proper heating and thermal protection. Clean the exhaust vent regularly to prevent lint buildup and thermal fuse failure. This repair typically takes 60-90 minutes depending on dryer model and access. If uncomfortable working with dryer electrical systems or unfamiliar with thermal fuse and thermostat replacement procedures, hire a professional appliance technician.



The thermal fuse is a one-time use safety device that permanently opens when temperature reaches 309°F (154°C)—if the thermal fuse is blown, it must be replaced and the root cause of overheating must be identified and corrected, or the new fuse will blow again immediately. The thermal fuse is the final safety device that prevents dryer fires. If the fuse is blown, it indicates the dryer overheated to dangerous levels. Common causes include: restricted airflow from clogged lint filter or exhaust vent (most common, 80% of thermal fuse failures), blocked blower wheel or lint buildup in dryer cabinet (reduces airflow), defective heating element cycling on continuously (causes excessive heat), or failed high-limit thermostat not opening at correct temperature (allows overheating). Always investigate the root cause before replacing the fuse. Clean the lint filter, inspect the exhaust vent for blockages, clean the blower wheel, and verify the heating element cycles properly. If the new fuse blows again immediately, the root cause was not corrected—investigate further and do not replace the fuse again until the underlying problem is fixed.

The high-limit thermostat is a resettable safety device that opens at 250°F (121°C) and automatically resets when temperature drops—if the thermostat is stuck open or won't reset, it should be replaced. The high-limit thermostat is the first line of defense against overheating. When temperature reaches 250°F (121°C), the thermostat opens, cutting power to the heating element. When temperature drops below the reset threshold (typically 230°F / 110°C), the thermostat automatically resets and heating resumes. If the thermostat is stuck open, the dryer won't heat at all. If the thermostat won't reset, the dryer won't heat after cooling down. Test the thermostat with a multimeter at room temperature—it should have zero resistance (continuity). If resistance is infinite (open circuit), the thermostat is faulty and should be replaced. If the thermostat opens and closes repeatedly during a drying cycle, the dryer is overheating and the root cause should be investigated.

Restricted airflow is the most common cause of thermal fuse failure—always clean the lint filter before every drying cycle and inspect the exhaust vent regularly for blockages. The dryer requires proper airflow to remove moisture and heat from the cabinet. If airflow is restricted, heat builds up, causing the high-limit thermostat to cycle and eventually the thermal fuse to blow. The lint filter should be cleaned before every drying cycle—a clogged lint filter reduces airflow by up to 50%, causing overheating. The exhaust vent should be inspected regularly for lint buildup or restrictions. A blocked exhaust vent can cause the thermal fuse to blow within a few drying cycles. To prevent thermal fuse failure, clean the lint filter before every cycle and clean the exhaust vent at least once per year. If you notice the dryer taking longer than normal to dry clothes, the lint filter or exhaust vent may be clogged—clean them immediately to prevent thermal fuse failure.

The thermal fuse and high-limit thermostat must have good thermal contact with the heating element housing for accurate temperature sensing—poor thermal contact causes inaccurate temperature readings and thermal protection failure. The thermal fuse and thermostat sense temperature through direct contact with the heating element housing. If the mounting is loose or if there's debris between the component and the housing, thermal contact is poor, causing inaccurate temperature readings. The thermostat may not open at the correct temperature, allowing the dryer to overheat. When installing the new components, ensure they're mounted securely with good thermal contact. Tighten the mounting screw firmly to ensure good contact but do not over-tighten—over-tightening can crack the component. If the dryer continues to overheat after replacing the thermal fuse and thermostat, verify the components are securely mounted with good thermal contact.

The thermal fuse and high-limit thermostat are wired in series with the heating element circuit—if either component opens, power to the heating element is interrupted and heating stops. Both components must be properly connected in the heating element circuit. If a wire connection is loose or corroded, electrical contact is poor, causing intermittent heating or complete heating failure. When connecting the new components, ensure the wire connectors are fully seated on the terminals. Verify the connections are secure by gently tugging on the wires—they should not come loose. If the dryer has intermittent heating or won't heat at all after replacement, verify all wire connections are secure and properly installed.

The high-limit thermostat cycles on and off during normal operation to maintain dryer temperature—if the thermostat cycles frequently (more than once per minute), the dryer is overheating and the root cause should be investigated. The high-limit thermostat is designed to cycle on and off to maintain optimal dryer temperature. Occasional cycling is normal. However, if the thermostat cycles frequently (more than once per minute), the dryer is overheating and the root cause should be investigated. Common causes include: restricted airflow from clogged lint filter or exhaust vent, blocked blower wheel, lint buildup in dryer cabinet, or defective heating element. Investigate and correct the root cause to prevent thermal fuse failure. If the thermostat continues to cycle frequently after correcting airflow problems, the heating element may be faulty and should be tested or replaced.

The thermal fuse temperature rating (309°F / 154°C) is higher than the high-limit thermostat rating (250°F / 121°C) by design—this two-stage protection ensures the thermostat stops heating before the fuse blows under normal overheating conditions. The thermal fuse is the final safety device that prevents dryer fires. Under normal overheating conditions, the high-limit thermostat opens first at 250°F (121°C), stopping heating and allowing the dryer to cool. If the thermostat fails or if extreme overheating occurs, the thermal fuse blows at 309°F (154°C), permanently cutting power to the heating element. This two-stage design provides redundant protection. If the thermal fuse blows without the thermostat opening first, the thermostat may be faulty or the overheating was extreme. Always test the thermostat and verify it opens at the correct temperature when replacing the thermal fuse.

The dryer exhaust vent should be cleaned at least once per year to prevent lint buildup and thermal fuse failure—a blocked exhaust vent can cause the thermal fuse to blow within a few drying cycles. The exhaust vent removes moisture and heat from the dryer. If the vent is blocked or restricted, heat builds up inside the dryer, causing the thermal fuse to blow. Lint can accumulate in the exhaust vent over time, restricting airflow. To prevent thermal fuse failure, clean the exhaust vent at least once per year. Disconnect the vent hose from the dryer and use a vent brush or vacuum to remove lint buildup. Verify the vent opening on the exterior of the house is not blocked. If you notice the dryer taking longer than normal to dry clothes or if the dryer is getting too hot to touch, the exhaust vent may be blocked—clean it immediately.

If the thermal fuse blows repeatedly (more than once per year), investigate the root cause thoroughly—repeated thermal fuse failure indicates a serious overheating problem that must be corrected. Thermal fuse failure is not normal and indicates an underlying problem. If the fuse blows more than once per year, the root cause must be identified and corrected. Common causes include: restricted airflow from clogged lint filter or exhaust vent (most common), blocked blower wheel, lint buildup in dryer cabinet, defective heating element, or faulty high-limit thermostat. Investigate each potential cause systematically: clean the lint filter and exhaust vent, inspect the blower wheel for blockages, inspect the dryer cabinet for lint buildup, test the heating element for proper cycling, and test the high-limit thermostat for proper operation. If repeated thermal fuse failure occurs despite correcting these issues, the dryer may have a more serious problem requiring professional diagnosis.

The thermal fuse and high-limit thermostat should be replaced together as a kit—replacing only one component leaves the thermal protection system incomplete and may not provide adequate protection. The 279816 kit includes both the thermal fuse and high-limit thermostat for complete thermal protection. Both components work together as an integrated system. If you replace only the thermal fuse but not the thermostat, or vice versa, the thermal protection may be incomplete. Always replace both components together using a complete kit like the 279816. This ensures the thermal protection system is functioning properly and provides adequate protection against overheating and fire hazards.

After replacing the thermal fuse and thermostat, monitor the dryer for proper operation for several drying cycles—if overheating or thermal cycling continues, the root cause may not have been corrected. Even with new thermal fuse and thermostat installed, if the root cause of overheating is not corrected, the new components may fail again or the dryer may continue to overheat. After installation, run several drying cycles and monitor the dryer for proper operation. The dryer should heat normally and dry clothes in a reasonable time. If the dryer continues to overheat, cycles on and off repeatedly, or takes longer than normal to dry clothes, the root cause may not have been corrected. Investigate further: verify the lint filter is clean, verify the exhaust vent is not blocked, verify the blower wheel is not blocked, and verify the heating element is cycling properly. If you cannot identify the cause, contact a qualified technician for diagnosis.

The thermal fuse and high-limit thermostat are critical safety components—never bypass, disable, or replace with non-OEM components. The thermal fuse and high-limit thermostat are critical safety devices that protect against dryer fires and component damage. Never bypass these components or disable the thermal protection system. Never replace with non-OEM components—always use genuine OEM thermal fuse and thermostat kits like the 279816. Non-OEM components may have incorrect temperature ratings or poor reliability, compromising safety. Always use genuine OEM components and maintain the complete thermal protection system for safe dryer operation.

• Dryer runs but doesn't heat (thermal fuse blown or thermostat open, most common symptom)
• Dryer overheats and shuts off repeatedly (high-limit thermostat cycling)
• Dryer takes multiple cycles to dry clothes (intermittent heating from thermostat cycling)
• Burning smell from dryer (overheating before thermal protection activated)
• Visible damage to thermal fuse or thermostat (physical damage from extreme heat)
• Melted wires or connectors (extreme overheating)
• Dryer won't start at all (thermal fuse blown and wired through start circuit on some models)
• Dryer gets too hot to touch (overheating from failed thermal protection)
• Clothes smell burned or scorched (excessive heat from failed thermal protection)
• Dryer cycles on and off repeatedly (thermostat cycling from overheating)
• Lint buildup in dryer cabinet (restricted airflow causing overheating)
• Dryer takes longer than normal to dry clothes (reduced heating from thermostat cycling)
