316048414 Frigidaire Range Drip Pan – Fix Your Electric Range With a Stained, Warped, or Missing 6-Inch Burner Drip Pan

OEM Replacement Part | Canadian Business Since 1996 | Fast Canada-Wide Shipping | 30 Years of Expertise

The 316048414 is the genuine OEM 6-inch chrome drip pan for Frigidaire, Kenmore, Electrolux, Gibson, White-Westinghouse, and Tappan electric ranges. This chrome-plated steel pan sits beneath the small burner element to catch spills, reflect heat upward for more efficient cooking, and protect the range interior from grease and food debris. When a drip pan becomes stained, warped, or corroded, replacing it restores cooking efficiency and keeps your range looking clean.

316048414 Frigidaire 6-Inch Chrome Range Drip Pan – Sales Banner | XPart Supply

✓ Model-Specific Repair Pages

Browse our Frigidaire range model parts pages and repair guides for your model:

Bosch SHE53T52UC Dishwasher Parts & Repair Guide Bosch SHE3ARF6UC Dishwasher Parts & Repair Guide Bosch SHE3ARF5UC Dishwasher Parts & Repair Guide Bosch SHE3ARF2UC Dishwasher Parts & Repair Guide Bosch SHE3AR76UC Dishwasher Parts & Repair Guide Bosch SHE3AR75UC Dishwasher Parts & Repair Guide Bosch SHE3AR72UC Dishwasher Parts & Repair Guide Bosch SGX68U55UC-D5 Dishwasher Parts & Repair Guide Bosch SGX68U55UC Dishwasher Parts & Repair Guide Bosch SGV68U53UC Dishwasher Parts & Repair Guide Bosch SGE53U56UC Dishwasher Parts & Repair Guide Bosch SGE53U55UC Dishwasher Parts & Repair Guide Bosch SGE53U52UC Dishwasher Parts & Repair Guide Bosch DWHD640JFP Dishwasher Parts & Repair Guide Bosch DWHD440MFP Dishwasher Parts & Repair Guide Drip Pan Repair Guide DI460131 Parts DI460113 Parts DI460112 Parts DI460111 Parts DI260411 Parts DI260410 Parts DI260130 Parts DF461163 Parts DF461162F Parts DF461162 Parts

Don’t see your model? Contact us and we’ll confirm compatibility for your Frigidaire or Kenmore range.

The 316048414 drip pan is a chrome-plated steel bowl that fits the 6-inch (small) burner position on coil-element electric ranges. Chrome drip pans reflect heat back up toward the burner, improving cooking efficiency. Over time, heat cycling, spills, and cleaning wear down the chrome finish and can warp the pan — a warped pan won’t sit flat, reducing heat reflection and allowing spills to reach the range interior. Replacement takes under 5 minutes with no tools required.

✓ Common Symptoms Fixed

✓ Drip pan stained or burnt beyond cleaning ✓ Pan warped, dented, or corroded ✓ Chrome finish worn or peeling ✓ Missing drip pan ✓ Uneven or slow cooking ✓ Pan cracked or broken

✓ Key Features & Specifications

Part Number: 316048414
Type: Range Drip Pan (Burner Bowl) — 6-inch / Small Burner
Material: Chrome-plated steel
Heat Rating: Up to 650°F
Fits: Frigidaire, Kenmore, Electrolux, Gibson, White-Westinghouse, Tappan electric ranges
Sold: Individually

✓ Buying Options

This listing is for the genuine OEM 316048414 6-inch chrome range drip pan sold by XPart Supply Ltd. This is the same part supplied by the original manufacturer for your electric range’s small burner position. Sold individually — order the quantity needed to replace all small burner pans.

OEM replacement parts are not affiliated with, sponsored by, or endorsed by Frigidaire, Electrolux, or any OEM manufacturer beyond the original supply relationship.

✓ Replacement Part Numbers

Part number 316048414 replaces: 08002897, 08003242, 316048406, 5303013589.

✓ Installation Tips

Difficulty: Very easy — no tools required. Estimated time: 2–5 minutes.
Safety: Allow the range to cool completely before handling drip pans.
Remove old pan: Lift the burner element slightly and slide the old drip pan out from beneath it.
Install new pan: Drop the 316048414 into position and lower the burner element back into place.
Note: Never use a cracked or severely warped drip pan — it may not sit properly under the burner element.

✓ Compatible Models

The 316048414 fits a wide range of Frigidaire, Kenmore, Electrolux, Gibson, White-Westinghouse, and Tappan coil-element electric ranges. Contact us with your full model number to confirm compatibility before ordering.

✓ Frequently Asked Questions

What size drip pan do I need — 6-inch or 8-inch?

Electric ranges typically have two small (6-inch) and two large (8-inch) burner positions. The 316048414 fits the 6-inch small burner. Check your burner size before ordering. See our Frigidaire drip pan repair guide for help diagnosing your issue.

Can I clean my drip pan instead of replacing it?

Lightly soiled pans can often be cleaned with baking soda or dish soap. However, heavily burnt, warped, or corroded pans cannot be restored — a warped pan won’t sit flat, reducing heat reflection and cooking efficiency. See our drip pan repair guide for full diagnostic steps.

Is 316048414 the same as 316048406?

Yes — 316048406 is one of several cross-reference numbers for this drip pan. The 316048414 is the current active OEM part number and directly replaces 316048406, 08002897, 08003242, and 5303013589.

Do I need to replace all four drip pans at once?

It’s not required, but replacing all pans at the same time is recommended for consistent appearance and uniform heat reflection. This part is sold individually — or see the L304458797 4-piece set to replace all four at once.

Does XPart Supply ship range parts across Canada?

Yes. XPart Supply ships OEM Frigidaire and Kenmore range parts Canada-wide with fast, reliable shipping. Contact us if you need help confirming compatibility with your specific range model.

316048414 Frigidaire Range Drip Pan – Retail Packaging Mockup | XPart Supply

✅Compatibility & Cross Reference

Burner Drip Pan, Drip Bowl, Burner Bowl

Part number 316048414 replaces 08002897, 08003242, 08005369, 08010467, 08011440, 2041081032, 204295102, 204490102, 204526102, 3013589, 3051021, 3051478, 316048406, 318067017, 318067021, 318067046, 3205285, 5303013589, 5303206604, 5303210565, 5303285961, 5304432494, 5308011440, 54210210002, 54210210006, 542T009P01, 542T009P02, 542T012P01, 542T014P01, 542T016P01, 542T020P01, 542T021P02, 542T021W02, A1505242, AE062005, AP00062005, AP062005, DB6CP, E062002, G54888, G55555, G55718, K001307595, K001315476, K005039501, K1300723, K1301999, K1307595, K1315476, K1317045, K5039501, P062002, P062005, Q000211875, Q000212095, Q000215481, WB32M77, WQ215481

63013003012,63013003015,63013003016,63013003017,63013003018,63013023010,63013023011,63013023015,63013023016,63013023017,63013023018,63013993010,63013993012,63013993015,63013993016,63013993017,63013993018,DF240161,DF241161,DF241761,DF260141,DF260142,DF260161,DF260161F,DF260162,DF260760,DF260761,DF261161,DF261161F,DF261161S,DF261162,DF261760,DF261761,DF460161,DF460161F,DF460162,DF460162F,DF460163,DF461161,DF461161F,DF461162,DF461162F,DF461163,DI260130,DI260410,DI260411,DI460111,DI460112,DI460113,DI460131,DI460132,DI460133,DI461111,DI461112,DI461113,DI461131,DI461132,DI461133,DWHD440MFM,DWHD440MFP,DWHD440MPR,DWHD640JFM,DWHD640JFP,DWHD640JPR,DWHD650GFP,DWHD650GPR,DWHD650JFM,DWHD650JFP,DWHD650JPR,DWHD651GFP,DWHD651JFM,DWHD651JFP,DWHD651JPR,S47KMK15UC,S47KMK15UC-22,S47KMK35UC,S47KMK35UC-25,SBE53M00EU,SBE53M10EU,SBE59T00EU,SBE65M30EU,SBE69T40EU,SBI40M15EU,SBI40M35EU,SBI47M15EU,SBI47M35EU,SBI53M05EU,SBI53M35EU,SBI58M15EU,SBI58M35EU,SBI58M65EU,SBI63M02CH,SBI63M05CH,SBI63M05EU,SBI63M06CH,SBI63N02CH,SBI63N05EU,SBI63N06CH,SBI65M15EU,SBI65M25EU,SBI65M55CH,SBI65M65EU,SBI65N15EU,SBI65T25EU,SBI65T45EU,SBI68M05EU,SBI68N05EU,SBI69M15AU,SBI69M15EU,SBI69M55EU,SBI69M65EU,SBI69N15EU,SBI69T05EU,SBI69T25EU,SBI69T45EU,SBU50M02SK,SBU50M32SK,SBU53M05EU,SBU69T05AU,SBV40E10CH,SBV40E10EU,SBV40E50CH,SBV40E50EU,SBV40M10EU,SBV43M00EU,SBV43M10EU,SBV47M10EU,SBV48M10EU,SBV50E00EU,SBV50E10EU,SBV50E10GB,SBV50M00EU,SBV50M10EU,SBV50M20EU,SBV50M50EU,SBV50M70EU,SBV51E00EU,SBV53M00EU,SBV53M30EU,SBV53M50CH,SBV53M50EU,SBV53M90CH,SBV53M90EU,SBV55T00CH,SBV55T00EU,SBV55T10SK,SBV58M00EU,SBV58M10EU,SBV58M30EU,SBV58M50EU,SBV58M90EU,SBV59T00EU,SBV59T10SK,SBV63M00AU,SBV63M00EU,SBV63M10EU,SBV63M20EU,SBV63M30EU,SBV63M40EU,SBV63M50EU,SBV63N00EU,SBV65M00GB,SBV65M10EU,SBV65M20EU,SBV65M30EU,SBV65N10EU,SBV65T00EU,SBV65T00SK,SBV65T20EU,SBV65T40EU,SBV65T50EU,SBV68M00EU,SBV68M30EU,SBV68M50EU,SBV68N00EU,SBV69M10EU,SBV69M10GB,SBV69M30EU,SBV69M40EU,SBV69M50EU,SBV69N10EU,SBV69T00AU,SBV69T10EU,SBV69T20EU,SBV69T40EU,SBV69T60EU,SBV85M23EU,SBV85M33EU,SBV95M00NL,SBV95M10NL,SBV96M00NL,SBV96M10NL,SCE53M05AU,SCE53M05EU,SCE53M25EU,SCE53M25RU,SCE53M35EU,SCE63M05AU,SCE63M05GB,SCE63M15EU,SCE63M25EU,SGE53U52UC,SGE53U55UC,SGE53U56UC,SGE63E05UC,SGE63E05UC/01,SGE63E05UC/25,SGE63E05UC/28,SGE63E05UC/29,SGE63E05UC/32,SGE63E06UC,SGE63E15UC,SGE63E15UC/01,SGE68U55UC,SGV63E03UC,SGV68U53UC,SGX68U55UC,SGX68U55UC-D5,SHE3AR72UC,SHE3AR75UC,SHE3AR76UC,SHE3ARF2UC,SHE3ARF5UC,SHE3ARF6UC,SHE53T52UC,SHE53T55UC,SHE53T56UC,SHE53TF2UC,SHE53TF5UC,SHE53TF6UC,SHE53TL2UC,SHE65T52UC,SHE65T55UC,SHE65T56UC,SHE68E05UC,SHE68E05UC-25,SHE68E05UC/01,SHE68E15UC,SHE68E15UC/01,SHE68T52UC,SHE68T55UC,SHE68T56UC,SHE68TL5UC,SHE7PT52UC,SHE7PT55UC,SHE7PT56UC,SHE863WF2N,SHE863WF5N,SHE863WF6N,SHE878WD2N,SHE878WD5N,SHE878WD6N,SHE89PW55N,SHE8ER55UC,SHE8PT55UC,SHE9ER55UC,SHE9ER55UC-50,SHE9PT55UC,SHP53T55UC,SHP53T55UC-09,SHP65T52UC,SHP65T55UC,SHP65T56UC,SHP65TL2UC,SHP65TL5UC,SHP65TL6UC,SHP68T55UC,SHP68TL5UC,SHP7PT55UC,SHP865WD5N,SHP865WF2N,SHP865WF5N,SHP865WF6N,SHP865ZD5N,SHP878ZD5N,SHP88PW55N,SHPM65W52N,SHPM65W55N,SHPM65W56N,SHPM65Z55N,SHPM78W52N,SHPM78W54N,SHPM78W55N,SHPM78W56N,SHPM78Z54N,SHPM78Z55N,SHPM88Z75N,SHPM98W75N,SHS5AV52UC,SHS5AV55UC,SHS5AV56UC,SHS5AVF2UC,SHS5AVF5UC,SHS5AVF6UC,SHS843AF5N,SHS863WD2N,SHS863WD2N-10,SHS863WD6N,SHSM63W52N,SHSM63W55N,SHSM63W56N,SHV53T53UC,SHV58E13UC,SHV68E13UC,SHV68E13UC-01,SHV68T53UC,SHV68TL3UC,SHV7ER53UC,SHV863WD3N,SHV9ER53UC,SHV9PT53UC,SHV9PT53UC-70,SHVM63W53N,SHVM78W53N,SHVM98W73N,SHX3AR72UC,SHX3AR75UC,SHX3AR76UC,SHX53T55UC,SHX58E15UC,SHX58E25UC,SHX5AV52UC,SHX5AV55UC,SHX5AV56UC,SHX5AVF5UC,SHX5ER55UC,SHX65T55UC,SHX68E05UC,SHX68E05UC-01,SHX68E15UC,SHX68E15UC-01,SHX68T52UC,SHX68T52UC-07,SHX68T55UC,SHX68T56UC,SHX68TL5UC,SHX7ER55UC,SHX7PT55UC,SHX863WB5N,SHX863WD5N,SHX878WD5N,SHX88PW55N,SHX88PZ65N,SHX89PW55N,SHX8PT55UC,SHX9ER55UC,SHX9PT55UC,SHX9PT75UC,SHXM4AY55N,SHXM63W55N,SHXM63WS5N,SHXM65W55N,SHXM78W52N,SHXM78W55N,SHXM78W56N,SHXM78Z55N,SHXM88Z75N,SHXM98W75N,SHXN8U55UC,SKE53M05AU,SKE53M05EU,SKE53M15EU,SKE53M15RU,SKE53M25EU,SKE63M05EU,SKE63M05GB,SKS40E02EU,SKS40E02GB,SKS40E02RU,SKS50E01EU,SKS50E01RU,SKS50E02EU,SKS50E11EU,SKS50E11RU,SKS50E12EU,SKS50E12RU,SKS50E16EU,SKS50E16RU,SKS50E18EU,SKS50E18RU,SKS60E02CH,SKS60E02EU,SKS60E02GB,SKS60E12EU,SKS60E12RU,SKS60E18EU,SKS60E18RU,SMD50E12CH,SMD50E12EU,SMD50E14EU,SMD50E82CH,SMD50E82EU,SMD50E84EU,SMD53M02EP,SMD53M02EU,SMD53M04EU,SMD53M06EP,SMD53M06EU,SMD53M62EU,SMD53M64EU,SMD53M72EU,SMD53M74EU,SMD53M82EU,SMD53M84EU,SMD53M86EU,SMD63M02EU,SMD63M04EU,SMD63N02EU,SMD63N04EU,SMD69M06EU,SMD69M14EU,SMD69M52EU,SMD69M54EU,SMD69N12EU,SMD69N14EU,SMD85M02DE,SMD85M04DE,SMD85M12DE,SMD85M14DE,SMD85M22DE,SMD85M24DE,SMD86M02DE,SMD86M04DE,SMD86M52DE,SMD86M54DE,SMD86M62DE,SMD86M64DE,SMD86M82DE,SMD86M84DE,SMD86N02DE,SMD86N04DE,SMD86N12DE,SMD86N14DE,SME53M00EU,SME53M10EU,SME65M30EU,SME69T40EU,SMI30E05TR,SMI40E25EU,SMI40E35EU,SMI40E65EU,SMI40M16EU,SMI40M22EU,SMI40M24EU,SMI40M25EU,SMI40M26EU,SMI40M26SK,SMI40M32EU,SMI40M35EU,SMI40M36EU,SMI40M55EU,SMI40M65EU,SMI43M05EU,SMI47M35EU,SMI50C02GB,SMI50C05GB,SMI50C06GB,SMI50E02TC,SMI50E05EU,SMI50E12EU,SMI50E15EU,SMI50E22EU,SMI50E22SK,SMI50E25AU,SMI50E25EP,SMI50E25EU,SMI50E25SK,SMI50E26EP,SMI50E26EU,SMI50E32EU,SMI50E35EU,SMI50E42EU,SMI50E45EU,SMI50E52EU,SMI50E55EU,SMI50E75EU,SMI50E85EU,SMI50M02EU,SMI50M02GB,SMI50M05GB,SMI50M06EU,SMI50M06GB,SMI50M65EU,SMI53E02TC,SMI53E05TC,SMI53E05TR,SMI53E25TC,SMI53M04EU,SMI53M05EU,SMI53M12EU,SMI53M14EU,SMI53M15EU,SMI53M15GB,SMI53M16EU,SMI53M35EU,SMI53M55EU,SMI53M62EU,SMI53M64EU,SMI53M65EU,SMI53M72EU,SMI53M74EU,SMI53M75EU,SMI53M82EU,SMI53M84EU,SMI53M85EU,SMI53M86EU,SMI53M95EU,SMI58M05EU,SMI58M15EU,SMI58M25EU,SMI58M35EU,SMI58M45EU,SMI58M55EU,SMI58M75EU,SMI58M95EU,SMI58N25EU,SMI59M05EU,SMI59M15EU,SMI60E02EU,SMI63M02CH,SMI63M04EU,SMI63M05EU,SMI63M05TC,SMI63M06CH,SMI63M06EU,SMI63M15EU,SMI63M25EU,SMI63M26EU,SMI63M35EU,SMI63M42EU,SMI63M45EU,SMI63M46EU,SMI63N04EU,SMI63N05EU,SMI63N06CH,SMI63N06EU,SMI65M15EU,SMI65M16EU,SMI65M22EU,SMI65M25EU,SMI65M55EU,SMI65M56CH,SMI65M56EU,SMI65M65EU,SMI65M65RU,SMI65N15EU,SMI65T05EU,SMI65T25EU,SMI65T45EU,SMI65T55EU,SMI68M05EP,SMI68M05EU,SMI68M06EP,SMI68M06EU,SMI68M15EU,SMI68M35EU,SMI68M55EU,SMI68N05EU,SMI69M12EU,SMI69M14EU,SMI69M15EU,SMI69M25EU,SMI69M35EU,SMI69M52EU,SMI69M54EU,SMI69M55EU,SMI69M65EU,SMI69M66EU,SMI69N12EU,SMI69N14EU,SMI69N15EU,SMI69T05EU,SMI69T05GB,SMI69T05SK,SMI69T15GB,SMI69T15SK,SMI69T25EU,SMI69T45EU,SMI69T55EU,SMI69T65EU,SMI84M05DE,SMI84M05EU,SMI85M25EU,SMI85M35DE,SMI85M35EU,SMI86M02DE,SMI86M04DE,SMI86M05DE,SMI86M05EU,SMI86M15DE,SMI86M25DE,SMI86M75DE,SMI86M84DE,SMI86M85DE,SMI86M95DE,SMI86N02DE,SMI86N04DE,SMI86N05DE,SMI95M15NL,SMS20E02TR,SMS30E02EU,SMS30E02TR,SMS30E09TR,SMS30E82IL,SMS40A02GB,SMS40A06GB,SMS40A08GB,SMS40C02GB,SMS40E02ZA,SMS40E08EU,SMS40E08ZA,SMS40E12EP,SMS40E28EU,SMS40E32EU,SMS40E38EU,SMS40E42EU,SMS40E52EU,SMS40E58EU,SMS40E62EU,SMS40E82EU,SMS40E92EU,SMS40M02EE,SMS40M12EE,SMS40M22EE,SMS40M32EU,SMS40M38EU,SMS40M42EU,SMS40M52EU,SMS40M62EU,SMS40M

Frigidaire, Electrolux, Kenmore, Gibson, White-Westinghouse, Tappan, Kelvinator, Crosley

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.

Buy Online Pick Up In-Store

Address
101 Trillium Dr
Kitchener, Ontario N2E 1W8
Phone
1-877-899-7278
Hours
Mon–Fri 9 AM–5 PM • Sat 9 AM–1 PM
Get Directions
Map showing warehouse location at 101 Trillium Dr, Kitchener
View on Google Maps

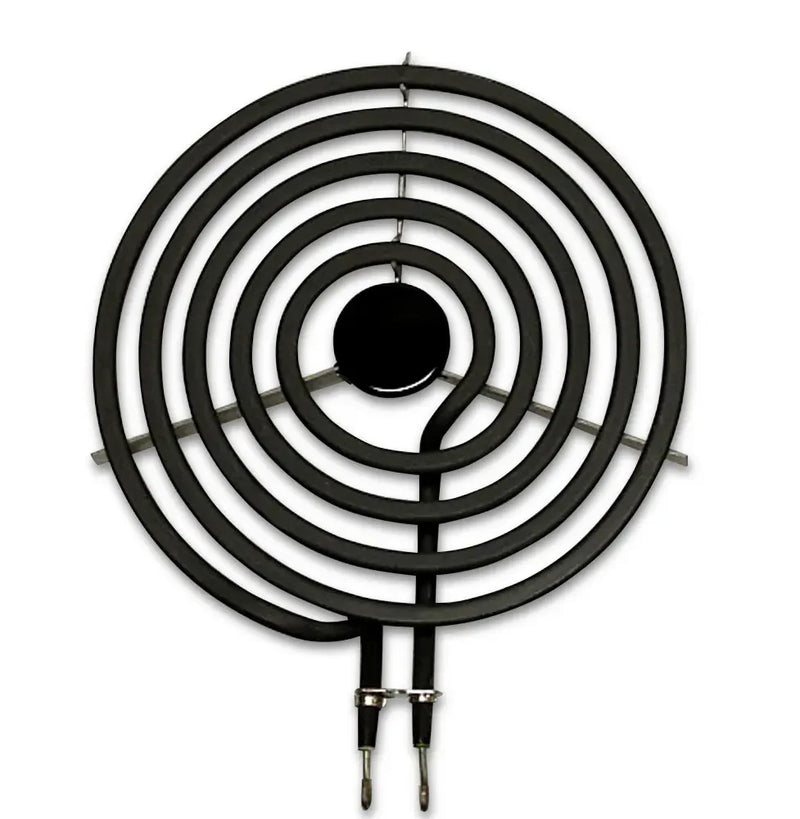

318372211 Range Coil Surface Element, 6", 1500W

318372211 Range Coil Surface Element, 6", 1500W

$49.40 $27.68

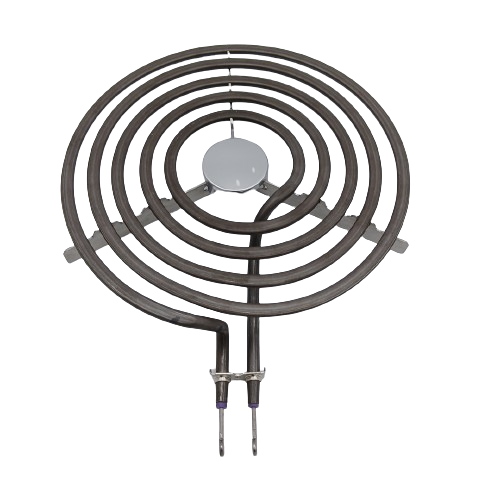

316442303 Oven 8" Coil Surface Element With Pigtail Ends

316442303 Oven 8" Coil Surface Element With Pigtail Ends

$254.42 $59.99

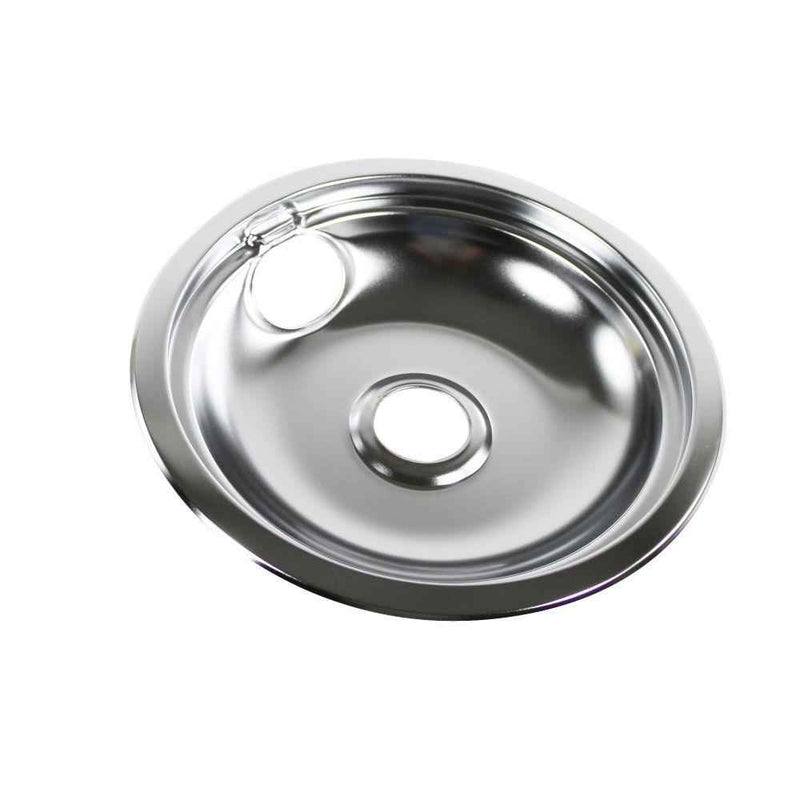

Frigidaire Range Drip Pan 316048413 – 8-Inch Chrome OEM Replacement
