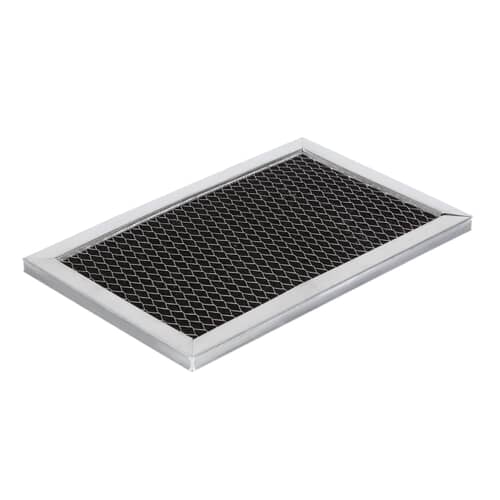

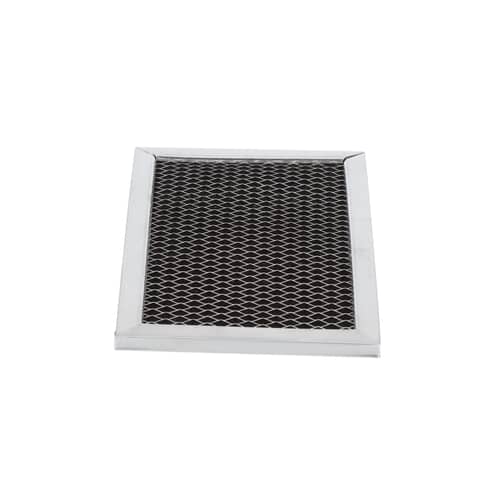

LG Microwave Charcoal Filter 5230W1A011B, Replaces 5230W1A011A, 2B72706D – Superseded by 5230W1A011C

OEM charcoal filter for microwave ventilation systems. It removes cooking odors from air circulating through the microwave vent and is approximately 8 inches by 5 inches.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Cooking odors are not effectively reduced during recirculation.
• Smoke or food smells linger in the kitchen after microwave use.
• The filter is visibly damaged, heavily soiled, or has been installed for an extended period.

Check Before Replacing

• Confirm the microwave is configured for recirculating ventilation rather than exterior ducting; charcoal filtration is used for recirculation.
• With the exhaust fan running, check whether odors continue to recirculate into the room.
• Visually inspect the filter behind the vent grille for damage, heavy soil, or an incorrect installation.
• Compare the removed filter’s approximate size and mounting position with the replacement before installation.

Pro Tip

Part Details

Key Features

• Genuine LG microwave charcoal filter.
• Activated-charcoal media for odor reduction in recirculating ventilation systems.
• Approximately 7 3/4 to 8 inches by 4 3/4 to 5 inches.
• Installed behind the microwave vent grille.
• Sold individually.

Installation Notes

• Disconnect power to the microwave before accessing the filter area.
• Refer to the specific microwave owner’s manual because grille removal and filter placement can vary by model.
• Remove the vent grille as directed by the model manual, remove the old filter, and slide or seat the new filter in the same position.
• Ensure the filter is fully seated and reinstall the vent grille before restoring power.
• Do not wash the charcoal filter; replace it according to the model manual or when odor filtration declines.

Verified Compatible Models

EXV1511B, EXV1511BS, EXV1511W, LMV1630BB, LMV1630WW, LMV1683SB, LMV1683SW, MV1526W, MV1610ST, MV1610WW, MV1611BB, MV1645EGL, MV1646EG, MV1646EGY, MVH1615WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
