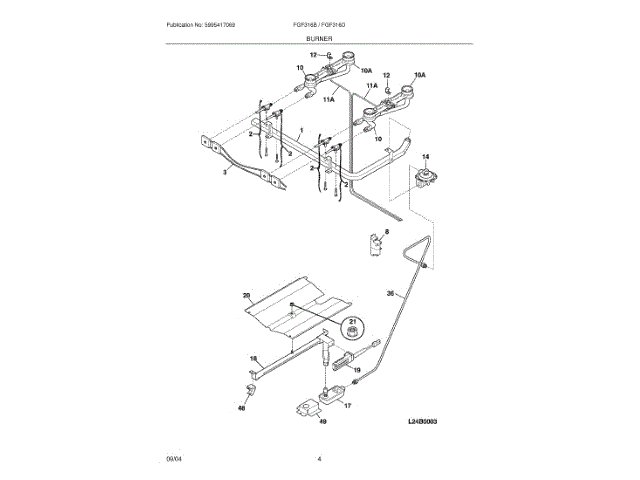

Item #19 in diagram.

Part number 5303935066 replaces 08009420, 08013883, 08067971, 10064, 10222, 2232401020, 3131090, 3131300, 316030600, 316428600, 316T031P01, 316T031P02, 318177710, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303308452, 5304525366, 5308009420, 7316428600, 7318177710, AP00205013, AP205013, AP205016, P-205016, P205034

Frigidaire, Electrolux, Kenmore, Gibson, White-Westinghouse, Tappan, Kelvinator, Crosley, Danby

1197028510, 1197028710, 1197028810, 1197028811, 1197028812, 1197028881, 1197028882, 1197038510, 1197038710, 1197038810, 1197038812, 1197038813, 1197038882, 1197038883, 1197048510, 1197048710, 1197048810, 1197048811, 1197048812, 1197048881, 1197048882, 1197058510, 1197058710, 1197058810, 1197058812, 1197058813, 1197058882, 1197058883, 1197078710, 1197078810, 1197078812, 1197078813, 1197078882, 1197078883, 1197338310, 1197338311, 1197367311, 1197398310, 1197398311, 1197438610, 1197438710, 1197438810, 1197458311, 1197458510, 1197488710, 1197488810, 1197488812, 1197488882, 1197498310, 1197498311, 1197498510, 1197498610, 1197498710, 1197498790, 1197498890, 1197498893, 1197728510, 1197738710, 1197738990, 12-1063-00-04, 12-1063-00-05, 12-1063-23-04, 12-1063-23-05, 12-1063-45-04, 12-1063-45-05, 12-1063-57-04, 12-1063-57-05, 12-1063-66-04, 12-1063-66-05, 12-1263-00-01, 12-1263-23-01, 12-1263-45-01, 12-1263-57-01, 12-1263-66-01, 12-1663-00-01, 12-1663-23-01, 12-1663-45-01, 12-1663-57-01, 12-1663-66-01, 12-1863-00-01, 12-1863-00-02, 12-1863-00-03, 12-229, 12-2299, 12-2299-00-01, 12-2299-00-02, 12-2299-00-03, 12-2299-00-04, 12-2299-00-06, 12-2299-10, 12-2299-10/04, 12-2299-10-05, 12-3883-00-01, 12-3883-23-01, 12-3883-45-01, 12-3883-57-01, 12-3883-66-01, 12-3893-00-01, 12-3893-23-01, 12-3893-45-01, 12-3893-57-01, 12-3893-66-01, 12-4980-00-01, 12-4980-00-03, 12-4980-00-04, 12-4980-00-05, 12-4980-10, 12-4980-10/04, 12-4990-00-01, 12-4990-00-02, 12-4990-00-03, 12-4990-00-04, 12-5063-00-04, 12-5063-00-05, 12-5063-23-04, 12-5063-23-05, 12-5063-45-04, 12-5063-45-05, 12-5063-57-04, 12-5063-57-05, 12-5063-66-04, 12-5063-66-05, 12-5299-00-01, 12-5299-00-02, 12-5299-00-04, 12-6263-00-01, 12-6263-23-01, 12-6263-45-01, 12-6263-57-01, 12-6263-66-01, 12-6663-00-01, 12-6663-23-01, 12-6663-45-01, 12-6663-57-01, 12-6663-66-01, 2129A, 2129B, 2129C, 21KPMAWAN4, 21KPMAWAN4-32, 21KPMAWAN5, 21KPMAWAN5-32, 21KPMAWAN6, 21KPMAWAN6-32, 21KPMAWAN7, 21KPMAWAN7-32, 21KPMAWAN8, 21KPMAWAN8-32, 2221, 2231, 2241, 2281, 2343-87A, 2420A, 2427A, 2458A, 2467A, 2468A, 2477A, 2478A, 2478B, 2488A, 24CPMCWBN1, 24CPMCWBN2, 24KPMAWAN4, 24KPMAWAN4-32, 24KPMAWAN5, 24KPMAWAN5-32, 24KPMAWAN7, 24KPMAWAN7-32, 2568A, 2568B, 28044, 280440C, 280447C, 2812A, 2813-80B, 2813A, 2819A, 2820A, 282240A, 282240B, 282240C, 282247B, 282247C, 2822A, 2823, 2823-80B, 2828A, 2829A, 2833, 2833-80B, 2834-80A, 2834-80B, 2834-87B, 283440A, 283440B, 283440C, 283440D, 283447B, 283447C, 283447D, 283460B, 283460C, 283467B, 283467C, 28364, 2841A, 284260A, 284267A, 2843-80A, 2843-80B, 2843-80C, 284440A, 284440B, 284447A, 284447B, 2851A, 2853, 28564, 285640A, 285640B, 285640D, 285640E, 285647A, 285647B, 285647D, 285647E, 285660A, 285667A, 28584, 285840A, 285840B, 285840C, 285840D, 285847A, 285847B, 285847C, 285847D, 28586, 285860A, 285860B, 285860C, 285867A, 28594, 285940A, 285940B, 285941A, 285947A, 285947B, 2859A, 2861A, 2864, 2864-80B, 2869A, 2871A, 2872A, 2873, 2873B, 2879A, 2881, 2883, 2883-80A, 2883-81A, 2883-81B, 2889A, 2891, 2893, 2893-80B, 2899A, 30-0127-23-03, 30-1149-00-02, 30-1149-00-03, 30-1149-00-04, 30-1149-00-05, 30-1149-00-06, 30-1149-00-07, 30-1149-00-08, 30-1149-00-10, 30-1149-00-11, 30-1149-00-12, 30-1149-23-01, 30-1149-23-02, 30-1149-23-03, 30-1149-23-04, 30-1149-23-05, 30-1149-23-06, 30-1149-23-07, 30-1149-23-08, 30-1149-23-10, 30-1149-23-11, 30-1149-23-12, 30-2042, -, 30-2042/13, 30-2042-00, 30-2042-00/13, 30-2132-00-01, 30-2132-00-02, 30-2132-00-03, 30-2132-00-04, 30-2132-23-01, 30-2132-23-02, 30-2132-23-03, 30-2132-23-04, 30-2138-00-05, 30-2138-00-06, 30-2138-23-05, 30-2138-23-06, 30-2138-66-05, 30-2138-66-06, 30-2139-00-01, 30-2139-00-02, 30-2139-00-03, 30-2139-00-04, 30-2139-00-05, 30-2139-00-06, 30-2139-00-07, 30-2139-00-08, 30-2139-00-09, 30-2139-23-01, 30-2139-23-02, 30-2139-23-03, 30-2139-23-04, 30-2139-23-05, 30-2139-23-06, 30-2139-23-07, 30-2139-23-08, 30-2139-23-09, 30-2232-00-01, 30-2232-00-02, 30-2232-00-03, 30-2232-00-04, 30-2232-23-01, 30-2232-23-02, 30-2232-23-03, 30-2232-23-04, 30-2234-00, 30-2234-00/07, 30-2234-23, 30-2234-23/07, 30-2238-00-06, 30-2238-23-06, 30-2238-66-06, 30-2239-00-01, 30-2239-00-02, 30-2239-00-03, 30-2239-00-04, 30-2239-00-05, 30-2239-00-06, 30-2239-00-07, 30-2239-00-08, 30-2239-00-09, 30-2239-23-03, 30-2239-23-04, 30-2239-23-05, 30-2239-23-06, 30-2239-23-07, 30-2239-23-08, 30-2239-23-09, 30-2241-00-01, 30-2241-00-02, 30-2241-00-03, 30-2241-00-04, 30-2241-00-05, 30-2241-00-06, 30-2241-00-07, 30-2241-00-08, 30-2241-00-09, 30-2241-23-01, 30-2241-23-02, 30-2241-23-03, 30-2241-23-04, 30-2241-23-05, 30-2241-23-06, 30-2241-23-07, 30-2241-23-08, 30-2241-23-09, 30-2242-00-01, 30-2242-00-02, 30-2242-00-03, 30-2242-00-04, 30-2242-23-01, 30-2242-23-02, 30-2242-23-03, 30-2242-23-04, 30-2249-00-01, 30-2249-00-02, 30-2249-00-04, 30-2249-00-05, 30-2249-00-06, 30-2249-00-07, 30-2249-23-01, 30-2249-23-03, 30-2249-23-04, 30-2249-23-05, 30-2249-23-06, 30-2249-23-07, 30-2249-66-02, 30-2249-66-03, 30-2251-00-01, 30-2251-00-02, 30-2251-00-03, 30-2251-00-04, 30-2251-00-05, 30-2251-00-06, 30-2251-00-07, 30-2251-00-08, 30-2251-00-09, 30-2251-00-10, 30-2251-00-11, 30-2251-23-01, 30-2251-23-02, 30-2251-23-03, 30-2251-23-04, 30-2251-23-05, 30-2251-23-06, 30-2251-23-07, 30-2251-23-08, 30-2251-23-09, 30-2251-23-10, 30-2251-23-11, 30-2252-00-01, 30-2252-00-02, 30-2252-00-03, 30-2262-23-01, 30-2262-23-02, 30-2272-00, 5995292421, 30-2272-00-01, 30-2272-00-02, 30-2272-00-03, 30-2272-00-04, 30-2272-00-05, 30-2272-00-06, 30-2272-00/07, 30-2272-23, 5995292421, 30-2272-23-01, 30-2272-23-02, 30-2272-23-03, 30-2272-23-04, 30-2272-23-05, 30-2272-23-06, 30-2272-23/07, 30-2528-00-03, 30-2528-00-04, 30-2528-00-05, 30-2528-23-03, 30-2528-23-04, 30-2528-23-05, 30-2538-00-05, 30-2538-00-06, 30-2538-23-05, 30-2538-23-06, 30-2538-66-05, 30-2538-66-06, 30-2542-00-01, 30-2542-00-02, 30-2542-00-03, 30-2542-23-01, 30-2542-23-02, 30-2542-23-03, 30-2549-00-01, 30-2549-00-02, 30-2549-00-03, 30-2549-00-04, 30-2549-00-05, 30-2549-00-06, 30-2549-00-07, 30-2549-23-01, 30-2549-23-02, 30-2549-23-03, 30-2549-23-04, 30-2549-23-05, 30-2549-23-06, 30-2549-23-07, 30-2551-00-01, 30-2551-00-02, 30-2551-00-03, 30-2551-00-04, 30-2551-23-01, 30-2551-23-02, 30-2551-23-03, 30-2551-23-04, 30-2552-00-01, 30-2552-00-02, 30-2552-23-01, 30-2552-23-02, 30-2757-00-03, 30-2757-00-04, 30-2757-00-05, 30-2757-00-06, 30-2757-23-03, 30-2757-23-04, 30-2757-23-05, 30-2757-23-06, 30-2757-66-03, 30-2757-66-04, 30-2757-66-05, 30-2757-66-06, 30-2758-00-01, 30-2758-00-02, 30-2758-00-03, 30-2758-00-04, 30-2758-23-01, 30-2758-23-02, 30-2758-23-03, 30-2758-23-04, 30-2758-66-01, 30-2758-66-02, 30-2758-66-03, 30-2758-66-04, 30-2759, 30-2759-00-01, 30-2759-00-02, 30-2759-00-03, 30-2759-00-04, 30-2759-00-05, 30-2759-00-06, 30-2759-00-07, 30-2759-00-08, 30-2759-00-09, 30-2759-00-10, 30-2759-23-01, 30-2759-23-02, 30-2759-23-03, 30-2759-23-04, 30-2759-23-05, 30-2759-23-06, 30-2759-23-07, 30-2759-23-08, 30-2759-23-09, 30-2759-23-10, 30-2761-00-01, 30-2761-00-02, 30-2761-00-03, 30-2761-00-05, 30-2761-00-06, 30-2761-00-07, 30-2761-23-01, 30-2761-23-02, 30-2761-23-03, 30-2761-23-05, 30-2761-23-06, 30-2761-23-07, 30-2769-00-01, 30-2769-00-02, 30-2769-23-01, 30-2769-23-02, 30-3036-00-02, 30-3036-00-03, 30-3036-23-02, 30-3036-23-03, 30-3053-00-01, 30-3053-00-02, 30-3053-00-03, 30-3053-00-04, 30-3053-23-01, 30-3053-23-02, 30-3053-23-03, 30-3053-23-04, 30-3148-00-03, 30-3148-23-03, 30-3148-66-03, 30-3152-00-01, 30-3152-00-02, 30-3152-00-03, 30-3152-00-04, 30-3152-23-01, 30-3152-23-02, 30-3152-23-03, 30-3152-23-04, 30-3236-00-02, 30-3236-00-03, 30-3341-00-01, 30-3341-00-02, 30-3341-00-03, 30-3341-00-04, 30-3341-23-01, 30-3341-23-02, 30-3341-23-03, 30-3341-23-04, 30-3342-00-01, 30-3342-00-02, 30-3342-23-01, 30-3342-23-02, 30-3348-00-03, 30-3348-23-03, 30-3348-66-03, 30-3349-00-01, 30-3349-00-02, 30-3349-00-03, 30-3349-00-04, 30-3349-00-05, 30-3349-23-01, 30-3349-23-02, 30-3349-23-03, 30-3349-23-04, 30-3349-23-05, 30-3350-00-01, 30-3350-00-02, 30-3350-00-03, 30-3350-00-04, 30-3350-00-05, 30-3350-23-01, 30-3350-23-02, 30-3350-23-03, 30-3350-23-04, 30-3350-23-05, 30-3352-00-01, 30-3352-00-02, 30-3352-00-03, 30-3352-00-04, 30-3352-00-05, 30-3352-23-01, 30-3352-23-02, 30-3352-23-03, 30-3352-23-04, 30-3352-23-05, 30-3378-00-03, 30-3378-23-03, 30-3378-66-03, 30-3648-00-03, 30-3648-23-03, 30-3648-66-03, 30-3649-00-01, 30-3649-00-02, 30-3649-00-03, 30-3649-00-04, 30-3649-00-05, 30-3649-00-06, 30-3649-00-07, 30-3649-23-01, 30-3649-23-02, 30-3649-23-03, 30-3649-23-04, 30-3649-23-05, 30-3649-23-06, 30-3649-23-07, 30-3649-66-01, 30-3649-66-02, 30-3649-66-03, 30-3649-66-04, 30-3649-66-05, 30-3649-66-06, 30-3649-66-07, 30-3657-00-01, 30-3657-00-02, 30-3657-00-03, 30-3657-23-01, 30-3657-23-02, 30-3657-23-03, 30-3658-00-01, 30-3658-00-02, 30-3658-00-03, 30-3658-00-04, 30-3658-23-01, 30-3658-23-02, 30-3658-23-03, 30-3658-23-04, 30-3658-66-01, 30-3658-66-02, 30-3658-66-03, 30-3658-66-04, 30-3851-00-02, 30-3851-00-03, 30-3851-00-04, 30-3851-00-05, 30-3851-23-02, 30-3851-23-03, 30-3851-23-04, 30-3851-23-05, 30-3852-00-01, 30-3852-00-02, 30-3852-00-03, 30-3852-00-04, 30-3852-00-05, 30-3852-23-01, 30-3852-23-02, 30-3852-23-03, 30-3852-23-04, 30-3852-23-05, 30-3857-00-05, 30-3857-00-06, 30-3857-23-05, 30-3857-23-06, 30-3857-66-05, 30-3857-66-06, 30-3858-00-02, 30-3858-00-03, 30-3858-00-04, 30-3858-00-05, 30-3858-10, 30-3858-23-02, 30-3858-23-03, 30-3858-23-04, 30-3858-23-05, 30-3858-66-01, 30-3858-66-02, 30-3858-66-03, 30-3858-66-04, 30-3858-66-05, 30-3859-00-01, 30-3859-00-02, 30-3859-00-03, 30-3859-00-04, 30-3859-23-01, 30-3859-23-02, 30-3859-23-03, 30-3859-23-04, 30-3860-00-01, 30-3860-00-02, 30-3860-00-03, 30-3860-00-04, 30-3860-23-01, 30-3860-23-02, 30-3860-23-03, 30-3860-23-04, 30-3863-00-01, 30-3863-00-02, 30-3863-00-03, 30-3863-00-04, 30-3863-00-05, 30-3863-23-01, 30-3863-23-02, 30-3863-23-03, 30-3863-23-04, 30-3863-23-05, 30-3882, 30-3882-00-01, 30-3882-23-01, 30-3978-00-01, 30-3978-00-02, 30-3978-00-03, 30-3978-00-04, 30-3978-00-05, 30-3978-23-01, 30-3978-23-02, 30-3978-23-03, 30-3978-23-04, 30-3978-23-05, 30-3978-66-01, 30-3978-66-02, 30-3978-66-03, 30-3978-66-04, 30-3978-66-05, 30-3979-00-01, 30-3979-00-02, 30-3979-00-03, 30-3979-00-04, 30-3979-00-05, 30-3979-00-06, 30-3979-00-07, 30-3979-00-08, 30-3979-23-01, 30-3979-23-02, 30-3979-23-03, 30-3979-23-04, 30-3979-23-05, 30-3979-23-06, 30-3979-23-07, 30-3979-23-08, 30-3981-00-01, 30-3981-00-02, 30-3981-00-03, 30-3981-00-04, 30-3981-00-05, 30-3981-23-01, 30-3981-23-02, 30-3981-23-03, 30-3981-23-04, 30-3981-23-05, 30-3982-00-01, 30-3982-00-02, 30-3982-00-03, 30-3982-00-04, 30-3982-00-05, 30-3982-00-06, 30-3982-00-07, 30-3982-23-01, 30-3982-23-02, 30-3982-23-03, 30-3982-23-04, 30-3982-23-05, 30-3982-23-06, 30-3982-23-07, 30-3987-00-03, 30-3987-00-04, 30-3987-00-05, 30-3987-00-06, 30-3987-23-03, 30-3987-23-04, 30-3987-23-05, 30-3987-23-06, 30-3987-66-03, 30-3987-66-04, 30-3987-66-05, 30-3987-66-06, 30-3988-00-03, 30-3988-00-04, 30-3988-01, 30-3988-23-03, 30-3988-23-04, 30-3988-66-03, 30-3988-66-04, 30-3989, 30-3989-00-01, 30-3989-00-02, 30-3989-00-03, 30-3989-00-04, 30-3989-00-05, 30-3989-00-06, 30-3989-00-07, 30-3989-23-01, 30-3989-23-02, 30-3989-23-03, 30-3989-23-04, 30-3989-23-05, 30-3989-23-06, 30-3989-23-07, 30-3991-00-01, 30-3991-00-02, 30-3991-00-03, 30-3991-23-01, 30-3991-23-02, 30-3991-23-03, 30-4082-00-01, 30-4082-00-02, 30-4182-23-01, 30-4182-23-02, 30-4282-00-01, 30-4282-00-02, 30-4282-00-03, 30-4282-00-04, 30-4382-23-01, 30-4382-23-02, 30-4382-23-03, 30-4382-23-04, 30-4382-23-05, 30-4387-00-01, 30-4387-00-02, 30-4387-00-03, 30-4387-18-01, 30-4387-18-02, 30-4387-18-03, 30-4387-23-01, 30-4387-23-02, 30-4387-23-03, 30-4387-66-01, 30-4387-66-02, 30-4387-66-03, 30-4388-00-01, 30-4388-00-02, 30-4388-00-03, 30-4388-08-01, 30-4388-08-02, 30-4388-08-03, 30-4388-23-01, 30-4388-23-02, 30-4388-23-03, 30-4388-66-01, 30-4388-66-02, 30-4388-66-03, 30-4687-00-01, 30-4687-00-02, 30-4687-00-03, 30-4687-08-01, 30-4687-08-02, 30-4687-08-03, 30-4687-23-01, 30-4687-23-02, 30-4687-23-03, 30-4687-66-01, 30-4687-66-02, 30-4687-66-03, 30-4688-00-01, 30-4688-00-02, 30-4688-00-03, 30-4688-00-04, 30-4688-08-01, 30-4688-08-02, 30-4688-08-03, 30-4688-08-04, 30-4688-23-01, 30-4688-23-02, 30-4688-23-03, 30-4688-23-04, 30-4688-66-01, 30-4688-66-02, 30-4688-66-03, 30-4688-66-04, 30-4932-00-01, 30-4932-23-01, 30-4942-00, 30-4942-00/05, 30-4942-00-01, 30-4942-00-02, 30-4942-00-03, 30-4942-00-04, 30-4942-00-06, 30-4942-00-07, 30-4942-23-01, 30-4942-23-02, 30-4942-23-03, 30-4942-23-04, 30-4942-23-05, 30-4942-23-06, 30-4942-23-07, 30-4952-00-01, 30-4952-00-02, 30-4952-00-03, 30-4952-00-04, 30-4952-00-05, 30-4962-00-01, 30-4962-23-01, 30-4972-00-01, 30-4972-23-01, 30-4979-00-01, 30-4979-00-02, 30-4979-00-03, 30-4979-00-04, 30-4979-08-01, 30-4979-08-02, 30-4979-23-01, 30-4979-23-02, 30-4979-23-03, 30-4979-23-04, 30-4980-00-01, 30-4980-00-02, 30-4980-00-03, 30-4980-00-04, 30-4980-00-05, 30-4980-08-01, 30-4980-08-05, 30-4980-23-01, 30-4980-23-02, 30-4980-23-03, 30-4980-23-04, 30-4980-23-05, 30-4980-32-02, 30-4980-32-03, 30-4980-66-04, 30-4982-00-01, 30-4982-00-02, 30-4982-00-03, 30-4982-00-04, 30-4982-00-05, 30-4982-23-01, 30-4982-23-02, 30-4982-23-03, 30-4982-23-04, 30-4982-23-05, 30-4987-00-01, 30-4987-00-02, 30-4987-00-03, 30-4987-00-04, 30-4987-00-05, 30-4987-00-06, 30-4987-08-05, 30-4987-08-06, 30-4987-18-01, 30-4987-18-02, 30-4987-18-03, 30-4987-18-04, 30-4987-23-01, 30-4987-23-02, 30-4987-23-03, 30-4987-23-04, 30-4987-23-05, 30-4987-23-06, 30-4987-66-01, 30-4987-66-02, 30-4987-66-03, 30-4987-66-04, 30-4987-66-05, 30-4987-66-06, 30-4988-00-01, 30-4988-00-02, 30-4988-00-03, 30-4988-00-04, 30-4988-00-05, 30-4988-08-01, 30-4988-08-02, 30-4988-08-03, 30-4988-08-04, 30-4988-10, 30-4988-23-01, 30-4988-23-02, 30-4988-23-03, 30-4988-23-04, 30-4988-23-05, 30-4988-32-05, 30-4988-66-01, 30-4988-66-02, 30-4988-66-03, 30-4988-66-04, 30-4988-66-05, 30-4989-00-01, 30-4989-00-02, 30-4989-00-03, 30-4989-00-04, 30-4990-00-01, 30-4990-00-02, 30-4997-00-01, 30-4997-00-02, 30-4997-00-03, 30-4997-00-04, 30-4997-08-01, 30-4997-08-02, 30-4997-08-03, 30-4997-08-04, 30-4997-23-01, 30-4997-23-02, 30-4997-23-03, 30-4997-23-04, 30-4997-66-01, 30-4997-66-02, 30-4997-66-03, 30-4997-66-04, 30-4998-00-01, 30-4998-00-02, 30-4998-00-03, 30-4998-00-04, 30-4998-23-01, 30-4998-23-02, 30-4998-23-03, 30-4998-23-04, 30-4998-32-01, 30-4998-32-02, 30-4998-32-03, 30-4998-32-04, 30-4998-66-01, 30-4998-66-02, 30-4998-66-03, 30-4998-66-04, 30-4999-00-01, 30-4999-00-02, 30-4999-08-01, 30-4999-08-02, 30-4999-23-01, 30-4999-23-02, 30-6238-00-04, 30-6238-00-05, 30-6238-00-06, 30-6238-00-07, 30-6238-23-04, 30-6238-23-05, 30-6238-23-06, 30-6238-23-07, 30-6238-66-04, 30-6238-66-05, 30-6238-66-06, 30-6238-66-07, 30-6239-00-01, 30-6239-00-02, 30-6239-00-03, 30-6239-00-04, 30-6239-23-01, 30-6239-23-02, 30-6239-23-03, 30-6239-23-04, 30-6538-00-04, 30-6538-23-04, 30-6538-66-04, 30-6539-00-01, 30-6539-00-02, 30-6539-00-03, 30-6539-00-04, 30-6539-23-01, 30-6539-23-02, 30-6539-23-03, 30-6539-23-04, 30-6757-00-03, 30-6757-00-04, 30-6757-00-05, 30-6757-00-06, 30-6757-23-03, 30-6757-23-04, 30-6757-23-05, 30-6757-23-06, 30-6757-66-03, 30-6757-66-04, 30-6757-66-05, 30-6758-00-01, 30-6758-00-02, 30-6758-00-03, 30-6758-00-04, 30-6758-23-01, 30-6758-23-02, 30-6758-23-03, 30-6758-23-04, 30-6758-66-01, 30-6758-66-02, 30-6758-66-03, 30-6758-66-04, 30-6759-00-01, 30-6759-00-02, 30-6759-00-03, 30-6759-23-01, 30-6759-23-02, 30-6759-23-03, 30-7348-00-04, 30-7348-00-05, 30-7348-00-06, 30-7348-00-07, 30-7348-23-04, 30-7348-23-05, 30-7348-23-06, 30-7348-23-07, 30-7348-66-04, 30-7348-66-05, 30-7348-66-06, 30-7348-66-07, 30-7987-00-03, 30-7987-00-04, 30-7987-00-05, 30-7987-00-06, 30-7987-23-03, 30-7987-23-04, 30-7987-23-05, 30-7987-23-06, 30-7987-66-03, 30-7987-66-04, 30-7987-66-05, 30-7987-66-06, 30-7988-00-03, 30-7988-00-04, 30-7988-00-05, 30-7988-23-03, 30-7988-23-04, 30-7988-23-05, 30-7988-66-03, 30-7988-66-04, 30-7988-66-05, 30-7989-00-01, 30-7989-00-02, 30-7989-23-01, 30-7989-23-02, 30-8046-00-04, 30-8046-23-01, 30-8046-23-04, 30-8056-00-01, 30-8056-00-02, 30-8056-00-03, 30-8056-23-02, 30-8056-23-03, 30-8256-00-02, 30-8256-00-03, 30-8256-23-02, 30-8256-23-03, 30-9063-00, -, 30-9063-00/07, 30-9283-00, 30-9283-00/01, 30CPMCWBN1, 30CPMCWBN2, 30CPMCWBN3, 30DPCDWGN-23-01, 30DPCDWGN1, 30DPMBWAN6, 30DPMBWAP4, 30DPMBWAP5, 30DPMBWAP6, 30DPMCWAN5, 30DPMDWEN1, 30DPMDWEN1-23, 30DPMDWEN2, 30DPMDWEN2-23, 30DPMDWGN01-23, 30DPMDWGN1, 30IPCDWAN5, 30IPCDWAN6, 30IPCDWAN7, 30KPMAWAN3, 30KPMAWAN4, 30KPMAWAN5, 30KPMAWHN1, 30KPMAWHN2, 30PPSKWDN0, 30PPSKWDN0-23, 30PPSKWDN0-32, 32-0027-00-02, 32-0027-00-03, 32-0027-00-04, 32-0027-23-02, 32-0027-23-03, 32-0027-23-04, 32-0127, -, 32-0127-00-02, 32-0127-00-03, 32-0127-23-02, 32-1012-00-09, 32-1012-00-10, 32-1012-00-11, 32-1012-00-12, 32-1012-23-09, 32-1012-23-10, 32-1012-23-11, 32-1012-23-12, 32-1012-32-09, 32-1012-32-10, 32-1012-32-11, 32-1012-32-12, 32-1012-45-09, 32-1012-45-10, 32-1012-45-11, 32-1012-45-12, 32-1012-57-09, 32-1012-57-10, 32-1012-57-11, 32-1012-57-12, 32-1012-66-09, 32-1012-66-10, 32-1012-66-11, 32-1012-66-12, 32-1014-00-01, 32-1014-23-01, 32-1018-00-01, 32-1018-00-02, 32-1018-23-01, 32-1018-23-02, 32-1019-00-01, 32-1019-00-02, 32-1019-00-03, 32-1019-00-04, 32-1019-00-05, 32-1019-00-06, 32-1019-00-07, 32-1019-00-08, 32-1019-00-09, 32-1019-00-10, 32-1019-00-11, 32-1019-00-12, 32-1019-23-01, 32-1019-23-02, 32-1019-23-03, 32-1019-23-04, 32-1019-23-05, 32-1019-23-06, 32-1019-23-07, 32-1019-23-08, 32-1019-23-09, 32-1019-23-10, 32-1019-23-11, 32-1019-23-12, 32-1027-00-03, 32-1027-23-03, 32-1027-66-03, 32-1038-00-01, 32-1038-00-02, 32-1038-23-01, 32-1038-23-02, 32-1039-00-01, 32-1039-00-02, 32-1039-00-03, 32-1039-00-04, 32-1039-00-05, 32-1039-00-06, 32-1039-00-07, 32-1039-00-08, 32-1039-00-09, 32-1039-23-01, 32-1039-23-02, 32-1039-23-03, 32-1039-23-04, 32-1039-23-05, 32-1039-23-06, 32-1039-23-07, 32-1039-23-08, 32-1039-23-09, 32-1272-00-10, 32-1272-00-11, 32-1272-00-12, 32-1272-00-13, 32-1272-23-10, 32-1272-23-11, 32-1272-23-12, 32-1272-23-13, 32-1272-32-10, 32-1272-32-11, 32-1272-32-12, 32-1272-32-13, 32-1272-45-10, 32-1272-45-11, 32-1272-45-12, 32-1272-45-13, 32-1272-57-10, 32-1272-57-11, 32-1272-57-12, 32-1272-57-13, 32-1272-66-10, 32-1272-66-11, 32-1272-66-12, 32-1272-66-13, 32-2538-23-04, 32-2539-00-01, 32-2539-00-02, 32-2539-00-03, 32-2539-00-04, 32-2539-00-05, 32-2638-00-04, 32-2639-00-01, 32-2639-00-02, 32-2639-00-04, 32-2639-00-05, 32-2639-00-06, 32-2639-00-07, 32-2639-32, -, 32-2639-32/04, (32263932/04,, 32, 2639, 32/04), 32-2639-32-01, 32-2639-32-02, 32-2642-00-01, 32-2642-00-02, 32-2642-08-01, 32-2642-23-01, 32-2642-23-02, 32-2642-32-02, 32-2757-00-01, 32-2757-00-02, 32-2757-00-03, 32-2757-00-04, 32-2757-00-05, 32-2757-00-06, 3448A, 3468A, 3488A, 36-3052-00-07, 36-3052-00-08, 36-3052-00-09, 36-3052-23-07, 36-3052-23-08, 36-3052-23-09, 36-3052-32-09, 36-3052-45-07, 36-3052-45-08, 36-3052-57-07, 36-3052-57-08, 36-3052-66-07, 36-3052-66-08, 36-3052-66-09, 36-3061-00-01, 36-3061-00-02, 36-3061-23-01, 36-3061-23-02, 36-3272-00-09, 36-3272-00-10, 36-3272-23-09, 36-3272-23-10, 36-3272-45-09, 36-3272-57-09, 36-3272-66-08, 36-3272-66-09, 36-3272-66-10, 36-3281-00, -, 36-3281-00-01, 36-3281-00-02, 36-3281-01, -, 36-3281-23-01, 36-3281-23-02, 36-3690-00-01, 36-3690-00-02, 36-3690-00-03, 36-3690-23-01, 36-3690-23-02, 36-3690-23-03, 36-3692-00-01, 36-3692-23-01, 36-3692-32-01, 36-6262-00-07, 36-6262-00-08, 36-6262-00-09, 36-6262-23-07, 36-6262-23-08, 36-6262-23-09, 36-6262-66-07, 36-6262-66-08, 36-6262-66-09, 36DPMAWBN1, 36DPMAWBN2, 36DPMDWEN2, 36DPMDWEN2-23, 37IPCDWAN5, 37IPCDWAN6, 6287839093, 6287859094, 66321, 66321, 66328, 66328, 66331, 66331, 66338, 66338, 66341, 66341, 66348, 66348(1988), 72-2547-00-01, 72-2547-00-02, 72-2547-00-03, 72-2547-00-04, 72-2547-00-05, 72-2547-00-06, 72-2547-00-07, 72-2547-00-08, 72-2547-00-09, 72-2547-23-01, 72-2547-23-02, 72-2547-23-03, 72-2547-23-04, 72-2547-23-05, 72-2547-23-06, 72-2547-23-07, 72-2547-23-08, 72-2547-23-09, 72-2547-66-01, 72-2547-66-02, 72-2547-66-03, 72-2547-66-04, 72-2547-66-05, 72-2547-66-06, 72-2547-66-07, 72-2547-66-08, 72-2547-66-09, 72-3651-00, 72-3651-00-01, 72-3651-00-02, 72-3651-00-03, 72-3651-00-04, 72-3651-00-05, 72-3651-00-06, 72-3651-00-07, 72-3651-00-08, 72-3651-01, -, 72-3651-23-01, 72-3651-23-02, 72-3651-23-03, 72-3651-23-04, 72-3651-23-05, 72-3651-23-06, 72-3651-23-07, 72-3651-23-08, 72-3657-00-01, 72-3657-00-02, 72-3657-00-03, 72-3657-00-04, 72-3657-00-05, 72-3657-00-06, 72-3657-00-07, 72-3657-00-08, 72-3657-00-09, 72-3657-00-10, 72-3657-00-11, 72-3657-00-12, 72-3657-00-13, 72-3657-23-01, 72-3657-23-02, 72-3657-23-03, 72-3657-23-04, 72-3657-23-05, 72-3657-23-06, 72-3657-23-07, 72-3657-23-08, 72-3657-23-09, 72-3657-23-10, 72-3657-23-11, 72-3657-23-12, 72-3657-23-13, 72-3657-66-01, 72-3657-66-02, 72-3657-66-03, 72-3657-66-04, 72-3657-66-05, 72-3657-66-06, 72-3657-66-07, 72-3657-66-08, 72-3657-66-09, 72-3657-66-10, 72-3657-66-11, 72-3657-66-12, 72-3657-66-13, 72-3662-00-01, 72-3662-23-01, 72-3977-00-01, 72-3977-00-02, 72-3977-00-03, 72-3977-00-04, 72-3977-00-07, 72-3977-00-08, 72-3977-00-09, 72-3977-00-10, 72-3977-23-01, 72-3977-23-02, 72-3977-23-03, 72-3977-23-04, 72-3977-23-07, 72-3977-23-08, 72-3977-23-09, 72-3977-23-10, 72-3977-66-01, 72-3977-66-02, 72-3977-66-03, 72-3977-66-04, 72-3977-66-07, 72-3977-66-08, 72-3977-66-09, 72-3977-66-10, 72-3981-00-01, 72-3981-00-02, 72-3981-00-03, 72-3981-00-04, 72-3981-00-07, 72-3981-00-08, 72-3981-23-01, 72-3981-23-02, 72-3981-23-03, 72-3981-23-04, 72-3981-23-07, 72-3981-23-08, 72-3989-00-01, 72-3989-00-02, 72-3989-00-03, 72-3989-00-04, 72-3989-00-05, 72-3989-00-06, 72-3989-23-01, 72-3989-23-02, 72-3989-23-03, 72-3989-23-04, 72-3989-23-05, 72-3989-23-06, 72-3989-66-01, 72-3989-66-02, 72-3989-66-03, 72-3989-66-04, 72-3989-66-05, 72-3989-66-06, 72-4023-00, -, 72-4023-00/09, 72-4023-23, 72-4023-23/09, 72-4213-23, 72-4213-23/05, 72-4252-00, 72-4252-00/01, 72-4252-23, -, 72-4252-23/05, 72-4256-00-01, 72-4256-00-02, 72-4256-00-03, 72-4256-23-01, 72-4256-23-02, 72-4256-23-03, 72-7657-00-02, 72-7657-00-03, 72-7657-00-04, 72-7657-00-05, 72-7657-00-06, 72-7657-00-07, 72-7657-00-08, 72-7657-00-09, 72-7657-23-01, 72-7657-23-02, 72-7657-23-03, 72-7657-23-04, 72-7657-23-05, 72-7657-23-06, 72-7657-23-07, 72-7657-23-08, 72-7657-23-09, 72-7657-66-01, 72-7657-66-02, 72-7657-66-03, 72-7657-66-04, 72-7657-66-05, 72-7657-66-06, 72-7657-66-07, 72-7657-66-08, 72-7657-66-09, 72-7977-00-01, 72-7977-00-02, 72-7977-00-03, 72-7977-00-04, 72-7977-00-07, 72-7977-00-08, 72-7977-00-09, 72-7977-00-10, 72-7977-23-01, 72-7977-23-02, 72-7977-23-03, 72-7977-23-04, 72-7977-23-07, 72-7977-23-09, 72-7977-23-10, 72-7977-66-01, 72-7977-66-02, 72-7977-66-03, 72-7977-66-04, 72-7977-66-07, 72-7977-66-08, 72-7977-66-09, 72-7977-66-10, 72-7989-00-01, 72-7989-00-02, 72-7989-00-03, 72-7989-23-02, 72-7989-23-03, 72-7989-66-01, 72-7989-66-02, 72-7989-66-03, 76-4232, 76-4232/23/02, 76-4232-00, 76-4232-00/01, 76-4232-23, 76-4232-23/01, 76-4667-00-01, 76-4667-00-02, 76-4667-00-03, 76-4667-00-04, 76-4667-00-05, 76-4667-00-06, 76-4667-00-07, 76-4667-00-08, 76-4667-08-01, 76-4667-08-02, 76-4667-23-01, 76-4667-23-02, 76-4667-23-03, 76-4667-23-04, 76-4667-23-05, 76-4667-23-06, 76-4667-23-07, 76-4667-23-08, 76-4667-32-03, 76-4667-32-04, 76-4667-32-05, 76-4667-32-06, 76-4667-32-07, 76-4667-32-08, 76-4667-66-01, 76-4667-66-02, 76-4667-66-03, 76-4667-66-04, 76-4667-66-05, 76-4667-66-06, 76-4667-66-07, 76-4667-66-08, 76-4960-00-01, 76-4960-00-03, 76-4960-00-04, 76-4960-00-07, 76-4960-00-08, 76-4960-23-01, 76-4960-23-03, 76-4960-23-04, 76-4960-23-07, 76-4960-23-08, 76-4967-00-01, 76-4967-00-02, 76-4967-00-03, 76-4967-00-04, 76-4967-00-05, 76-4967-00-06, 76-4967-00-07, 76-4967-00-08, 76-4967-00-09, 76-4967-00-10, 76-4967-00-11, 76-4967-00-12, 76-4967-00-13, 76-4967-18-04, 76-4967-18-05, 76-4967-18-06, 76-4967-23-01, 76-4967-23-02, 76-4967-23-03, 76-4967-23-04, 76-4967-23-05, 76-4967-23-06, 76-4967-23-07, 76-4967-23-08, 76-4967-23-09, 76-4967-23-10, 76-4967-23-11, 76-4967-23-12, 76-4967-23-13, 76-4967-32-07, 76-4967-32-08, 76-4967-32-09, 76-4967-32-10, 76-4967-32-11, 76-4967-32-12, 76-4967-32-13, 76-4967-66-01, 76-4967-66-02, 76-4967-66-03, 76-4967-66-04, 76-4967-66-05, 76-4967-66-06, 76-4967-66-07, 76-4967-66-08, 76-4967-66-09, 76-4967-66-10, 76-4967-66-11, 76-4967-66-12, 76-4967-66-13, 76-5202-00, -, 76-5202-00/12, 76-8667-00-01, 76-8667-00-02, 76-8667-00-03, 76-8667-00-04, 76-8667-00-05, 76-8667-00-06, 76-8667-00-07, 76-8667-00-08, 76-8667-08-01, 76-8667-08-02, 76-8667-23-01, 76-8667-23-02, 76-8667-23-03, 76-8667-23-04, 76-8667-23-05, 76-8667-23-06, 76-8667-23-07, 76-8667-23-08, 76-8667-32-03, 76-8667-32-04, 76-8667-32-05, 76-8667-32-06, 76-8667-32-07, 76-8667-32-08, 76-8667-66-01, 76-8667-66-02, 76-8667-66-03, 76-8667-66-04, 76-8667-66-05, 76-8667-66-06, 76-8667-66-07, 76-8667-66-08, 76-8967-00-01, 76-8967-00-02, 76-8967-00-03, 76-8967-00-04, 76-8967-00-05, 76-8967-00-06, 76-8967-00-07, 76-8967-00-08, 76-8967-00-09, 76-8967-00-10, 76-8967-00-11, 76-8967-00-12, 76-8967-18-04, 76-8967-18-05, 76-8967-18-06, 76-8967-23-01, 76-8967-23-02, 76-8967-23-03, 76-8967-23-04, 76-8967-23-05, 76-8967-23-06, 76-8967-23-07, 76-8967-23-08, 76-8967-23-09, 76-8967-23-10, 76-8967-23-11, 76-8967-23-12, 76-8967-32-07, 76-8967-32-08, 76-8967-32-09, 76-8967-32-10, 76-8967-32-11, 76-8967-32-12, 76-8967-66-01, 76-8967-66-02, 76-8967-66-03, 76-8967-66-04, 76-8967-66-05, 76-8967-66-06, 76-8967-66-07, 76-8967-66-08, 76-8967-66-09, 76-8967-66-10, 76-8967-66-11, 76-8967-66-12, 79060012600, 79070102400, 79070102401, 79070104400, 79070104401, 79070270402, 79070271401, 79070271403, 79070280400, 79070280402, 79070280403, 79070281400, 79070281401, 79070281402, 79070281403, 79070290402, 79070290403, 79070291400, 79070291401, 79070291402, 79070291403, 79070292400, 79070292401, 79070294400, 79070294401, 79070419501, 79070429601, 79071000300, 79071001300, 79071001301, 79071002101, 79071004100, 79071004101, 79071010200, 79071012300, 79071014300, 79071022101, 79071030300, 79071030301, 79071031300, 79071032300, 79071032301, 79071042301, 79071042302, 79071044300, 79071044301, 79071044302, 79071052401, 79071052402, 79071053400, 79071053402, 79071054401, 79071102001, 79071105890, 79071105891, 79071105892, 79071105893, 79071106890, 79071106893, 79071107001, 79071190100, 79071191100, 79071410401, 79071410403, 79071410404, 79071411401, 79071419400, 79071419401, 79071420400, 79071420401, 79071420402, 79071420403, 79071421404, 79071422404, 79071424401, 79071429400, 79071442601, 79071451600, 79071452600, 79071510400, 79071510401, 79071511403, 79071512400, 79071512403, 79071513401, 79071513403, 79071513405, 79071519401, 79071519403, 79071520400, 79071521400, 79071521401, 79071522403, 79071523400, 79071523402, 79071523405, 79071524401, 79071524403, 79071524404, 79071529400, 79071529401, 79071529404, 79071533401, 79071543601, 79071544600, 79071549601, 79071551601, 79071552600, 79071552601, 79071553601, 79071554601, 79071559601, 79071672100, 79071672101, 79071771100, 79071850300, 79071853300, 79072042300, 79072044300, 79072044301, 79072044302, 79072112100, 79072112101, 79072114101, 79072850300, 79072850301, 79072851300, 79072852300, 79072854300, 79072862300, 79072862301, 79072863300, 79072863301, 79072863302, 79072864300, 79072864302, 79073052401, 79073053401, 79073053402, 79073053404, 79073054400, 79073054401, 79073054404, 79074042300, 7907432190, 7907432890, 7907482190, 7907482890, 7907492990, 79075193300, 79075193301, 79075193302, 79075403500, 79075403501, 79075413302, 79075602102, 79075602105, 79075602106, 79075604102, 79075604104, 79075604105, 79075604106, 79075609100, 79075609104, 79075609105, 79075609106, 79075651000, 79075651001, 79075651002, 79075652000, 79075652001, 79075652002, 79075657000, 79075657001, 79075658000, 79075658001, 79075660100, 79075660101, 79075660103, 79075660104, 79075661100, 79075661101, 79075661103, 79075661104, 79075662100, 79075662101, 79075662102, 79075662103, 79075662104, 79075663200, 79075663201, 79075663202, 79075664100, 79075664101, 79075664102, 79075664103, 79075664104, 79075711889, -, 790.75711889, (79075711889,, 790, 75711889), 79075711890, 79075711891, 79075715890, 79075715893, 79075716893, 79075718892, 79075721990, 79075721991, 79075721992, 79075721993, 79075722990, 79075722992, 79075722993, 79075727990, 79075727991, 79075727992, 79075728990, 79075728992, 79075731891, 79075738890, 79075738892, 79075741991, 79075742990, 79075747940, 79075747990, 79075748991, 79075750100, 79075750102, 79075750103, 79075751100, 79075751102, 79075751103, 79075752101, 79075752102, 79075752103, 79075754101, 79075754103, 79075761000, 79075761001, 79075761002, 79075762000, 79075762001, 79075762002, 79075767000, 79075767001, 79075767002, 79075768000, 79075768001, 79075768002, 79075850300, 79075850302, 79075851300, 79075852300, 79075852301, 79075853300, 79075853301, 79075853302, 79075854300, 79075854301, 79075862300, 79075862301, 79075862302, 79075863300, 79075863301, 79075863302, 79075864300, 7907590299, 790.7590299, 79075902990, 79075903990, 79075903992, 79075904990, 79075909990, 790759122

1. Turn off electrical power to the range at the circuit breaker to ensure complete power disconnection.
2. Turn off the gas supply to the range at the gas shutoff valve (typically located behind the range or in the basement).
3. Verify power is off by attempting to turn on the oven. The oven should not display any power indicators or attempt to heat.
4. Verify gas is off by checking that the gas shutoff valve is in the closed (perpendicular) position.
5. Allow the oven to cool completely if it has been used recently.
6. Remove all oven racks from the oven cavity to provide clear access to the oven burner and ignitor.
7. Take multiple photos of the old ignitor position, mounting, and wire connections before disassembly. Document the ignitor from multiple angles. This is critical for proper reassembly.
8. Open the oven door fully and locate the oven burner at the bottom of the oven cavity.
9. Locate the ignitor mounted near the oven burner (typically on the left or right side of the burner tube).
10. Take a photo of the wire connections to the ignitor before disconnecting.
11. Remove the oven bottom panel if necessary to access the ignitor mounting screws (some models require bottom panel removal, others allow access from inside the oven).
12. Locate the wire connector attached to the ignitor wire leads. It's typically a white plastic connector.
13. Disconnect the wire connector by pulling it straight apart. Do not pull on the wires—grasp the connector body.
14. Remove the mounting screws that secure the ignitor to the burner bracket (typically 2 screws). Support the ignitor as you remove the last screw to prevent it from falling.
15. Carefully remove the old ignitor from the burner bracket. Handle with care—the ceramic element is fragile.
16. Place the old ignitor on a clean work surface with adequate space for inspection.
17. Inspect the old ignitor for visible damage such as cracks, breaks, discoloration, or carbon buildup. This confirms the diagnosis.
18. Inspect the burner tube for blockages, rust, or damage. Clean the burner tube if necessary before installing the new ignitor.
19. Inspect the wire leads and connector for damage, melting, or corrosion. Replace damaged wires or connectors before installing the new ignitor.

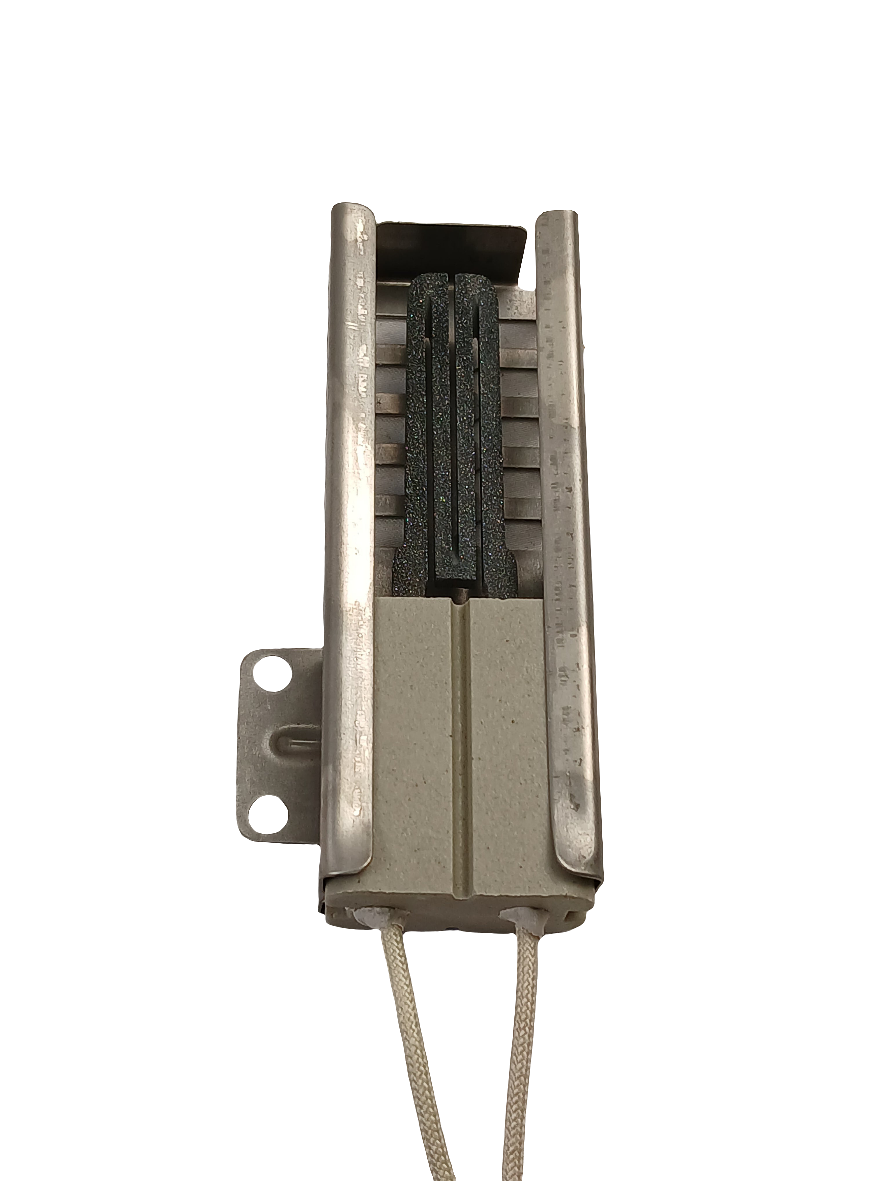

20. Unpack the new 5303935066 ignitor from its packaging. Handle with extreme care—the ceramic element is very fragile and can break easily.
21. Verify the ignitor specifications match the old ignitor: flat-style design, approximately 3-3/4" long, 1.5" ceramic base, 3.2-3.6 amp rating, two wire leads with ceramic wire nuts.
22. Compare the new ignitor to the old one to verify the dimensions, mounting hole spacing, wire lead length, and overall appearance match. Ensure you have the correct replacement part.
23. Inspect the new ignitor for any damage or defects before installation. The ceramic element should be intact with no cracks, chips, or breaks.

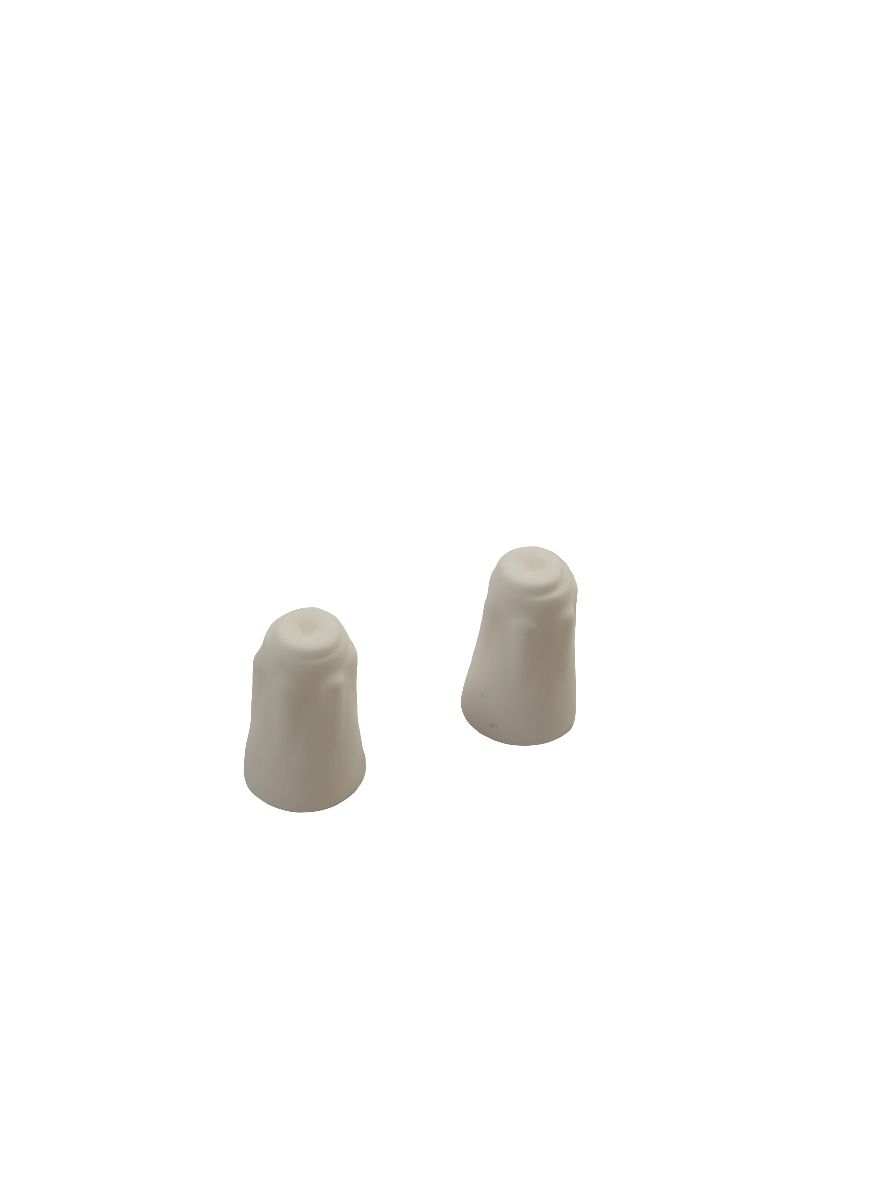

24. Remove the protective plastic sleeves from the new ignitor's wire lead lugs (if present). Set these aside—you'll reinstall them after connecting the wires.
25. Position the new ignitor on the burner bracket, aligning the mounting holes with the screw holes in the bracket.
26. Install the mounting screws through the ignitor mounting holes and into the burner bracket. Tighten gently but firmly—do not overtighten, which can crack the ceramic base.
27. Verify the ignitor is securely mounted and does not wobble or shift when gently pressed.
28. Verify the ignitor is positioned correctly relative to the burner tube. The ignitor should be close to the burner ports (approximately 1/4 to 3/8 inch) but not touching the burner.
29. Connect the ignitor wire leads to the range wiring harness using the white plastic connector. Push the connector together firmly until it clicks or locks.
30. Verify the wire connection is secure by gently tugging on the connector. It should not pull apart.
31. Slide the protective plastic sleeves over the wire lead lugs (if provided) to insulate the connections.
32. Route the wires neatly away from the burner and ignitor to prevent them from contacting hot surfaces during operation.
33. Reinstall the oven bottom panel if it was removed, ensuring all screws are tight.
34. Reinstall the oven racks at the desired height positions.
35. Turn on the gas supply at the gas shutoff valve (turn valve to parallel position).
36. Restore electrical power at the circuit breaker.
37. Turn on the oven to 350°F to verify proper ignitor operation.
38. Observe the ignitor through the oven door (use the oven light if available). The ignitor should begin to glow orange within 30-60 seconds.
39. Verify the ignitor glows bright white within 60-90 seconds of turning on the oven.
40. Listen for the gas valve to open and gas to flow to the burner (you may hear a soft hissing sound).
41. Verify the gas ignites within 90 seconds of turning on the oven. You should see a blue flame across the burner.
42. Verify the flame is steady and even across the entire burner. The flame should be blue with minimal yellow tipping.
43. If the ignitor glows but gas doesn't ignite, turn off the oven immediately and verify the gas supply is on and the burner tube is not blocked.
44. If the ignitor doesn't glow at all, turn off the oven and verify the wire connections are secure and power is present.
45. Allow the oven to reach set temperature and verify proper heating performance.
46. Check for gas leaks around all gas connections using a soap and water solution. Bubbles indicate a leak—tighten connections or call a professional if leaks persist.
47. Turn off the oven and allow it to cool for 10-15 minutes.
48. Test baking with actual food (such as a cake or cookies) to confirm the repair is complete and the oven heats properly.
49. Monitor the oven for 24-48 hours of normal use to ensure it operates properly without unusual noises, smells, or performance issues.

Safety Notes: Always turn off electrical power at the circuit breaker and gas supply at the shutoff valve before working on the oven. Gas appliances can cause fire, explosion, or carbon monoxide poisoning if not properly installed or maintained. The ignitor ceramic element is extremely fragile—handle with care to avoid breaking. Never operate the oven with a damaged or broken ignitor. Ensure all wire connections are secure and correct before restoring power. Check for gas leaks after installation using soap and water solution. If you smell gas at any time, turn off the gas supply immediately, ventilate the area, and call your gas company or a professional technician. This repair requires electrical and gas knowledge and moderate mechanical skill—if you're uncomfortable with the process, consult a professional technician.

Always verify the ignitor amperage matches your gas valve rating before ordering. The 5303935066 is rated for 3.2-3.6 amps and is designed to work with Norton gas safety valves rated for 3.2-3.5 amps. Using an ignitor with incorrect amperage can prevent the gas valve from opening or cause premature ignitor failure. Check your range's service manual or the gas valve label to verify compatibility.

The ignitor ceramic element is extremely fragile. Handle the new ignitor with extreme care during installation. Even minor impacts or bending can crack the ceramic and cause immediate failure. Never touch the ceramic element with bare hands—oils from your skin can cause hot spots and premature failure. Hold the ignitor only by the ceramic base or mounting bracket.

Document all wire connections before disconnecting. Take clear photos of the wire connections, wire routing, and ignitor position before removing the old ignitor. This documentation is critical for proper reassembly and prevents wiring errors that can damage the new ignitor or control board.

This ignitor replaces most flat-style ignitors with 3.2-3.6 amp draw. The 5303935066 is a universal replacement for most flat-style gas oven ignitors in the 3.2-3.6 amp range (excluding blue ceramic ignitors). Verify your existing ignitor is flat-style and within the amperage range before ordering.

Gas oven ignitor replacement is a moderate repair. This repair requires electrical and gas knowledge, moderate mechanical skill, and specialized tools (screwdrivers, nut drivers, soap and water solution for leak testing). Installation typically takes 45-60 minutes for professionals or 60-90 minutes for DIY repairs.

Monitor the first few heating cycles after installation. After installing the new ignitor, run several heating cycles and monitor for proper ignition timing (gas should ignite within 90 seconds), flame quality (steady blue flame), oven temperature accuracy, and proper performance. Address any issues immediately before they affect baking performance.

Ignitor failure can have multiple causes. If the new ignitor doesn't solve the problem, the issue may be with the gas valve, burner tube blockage, wiring, control board, or another component. Further diagnosis may be required to identify the root cause.

Keep the oven clean to extend ignitor life. Food spills and grease buildup in the oven can accumulate on the ignitor, causing carbon buildup and premature failure. Clean spills promptly and maintain a clean oven to extend ignitor life.

This repair restores full oven heating functionality. A properly functioning ignitor is essential for reliable gas oven operation. Replacing a faulty ignitor restores normal heating performance and prevents cold spots or uneven baking.

Check the gas valve for proper operation. If the ignitor glows but the gas valve doesn't open, the gas valve may be faulty. Test the gas valve by listening for a clicking sound when the oven is turned on. If you don't hear a click, the gas valve may need replacement.

Verify the burner tube is not blocked. If the ignitor glows but gas doesn't ignite, the burner tube may be blocked by debris, rust, or carbon buildup. Inspect the burner tube and clean if necessary before assuming the ignitor is faulty.

The ignitor must reach white-hot temperature to ignite gas. The ignitor must reach approximately 2500°F (1371°C) and glow bright white to reliably ignite gas. If the ignitor glows orange or red but never turns white-hot, it may be defective or the amperage may be insufficient.

Never attempt to repair a broken ignitor. Attempting to repair a broken ignitor by gluing, taping, or bending it can cause electrical shock, fire, or complete failure. Always replace a damaged ignitor with a new one.

The ignitor should ignite gas within 90 seconds. When the oven is turned on, the ignitor should glow and ignite the gas within 90 seconds. If ignition takes longer than 90 seconds, the ignitor may be aging and near failure.

This repair is cost-effective compared to range replacement. The cost of ignitor replacement ($60-120) is far less than the cost of a new range ($1,200-3,000+). Replace the ignitor promptly when failure is detected to prevent the need for expensive range replacement.

Verify the wire connections are pushed fully onto the terminals. Loose or partially connected wire connectors can cause arcing, poor ignition, or ignitor failure. Ensure the connectors are pushed fully onto the terminals and make complete contact.

The new ignitor may glow slightly differently than the old one. New ignitors may glow with a slightly different color or brightness compared to the old ignitor during the first few uses. This is normal as the ignitor reaches operating temperature and stabilizes.

Monitor for gas leaks after installation. After installing the new ignitor and restoring gas supply, check all gas connections using a soap and water solution. Bubbles indicate a leak—tighten connections or call a professional if leaks persist.

This repair maintains oven safety and performance. A properly functioning ignitor is essential for safe, reliable oven operation. Damaged or broken ignitors can cause ignition failures, gas leaks, or potential fire hazards. Replace damaged ignitors promptly.

The ignitor wire leads must be insulated properly. The ignitor wire leads carry high voltage and must be properly insulated to prevent electrical shock or fire. Ensure protective sleeves are installed over wire lead lugs and wires are routed away from hot surfaces.

Verify the ignitor position relative to the burner. The ignitor should be positioned close to the burner ports (approximately 1/4 to 3/8 inch) but not touching the burner. Improper positioning can prevent gas ignition or cause ignitor damage.

This ignitor is compatible with natural gas or propane (LP). The 5303935066 works with both natural gas and propane. Verify your range is configured for the correct gas type before installation. Gas type configuration is typically set at the time of installation or purchase.

Check the control board for damage. If the ignitor doesn't glow at all when the oven is turned on, the control board may be faulty. Test by verifying power is present at the ignitor wire leads using a multimeter.

The ignitor draws 3.2-3.6 amps during operation. The ignitor draws current in the 3.2-3.6 amp range when glowing. If the gas valve is rated for a different amperage, the valve may not open or the ignitor may fail prematurely.

Never touch the ceramic element with bare hands. Oils from your skin can cause hot spots on the ceramic element, leading to premature failure or cracking. Always wear clean gloves or handle the ignitor by the ceramic base only.

This repair extends range life and maintains resale value. Replacing a faulty ignitor promptly maintains the oven's functionality and reliability, extending range life and preserving resale value.

Verify the gas supply is on before testing the ignitor. Before testing the new ignitor, verify the gas shutoff valve is in the open (parallel) position. If the gas supply is off, the ignitor will glow but gas won't ignite.

The ignitor should be the only heat source in the oven initially. When the oven is first turned on, the ignitor should be the only glowing element in the oven. If other elements glow or heat, the control board may be sending power to multiple components.

Monitor ignitor color during operation. A properly functioning ignitor should glow bright white during operation. Orange or red glowing indicates the ignitor may be aging or operating below optimal temperature.

This repair prevents cold spots and uneven baking. A properly functioning ignitor ensures reliable gas ignition and consistent oven temperature. Replacing a faulty ignitor prevents cold spots, uneven baking, and temperature fluctuations.

Check for carbon buildup on the ignitor. Over time, carbon can accumulate on the ignitor ceramic element, reducing its effectiveness. If carbon buildup is visible, carefully clean the ignitor with a soft brush or cloth (do not scrub aggressively).

The ignitor is a wear item with limited lifespan. Gas oven ignitors typically last 5-8 years depending on usage. Plan for eventual replacement as part of routine maintenance.

Verify the burner flame is blue, not yellow. A properly functioning ignitor should produce a steady blue flame across the burner. Yellow or orange flame indicates incomplete combustion, which may indicate a gas supply issue or burner tube blockage.

This repair improves oven reliability and baking results. A properly functioning ignitor ensures consistent oven heating and reliable baking performance. Replacing a faulty ignitor restores confidence in oven operation and baking results.
