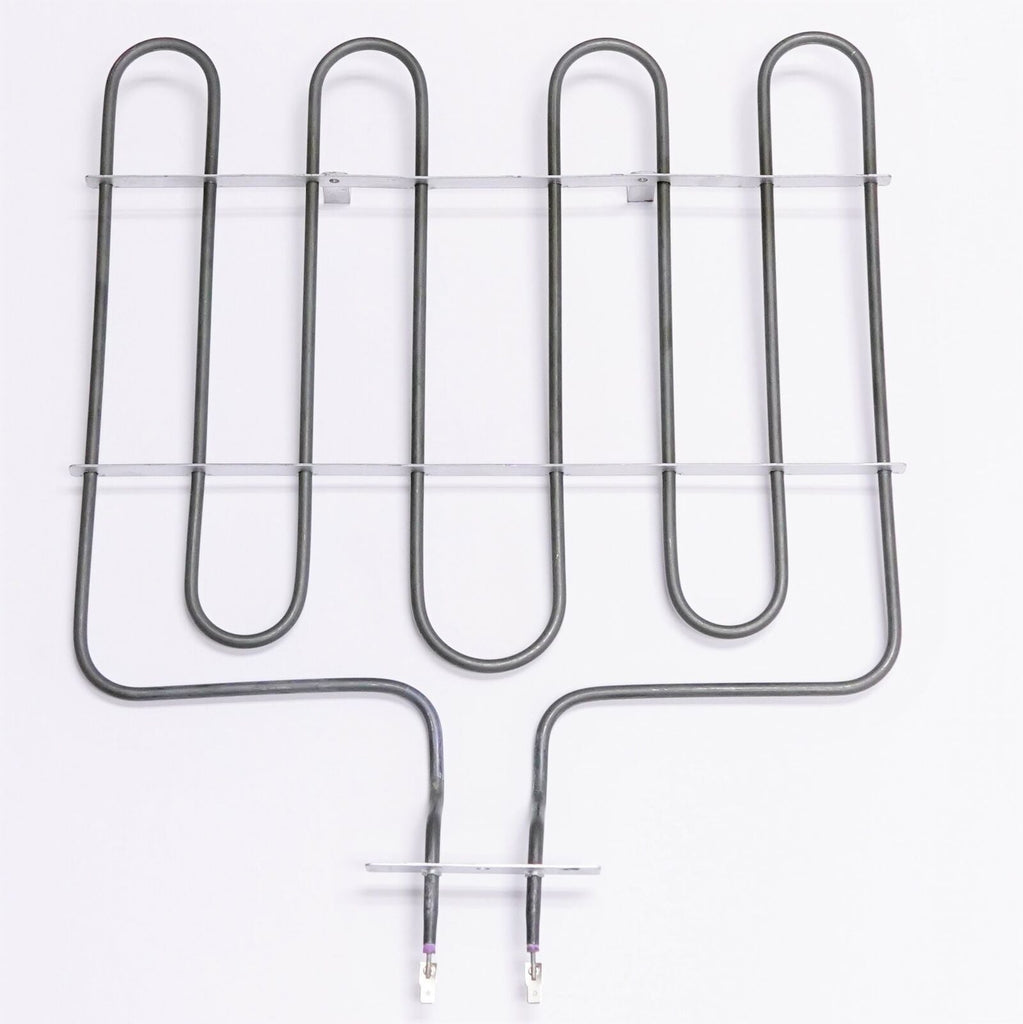

Broil Element, Upper Heating Element, Broiler Element, Top Element, Oven Heating Element, Electric Broiler Coil

W11321472, AP6331668, PS12711787, EAP12711787

Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Kenmore, Magic Chef, Admiral, Norge, Roper, Inglis

WhirlpoolWFE505W0HS0, WFE505W0HZ0, WFE505W0HW0, WFE505W0HV0, WFE510S0HS0, WFE510S0HZ0, WFE510S0HW0, WFE525S0HS0, WFE525S0HZ0, WFE525S0HW0, WFE525S0HV0, WFE540H0ES0, WFE540H0EZ0, WFE540H0EW0, WFE550S0HS0, WFE550S0HZ0, WFE550S0HW0, WFE550S0HV0, YWFE505W0HS0, YWFE505W0HZ0, YWFE510S0HS0, YWFE525S0HS0

KitchenAidKFES530HSS0, KFES530HWH0, KFES530HBL0, KFES550HSS0, KFES550HWH0, KFES550HBL0, KFGS530HSS0, KFGS530HWH0, KFGS530HBL0MaytagMER6600FZ0, MER6600FW0, MER6600FB0, MER8600FZ0, MER8600FW0, MER8600FB0, MER8800FZ0, MER8800FW0, MER8800FB0

Jenn-AirJES1450FS00, JES1450FW00, JES1450FB00, JES1750FS00, JES1750FW00, JES1750FB00

AmanaAER6603SFS0, AER6603SFW0, AER6603SFB0, AER6603SFZ0

Kenmore790.91312013, 790.91313013, 790.91314013, 790.91319013

CRITICAL SAFETY WARNING: This repair involves 240V electrical connections. Always turn off power at the circuit breaker before beginning work to prevent electrical shock. If uncomfortable with electrical work, hire a qualified technician.

1. Turn off the circuit breaker supplying power to the oven at the main electrical panel. CRITICAL: Electric ovens operate on 240V AC—turning off the breaker is essential for safety.
2. Verify power is off using a non-contact voltage tester at the oven control panel.
3. Allow the oven to cool completely if it has been used recently. Wait at least 2 hours.
4. Remove all oven racks from the oven cavity and set aside.
5. Take photos of the broil element installation and mounting position before removal.
6. Locate the broil element at the top of the oven cavity. It is typically secured by 2 mounting screws or brackets at the front.
7. Remove the broil element mounting screws (typically 2 screws) using a Phillips screwdriver or nut driver. The screws are usually located on the front mounting bracket.
8. Carefully pull the broil element forward approximately 2-3 inches to access the electrical terminals at the rear. Caution: Support the element—it may be heavy.
9. Take detailed photos of the wire connections to the element terminals before disconnecting.
10. Disconnect the electrical wires from the element terminals by removing the spade connectors or loosening the screw terminals. Pull connectors straight off—do not pull on wires. Important: Note wire positions for correct reconnection.
11. Remove the old broil element from the oven cavity and place on a clean work surface.
12. Inspect the old element for visible damage such as breaks, blisters, burn marks, or separation in the element coil. This confirms the diagnosis.
13. Test the old element with a multimeter set to measure resistance (ohms). Touch probes to the two terminals. A functioning element should read 20-60 ohms (typical for 3000-4000 watt elements at 240V). Infinite reading = broken element. Also test for shorts to the element sheath—should be infinite resistance.
14. Inspect the wire terminals and connectors for corrosion, damage, or burned insulation. Clean or replace damaged components.
15. Inspect the mounting area in the oven cavity for damage or debris. Clean if necessary.
16. Unpack the new W11321472 broil element carefully. Handle by the mounting brackets—avoid touching the element coil.
17. Compare the new element to the old one to verify dimensions, terminal positions, and mounting bracket locations match.
18. Inspect the new element for any shipping damage before installation.
19. Test the new element with a multimeter (optional)—should read 20-60 ohms between terminals, infinite resistance to sheath.
20. Insert the new element terminals through the holes in the rear oven wall, pushing the element into position.
21. Reconnect the electrical wires to the element terminals. Push spade connectors firmly onto terminals or tighten screw terminals securely. CRITICAL: Ensure correct wire connections—reversed connections may damage the element or control board.
22. Verify connections are secure by gently tugging on each wire.
23. Position the element flush against the top of the oven cavity, aligning the mounting holes.
24. Install the mounting screws and tighten firmly but not excessively. Do not overtighten—this can crack the porcelain oven cavity.
25. Verify the element is securely mounted and level.
26. Reinstall the oven racks in their original positions.
27. Restore power by turning on the circuit breaker.
28. Set the oven to broil mode and allow the element to heat for 2-3 minutes.
29. Verify the element glows red evenly across the entire coil. The element should reach full brightness within 3-5 minutes.
30. Check for unusual smells (slight odor is normal from manufacturing oils burning off).
31. Turn off broil mode and allow the element to cool.
32. If the element heats evenly and glows red, the repair is complete.

Safety Notes: Always turn off power at the circuit breaker before working on 240V systems. Allow oven to cool completely before starting work. Handle the element by mounting brackets only—avoid touching the coil. Take photos of wire connections before disconnecting. Test old element with multimeter to confirm failure. Do not overtighten mounting screws. This repair requires moderate mechanical and electrical skills.

1. Always test the broil element with a multimeter before replacement to confirm failure. Measure resistance between terminals—should read 20-60 ohms. Infinite reading = broken element. Also test for shorts to element sheath—should be infinite resistance.
2. The broil element operates at 240V AC and generates 3000-4000 watts—correct wire connections are critical. Reversed or incorrect connections may damage the element or control board. Take detailed photos before disconnecting wires.
3. A broken or damaged broil element typically shows visible signs—look for blisters, breaks, or separation in the element coil. If no visible damage is present, test with a multimeter to confirm electrical failure before replacement.
4. Broil elements typically last 10-15 years with normal use. Premature failure usually indicates power surge damage, physical damage from cookware contact, or manufacturing defect. Factors that shorten element life include frequent broiling, high-temperature cooking, and thermal shock from spills.
5. When the element is activated, it should glow red evenly across the entire coil within 3-5 minutes. If the element glows in spots or doesn't glow at all, it has failed. Uneven glowing indicates internal breaks in the heating wire.
6. Always turn off power at the circuit breaker before working on the broil element—240V AC is potentially lethal. Use a non-contact voltage tester to verify power is off before touching any electrical connections.
7. Handle the new element by the mounting brackets only—avoid touching the element coil. Oils from your hands can cause hot spots and premature element failure. If you touch the coil, clean it with rubbing alcohol before use.
8. Inspect wire terminals and connectors for corrosion or damage during replacement. Corroded or loose connections cause poor electrical contact, overheating, and element failure. Clean or replace damaged terminals.
9. Do not overtighten the mounting screws—this can crack the porcelain oven cavity or damage the element mounting brackets. Tighten screws firmly but not excessively. Hand-tight plus 1/4 turn is sufficient.
10. If the new element fails immediately or the circuit breaker trips, check for incorrect wire connections or a short circuit in the oven wiring. Reversed connections or damaged wiring can cause element failure or circuit breaker tripping. Verify correct wiring before replacing the element again.
