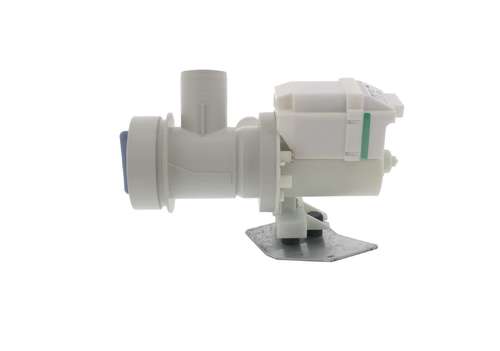

Alliance Laundry Systems / Speed Queen Washer Drain Pump 802623P, Replaces 801015, 801015P, 802623

120 V, 60 Hz synchronous drain pump used in Alliance Laundry Systems commercial and stacked washer applications. The pump removes water during the washer drain cycle.

Is This the Right Part?

Common Symptoms

• Water remains in the tub after a drain segment.
• Little or no water flow is discharged from the washer drain hose during a drain cycle.
• An abnormal hum or rattle may be heard from the pump area during draining; a blockage in the connected drain path can produce similar symptoms.
• Water observed around the pump area may involve the pump, hose connections, pump housing, gasket, or O-ring and is not by itself proof that the pump has failed.

Check Before Replacing

• Unplug the washer before accessing the pump area or touching connectors.
• Check the external drain hose for kinks, crushing, or an obvious blockage before condemning the pump.
• Run a normal drain portion of a cycle and observe whether water is discharged; do not access wiring or internal components while power is applied.
• With power disconnected, inspect the pump electrical connector for a secure connection and inspect accessible wiring for damage.
• Inspect accessible pump-area hose connections and the pump housing area for signs of leakage; the associated housing, gasket, O-ring, and hoses are separately listed components on applicable Alliance parts diagrams.

Pro Tip

Part Details

Key Features

• Genuine Speed Queen/Alliance OEM drain pump, manufacturer part 802623P.
• 120 V, 60 Hz synchronous drain-pump design.
• Listed production electrical designation: 120 V, 85 W, 1.4 A, 60 Hz.
• The pump is separately listed from the pump mount bracket, pump housing, gasket, O-ring, hoses, and clamps in applicable Alliance parts manuals.

Installation Notes

• Disconnect electrical power before service and expect residual water in the drain path.
• Verify the appliance model and exact replacement part before installation.
• Transfer/reconnect hoses and electrical connections exactly as documented for the specific washer model; verify hose connections are secure and check for leaks during a test drain.
• Do not assume a pump mount bracket, pump housing, gasket, O-ring, hoses, or clamps are included: applicable Alliance diagrams list these as separate items.
• Use the model-specific Alliance service/parts documentation for access and reassembly details, because pump-area configuration varies by washer platform.

Verified Compatible Models

HTELXFSP281CW01, HTELXFSP291CW01, HTELYFSP281CW01, HTELYFSP291CW01, HTENXFSP281CW01, HTENXFSP282CW01, HTENXFSP291CW01, HTENXFSP292CW01, HTENYFSP281CW01, HTENYFSP282CW01, HTENYFSP291CW01, HTENYFSP292CW01, HTGLXFSP091CW01, HTGNXFSP091CW01, HTGNXFSP092CW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
