Whirlpool Corporation Refrigerator Condenser Fan Motor Kit 833697, Replaces 46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560

Price
$100.20

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
REFRIGERATOR RUNS BUT DOES NOT COOL PROPERLY BECAUSE THE CONDENSER FAN IS NOT OPERATING

Whirlpool Corporation Refrigerator Condenser Fan Motor Kit 833697, Replaces 46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560, 675603, 6756010, 545032, 521869, 280569, 280568, 280567, 280566, 280565, 280564, 280563, 280562, 2805616, 2805615, Fixes Refrigerator runs but does not cool properly because the condenser fan is not operating

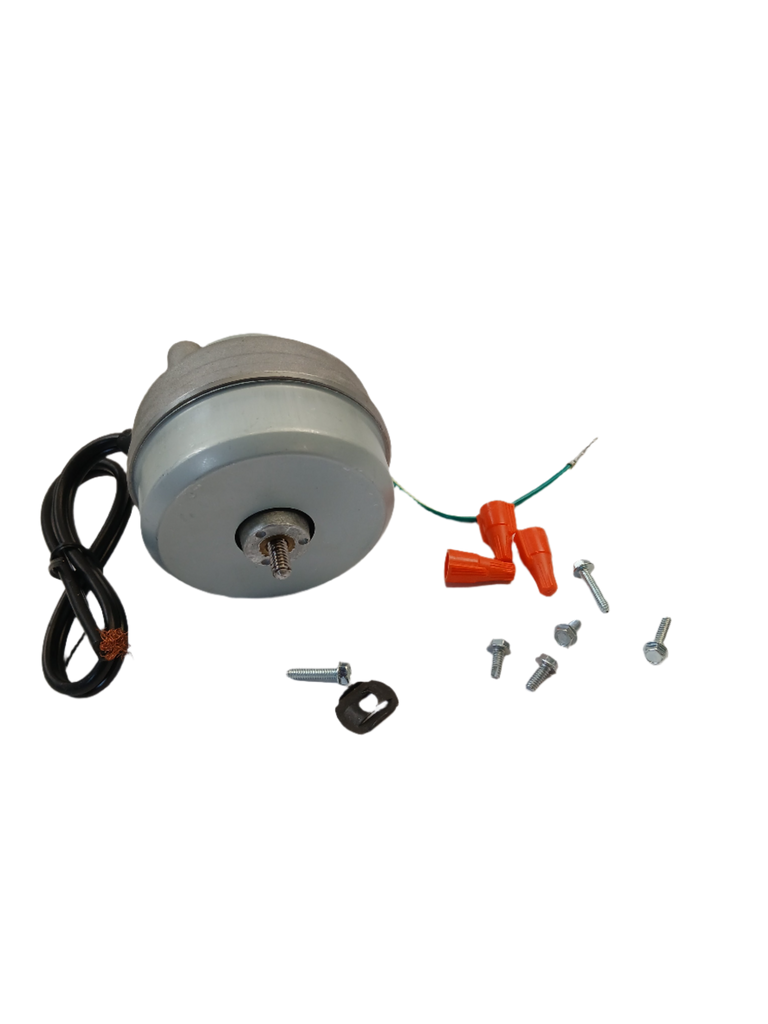

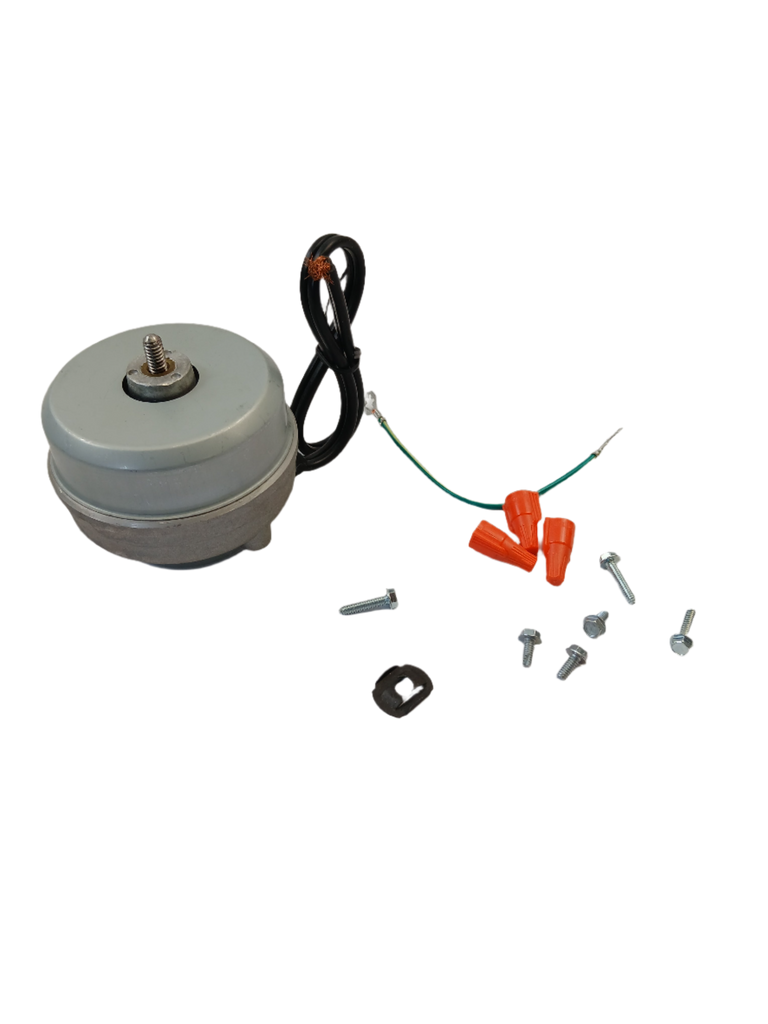

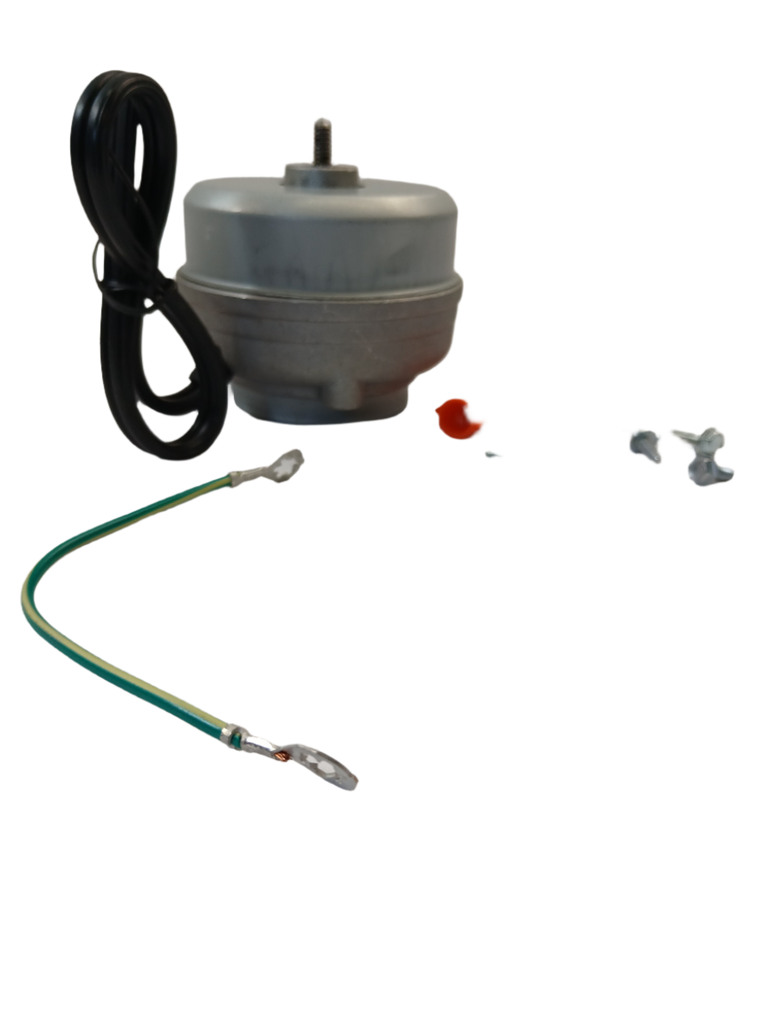

Genuine Whirlpool condenser fan motor kit for refrigerators. Rated at 115 volts and 2 watts with clockwise rotation; includes motor, hardware, and instructions. Fan blade is not included.

Part 833697Replaces 46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560, 675603, 6756010, 545032, 521869, 280569, 280568, 280567, 280566, 280565, 280564, 280563, 280562, 2805616, 2805615Whirlpool Corporation

Genuine Whirlpool condenser fan motor kit for refrigerators. Rated at 115 volts and 2 watts with clockwise rotation; includes motor, hardware, and instructions. Fan blade is not included.

Is This the Right Part?

Part Number833697
Replaces46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560, 675603, 6756010, 545032, 521869, 280569, 280568, 280567, 280566, 280565, 280564, 280563, 280562, 2805616, 2805615
ManufacturerWhirlpool Corporation
Appliance TypeRefrigerator
Part TypeRefrigerator Condenser Fan Motor Kit

✅ Cross Reference Information

Current Part Number833697
Replaces46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560, 675603, 6756010, 545032, 521869, 280569, 280568, 280567, 280566, 280565, 280564, 280563, 280562, 2805616, 2805615

Common Symptoms

  • Refrigerator or freezer temperature is too warm
  • Refrigerator runs longer than normal
  • Noisy operation from the condenser-fan area
  • Condenser fan does not start or stops during operation

Check Before Replacing

  • Disconnect refrigerator power before servicing.
  • With power disconnected, inspect the condenser-fan area for debris or an obstruction preventing the blade from turning freely.
  • Inspect the motor wiring and connections for loose terminals, damaged insulation, or visible heat damage.
  • After reassembly and with all guards or covers secured, verify normal fan operation without placing hands near the rotating blade.

Pro Tip

A failed condenser fan can cause warm temperatures and extended compressor run time, but confirm that the blade is unobstructed and the wiring is intact before replacing the motor.

Part Details

Part Number833697
Part TypeRefrigerator Condenser Fan Motor Kit
ManufacturerWhirlpool Corporation
Appliance TypeRefrigerator
Primary FunctionDrives the refrigerator condenser fan blade to move air across the condenser coil and compressor, helping release heat from the refrigeration system.
Cross References46000833697, 61002038, 99989708, 14251476, 684814, 684813, 684812, 684811, 684457, 684456, 684453, 684451, 675608, 675607, 675605, 675604, 67560, 675603, 6756010, 545032, 521869, 280569, 280568, 280567, 280566, 280565, 280564, 280563, 280562, 2805616, 2805615

Key Features

  • Genuine Whirlpool condenser fan motor kit
  • 115-volt, 2-watt motor
  • Clockwise rotation per Whirlpool’s official part listing
  • Includes mounting hardware and instructions
  • Fan blade is not included according to the trusted archive specification

Installation Notes

  • Unplug the refrigerator and safely protect or relocate perishable food before service.
  • Wear work gloves when working around the refrigerator cabinet and condenser area.
  • Use the included hardware and instructions, and confirm that the existing fan blade is suitable because the blade is not included.
  • Secure the motor and reconnect wiring before restoring power; keep hands clear of the rotating fan.

Verified Compatible Models

106106-8130600, 106106-8130610, 106106-8130620, 106106-8130630, 106106-8130640, 106106-8130650, 106106-8130660, 106106-8130680, 106106-8130690, 1061068131, 10650202990, 10650202991, 10650202992, 106106813067, 1061068130670

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

280562, 280563, 280564, 280565, 280566, 280567, 280568, 280569, 521869, 545032, 675603, 675604, 675605, 675607, 675608, 684451, 684453, 684456, 684457, 684811, 684812, 684813, 684814, 2805615, 2805616, 6756010, 14251476, 61002038, 99989708, 46000833697, PAC65109, SM5109

106106-8130600, 106106-8130610, 106106-8130620, 106106-8130630, 106106-8130640, 106106-8130650, 106106-8130660, 106106-8130680, 106106-8130690, 1061068131, 10650202990, 10650202991, 10650202992, 106106813067, 1061068130670

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
