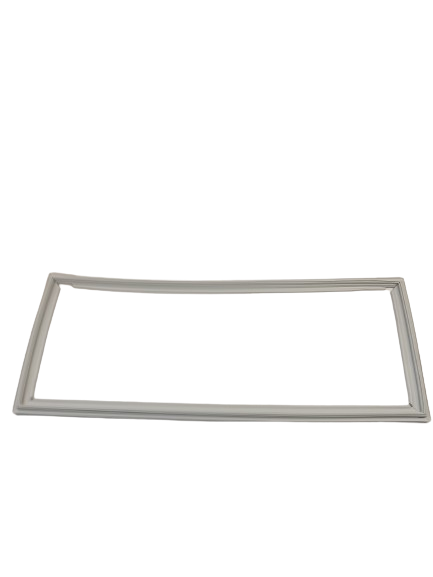

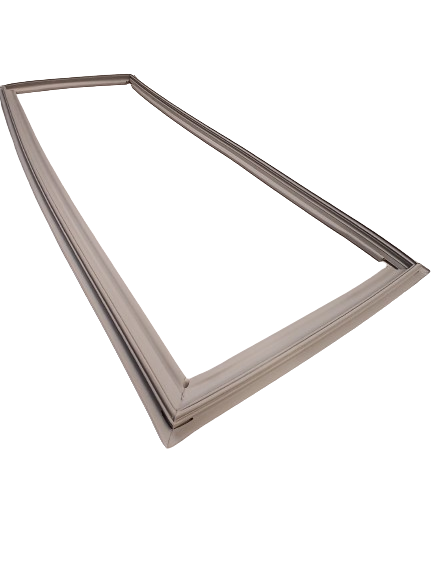

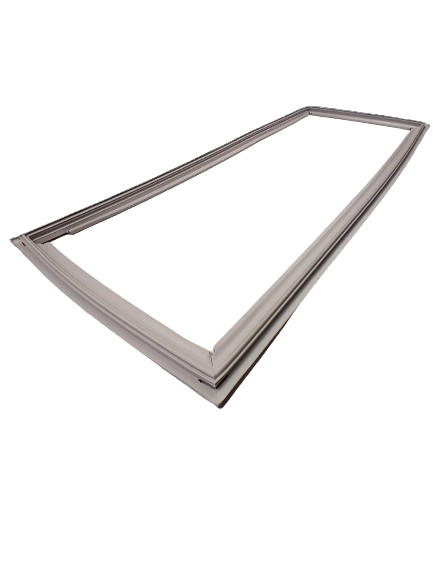

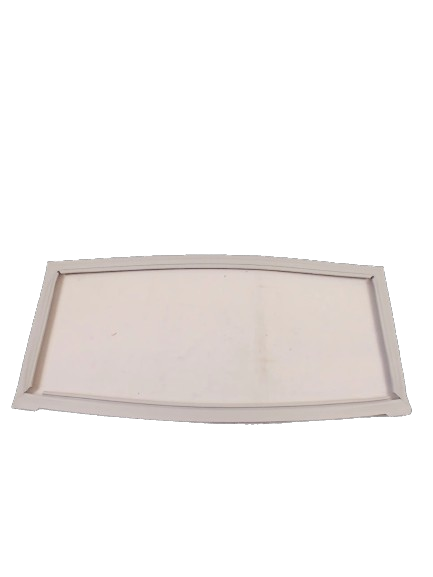

LG Refrigerator Door Gasket Assembly ADX73350635, Replaces ADX73350625

Genuine LG refrigerator door gasket assembly that forms an airtight seal around the refrigerator door to retain cold air and prevent warm-air intrusion, frost, and moisture buildup. The part is also listed for selected Kenmore refrigerators.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible cracking, tearing, flattening, or compression of the gasket
• Condensation or moisture around the refrigerator door opening
• Frost or ice buildup near the door seal
• Refrigerator runs longer than usual while trying to maintain temperature
• Door does not contact the cabinet evenly or appears slightly ajar

Check Before Replacing

• Visually inspect the entire gasket for tears, cracks, deformation, or flattened sections.
• Clean the gasket and the mating cabinet surface, then check whether the door closes evenly.
• With the door closed, inspect for visible gaps between the gasket and cabinet around the perimeter.
• Check that stored food or door bins are not obstructing full door closure.
• Verify that the gasket is seated continuously in its door groove, especially at the corners.

Pro Tip

Part Details

Key Features

• Genuine LG refrigerator door gasket assembly
• Magnetic sealing profile for an airtight door closure
• Installs into the refrigerator-door gasket groove
• Exact part number ADX73350635
• Associated with selected LG and Kenmore refrigerator applications in the trusted archive

Installation Notes

• Disconnect refrigerator power before beginning installation.
• Remove the old gasket carefully without damaging the door liner or retaining groove.
• Ensure the door groove is clean before fitting the replacement.
• Press the gasket ridge into the groove, seating the corners and then the remaining sides evenly.
• Confirm that the flaps face outward as shown in the part-specific installation guide.
• Close the door and inspect the gasket from the side to verify continuous, even contact before restoring power.

Verified Compatible Models

LFC24770SB, LFC24770ST, LFC24770SW, LFC24786SB, LFC24786SD, LFC24786ST, LFC24786SW, LFCS25663S, LFX25978SB, LFX25978SW, LFXS24623B, LFXS24623D, LFXS24623S, LFXS24623W, LFXS24663S

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
