Samsung Dryer Runs But Won't Heat? Heating Element DC47-00019A – Fix No-Heat Fast
A failed heating element is the single most common reason a Samsung electric dryer runs a full cycle but produces no heat — the drum spins, the timer counts down, and clothes come out cold and wet. In most Samsung-built electric dryers, this is caused by a failed heating element — the nichrome coil assembly that generates all the heat needed to dry clothes. When it fails, the dryer runs normally but produces no heat or severely reduced heat, leaving laundry damp after a full cycle. ⚡ Most common repair in Samsung, Kenmore (Samsung-built), and Maytag electric dryers. Part DC47-00019A is the genuine OEM replacement heating element that restores full heat output immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on and drum spins normally
- ✔ Timer, controls, and display function correctly
- ✔ Thermal fuse has been tested and confirmed OK (or replaced)
- ✔ ONLY problem is dryer runs but produces no heat or very weak heat
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer runs full cycle but clothes come out cold and wet
- Dryer blows cold or room-temperature air only
- Dryer takes multiple cycles to dry a single load
- Drum spins normally but no warm air felt at the exhaust
- Thermal fuse blows repeatedly — often caused by a failing element grounding against the housing
- Weak or intermittent heat — element partially broken
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this heating element restores full heat output immediately.
📦 Part Details
- Part Number: DC47-00019A
- Type: Electric Dryer Heating Element Assembly – Nichrome Coil on Metal Housing with Ceramic Insulators
- Replaces: DC97-14486A, WP35001247, 35001247, 3036096 — direct drop-in, no modification required
- Brands: Samsung, Kenmore (Samsung-built), Maytag, Whirlpool (select models)
- Available as: Genuine OEM (DC47-00019A) or XPart premium aftermarket (DC47-00019AXP) or Used pull

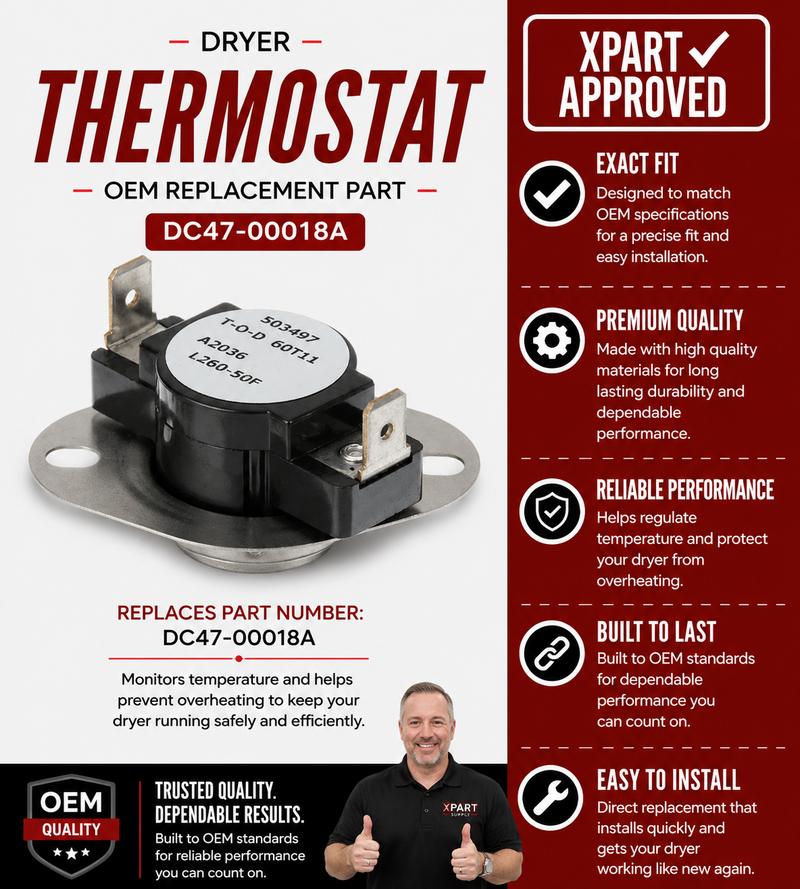

If the heating element burned out, the thermal fuse (DC96-00887A) almost certainly blew at the same time — it's a one-time safety device that must be replaced whenever the element fails. Replacing only the element without checking the thermal fuse will result in a dryer that still won't heat. Replace both together for a complete repair. While the back panel is off, also inspect the high-limit thermostat (DC47-00016A) for continuity.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes, basic tools required. Disconnect power before servicing. Remove the dryer back panel (typically 6–8 screws) to access the heating element housing mounted at the lower rear. Disconnect the wiring harness and ground wire, remove the mounting screws, and transfer your existing thermostats and thermal fuse to the new element housing before installing — do not leave them on the old housing. Reinstall in reverse order, restore power, and run a timed dry cycle to confirm full heat output.
✓ Compatible Models
Confirmed compatible with DVE50R5400W/A3, DVE45R6100W/A3, DV45H7400EP/AC, DV42H5400EW/A3, DV395ETPAWR/A1, DV337AEW/XAA, DV316LEW/XAA, MDE6700AYW, NED7200TW plus hundreds of additional Samsung, Kenmore, and Maytag electric dryer models. Contact us to verify your model number before ordering.
💡 Pro Tip
The thermal fuse (DC96-00887A) is a one-time safety device — once it blows, it must be replaced. When a heating element fails, it almost always takes the thermal fuse with it. Ordering both parts together costs under $20 extra and guarantees a complete repair on the first visit. If you replace only the element and the fuse is blown, the dryer still won't heat and you'll be back inside the machine a second time. Also transfer your high-limit thermostat (DC47-00016A) to the new housing and test it for continuity before reinstalling.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
