Professional Repair Time: 60-75 minutes
DIY Repair Time: 120-150 minutes
Difficulty Rating: Moderate-Advanced (3.5/5) — Requires moderate-advanced mechanical and electrical skills, removal of dryer rear panel, disconnection of multiple 240V electrical connections (element, thermal fuse, high-limit thermostat), removal of duct connections, removal and installation of large bulky assembly, attention to proper wire connections and duct sealing, airflow system cleaning and verification

CRITICAL SAFETY WARNING: This repair involves 240V electrical connections. Always unplug the dryer and turn off the circuit breaker before beginning work to prevent electrical shock. Verify airflow is unrestricted before operating the dryer to prevent overheating and repeat failures. If uncomfortable with this repair, hire a qualified technician.

1. Turn off the circuit breaker supplying power to the dryer at the main electrical panel. CRITICAL: Electric dryers operate on 240V AC—turning off the breaker is essential for safety.
2. Unplug the dryer from the electrical outlet (or verify power is off if hardwired).
3. Verify power is off using a non-contact voltage tester at the dryer terminal block.
4. Move the dryer away from the wall to access the rear panel. You may need assistance—dryers are heavy.
5. Disconnect the dryer vent hose from the rear of the dryer by loosening the clamp.
6. Take multiple photos of the dryer rear panel, heating element assembly location, and all wire connections before disassembly. This is absolutely critical for proper reassembly.
7. Remove the rear access panel by removing the screws around the perimeter (typically 8-12 screws). Set the panel aside.

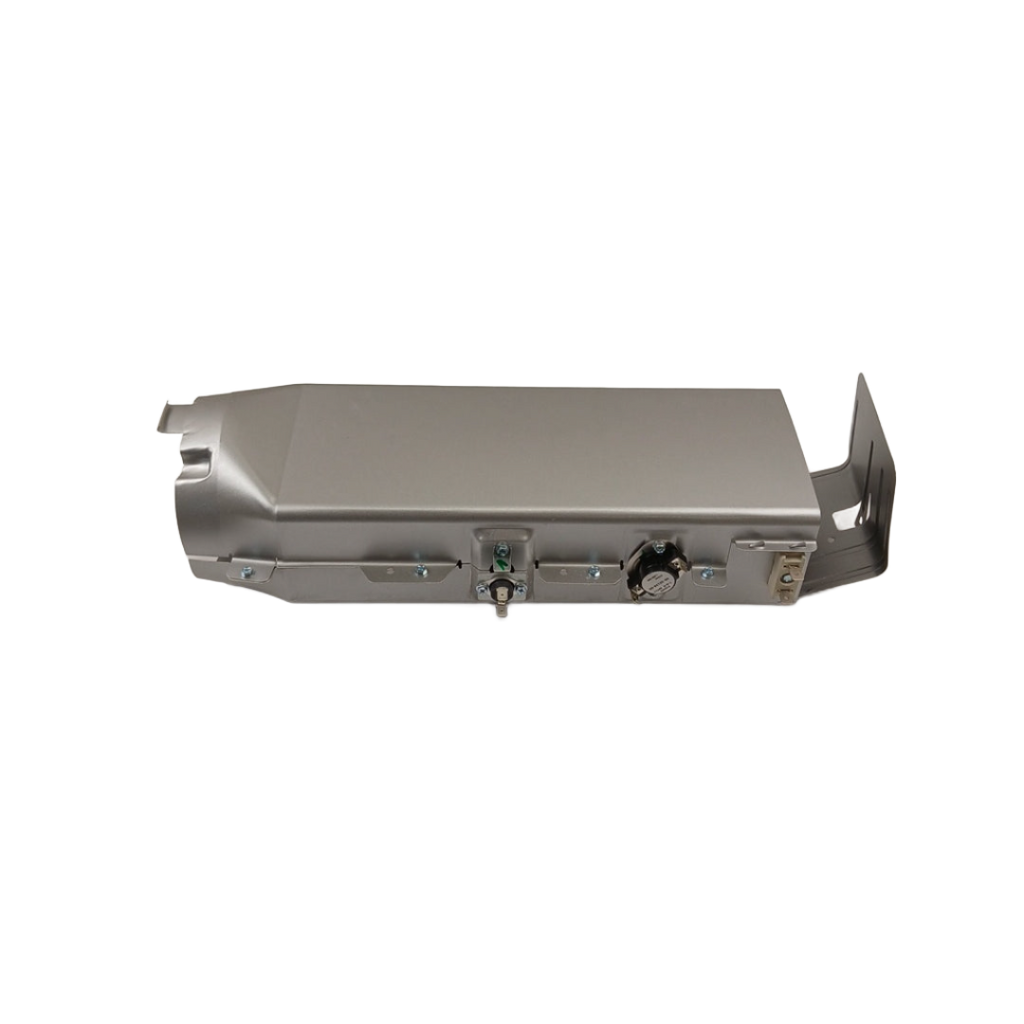

8. Locate the heating element assembly in the lower rear section of the dryer (large rectangular metal housing with ducts).
9. Take detailed close-up photos of all wire connections to the heating element, thermal fuse, and high-limit thermostat from multiple angles.
10. Disconnect the wire connectors from the heating element terminals by pulling the spade connectors straight off. Do not pull on wires—grip the connectors. Important: Note wire positions—typically two wires to element terminals.
11. Disconnect the thermal fuse wires (two wires connected to the thermal fuse mounted on the heater housing).
12. Disconnect the high-limit thermostat wires (two wires connected to the high-limit thermostat mounted on the heater housing).
13. Disconnect any duct connections from the heater assembly (inlet duct from blower, outlet duct to drum). Some models use clamps or screws; others use snap-fit connections.
14. Remove the heating element assembly mounting screws or brackets (typically 4-6 screws) that secure the assembly to the dryer cabinet.
15. Carefully remove the entire heating element assembly from the dryer and place on a clean work surface. Caution: Assembly is bulky and may be heavy—support it properly.

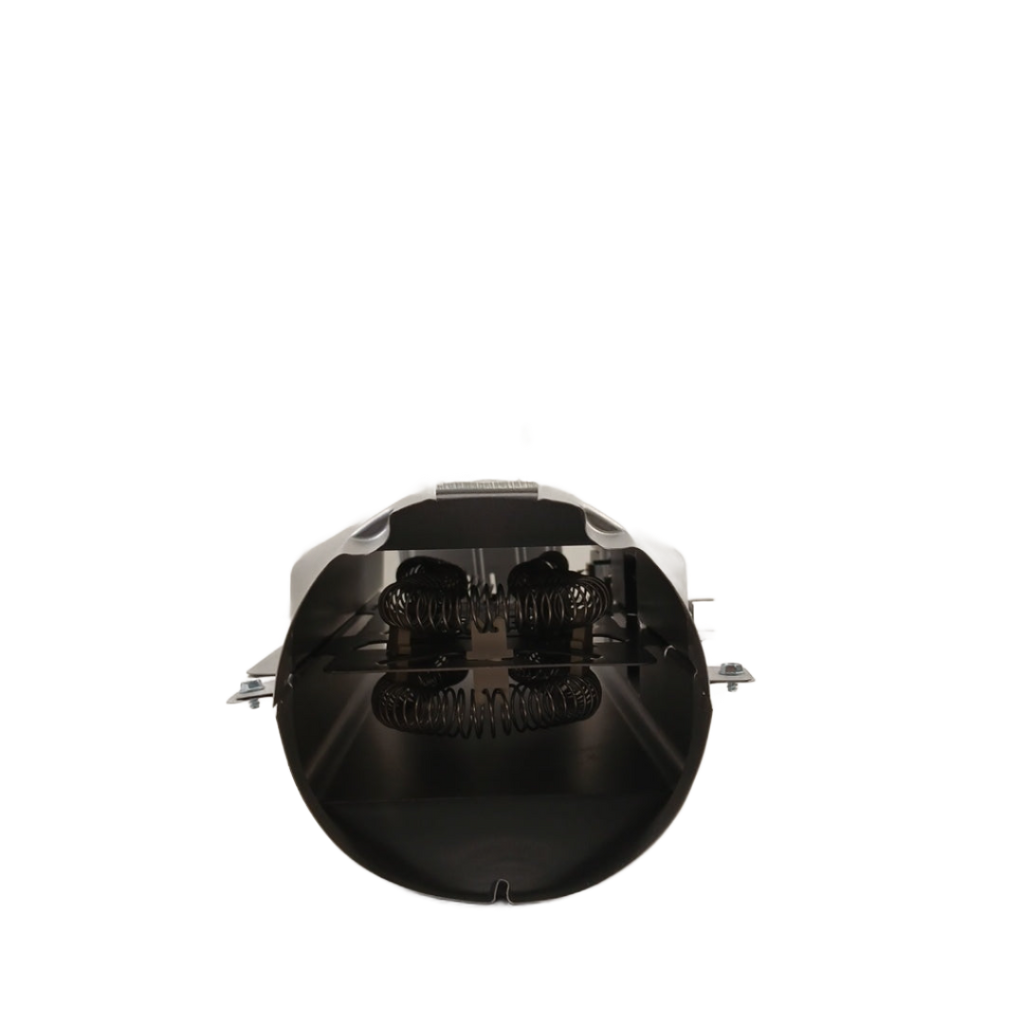

16. Inspect the old heating element coil (visible through housing vents) for visible damage such as breaks, burns, or separation. This confirms the diagnosis.
17. Test the old heating element with a multimeter set to measure resistance (ohms). Touch probes to the two element terminals. A functioning 5300-watt element at 240V should read approximately 10-11 ohms. Infinite reading = broken element.

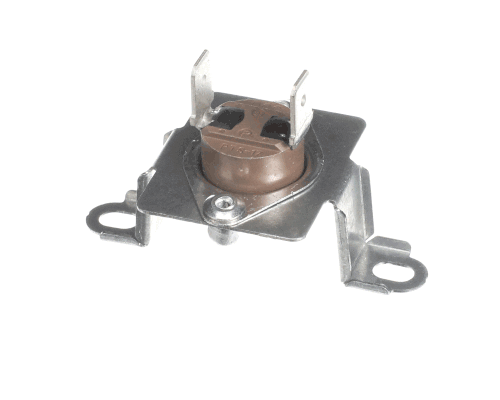

18. Test the thermal fuse with a multimeter—should show continuity (0 ohms) when good. Infinite reading = blown fuse (most common failure).
19. Test the high-limit thermostat with a multimeter—should show continuity when cool. Infinite reading = failed thermostat.
20. Check for airflow restrictions that caused assembly failure: clean lint filter thoroughly, inspect and clean exhaust vent duct (remove all lint buildup), verify vent hood outside opens freely, inspect blower housing for lint buildup. CRITICAL: Restricted airflow causes overheating and repeat failures.
21. Inspect wire terminals and connectors for corrosion, damage, or burned insulation. Clean or replace damaged components.

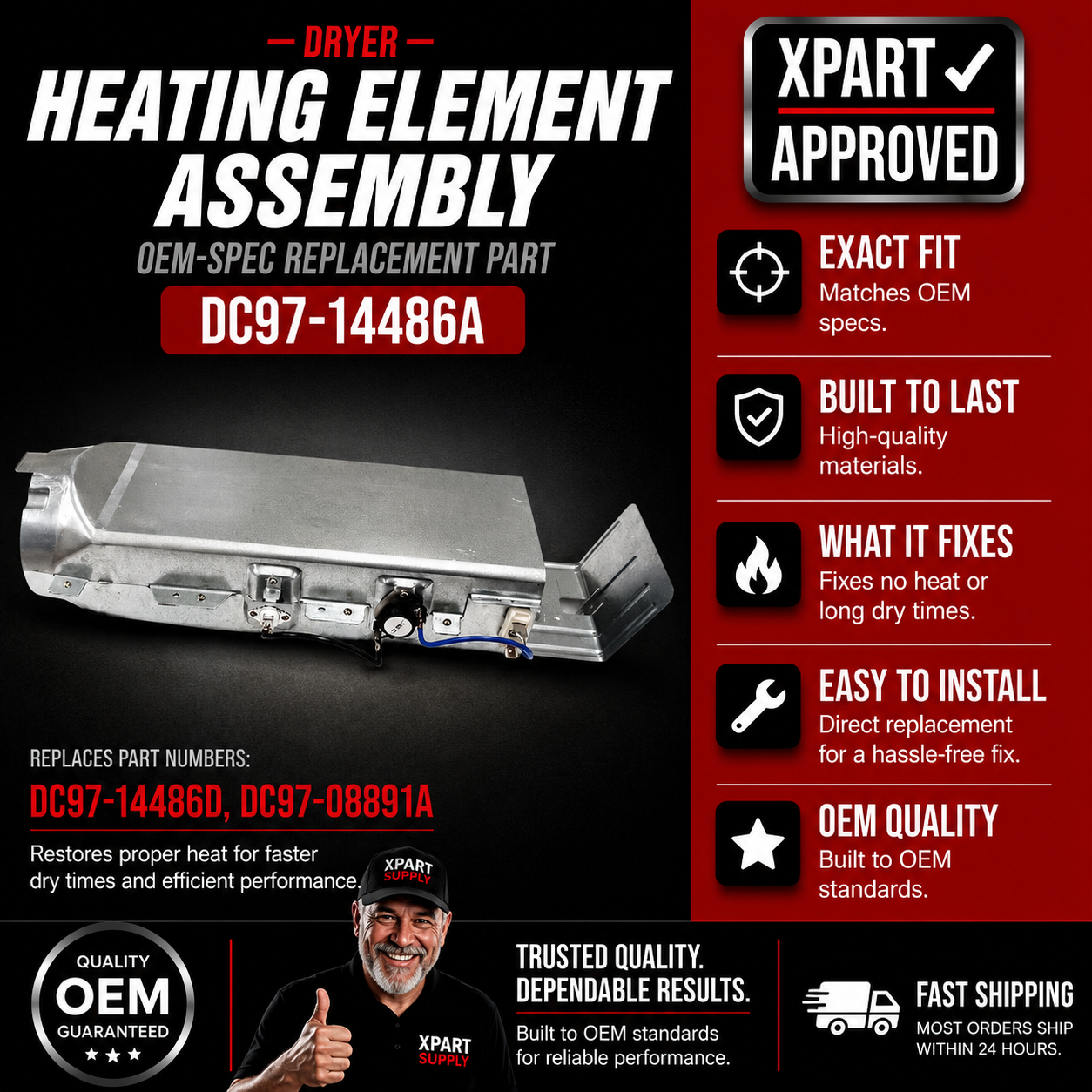

22. Unpack the new DC97-14486A heating element assembly from its packaging. The assembly is complete and ready to install—no disassembly required.
23. Compare the new assembly to the old one to verify dimensions, terminal positions, duct connections, and mounting holes match.
24. Inspect the new assembly for any shipping damage before installation.
25. Test the new heating element with a multimeter (optional)—should read approximately 10-11 ohms between element terminals.
26. Test the new thermal fuse (optional)—should show continuity (0 ohms).
27. Test the new high-limit thermostat (optional)—should show continuity when cool.
28. Position the new heating element assembly in the mounting location in the dryer cabinet, aligning the mounting holes and duct connections.
29. Install the heating element assembly mounting screws and tighten firmly but not excessively.
30. Verify the assembly is securely mounted with no movement or gaps.
31. Reconnect the duct connections (inlet duct from blower, outlet duct to drum). Ensure connections are secure with no air leaks. Install clamps or screws as required.
32. Reconnect the wire connectors to the heating element terminals by pushing the spade connectors firmly onto the 1/4-inch male terminals. CRITICAL: Ensure correct wire connections—reversed connections may damage the element or control board.
33. Reconnect the thermal fuse wires to the thermal fuse terminals mounted on the heater housing. Match wire positions to your photos.
34. Reconnect the high-limit thermostat wires to the thermostat terminals mounted on the heater housing. Match wire positions to your photos.
35. Verify all electrical connections are secure by gently tugging on each wire connector.
36. Double-check all connections against your detailed photos to ensure correct installation.
37. Verify no wires are pinched or crushed between panels or components.
38. Reinstall the rear access panel by positioning it and installing the mounting screws. Tighten firmly.
39. Reconnect the dryer vent hose to the rear of the dryer and secure with the clamp. Ensure the connection is tight with no gaps.
40. Move the dryer back to its installation location.
41. Restore power by turning on the circuit breaker.
42. Plug in the dryer (if unplugged).
43. Run a test cycle (timed dry, high heat, 15-20 minutes) with a small load of damp towels.
44. Verify the dryer heats properly by feeling the exhaust air after 5 minutes—should be warm to hot (130-160°F).
45. Listen for unusual noises during operation—dryer should run smoothly without rattling or grinding.
46. Check for burning smells (slight odor is normal from manufacturing oils burning off during first use).
47. Monitor the dryer temperature to ensure it doesn't overheat—drum should be warm but not too hot to touch.
48. Verify clothes dry properly in the expected time (typically 40-60 minutes for a full load).
49. If the dryer heats properly and dries clothes efficiently, the repair is complete.

Safety Notes: Always unplug the dryer and turn off the circuit breaker before working on 240V systems. Take extensive photos during disassembly for proper reassembly. Clean lint filter and exhaust vent thoroughly before operating—restricted airflow causes overheating and component failure. Test all components with multimeter to confirm failures. Verify proper heating during test cycle. This repair requires moderate-advanced mechanical and electrical skills.

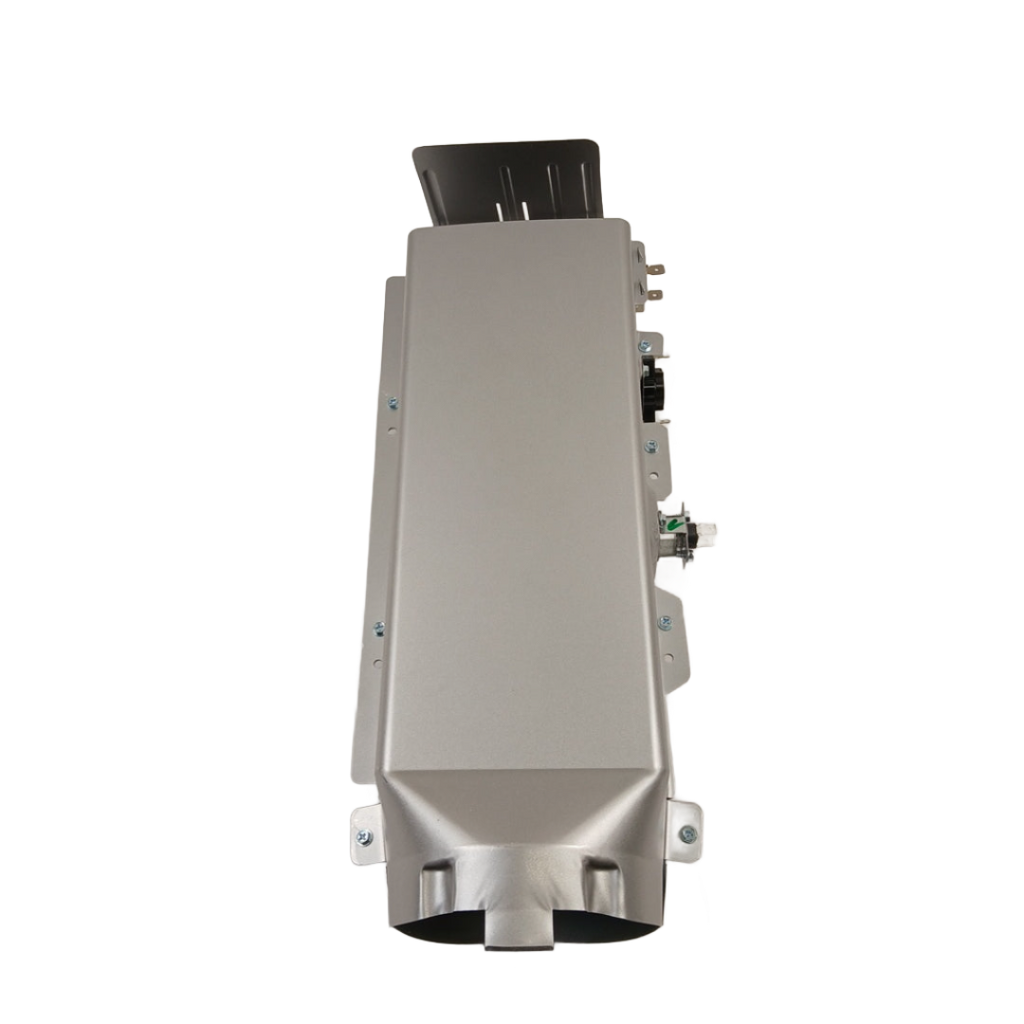

1. The DC97-14486A is a complete assembly that includes the heating element, housing, high-limit thermostat, and thermal fuse—this simplifies installation and ensures all components are new. Unlike replacing individual parts, this assembly provides a complete heating system refresh. No need to purchase separate thermostats or fuses.
2. Always test the thermal fuse before assuming the heating element has failed—a blown thermal fuse is the most common cause of "no heat" problems. Test with a multimeter—should show continuity (0 ohms) when good. Infinite reading = blown fuse. The DC97-14486A includes a new thermal fuse, so this problem is resolved with the assembly replacement.
3. The most common cause of heating element assembly failure is restricted airflow—always clean the lint filter and exhaust vent system before installing the new assembly. Clogged lint filters, blocked exhaust vents, and restricted blower housings cause overheating that burns out elements and blows thermal fuses. Clean the entire exhaust system from dryer to outside vent hood.

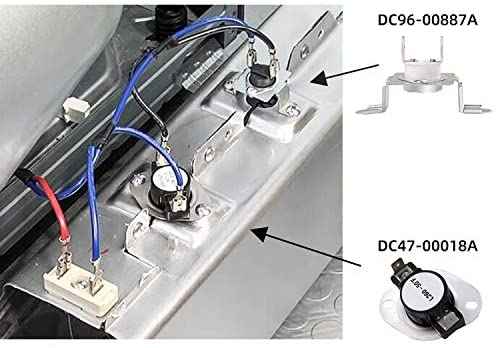

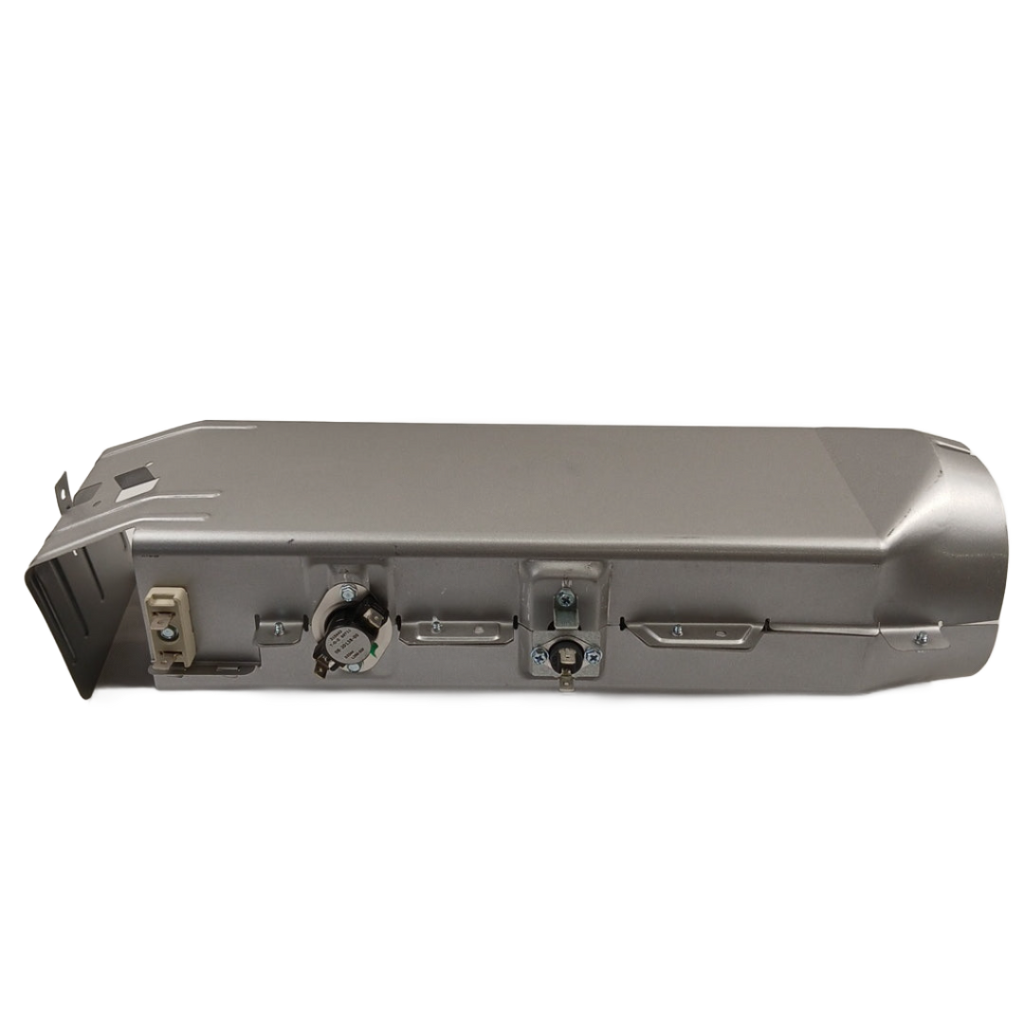

4. The DC97-14486A assembly includes both the thermal fuse (DC96-00887A) and high-limit thermostat (DC47-00018A) pre-mounted on the housing—verify both are functioning before installation. Test with a multimeter: thermal fuse should show continuity (0 ohms), high-limit thermostat should show continuity when cool. This ensures you're installing fully functional components.
5. Verify proper duct connections after installation—air leaks reduce heating efficiency and cause long drying times. The inlet duct from the blower and outlet duct to the drum must be securely connected with no gaps. Use clamps or screws as required by your model. Air leaks waste energy and reduce drying performance.
6. The heating element should cycle on and off during the drying cycle to maintain optimal temperature—this is normal operation controlled by the cycling thermostat. The cycling thermostat (mounted separately on the blower housing, not included in this assembly) monitors drum temperature and cycles the element on and off. You may hear clicking sounds as the thermostat cycles. Continuous heating without cycling indicates cycling thermostat failure (separate part).
7. If the new assembly doesn't heat, check for blown thermal fuse on the blower housing (separate from the assembly), failed cycling thermostat, faulty control board, or incorrect wiring. Some Samsung dryers have two thermal fuses—one on the heater assembly (included in DC97-14486A) and one on the blower housing (separate part). Check both locations.
8. Verify proper airflow after assembly replacement by checking exhaust temperature—should be 130-160°F during operation. Use an infrared thermometer or place your hand near the exhaust vent. If exhaust is cool or barely warm, check for airflow restrictions. If exhaust is too hot (over 180°F), the cycling thermostat may have failed.
9. The DC97-14486A assembly is bulky and requires careful handling during installation—support it properly to avoid damaging the coil or housing. The assembly weighs 3-5 pounds and measures approximately 19 x 7 x 5.5 inches. Align mounting holes and duct connections carefully before tightening screws. Do not force connections.
10. Run a full test cycle with damp towels after assembly replacement to verify proper operation and temperature regulation. Monitor the dryer for 15-20 minutes to ensure it heats properly, cycles correctly, and doesn't overheat. Check exhaust temperature and listen for normal operation. This test identifies installation problems before using the dryer for regular laundry.
11. The high-limit thermostat on the DC97-14486A is an automatic-reset type that opens at 250-280°F and closes when temperature drops—if it trips repeatedly, airflow is restricted. Clean the lint filter, exhaust vent, and blower housing thoroughly. Persistent tripping after cleaning indicates a failed cycling thermostat (separate part) or control board issue.
12. Take detailed photos of all wire connections before disassembly—the DC97-14486A has multiple connection points (element terminals, thermal fuse, high-limit thermostat) that must be wired correctly. Incorrect wiring can damage the assembly, control board, or create safety hazards. Label wires if necessary to ensure correct reconnection.
