GE Dishwasher Lower Spray Arm WG04F11514 — Fixes Poor Lower-Rack Cleaning / Restores Water Distribution — U.S. Cross-Reference WD22X25281

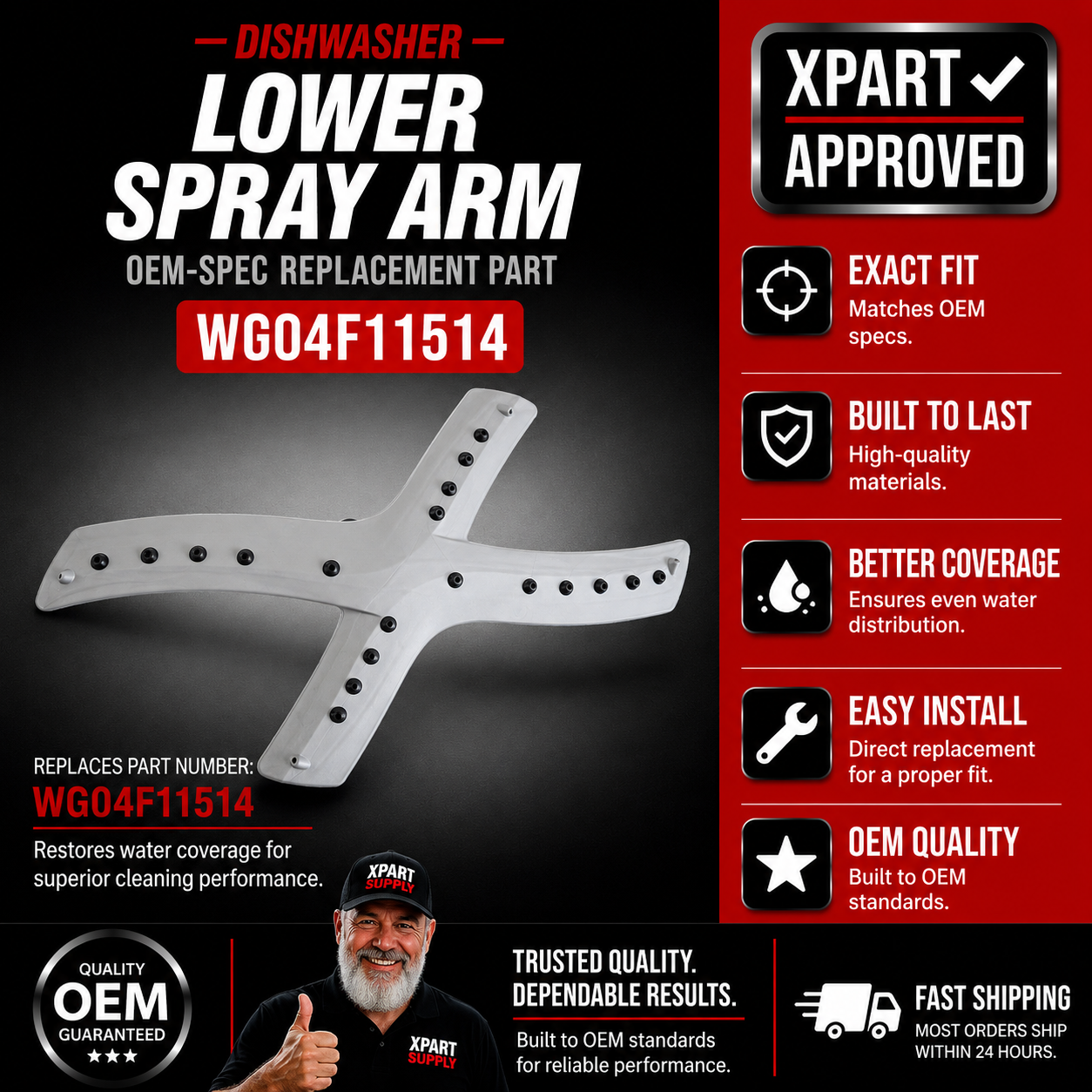

WG04F11514 is a genuine GE lower dishwasher spray-arm assembly. The matching U.S. service number is WD22X25281.
The lower spray arm rotates during the wash cycle and distributes pressurized water across the bottom rack. A cracked, obstructed or damaged spray arm may contribute to food residue, uneven cleaning or weak spray coverage on lower-rack dishes.
Similar symptoms can also result from clogged filters, low water level, a restricted circulation system, damaged spray-arm supports or a weak circulation pump. Confirm the complete dishwasher model and inspect the wash system before ordering.
⚠️ Safety: Disconnect electrical power and shut off the water supply before service. Installation and fastener design vary by model.
❓ Is This the Right Part?
This part may restore lower-rack spray coverage when the original spray arm is damaged or obstructed and no related wash-system defect remains. Clogged spray holes are one possible cause of poor lower-rack cleaning — inspect the arm, filters, water supply and circulation system before ordering.
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Dishes on the bottom rack not getting clean or showing food residue
- Weak or uneven spray coverage on lower-rack items
- Spray arm not rotating during the wash cycle
- Visible cracks, damage or blockage on the spray arm
These symptoms can have multiple causes. Inspect the spray arm, filters, water supply, circulation pump and spray-arm supports before ordering.
📦 Part Details
- Canadian Part Number: WG04F11514
- U.S. Cross-Reference: WD22X25281
- Type: Lower dishwasher spray-arm assembly
- Brands: GE, Café
- OEM: Genuine GE replacement part
- Note: This is the lower spray arm only — not the upper spray arm, spray-arm hub or adapter. Confirm the complete model number before ordering.
Before ordering a replacement spray arm, remove the existing arm and inspect the spray holes for hard-water deposits or debris. Clogged spray holes are one possible cause of poor lower-rack cleaning and can sometimes be cleared without replacing the part. Also inspect the dishwasher filter and circulation system.
⚙️ Installation
Skill Level: Easy to Moderate. Disconnect electrical power and shut off the water supply before service. Fastener and removal procedures vary by model — some applications use a retaining screw or hub rather than a simple twist-off. Confirm the attachment method for your specific model before beginning. Remove the bottom rack to access the spray arm, remove the original arm per your model’s procedure, and install the replacement. Run a short cycle to confirm the arm rotates freely.
✓ Compatible Models
Confirmed compatible with 18 select GE and Café dishwasher models. Confirm the complete model and revision code before ordering. Contact us to verify your model number.
💡 Pro Tip
WG04F11514 is the lower spray arm only. If dishes on the upper rack are not getting clean, the upper spray arm or middle spray arm (if applicable) may be the affected component. Confirm the position of the failed arm before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
