WATER LEAKING FROM UNDERNEATH THE WASHER
Whirlpool Washer Tub seal / centerpost gasket (main outer tub seal) W10814296, Fixes Water leaking from underneath the washer

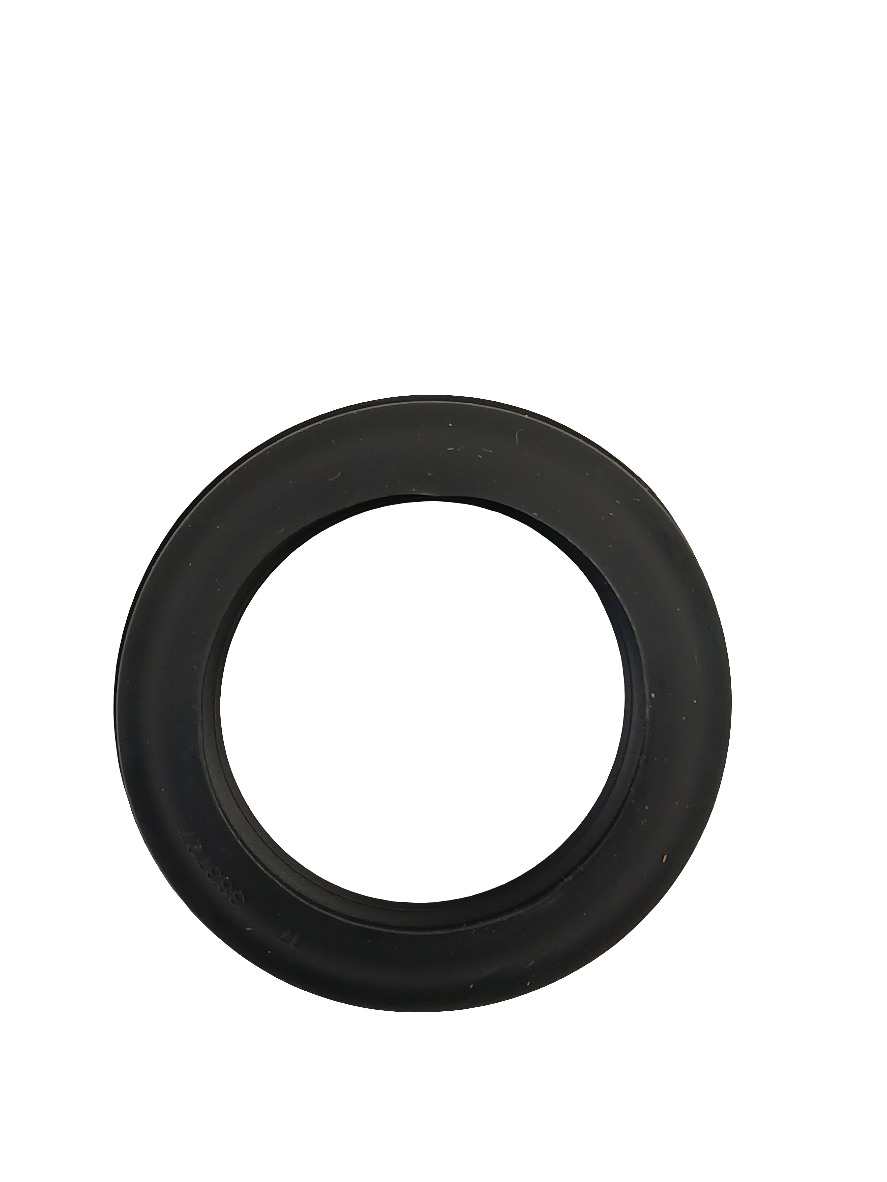

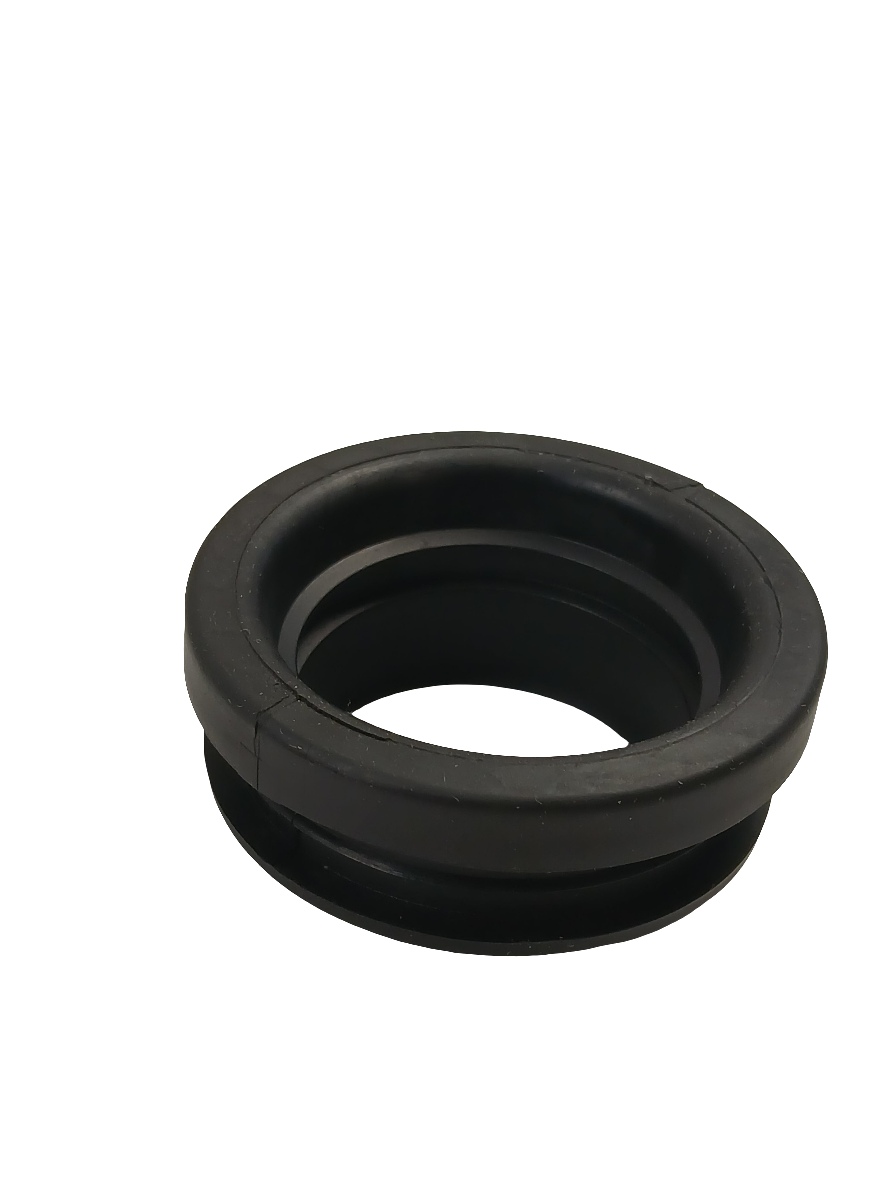

OEM washer tub seal, also identified as a centerpost gasket or main outer tub seal. It helps prevent water from leaking through the bottom of the outer tub.
Part W10814296Replaces 21050, 383727, 62665, 96690Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberW10814296
Replaces21050, 383727, 62665, 96690
ManufacturerWhirlpool
Appliance TypeWasher
Part TypeTub seal / centerpost gasket (main outer tub seal)
✅ Cross Reference Information
Current Part NumberW10814296
Replaces21050, 383727, 62665, 96690
Common Symptoms
- Water appearing under the washer, especially after the tub fills or during agitation/spin
- Water tracking from the underside of the outer tub near the centerpost area
- Moisture reaching nearby tub-support or bearing components
Check Before Replacing
- Unplug the washer and shut off its water supply before inspection.
- Inspect the floor and underside of the washer for water trails originating near the center of the outer tub rather than from the inlet hoses, drain hose, pump, or other connections.
- With the washer disconnected from power, inspect the visible underside area for signs of a worn, torn, displaced, or deteriorated centerpost seal.
- Confirm the leak occurs during or after filling, agitation, or spinning; this component is not the only possible cause of an under-washer leak.
- Use the appliance’s model-specific service documentation for any cabinet, tub, or basket disassembly; do not operate the washer with protective panels removed.
Pro Tip
Before replacing the seal, trace the water path from the highest wet point downward and rule out hoses, the pump, and the drain system; a leak at the bottom of the tub can also damage nearby bearings or other drive components.
Part Details
Part NumberW10814296
Part TypeTub seal / centerpost gasket (main outer tub seal)
ManufacturerWhirlpool
Appliance TypeWasher
Primary FunctionSeals the washer’s center post/agitator shaft area at the bottom of the outer tub to help prevent water from leaking through the tub seal.
Installation Notes
- Disconnect electrical power and water supplies before beginning the repair.
- This repair generally requires access to the tub assembly and removal of the tub or basket, depending on the washer model.
- Remove the old seal and clean sealing surfaces of residue or debris before installing the replacement.
- Inspect the centerpost or tub-support sealing surface for corrosion, damage, or deposits that could prevent the new seal from sealing correctly.
- Follow the model-specific service manual or installation instructions for disassembly, seal orientation, reassembly, and post-repair leak testing.
- Wear appropriate hand protection when handling cabinet, tub, or basket components.
Verified Compatible Models
LSN1000KQ0, LSQ8243HQ0, LSQ8543JQ0, LSQ9010LW0, LSQ9544KQ0, LSQ9549LW0, LSR5233AW0, LSR7233EQ0, LSR8233EQ0, LSR8233EQ1, LSR8233JQ0, LSR8433KQ0, LXR7144EQ1, LXR9245EQ1, TAWS800JQ1
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
