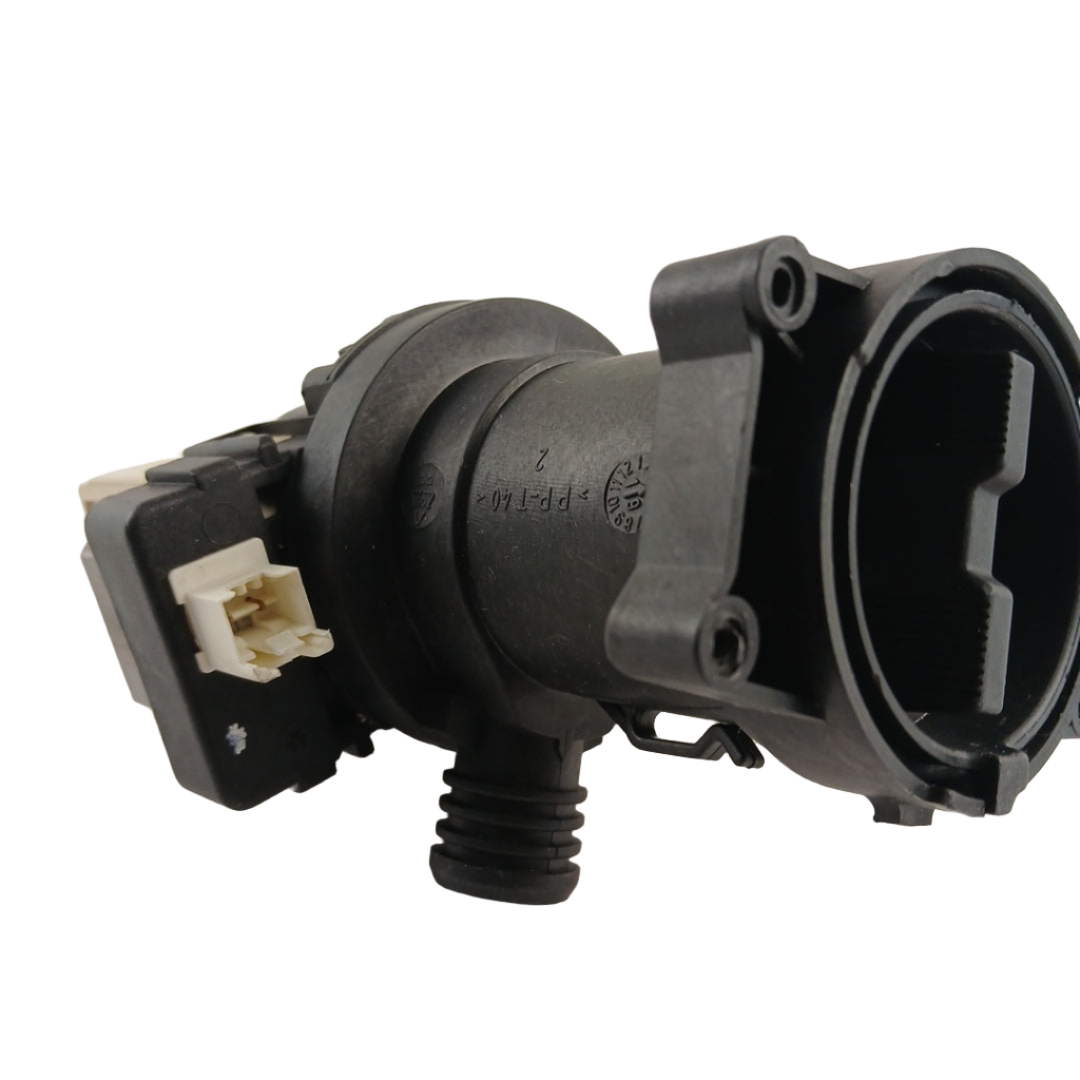

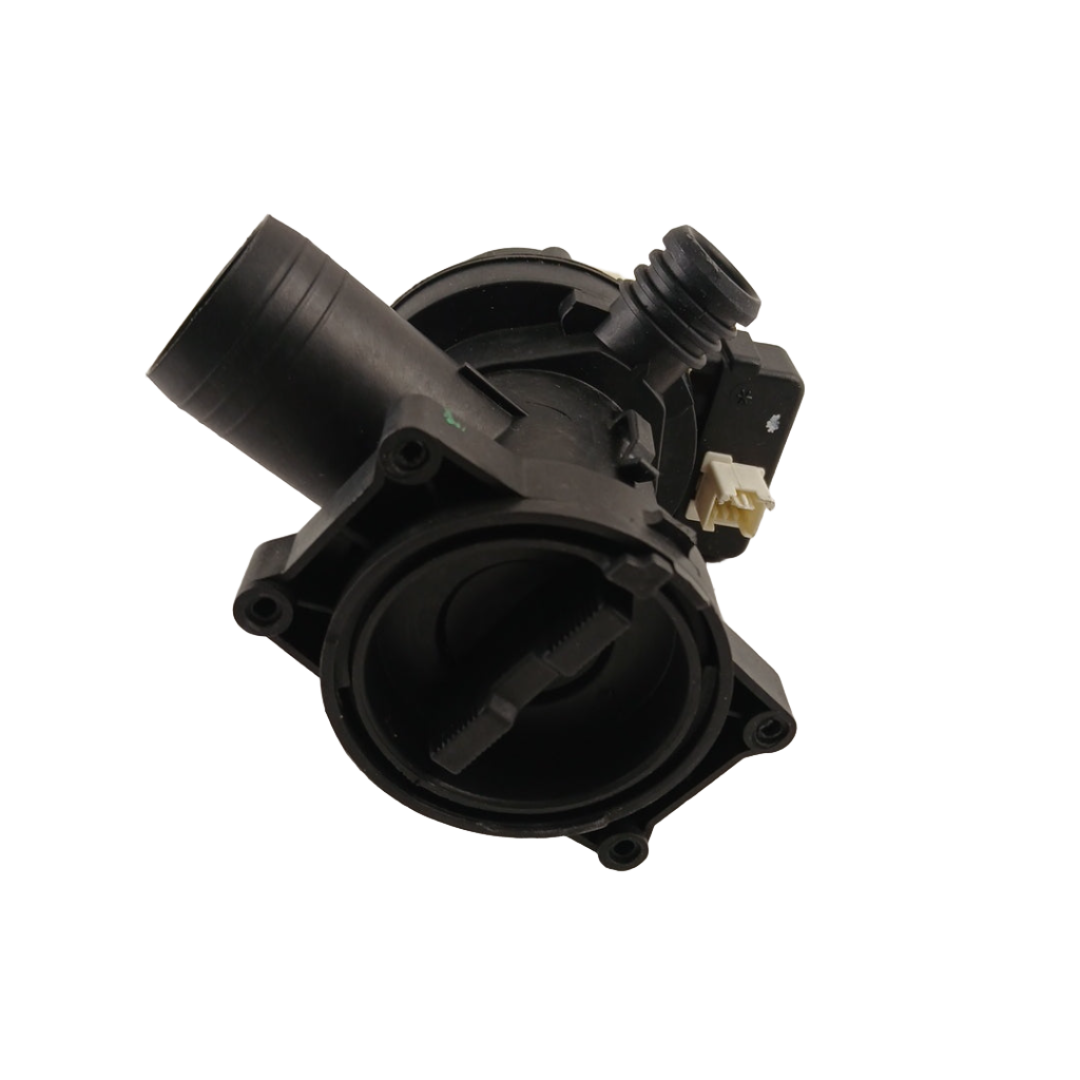

Whirlpool Pump-Water / Washer Water Pump Assembly W11046209, Replaces W10846320

Genuine Whirlpool OEM washer water pump used to remove water during drain and spin cycles and to recirculate water during washing.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Slow draining or no draining
• Extended cycle time caused by delayed draining
• Pump operating with little or no water flow
• Water leaking from the pump area

Check Before Replacing

• Disconnect electrical power before servicing.
• Check the drain hose and accessible pump inlet area for kinks, lint, coins, or other obstructions.
• Visually inspect the pump housing, hoses, and connections for cracks, loose connections, or signs of leakage.
• If the washer has a service diagnostic cycle, observe whether the drain-pump function activates; a pump-related symptom can also be caused by a blocked hose, wiring, or control problem.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM pump-water assembly
• Designed for washer drainage during drain and spin cycles
• Supports water recirculation during washing
• Exact archived part identity: W11046209

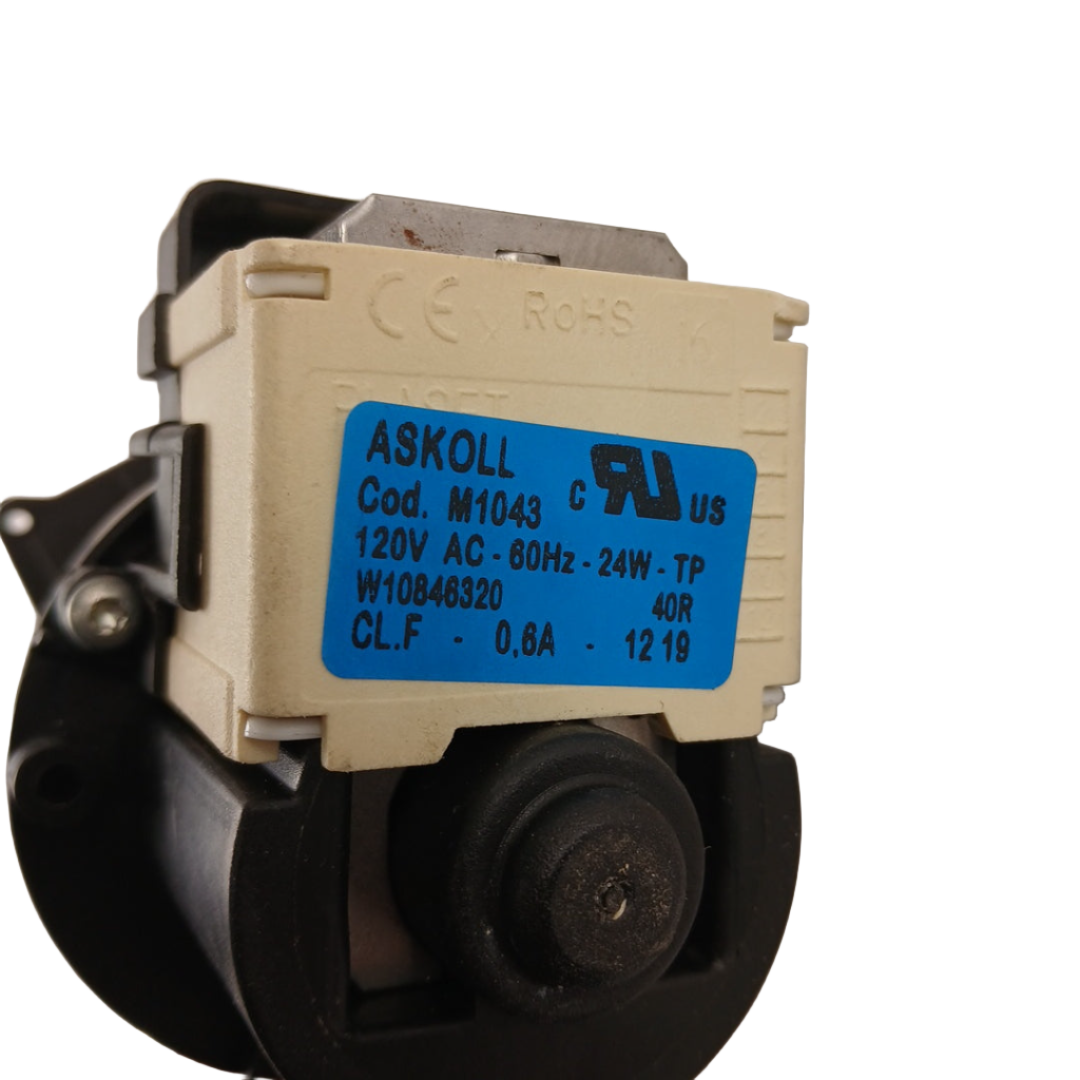

• Prior archive documents W10846320 as the manufacturer previous number

Installation Notes

• Disconnect power before installation or service.
• Remove or drain residual water safely before disconnecting the pump or hoses.
• Transfer or reconnect the washer hoses and electrical connector exactly as shown in the model-specific service documentation.
• Inspect hose and connector seating before restoring power.
• Run a drain operation after installation and check the pump and hose connections for leaks.

Verified Compatible Models

WFW3090GW0, WFW3090GW2, WFW3090JW0, WFW3090JW1, WFW5090GW0, WFW5090GW2, WFW5090JW0, WFW5090JW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
