Whirlpool Washer Harness, Water Inlet Valve W11524851, Replaces W11130934

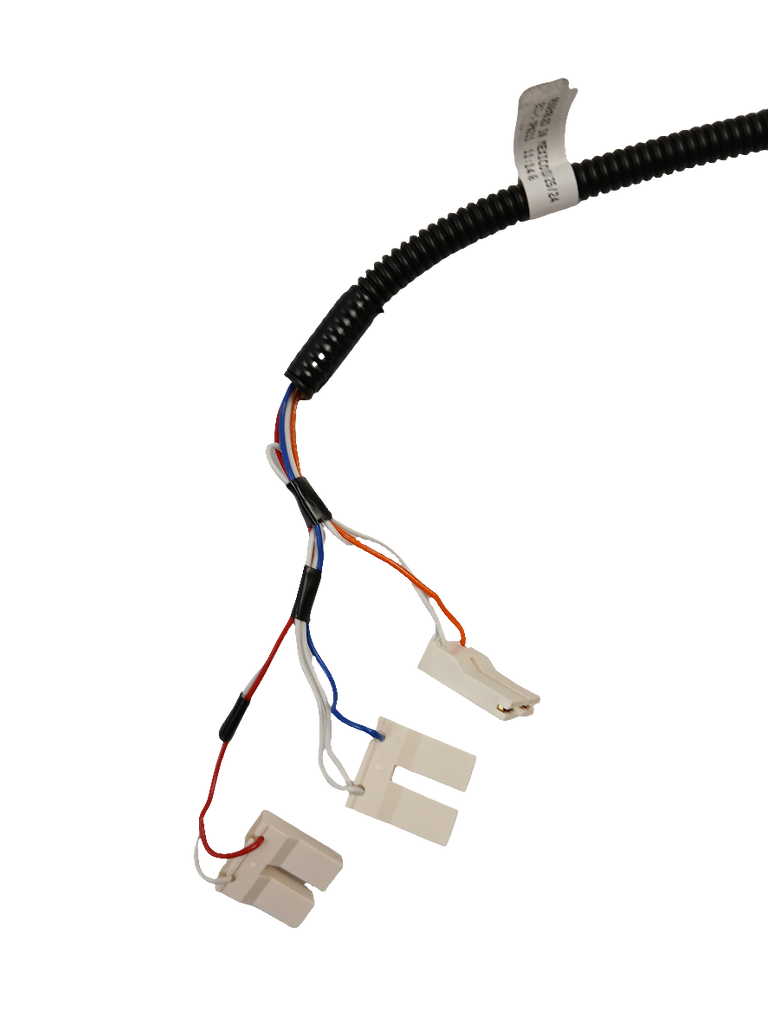

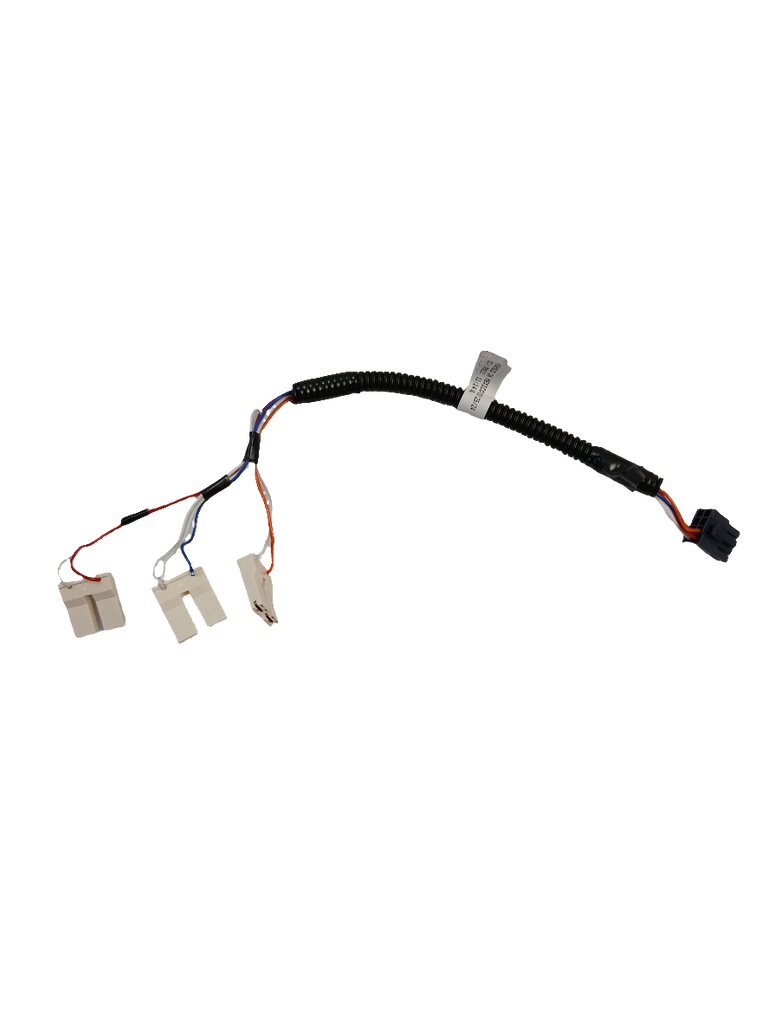

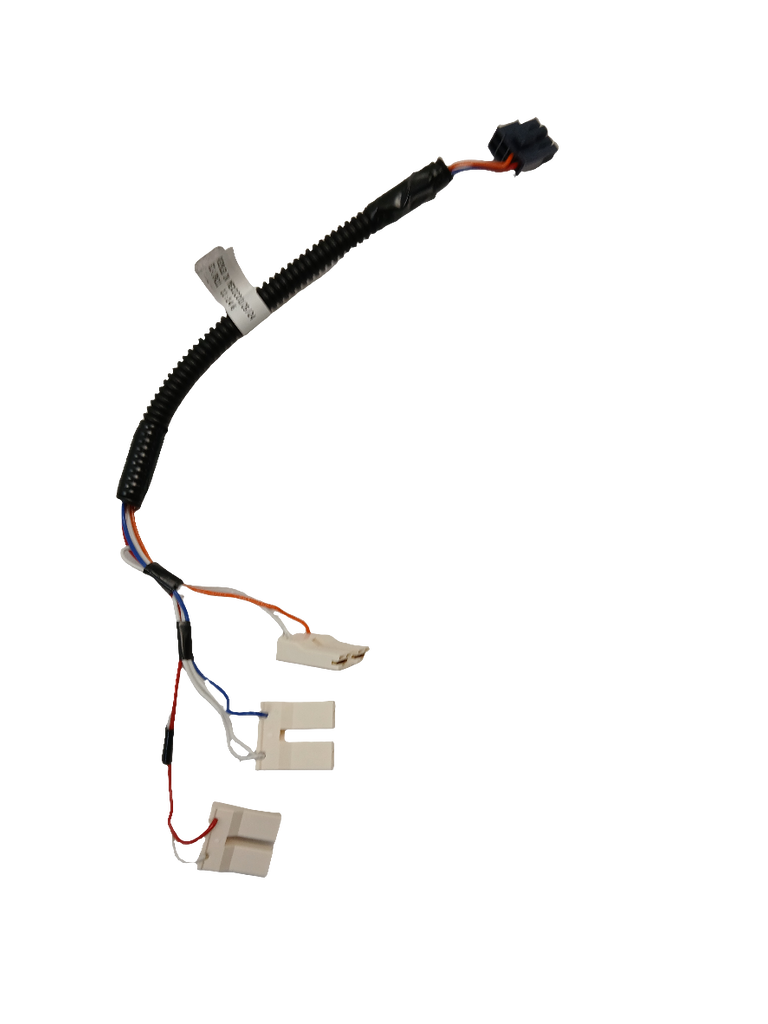

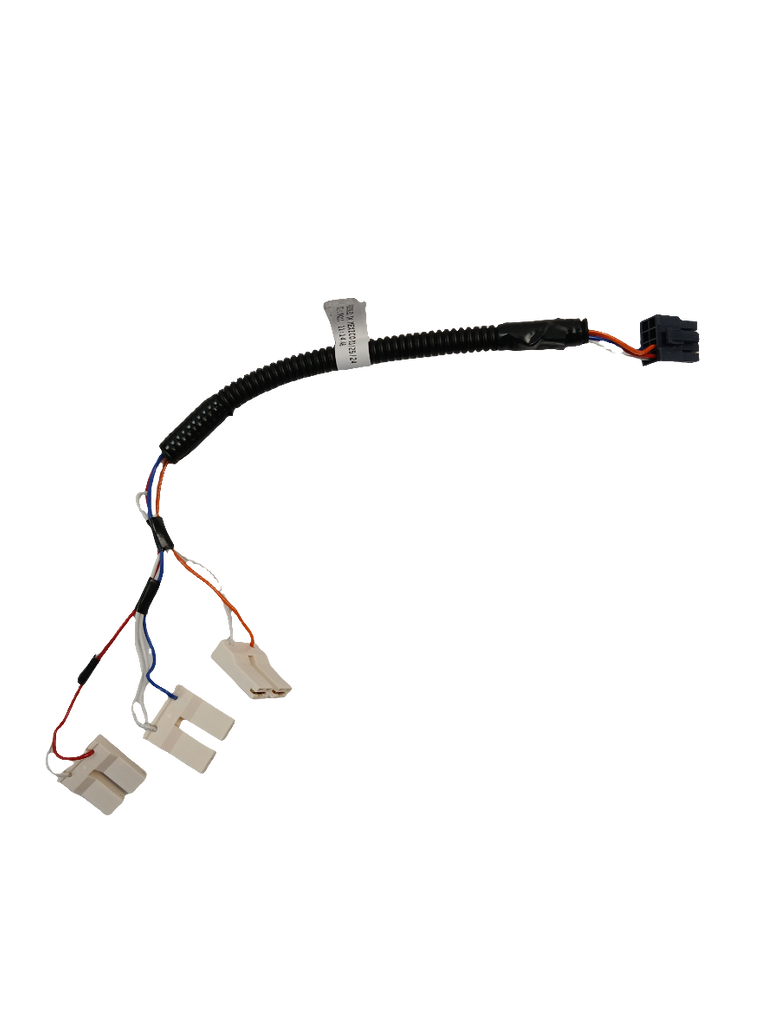

Genuine Whirlpool washer water-inlet-valve wire harness. It connects to the washer's water inlet valve/dispenser assembly.

Is This the Right Part?

Common Symptoms

• No water entering the washer during a fill cycle
• Slow or intermittent filling caused by an unreliable electrical connection
• One fill function or temperature selection not operating when the associated harness circuit is open
• Water-inlet-valve circuit fault after the valve itself tests within specification

Check Before Replacing

• Disconnect power before inspecting the harness.
• With power disconnected, visually inspect the harness for damaged insulation, loose connectors, corrosion, pinched wires, or terminals that are not fully seated.
• Confirm that each harness connector is fully engaged with the control board and the appropriate water-inlet-valve terminals.
• Check the washer’s water supply and inlet hoses separately before attributing a no-fill condition to the harness.
• If qualified to use an ohmmeter, check harness continuity only with the washer unplugged and connectors isolated; compare results with the applicable model’s technical sheet or service documentation.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM wire harness
• Application: washer water-inlet-valve/dispenser assembly
• Connects the valve assembly to the washer wiring/control system
• Exact archived part number: W11524851
• Whirlpool item number: 4991771

Installation Notes

• Disconnect electrical power before servicing.
• Document connector locations and wire routing before removal.
• Disconnect the harness from the control board and water-inlet-valve assembly, then reconnect the replacement harness to the same corresponding locations.
• Ensure connectors are fully seated and wires are routed and retained as in the original installation, away from moving or pinching areas.
• After reassembly, reconnect the water hoses and restore the water supply and electrical power; check for proper filling and leaks.

Verified Compatible Models

WTW500CMW0, WTW500CMW1, WTW6120HC3, WTW6120HW2, WTW6120HW3, WTW6150PB0, WTW6150PW0, WTW6150PW1, WTW6157PB0, WTW6157PB1, WTW6157PW0, WTW7120HC1, WTW7120HW1, WTW8127LC1, WTW8127LC2, WTW8127LC3, WTW8127LW1, WTW8127LW2, WTW8127LW3, ZWW5310RB0, ZWW5310RB1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
