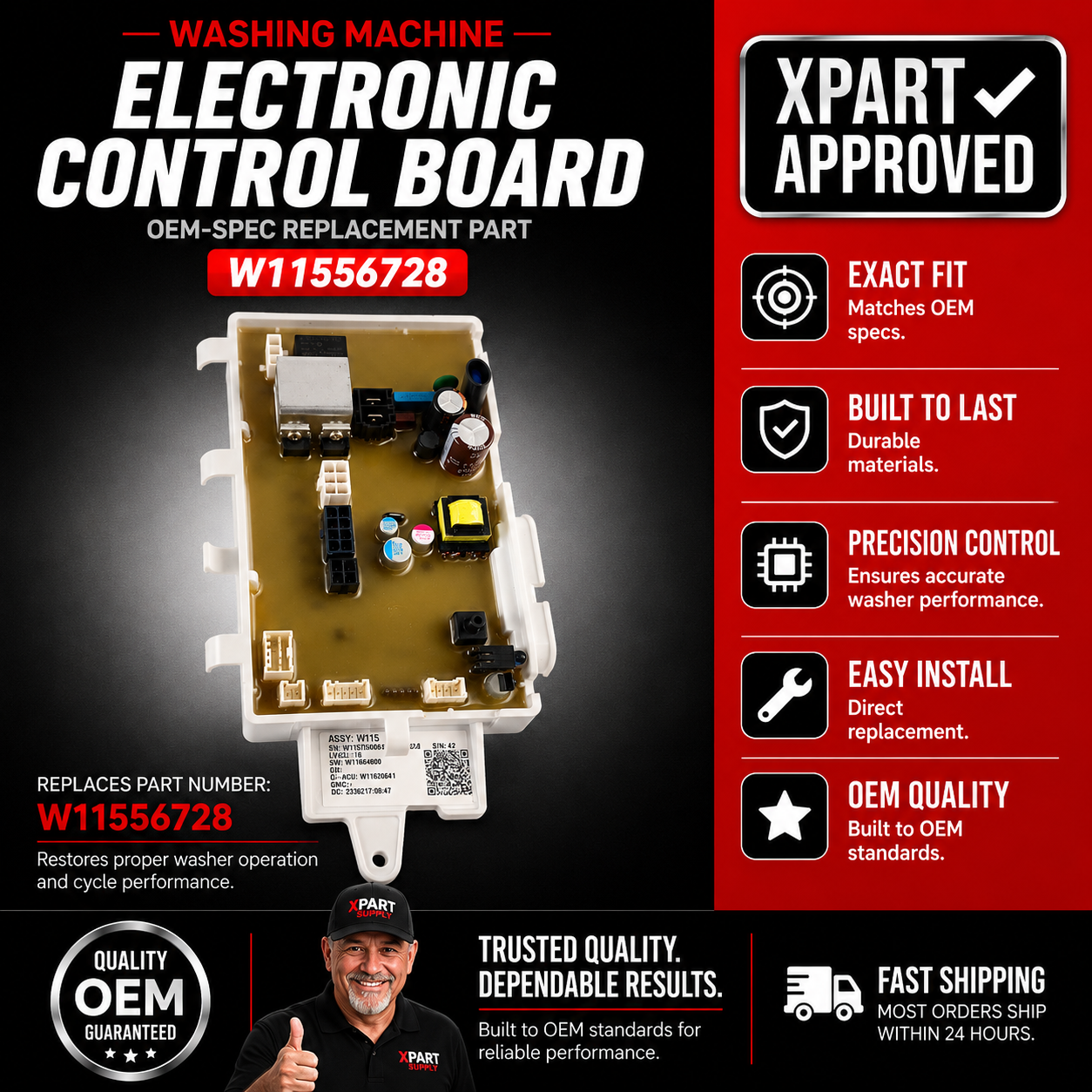

Whirlpool Washer Won’t Start or Throwing Error Codes? Electronic Control Board W11556728 – Fix Cycle & Control Failure Fast

A Whirlpool top-load washer that won’t start, stops mid-cycle, or displays persistent error codes is almost always caused by a failed electronic control board. In most Whirlpool top-load washers, the control board is the central processor managing every wash function — cycle selection, motor control, water level, spin speed, and error diagnostics. When it fails, the washer may not respond to any input, throw fault codes that won’t clear, or stop unpredictably mid-cycle. ⚡ Common failure point in Whirlpool-built top-load washers. Part W11556728 is the genuine OEM replacement that restores full washer control with a direct plug-in fit — replaces W11524826 with no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on — display activates or partially activates
• ✔ Power supply and outlet are confirmed good — not a wiring or breaker issue
• ✔ Lid switch and door latch are confirmed functional
• ✔ Water supply valves are open and water inlet is confirmed working
• ✔ ONLY problem is no start, error codes, mid-cycle stops, or unresponsive controls

🔧 Common Symptoms

• Washer won’t start — no response when cycle is selected and started
• Error or fault codes on the display that won’t clear after power cycling
• Washer stops mid-cycle and won’t resume
• Control panel buttons unresponsive or intermittently responsive
• Washer fills with water but agitator or spin drum won’t activate
• Cycle completes but clothes are still soaking wet — spin not engaging

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the electronic control board restores full washer operation immediately.

📦 Part Details

• Part Number: W11556728
• Type: Washer Electronic Control Board (Main PCB) — Item #10 in diagram
• Replaces: W11524826 — no modification required
• Brands: Whirlpool (top-load washing machines)

⚙️ Installation Notes

Skill Level: Moderate — 30–45 minutes. Disconnect power at the outlet or breaker before servicing. Access the control board by removing the washer’s control panel or rear access panel depending on your model. Photograph all wire harness connections before disconnecting. Remove the mounting screws, swap the old board for the new one, reconnect all harnesses using your photos as reference, and restore power. Run a full diagnostic cycle to confirm all functions are operational and no fault codes return.

💡 Pro Tip

Whirlpool WTW5105HC2, Whirlpool WTW5105HW2

✓ Model-Specific Repair Pages
